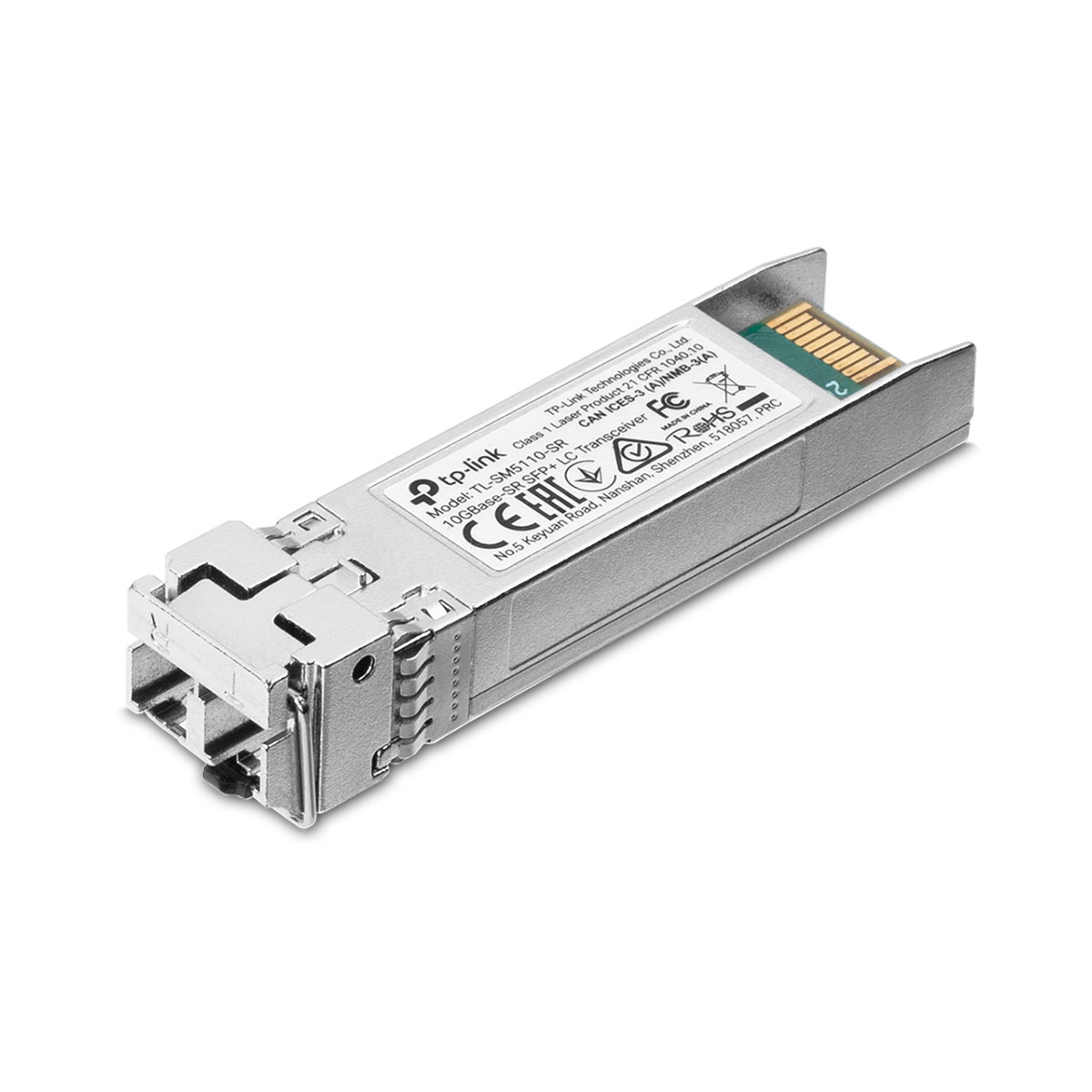

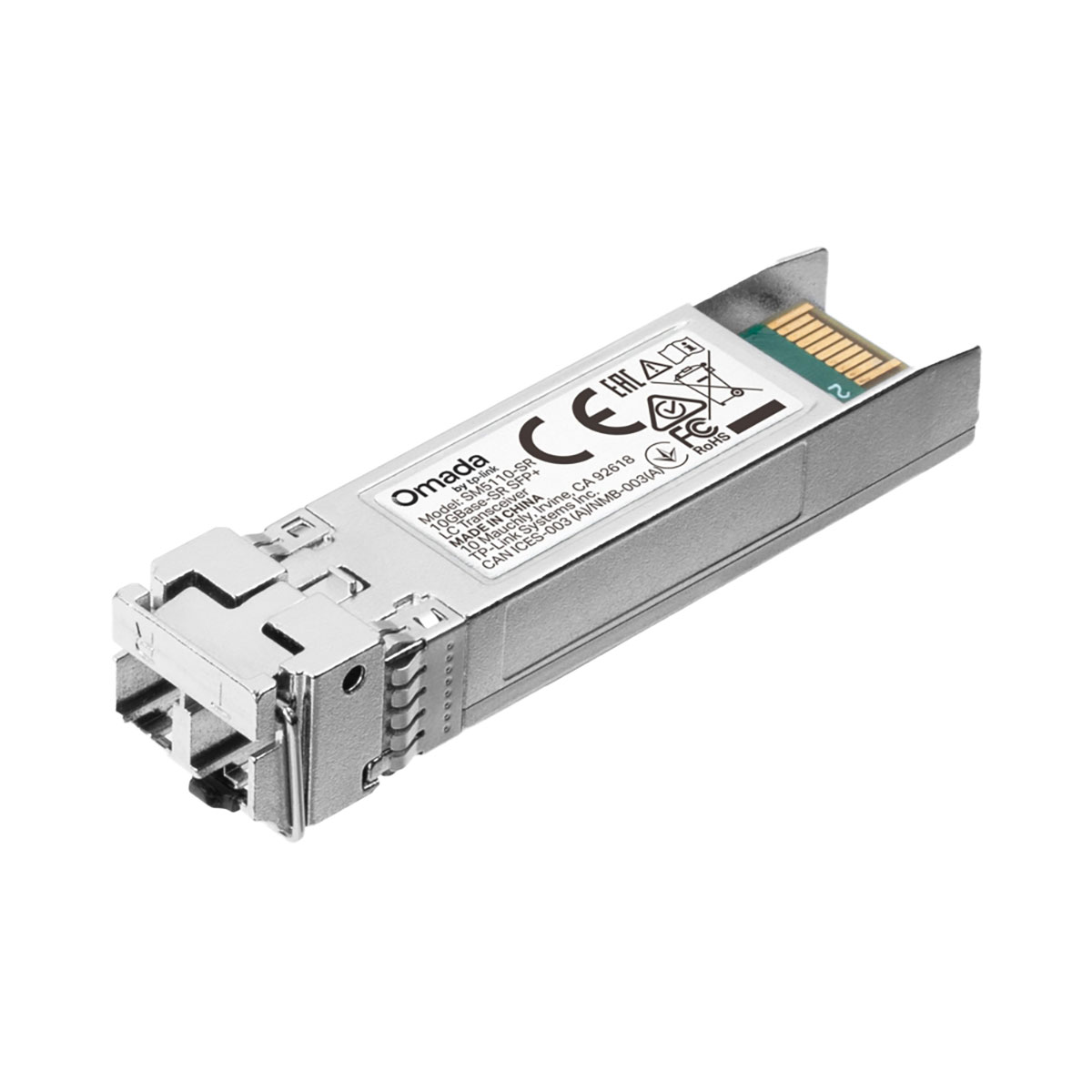

TP-LINK SM5110-SR V1.3 Omada 10GBase-SR SFP+ LC Transceiver
Κωδικός προϊόντος:
SM5110-SR
24,90 €
(Περιλαμβάνει ΦΠΑ 24%)
Τιμή χωρίς ΦΠΑ:
20,08 €
Άμεσα διαθέσιμο
TP-LINK SM5110-SR V1.3 Omada 10GBase-SR SFP+ LC Transceiver
Υπολογισμός κόστους μεταφορικών:
Ποσότητα
Περιγραφή
Χαρακτηριστικά
Λήψεις
Περιγραφή
|
• Multi-mode SFP+ LC Transceiver |
What This Product Does
The SM5110-SR is designed to extend transfer distances based on 10Gbps Ethernet connectivity. It is a 10GBASE-SR high performance 850nm multi-mode SFP+ transceiver. It supports full duplex, 10G Ethernet connections up to 300m or 33m with 50/125µm or 62.5/125µm fiber cables respectively.
Χαρακτηριστικά
| General Specifications | |
| Standards and Protocols |
IEEE 802.3ae, TCP/IP, SFF-8472 |
| Wave Length | 850 nm |
| Dimensions (W*D*H) | 61.3*14.5*12.2 mm |
| Power Supply | 3.3V |
| Safety & Emission | FCC, CE |
| Fiber Type | 50/125 or 62.5/125 μm multi-mode fiber |
| Max. Cable Length | 300 m (50/125 μm cable), 33 m (62.5/125 μm cable |
| Data Rate | 10 Gbps |
| Port Type | LC Duplex |
| Hardware Features | • DDM • SFP-MSA • Hot Swappable |
| Max. Laser Output Power |
0.794 mW (-1 dBm) |
| Environmental and Physical Specifications | |
| Operating Temperature | 0˚C to 70˚C |
| Storage Temperature | -40˚C to 85˚C |
| Operating Humidity | 10% to 90% RH, Non-condensing |
| Storage Humidity | 5% to 90% RH, Non-condensing |
