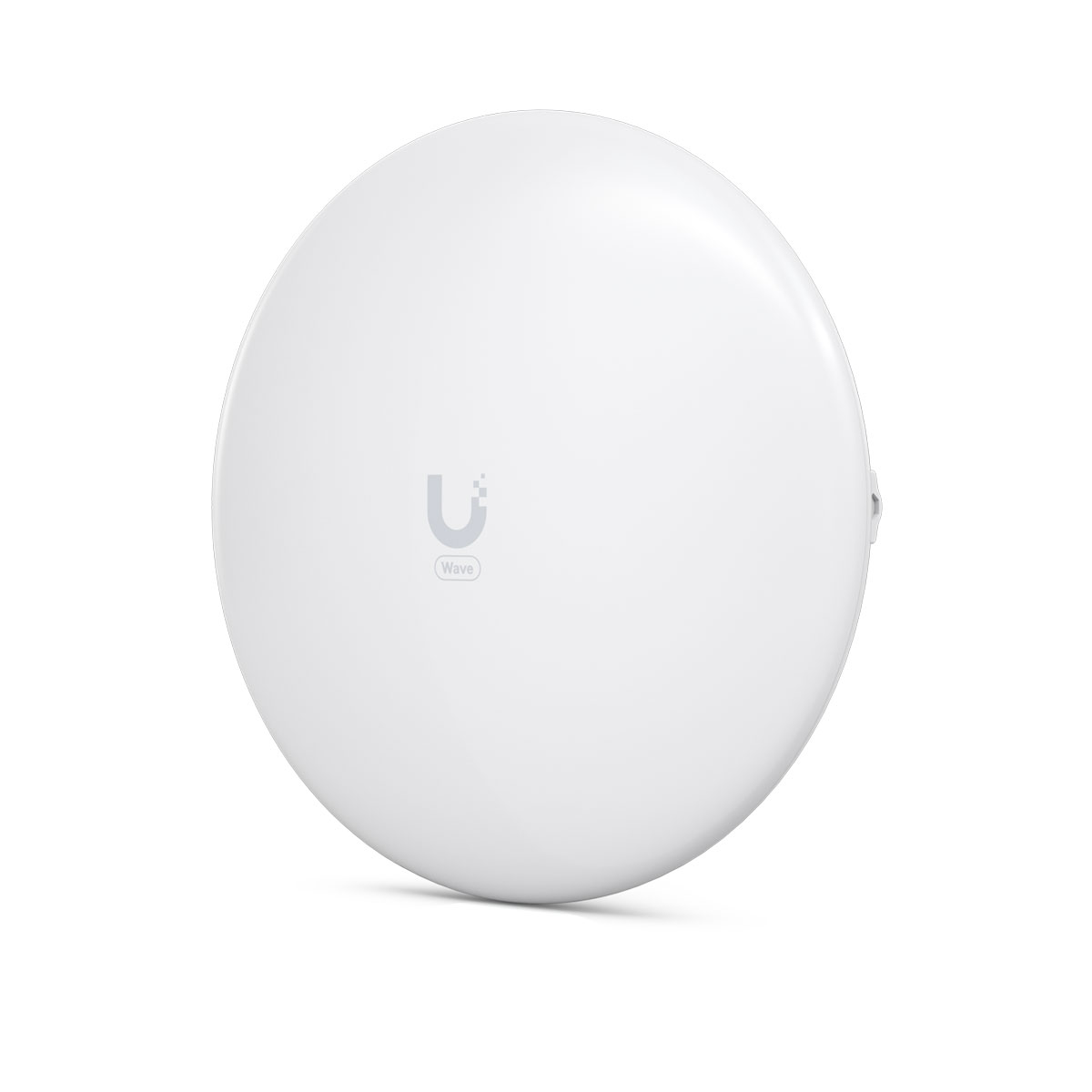

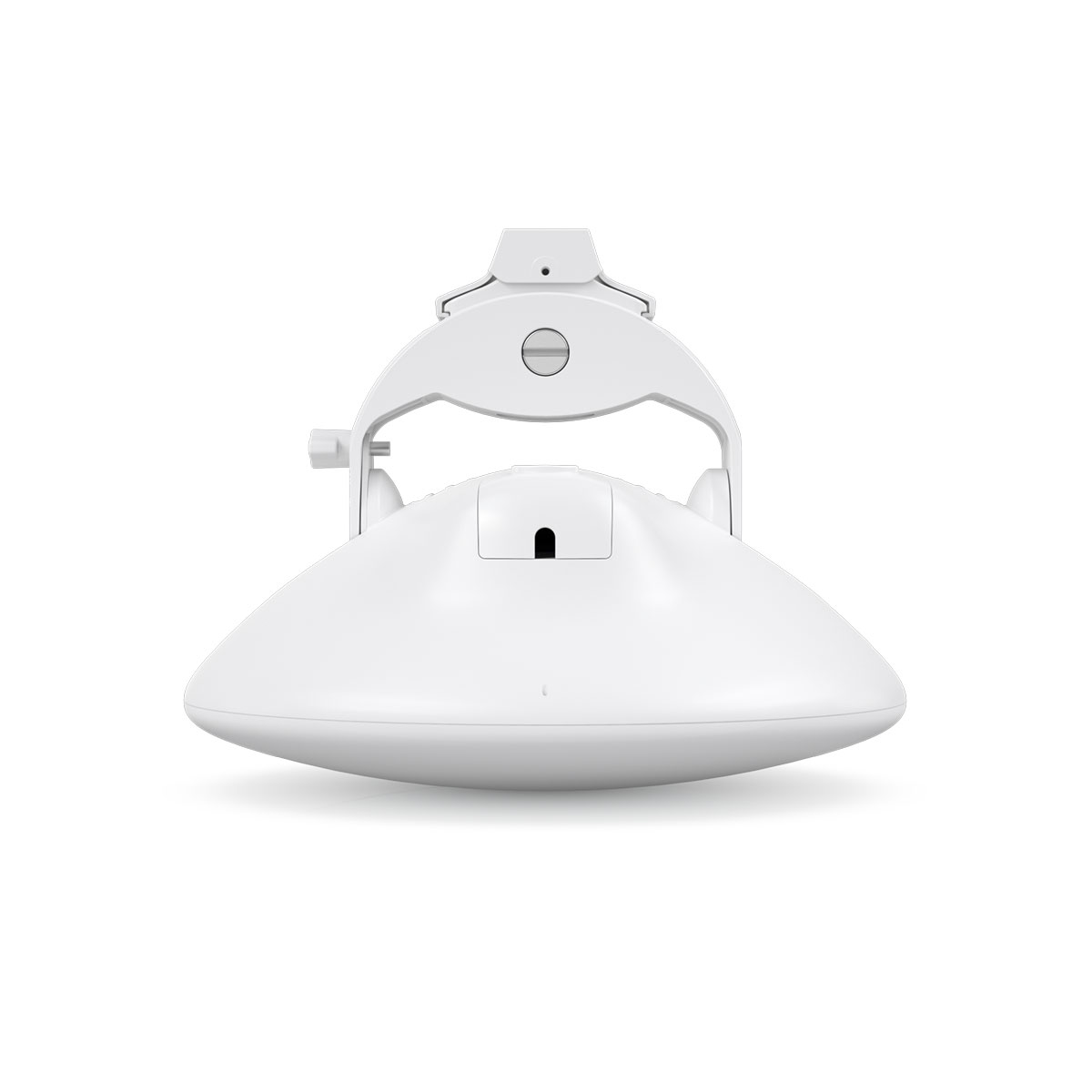

Ubiquiti Wave-Nano UISP Wave Nano
Wave-Nano is a 60 GHz point-to-multipoint (PtMP) client device with built-in 5 GHz backup (WiFi 6 - 802.11ax) from Ubiquiti Networks with a range up to 5 km+ and is ideal for ISPs. The very compact and durable device is also equipped with integrated GPS, Bluetooth for simple initial setup from a mobile via the UISP mobile application and a Gigabit LAN port with PoE support. The device supports both bridge and NAT mode and supports 1080 and 2160MHz channel width in the 60GHz spectrum. The maximum bandwidth indicated by the manufacturer at 16 QAM is 2 Gbps (1 Gbps full duplex).
Key Features
- Compact dimensions - 257 × 257 × 114 mm
- 60GHz spectrum with low interference - 57 to 71 GHz
- Range up to 5 km+
- 2Gbps Throughput (1 Gbps FD)
- Supports half channel width to achieve longer distance or better availability in bad weather
- Supported channels: 58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69200, 70200 MHz- depends on the place of use
- Gigabit LAN port with passive PoE support (24 or 48V DC)
- Built-in GPS
- Settings via web management and bluetooth - UISP mobile application

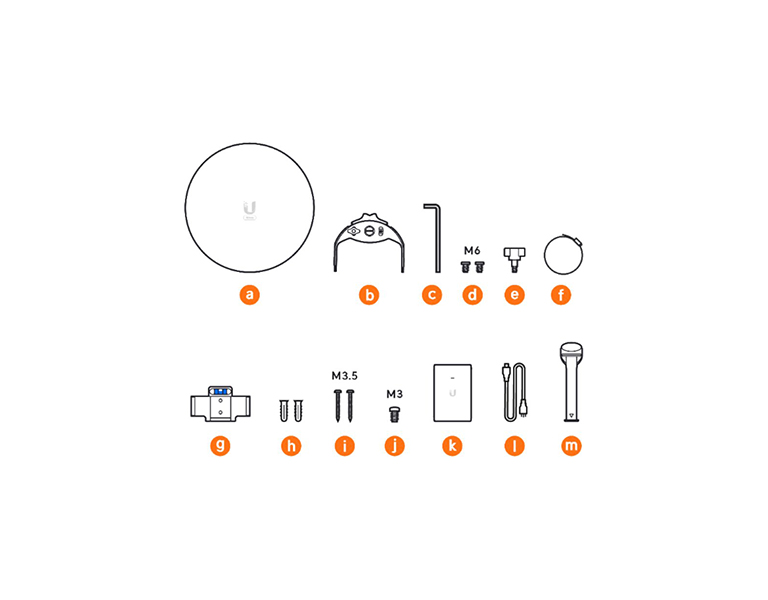

Package contents
- Device
- Fine Tuning Holder
- PoE power adapter 48 V/0.65 A
- Power cord

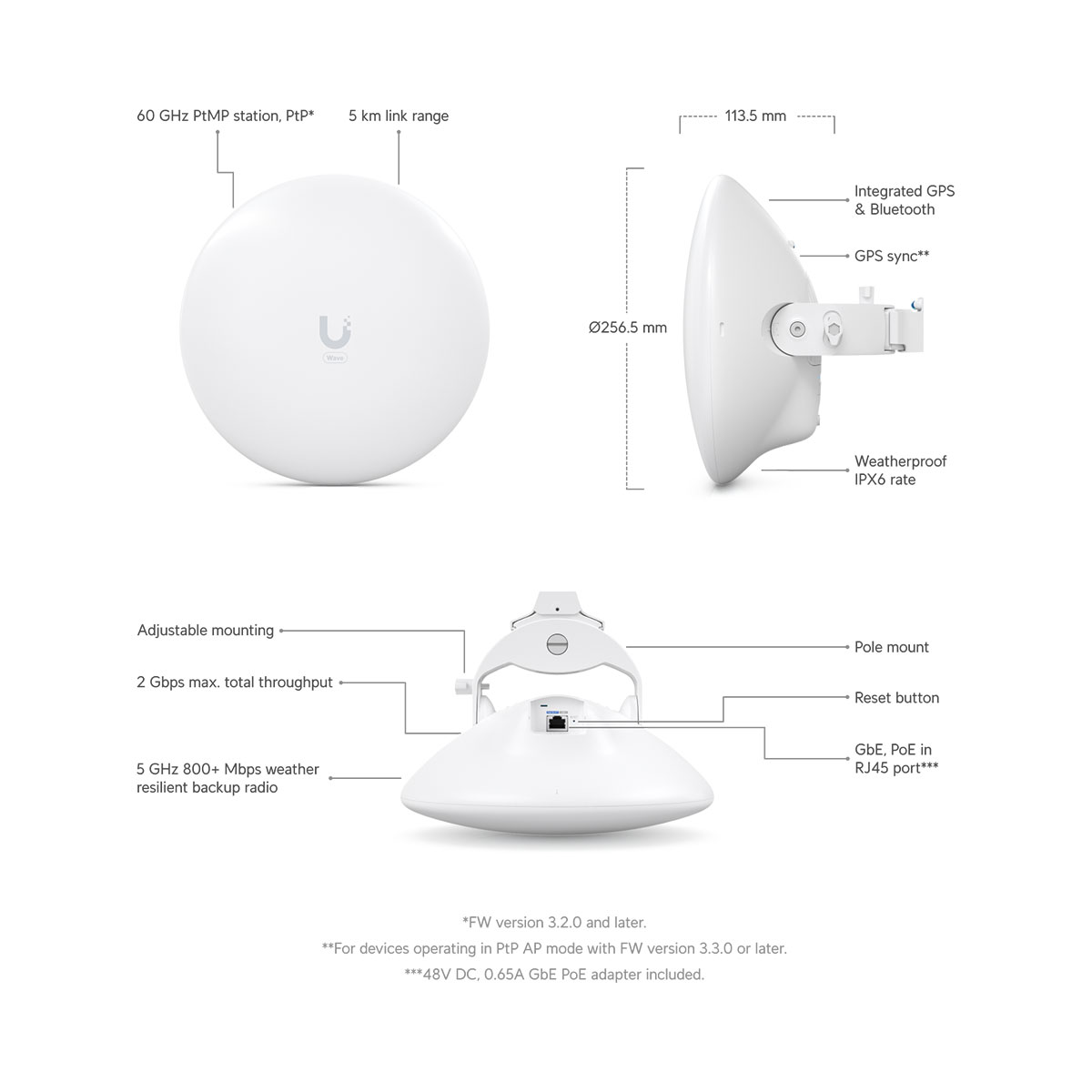

| Mechanical | |
| Dimensions | Ø256.5 x 113.5 mm |
| Weight | Without mount: 932 g With mount: 1.2 kg |
| Enclosure materials | Aluminum alloy, UV stabilized polycarbonate |
| Mount material | Aluminum alloy, UV stabilized polycarbonate |

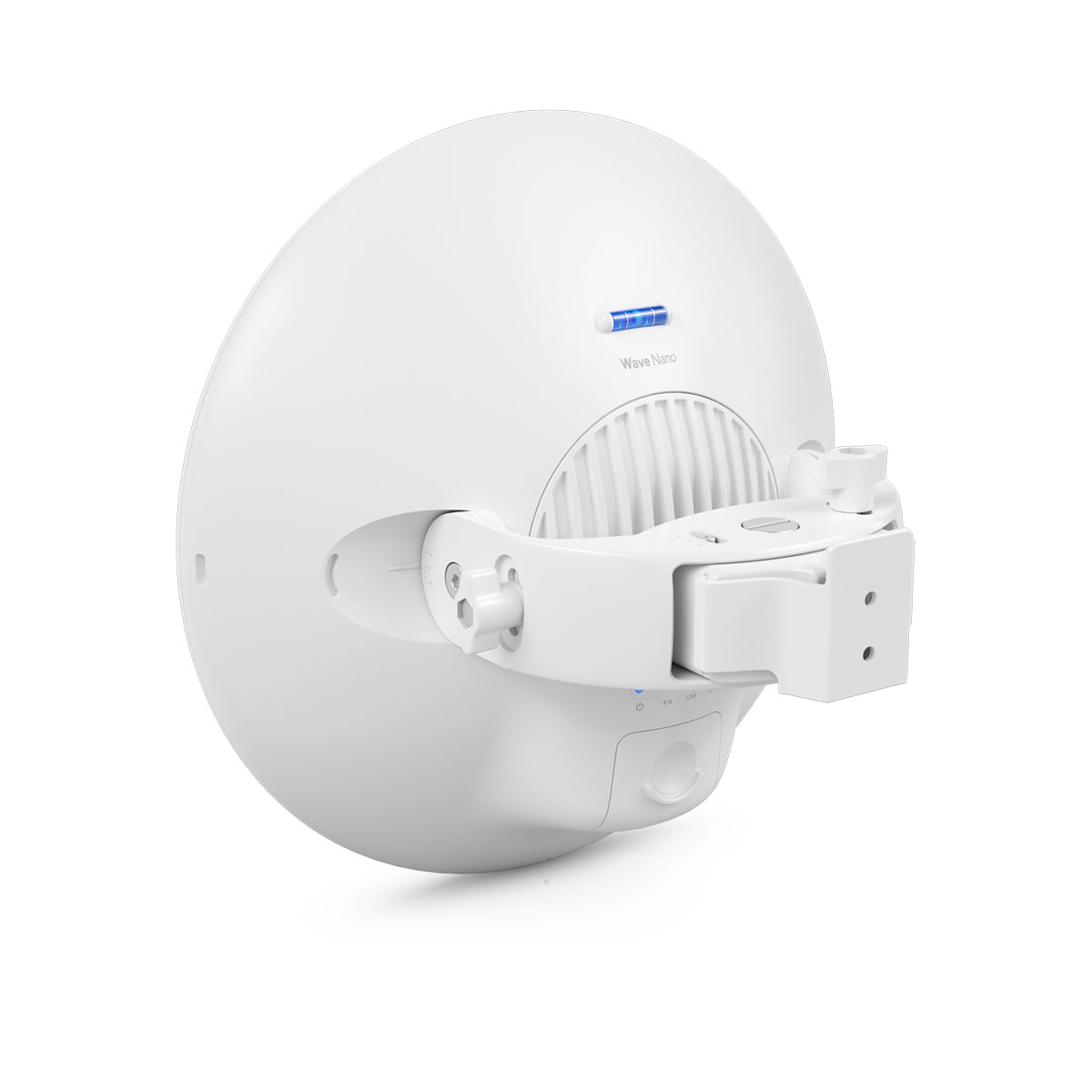

| Mounting | Pole Mount |
| Pole Mount Diameter | 25 to 63.5 mm (on pipe outer diameter) |
| Wind Loading | 127 N at 200 km/h |
| Weatherproofing | IPX6 |
| Hardware | |
| Processor | Dual-core ARM® Cortex®-A53 at 1 GHz |
| Memory | 512 MB |
| Networking interface | (1) GbE RJ45 port |
| Max. Power Consumption | 20W |
| Power Method | Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only |
| Supported Voltage Range | 44–54V DC 22–27V DC |
| Power Supply | 48V DC, 0.65A gigabit PoE adapter (Included) |
| GPS | ✓ |
| Buttons | (1) Factory reset |

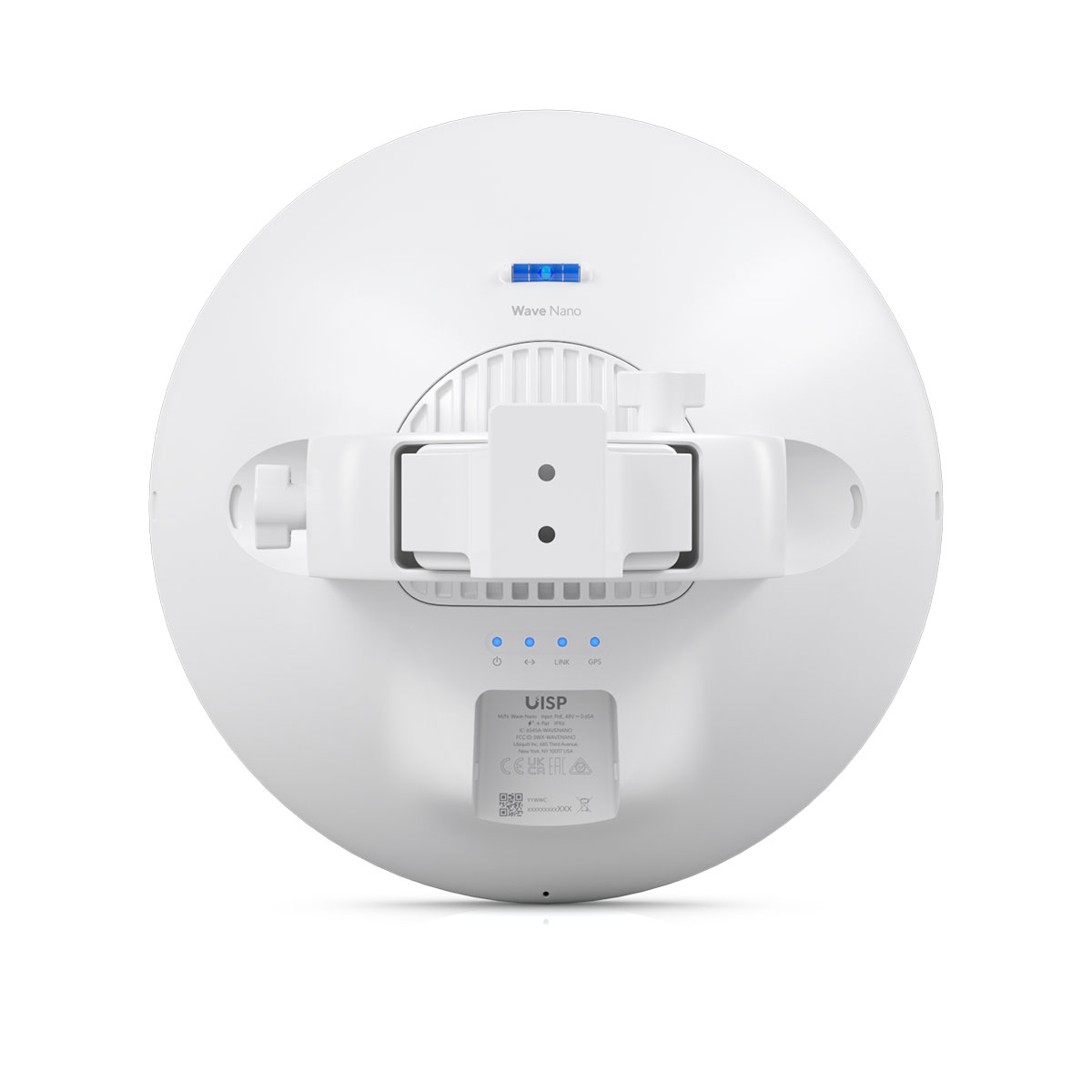

| LEDs |

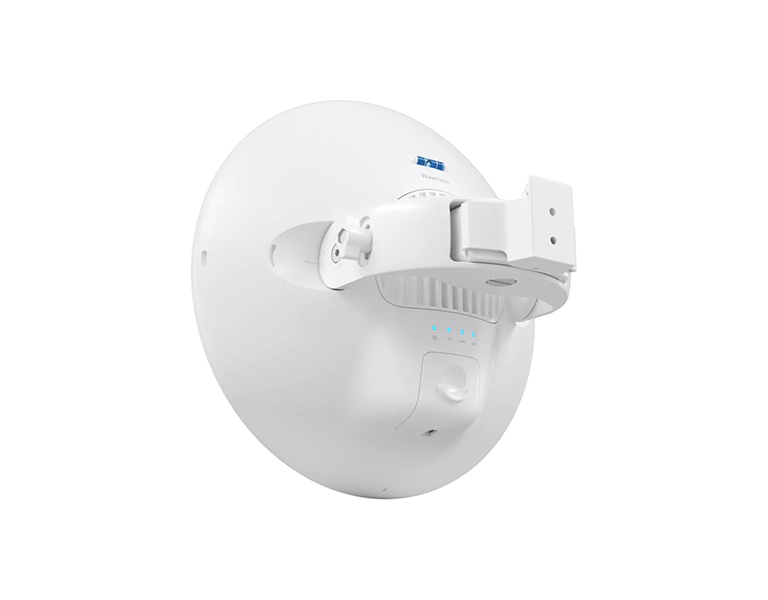

Power - Flashing white: bootup in progress White: not connected to UISP application Blue: connected to UISP application Flashing blue: locate in progress Blue/white: firmware upgrade in progress Ethernet - Flashing blue: Ethernet traffic detected GPS - Blue: receiving at least (4) GPS satellite signal Link - White: 5 GHz link |
| Ambient Operating Temperature | -40 to 60° C |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| NDAA Compliant | ✓ |
| Certifications | FCC, IC, CE |
| Software | |
| Operating Modes | PtP PtMP Station (PtP supported with FW version 3.2.0 and later) |
| Ubiquiti Specific Features |
Discovery Protocol - ✓ Traffic Shaping with Burst Support - ✓ (Requires FW 3.4.0 or later) |
| Services |
UISP - ✓ Ping Watchdog - ✓ NTP Client - ✓ SNMP - ✓ |
| Tools |
Cable Test - ✓ Wave AI - ✓ Wave Technology - ✓ |
| Utilities |
Antenna Alignment - ✓ Ping - ✓ Site Survey - ✓ Speed Test - ✓ Traceroute - ✓ |
| Network | Bridge/Router mode (Router is available in PtMP station mode only) |
| Application Requirements | UISP - Version 1.4.5 and later |
| System | |
| Total Throughput | 2 Gbps |
| Max. Range | 5+ km |
| Encryption | WPA2-PSK (AES) |
| Radio Frequency | |
| Operating frequency | 57 to 71 GHz *Depends onregulatory region |
| Channel bandwidth | 2160, 1080, 540 MHz (540 Mhz is supported in FW 3.3.0 and later) |
| Operating Channels | 58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200, 70560 MHz |
| Modulation | 16QAM, QPSK |
| Antenna gain | 41 dBi |
| Polarization | Vertically-Linear |
| Beamwidth | Azimuth: 3 dB 1.4° Elevation: 3 dB 1.4° |
| Radio Frequency (Back-Up) | |
| WiFi standard | 802.11ax (WiFi 6) |
| Operating frequency | Worldwide 5150 - 5875 MHz |
| Channel bandwidth | 20, 40, 80 MHz |
| Modulation | BPSK (½) QPSK (½), QPSK (¾) 16QAM (½), 16QAM (¾) 64QAM (2⁄3), 64QAM (¾), 64QAM (5⁄6) 256QAM (¾), 256QAM (5⁄6) 1024QAM (¾), 1024QAM (5⁄6) |
| Antenna gain | 19 dBi |
| Polarization | Dual-linear |
| Cross-pol isolation | 20 dB |
| Beamwidth | Azimuth: 3 dB 14° Elevation: 3 dB 14° |
Προσοχή! Bάσει της ισχύουσας Ελληνικής Νομοθεσίας, του Ε.Κ.Κ.Ζ.Σ. και των όσων προβλέπει το Π.Δ. 98/2017 η νόμιμη χρήση του προϊόντος αυτού στις ζώνες συχνοτήτων 5150 – 5250MHz και 5250 – 5350MHz προβλέπει μέγιστη ισχύ εκπομπής τα 200 mW e.i.r.p. και στη ζώνη συχνοτήτων 5470 – 5725MHz, προβλέπει μέγιστη ισχύ εκπομπής το 1 W e.i.r.p.
Στην ισχύ αυτή συνυπολογίζεται η ισχύς εξόδου του πομπού και το κέρδος της κεραίας. Αρμόδια για την εποπτεία του φάσματος είναι η E.E.T.T.
Το προϊόν αυτό είναι εφοδιασμένο με σήμα συμμόρφωσης CE Βλ. Π.Δ. 98/2017
Το προϊόν αυτό προορίζεται για χρήση σε εξωτερικούς χώρους.
