Ubiquiti Wave-AP-Gen2, UISP Wave Access Point Gen2
Ubiquiti Wave-AP-Gen2, UISP Wave Access Point Gen2
The Wave Access Point Gen2 is a 60GHz point-to-multipoint (PtMP) transmission unit with a built-in 5 GHz backup (WiFi 6 - 802.11ax) from Ubiquiti, offering a range of up to 6 km. It is an ideal solution for internet service providers. This highly compact device is also equipped with an integrated GPS, Bluetooth for easy initial setup via the UISP mobile app, a 2.5 Gigabit LAN port with PoE support, and an SFP+ port. The device only supports bridge mode and in the 60GHz spectrum supports 540, 1080, and 2160 MHz channel widths. The maximum throughput stated by the manufacturer is 5.4 Gbps (2.7 Gbps full duplex).
Key Features:

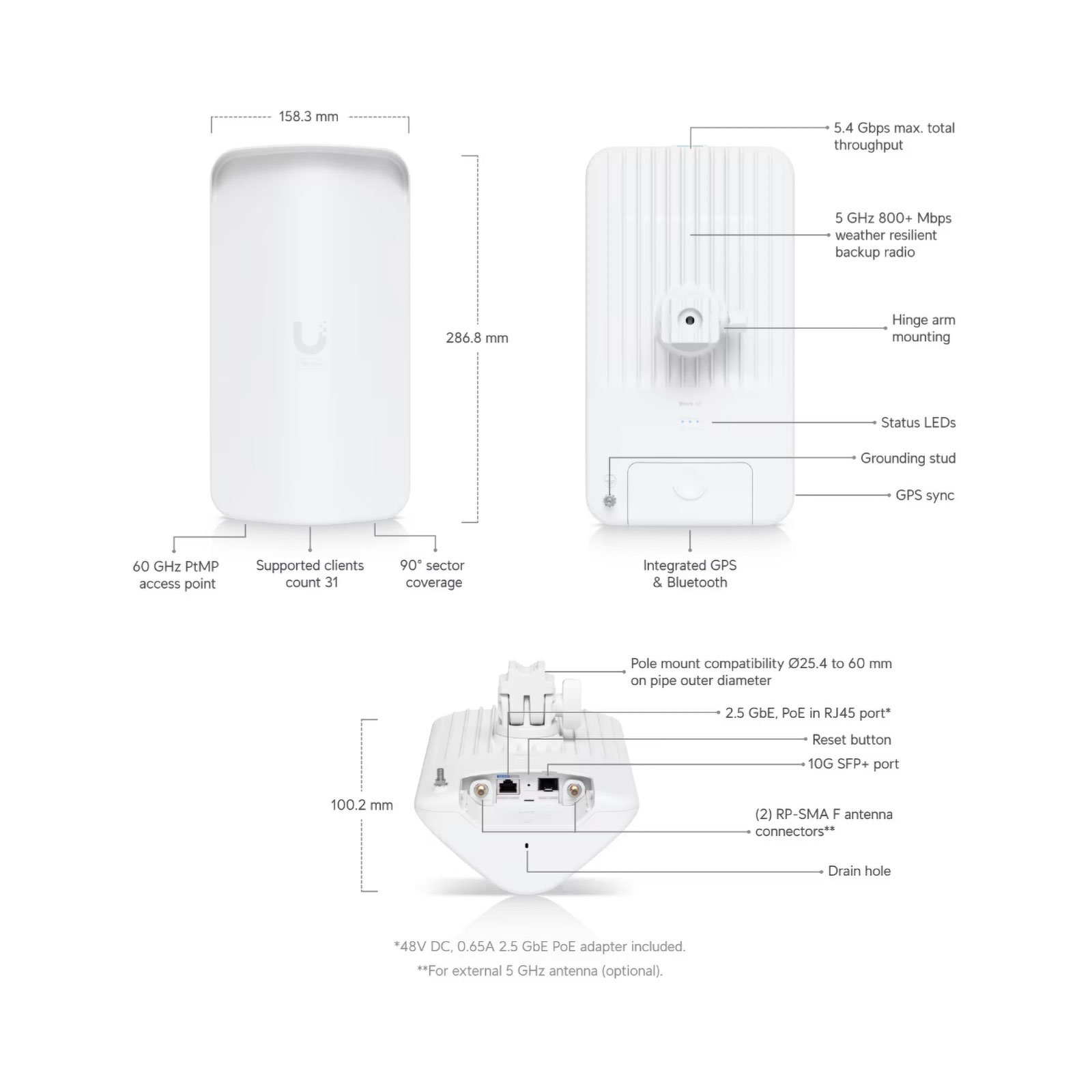

- Compact size – 287 × 158 × 100 mm
- 60 GHz low-interference spectrum – 57 to 71 GHz
- Range up to 6 km – depending on regulations in the country of use, supports up to 31 clients
- Throughput of 5.4 Gbps (2.7 Gbps FD)
- Supports 540 and 1024 MHz channel widths for longer distance or better performance in poor weather conditions
- Supported channels: 58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200 MHz – depending on location
- 2.5 Gigabit LAN port with passive PoE support (24 or 48V DC) + (1) SFP+ (1/10 Gbps)
- Built-in GPS
- Configuration via web management and Bluetooth – UISP mobile app
Package Contents:
- Device
- Mounting bracket
- 2.5G PoE adapter 48V/0.65A
| Mechanical | |
| Dimensions | 158.3 x 286.8 x 100.2 mm |
| Weight | 1.5 kg |
| Enclosure materials | UV stabilized polycarbonate, aluminum alloy |

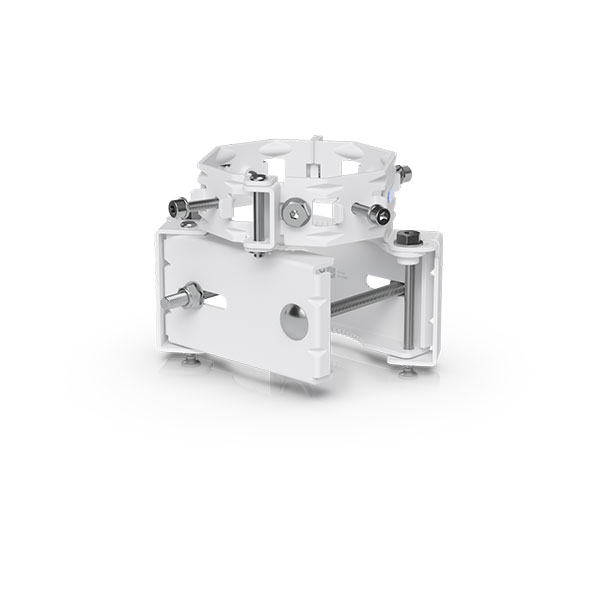

| Pole mount diameter | 25.4 to 60 mm on pipe outer diameter |
| Wind loading | 109.8 N at 200 km/h |
| Weatherproong | IPX6 |
| Hardware | |
| Processor | Quad-core ARM® Cortex®-A53 at 1.4 GHz |
| Memory | DDR3L 512MB |

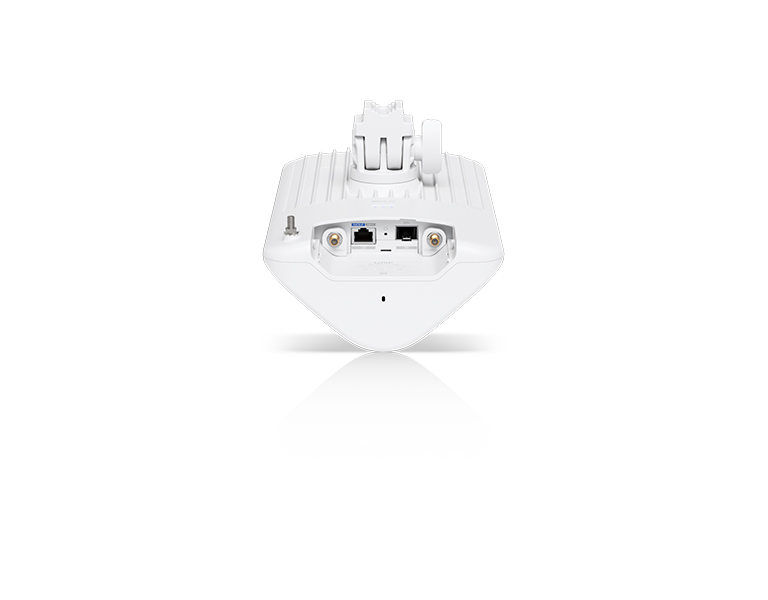

| Networking interface | (1) 2.5 GbE RJ45 port (1) 10G SFP+ port |
| Max. power consumption | 24W |
| Power method | Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only |
| Power supply | 48V DC, 0.65A 2.5GbE PoE adapter (included) |
| Supported voltage range | 44–54V DC 22–27V DC |
| GPS | Yes |
| Button | Factory reset |
| LEDs | Power, Ethernet, GPS |
| Ambient operating temperature | -40 to 60° C |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certications | FCC, IC, CE |
| Software | |
| Operating mode | PtMP access point |
| Ubiquiti specic features | Wave AI, discovery protocol |
| Services | UISP, ping watchdog, NTP client, SNMP |
| Tools | Antenna alignment, discovery utility, ping, trace route, speed test, cable test, site survey |
| Network | Bridge mode |
| Application requirements | UISP: Version 2.4.205 and later |
| System | |
| Total throughput | 5.4 Gbps |
| Supported clients count | 31 |

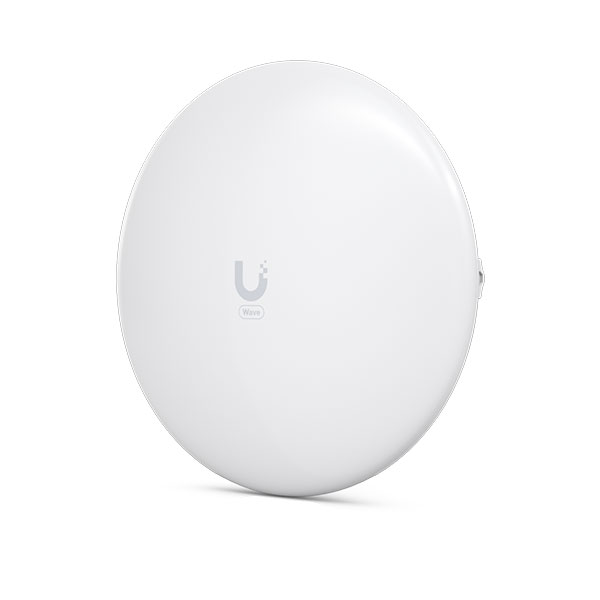

| Max. Range | Connecting to a Wave Pro: up to 6 km Connecting to a Wave Long-Range: up to 6 km Connecting to a Wave Nano: up to 4 km Connecting to a Wave Pico: up to 0.9 km |
| Encryption | WPA2-PSK (AES) |
| RF | |
| Operating frequency* | 57 to 71 GHz *Depends onregulatory region |
| Channel bandwidth | 2160, 1080, 540 MHz |
| Operating channels* | 58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200, 70560 MHz *Depends onregulatory region |
| Modulation | 16QAM, QPSK |
| Antenna gain | 20 dBi |
| Polarization | Vertically linear |
| Beamwidth | Azimuth: 3 dB 90° Elevation: 3 dB 7° |
| Electrical downtilt | 0° |
| Back-Up RF | |
| WiFi standard | 802.11ax (WiFi 6) |
|
Operating frequency* |
U-NII-1 5150 - 5250 MHz U-NII-2A 5250 - 5350 MHz U-NII-2C 5470 - 5725 MHz U-NII-3 5725 - 5850 MH |
| Worldwide | 5150 - 5875 MHz *Depends on regulatory region. |
| Channel bandwidth | 20, 40, 80 MHz |
| Modulation | BPSK (1⁄2), QPSK (1⁄2), QPSK (3⁄4), 16QAM (1⁄2), 16QAM (3⁄4), 64QAM (2⁄3), 64QAM (3⁄4), 64QAM (5⁄6), 256QAM (3⁄4), 256QAM (5⁄6), 1024QAM (3⁄4), 1024QAM (5⁄6) |
| Antenna gain | 13 dBi |
| Cross-pol isolation | 18 dB |
| Polarization | Dual-linear |
| Beamwidth | Azimuth: 6 dB 95° Elevation: 6 dB 25° |
| Electric downtilt | 0° |
| LEDs | |
| Power | Flashing white: bootup in progress White: not connected to UISP application Blue: connected to UISP application Flashing blue: locate in progress Blue/white: firmware upgrade in progress |
| Ethernet | Flashing white: Ethernet traffic detected Flashing blue: SFP+ traffic detecte |
| GPS | Blue: receiving at least (4) GPS satellite signal |
Προσοχή! Bάσει της ισχύουσας Ελληνικής Νομοθεσίας, του Ε.Κ.Κ.Ζ.Σ. και των όσων προβλέπει το Π.Δ. 98/2017 η νόμιμη χρήση του προϊόντος αυτού στις ζώνες συχνοτήτων 5150 – 5250MHz και 5250 – 5350MHz προβλέπει μέγιστη ισχύ εκπομπής τα 200 mW e.i.r.p. και στη ζώνη συχνοτήτων 5470 – 5725MHz, προβλέπει μέγιστη ισχύ εκπομπής το 1 W e.i.r.p.
Στην ισχύ αυτή συνυπολογίζεται η ισχύς εξόδου του πομπού και το κέρδος της κεραίας. Αρμόδια για την εποπτεία του φάσματος είναι η E.E.T.T.
Το προϊόν αυτό είναι εφοδιασμένο με σήμα συμμόρφωσης CE Βλ. Π.Δ. 98/2017
Το προϊόν αυτό προορίζεται για χρήση σε εξωτερικούς χώρους.
Προσοχή! Βάσει της ισχύουσας Ελληνικής Νομοθεσίας, η χρήση των συσκευών που εκπέμπουν στη ζώνη συχνοτήτων 57.000 – 71.000 MHz, πρέπει να είναι σύμφωνη με τα παρακάτω:
Κανονισμός Όρων Χρήσης Ραδιοφάσματος.
Εκτελεστική απόφαση της Ε.Ε.
Αρμόδια για την εποπτεία του φάσματος είναι η E.E.T.T.
Το προϊόν αυτό είναι εφοδιασμένο με σήμα συμμόρφωσης CE βλ. Π.Δ. 98/2017
Το προϊόν αυτό προορίζεται για χρήση σε εξωτερικούς χώρους.
