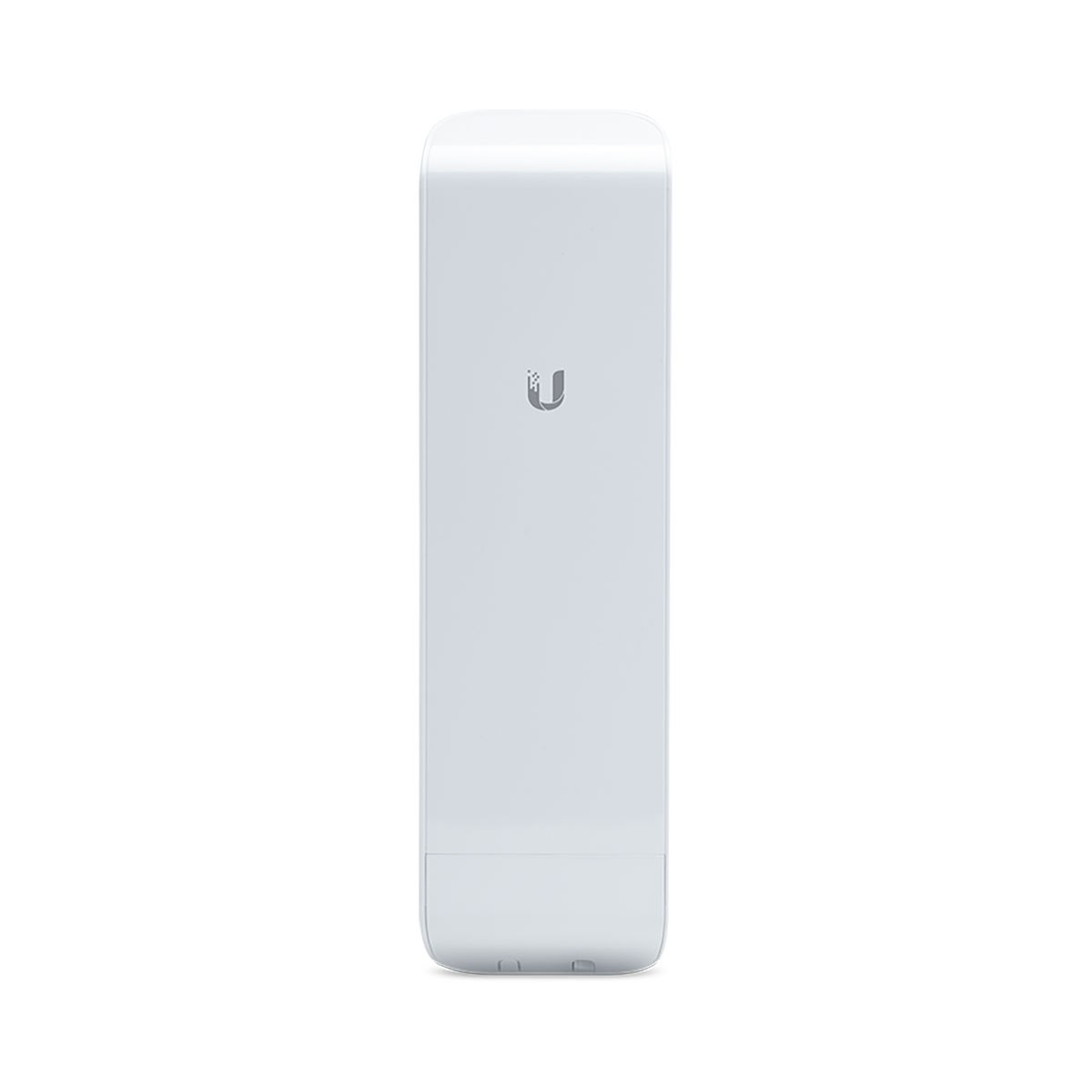

Ubiquiti NSM5 5GHz NanoStation 16dBi airMAX MIMO Outdoor AP-CPE
Overview
Leading-Edge Industrial Design
Ubiquiti Networks sets the bar for the world's first low-cost and efficient broadband Customer Premises Equipment (CPE) with the original NanoStation®. The NanoStationM take the same concept to the future with sleek and elegant form factors, along with integrated airMAX® (MIMO TDMA protocol) technology. The low cost, high performance, and small form factor of NanoStationM make them extremely versatile and economical to deploy.
PtMP Client Links
NanoStationM used as powerful clients in an airMAX PtMP (Point-to-Multi-Point) network setup
PtP Link
Use two NanoStationM to create a PtP link.
Wireless Client
NanoStationM as a powerful wireless client.
Utilize airMAX Technology
Unlike standard Wi-Fi protocol, Ubiquiti’s Time Division Multiple Access (TDMA) airMAX protocol allows each client to send and receive data using pre-designated time slots scheduled by an intelligent AP controller.
This “time slot” method eliminates hidden node collisions and maximizes airtime efficiency. It provides many magnitudes of performance improvements in latency, throughput, and scalability compared to all other outdoor systems in its class.
Intelligent QoS
Priority is given to voice/video for seamless streaming.
Scalability
High capacity and scalability.
Long Distance
Capable of high‑speed, carrier-class links.
Latency
Multiple features dramatically reduce noise.

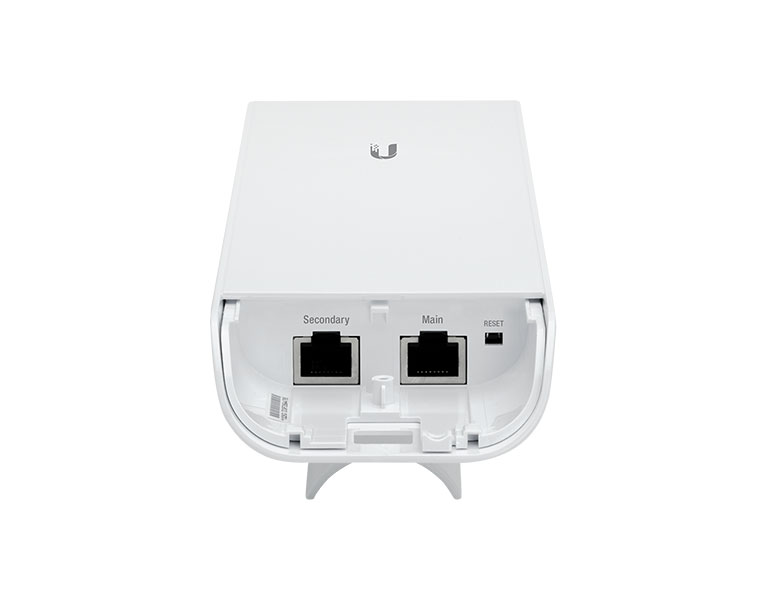

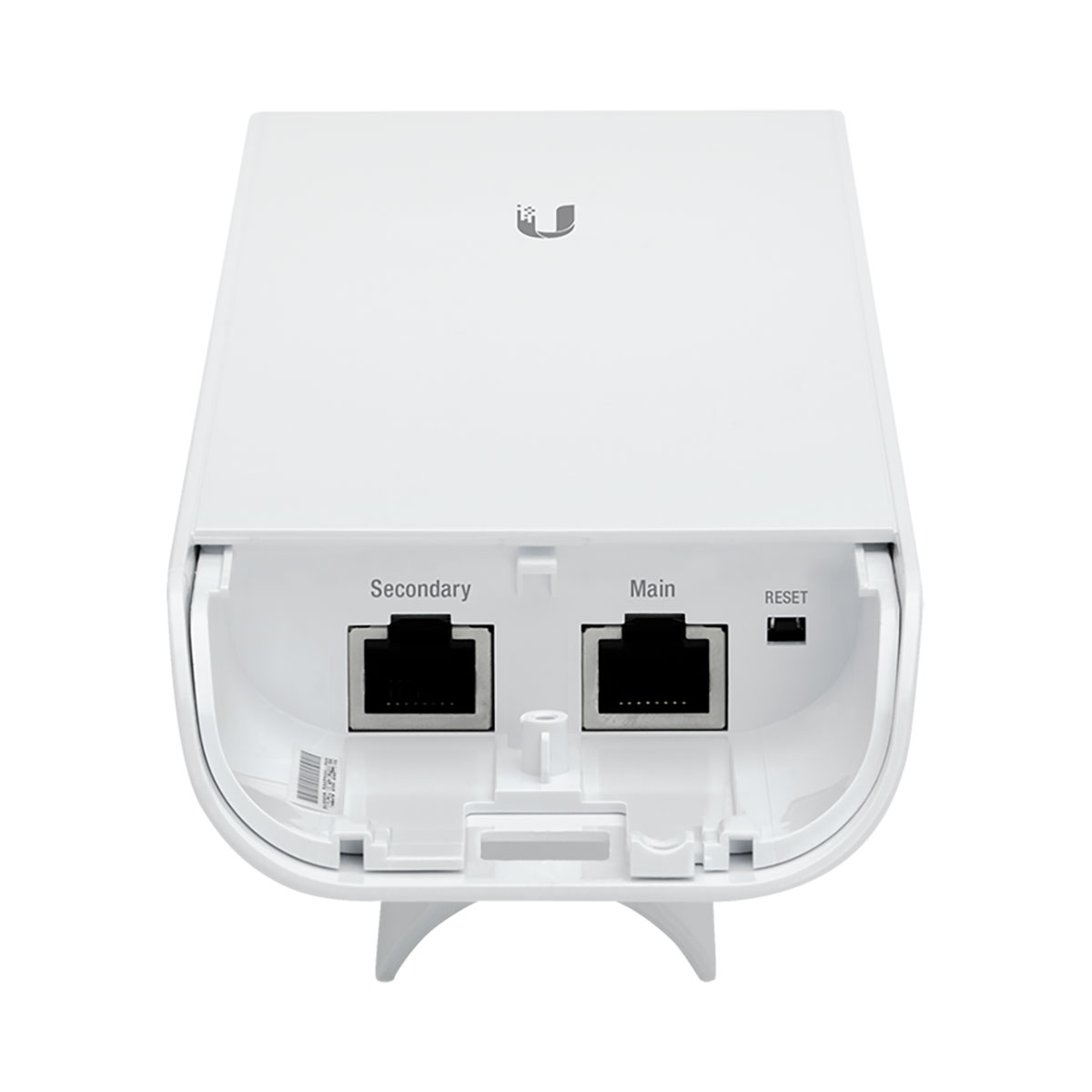

Dual Ethernet Connectivity
The NanoStationM provides a secondary Ethernet port with software-enabled PoE output for seamless IP video integration.
Intelligent PoE*
The remote hardware reset circuitry of the NanoStationM allows the device to be remotely reset from the power supply location.
The NanoStationM may also be powered by the Ubiquiti Networks® EdgeSwitch™. In addition, any NanoStationM can easily become 48V, 802.3af compliant through use of the Ubiquiti® Instant 802.3af Adapter (sold separately).

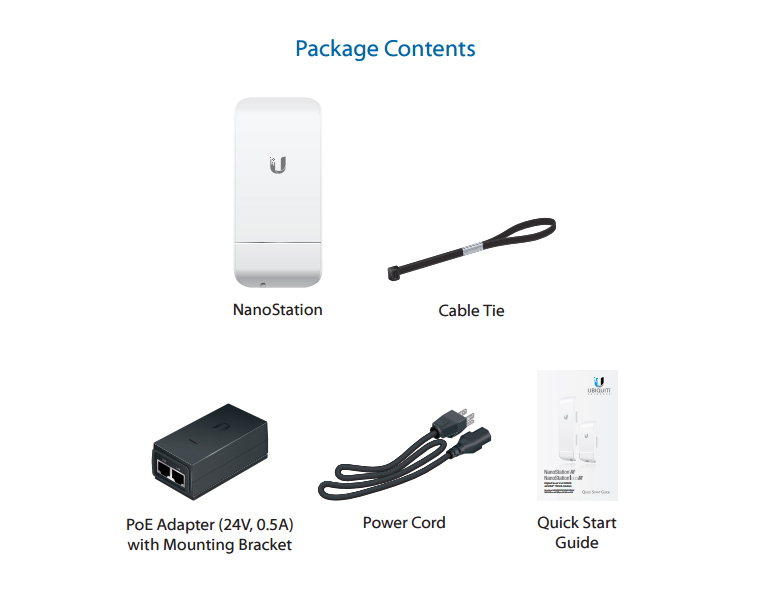

*Remote reset is an option that is sold separately as the POE-24. The NanoStationM includes a 24V PoE adapter without remote reset.
Software
airOS® is an intuitive, versatile, highly developed Ubiquiti firmware technology. It is exceptionally intuitive and was designed to require no training to operate. Behind the user interface is a powerful firmware architecture, which enables high performance, outdoor multi point networking.
• Protocol Support
• Ubiquiti Channelization
• Spectral Width Adjustment
• ACK Auto-Timing
• AAP Technology
• Multi-Language Support
Integrated on all Ubiquiti M products, airView® provides advanced spectrum analyzer functionality: waterfall, waveform, and real-time spectral views allow operators to identify noise signatures and plan their networks to minimize noise interference.
• Waterfall Aggregate energy over time for each frequency.
• Waveform Aggregate energy collected.
• Real-time Energy is shown in real time as a function of frequency.
• Recording Automize AirView to record and report results.
airControl® is a powerful and intuitive, web-based server network management application, which allows operators to centrally manage entire networks of Ubiquiti devices.
• Network Map
• Monitor Device Status
• Mass Firmware Upgrade
• Web UI Access
• Manage Groups of Devices
• Task Scheduling
| Specifications | |
| Dimensions | 294 x 31 x 80 mm |
| Weight | 400 g |
| Power Supply (PoE) | 24V, 0.5A |
| Max. Power Consumption | 8W |
| Power Method | Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| Operating Frequency | 5170-5875 MHz |
| Gain | 14.6-16.1 dBi |
| Networking Interface | (2) 10/100 Ethernet Ports |
| Processor Specs | Atheros MIPS 74Kc, 560 MHz |
| Memory | 64 MB DDR2, 8 MB Flash |
| Frequency | 5 GHz |
| Cross-pol Isolation | 22 dB Minimum |
| Max. VSWR | 1.6:1 |
| Beamwidth | 43° (H-pol) / 41° (V-pol) / 15° (Elevation) |
| Polarization | Dual Linear |
| Enclosure | Outdoor UV Stabilized Plastic |
| Mounting | Pole-Mount (Kit Included) |
| Operating Temperature | -30 to 75° C (-22 to 167° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Wireless Approvals | FCC Part 15.247, IC RS210, CE |
| RoHS Compliance | Yes |
| Shock & Vibration | ETSI300-019-1.4 |
Προσοχή! Bάσει της ισχύουσας Ελληνικής Νομοθεσίας, του Ε.Κ.Κ.Ζ.Σ. και των όσων προβλέπει το Π.Δ. 98/2017 η νόμιμη χρήση του προϊόντος αυτού στις ζώνες συχνοτήτων 5150 – 5250MHz και 5250 – 5350MHz προβλέπει μέγιστη ισχύ εκπομπής τα 200 mW e.i.r.p. και στη ζώνη συχνοτήτων 5470 – 5725MHz, προβλέπει μέγιστη ισχύ εκπομπής το 1 W e.i.r.p.
Στην ισχύ αυτή συνυπολογίζεται η ισχύς εξόδου του πομπού και το κέρδος της κεραίας. Αρμόδια για την εποπτεία του φάσματος είναι η E.E.T.T.
Το προϊόν αυτό είναι εφοδιασμένο με σήμα συμμόρφωσης CE Βλ. Π.Δ. 98/2017
Το προϊόν αυτό προορίζεται για χρήση σε εξωτερικούς χώρους.
