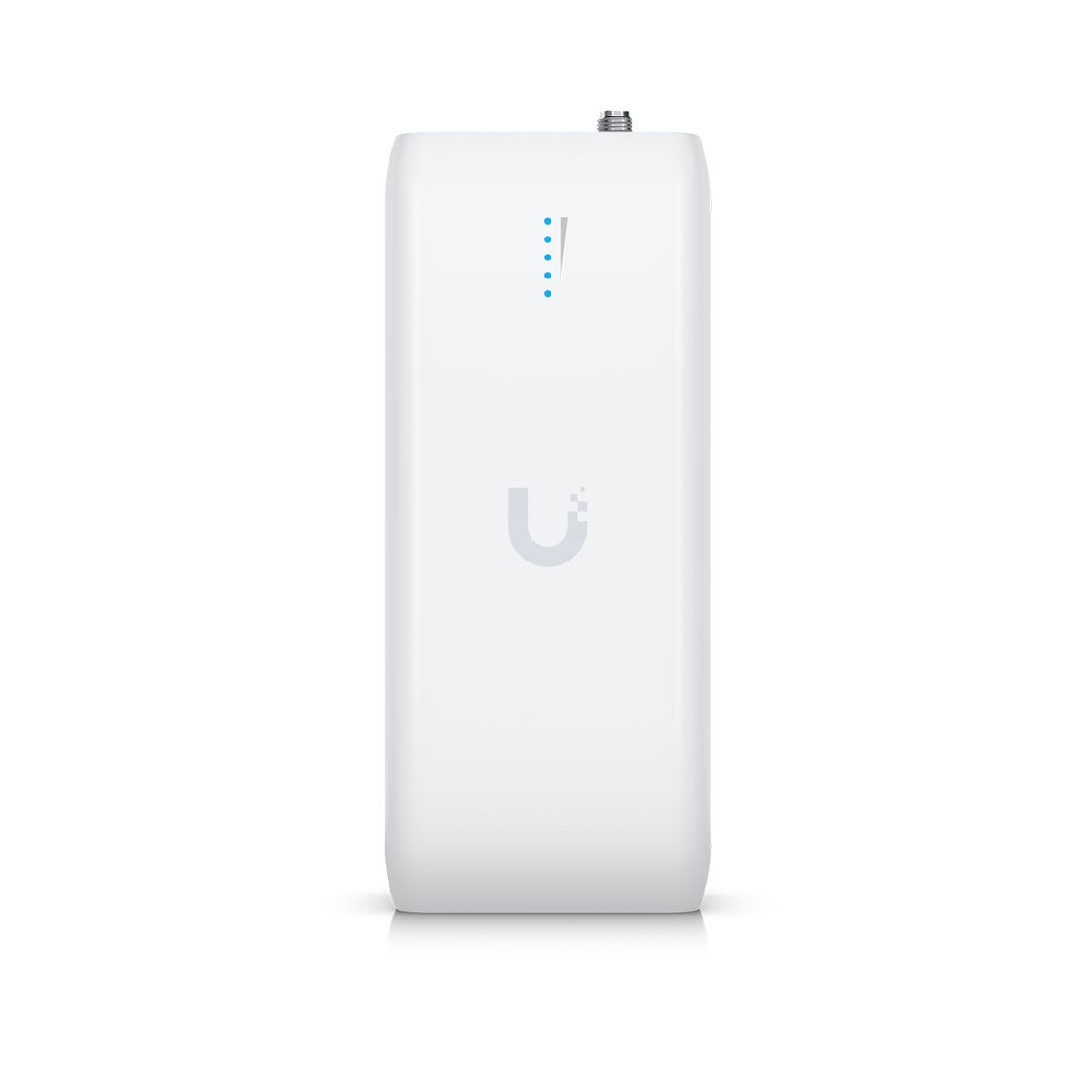

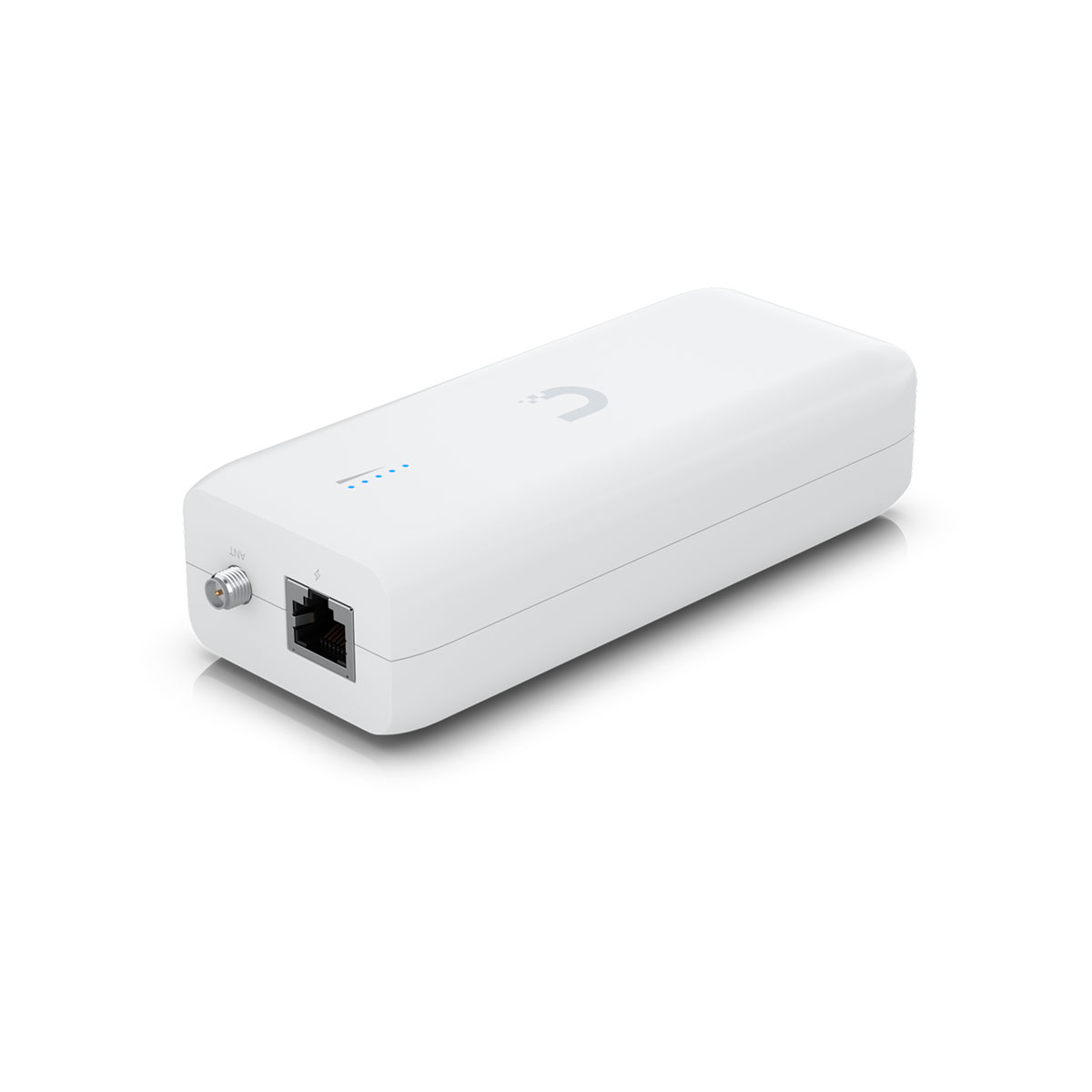

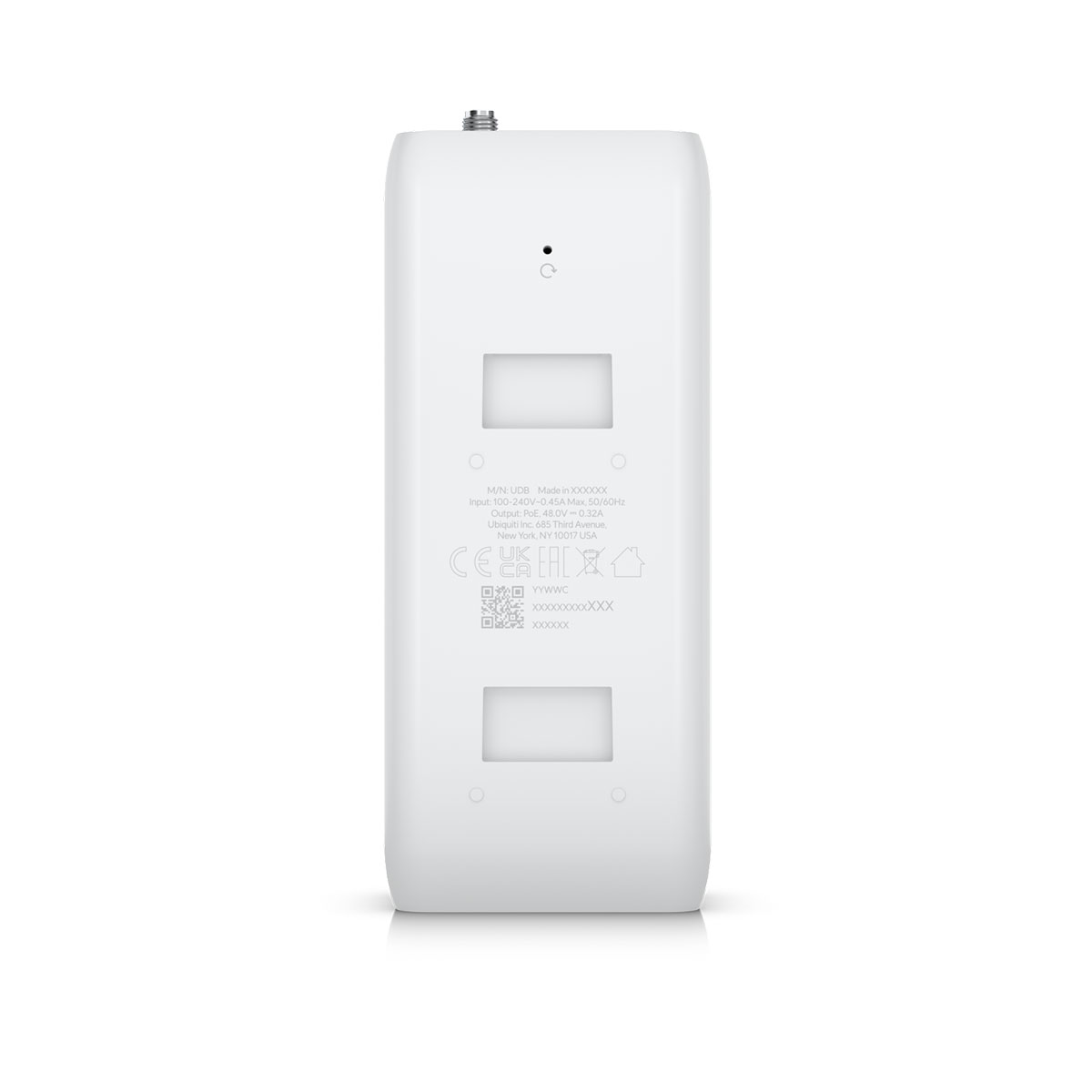

Ubiquiti UDB Unifi Device Bridge, Wireless Bridge with PoE Out, 5GHZ
Ubiquiti UDB Unifi Device Bridge, Wireless Bridge with PoE Out, 5GHZ
This plug-and-play 5 GHz wireless bridge enables point-to-point connection to another Bridge device. It features one GbE RJ-45 PoE-Out port to power another device, such as cameras and other devices. The bridge itself is powered through a standard network cable.
- (1) GbE PoE-Out port providing up to 15W power.
- 5 GHz band with a data transfer rate of up to 867 Mbps.
- Compatible with UniFi Protect PoE cameras, UniFi Talk phones, and other IoT devices.

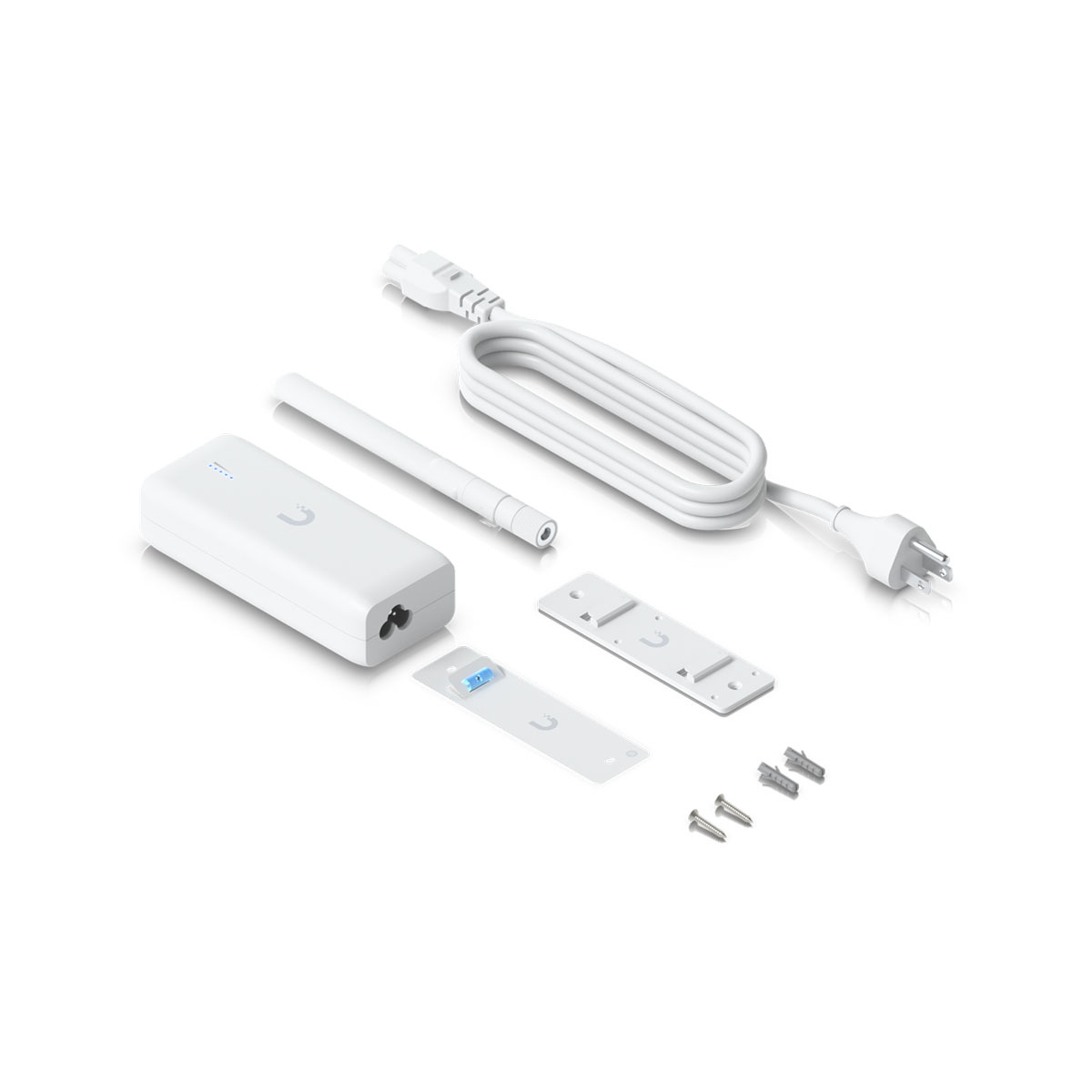

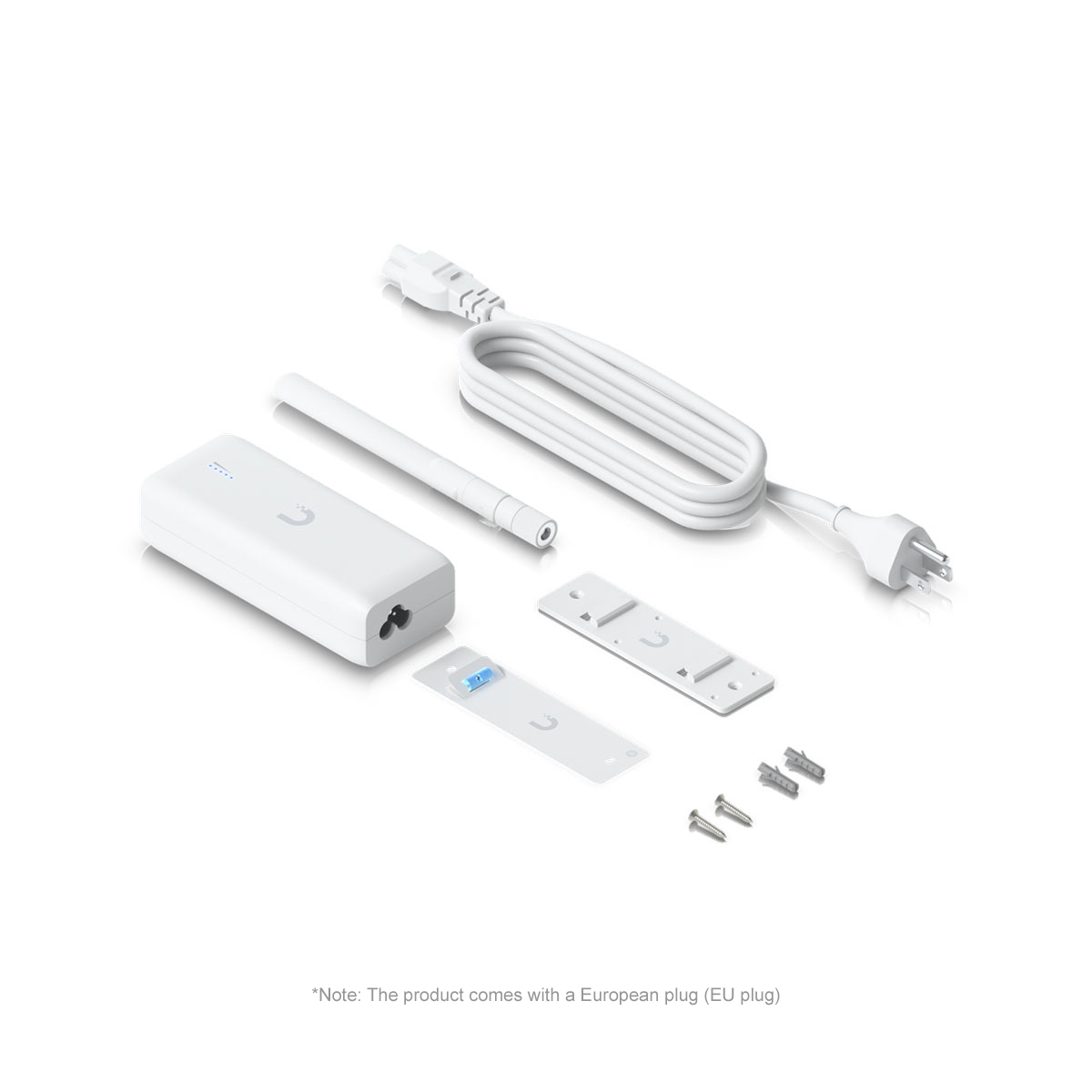

Package Contents
- Device
- Mounting materials
- External antenna
- Power cable
| Specifications | |
| Overview | |

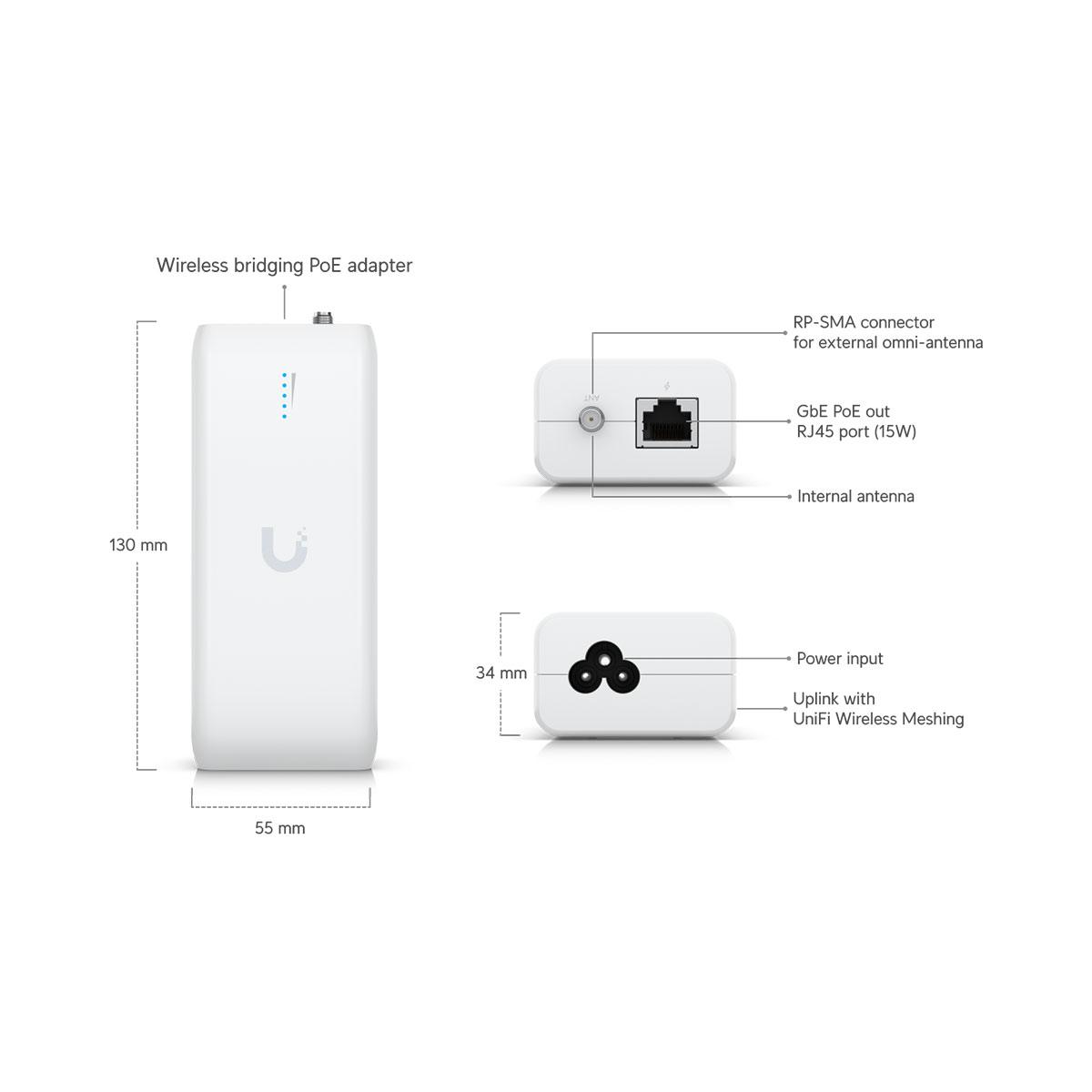

| Dimensions | 130 x 55 x 34 mm |
| WiFi Standard | WiFi 5 |
| Spatial Streams | 2 |
| Mounting Locations | Wall, table |
| Mounting | Wall (Included) |
| Power Method | 100—240V AC, 0.45A Max., 50/60 Hz |
| Performance | |
| MIMO | 5 GHz:2 x 2 |
| Max. Data Rate | 5 GHz:866.7 Mbps (BW80) |
| Antenna Gain | 5 GHz:Internal: 5 dBi External omni: 4 dBi, 360° x 30° |
| Max. TX Power | 5 GHz:21 dBm |
| Supported Data Rates | 802.11ac: (WiFi 5) 6.5 Mbps to 866.7 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80) 802.11n:6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| Wireless Security | WPA2 AES |
| Hardware | |
| Max. Power Consumption | 25W (AC input) 10W (Excluding PoE output) |
| Supported Voltage Range | 100—240V AC |
| Networking Interface | (1) GbE RJ45 port |
| Antennas | (1) Internal antenna (1) RP-SMA connector for external omni-antenna |
| Management | WiFi |
| Channel Bandwidth | 20/40/80 (MHz) |
| Weight | 200 g |
| Enclosure Material | Polycarbonate |
| Mount Material | Polycarbonate |
| Button | (1) Factory-reset |
| LEDs | System: (4) Blue: signal (1) White/blue: indicator |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC |
| Operating Frequency | US/CA: U-NII-1 5150 - 5250 MHz U-NII-2A 5250 - 5350 MHz U-NII-2C 5470 - 5725 MHz U-NII-3 5725 - 5850 MHz Worldwide: 5150 - 5875 MHz |
| Ambient Operating Temperature | -10 to 40° C |
| Ambient Operating Humidity | 5 to 95% noncondensing |
Προσοχή! Bάσει της ισχύουσας Ελληνικής Νομοθεσίας, του Ε.Κ.Κ.Ζ.Σ. και των όσων προβλέπει το Π.Δ. 98/2017 η νόμιμη χρήση του προϊόντος αυτού στις ζώνες συχνοτήτων 5150 – 5250MHz και 5250 – 5350MHz προβλέπει μέγιστη ισχύ εκπομπής τα 200 mW e.i.r.p. και στη ζώνη συχνοτήτων 5470 – 5725MHz, προβλέπει μέγιστη ισχύ εκπομπής το 1 W e.i.r.p.
Στην ισχύ αυτή συνυπολογίζεται η ισχύς εξόδου του πομπού και το κέρδος της κεραίας. Αρμόδια για την εποπτεία του φάσματος είναι η E.E.T.T.
Το προϊόν αυτό είναι εφοδιασμένο με σήμα συμμόρφωσης CE Βλ. Π.Δ. 98/2017
Το προϊόν αυτό προορίζεται για χρήση σε εσωτερικούς χώρους.
