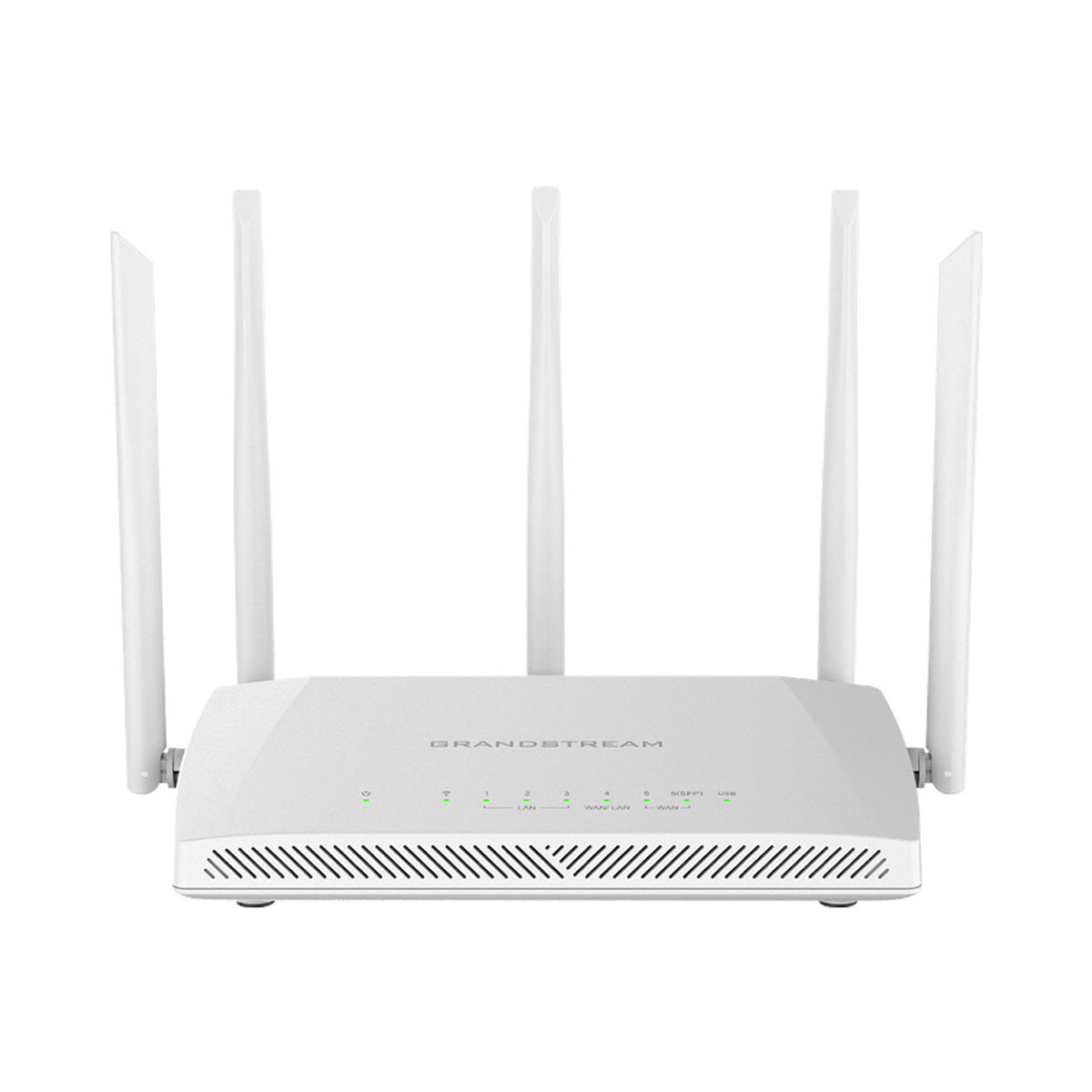

Grandstream GWN7062M High Performance Wi-Fi 6 Dual-Band Router with 1 Combo SFP/RJ45 Port
Grandstream GWN7062M High Performance Wi-Fi 6 Dual-Band Router with 1 Combo SFP/RJ45 Port
Η συσκευασία περιλαμβάνει τροφοδοτικό
The GWN7062M is a dual-band AX3000 secure router based on the latest Wi-Fi 6 (802.11ax) technology. The GWN7062M features one 2.5G combo SFP/RJ45 port and one WAN/LAN autosensing port, enabling flexible network expansion. This router is equipped with a powerful 1.3GHz dual-core processor, delivering up to 3Gbps Wi-Fi speeds and supporting simultaneous connections for up to 256 wireless devices, allowing the GWN7062M to provide robust support for applications such as smart offices, home automation, smooth 4K ultra-high-definition streaming, network meetings, video conferences, and online gaming. The GWN7062M supports wireless Mesh networking with multiple Grandstream devices, expanding Wi-Fi coverage and enabling seamless roaming. It also supports various VPNs, providing secure and dedicated network connections for remote workers. Advanced parental controls, intelligent security firewalls, and multiple encryption methods ensure the security of the router, clients, and user information at all times. The GWN7062M supports multiple management methods, including a local web user interface, GDMS Networking, and GWN Manager, Grandstream’s cloud and on-premise network management platform. Additionally, you can use the Grandstream Home App, Grandstream’s mobile unified device management platform, to easily manage your home network and devices. The GWN7062M router also supports intelligent QoS, which used to maintain smooth network operation, and other advanced features, making it an ideal router for evolving home, small office, and commercial network environments.
Features:
• Powered by Wi-Fi 6 (802.11ax) standard with up to 3Gbps wireless throughput
• Dual-band 2.4G 2x2:2 and 5G 3x3:2 MU-MIMO with technology
• Built-in VPN support allows easy access to corporate networks for remote employees
• Supports up to 256 concurrent wireless client devices
• Grandstream Home App, Grandstream’s mobile unified device management platform
• Powerful security features include guest network, network blocklist, Antihacking secure boot & critical data/control, lockdown via digital signatures, and more
• Rich firewall features including DoS, blocklist, and URL content filtering
• Supports Mesh networking with Grandstream routers to provide easy network expansion
| Specifications | |
| Radio | |
| Antenna | 5 single frequency antennas: 2.4 GHz: gain5dBi 5GHz: gain5dBi |
| MU-MIMO | 2.4GHz: 2x2:2, MIMO 5GHz: 3x3:2, MIMO |
| Frequency Bands | 2.4GHz radio: 2400 - 2483.5MHz. 5GHz radio: 5150 - 5895MHz *Not all frequency bands can be used in all regions |
| Channel Bandwidth | HT20/40, VHT20/40/80, HE20/40/80/160 |
| Wi-Fi Data Rates | 5G: IEEE 802.11ax: 7.3 Mbps to 2402 Mbps IEEE 802.11ac: 6.5 Mbps to 1732 Mbps IEEE 802.11n: 6.5Mbps to 300Mbps IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 2.4G: IEEE 802.11ax: 7.3 Mbps to 573.5 Mbps IEEE 802.11n: 6.5Mbps to 300Mbps IEEE 802.11b: 1, 2, 5.5, 11 Mbps IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps *Actual throughput may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment and mix of devices in the network |
| Maximum TX Power | 2.4G: 24 dBm 5G: 26 dBm *Maximum power varies by country, frequency band and MCS rate |
| Receiver Sensitivity | 2.4G 802.11b: -96dBm@1Mbps, -88dBm@11Mbps; 802.11g: -93dBm@6Mbps, -75dBm@54Mbps; 802.11n 20MHz: -73dBm@MCS7; 802.11n 40MHz: -70dBm@MCS7; 802.11ax 20MHz: -60dBm@MCS11; 802.11ax 40MHz: -58dBm@MCS11; 5G 802.11a: -92dBm@6Mbps, -74dBm@54Mbps; 802.11n 20MHz: -73dBm@MCS7; 802.11n 40MHz: -70dBm@MCS7; 802.11ac 20MHz: -67dBm@MCS8; 802.11ac 40MHz: -63dBm@MCS9; 802.11ac 80MHz: -59dBm@MCS9; 802.11ax 20MHz: -60dBm@MCS11; 802.11ax 40MHz: -58dBm@MCS11; 802.11ax 80MHz: -56dBm@MCS11; 802.11ax 160MHz: -52dBm@MCS11; |
| Coverage Range | 150 square meter *Coverage range can vary based on environment |
| Interfaces | |

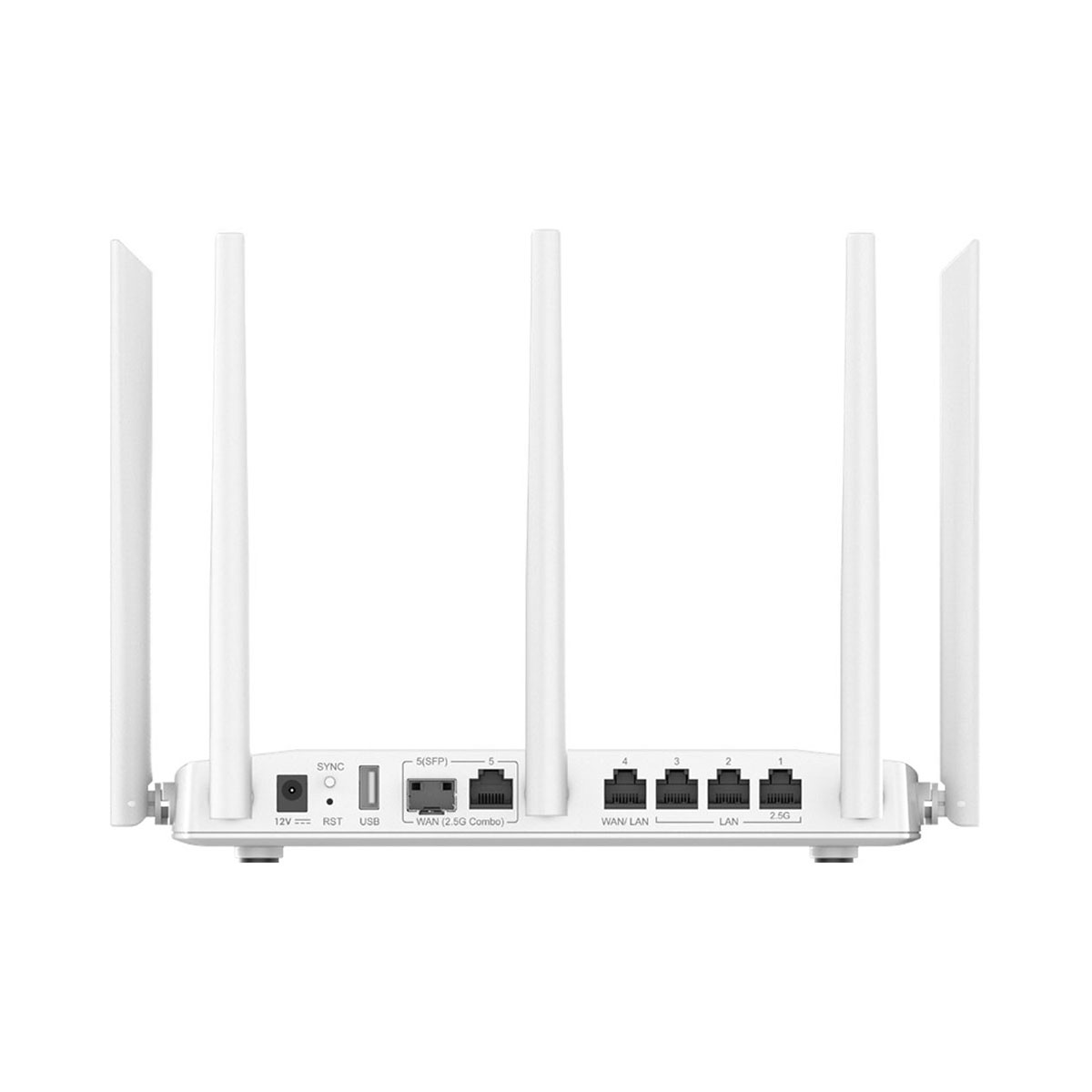

| Network Ports | 1x 2.5G Combo SFP/RJ45 Ethernet WAN 1x autosensing 10/100/1000Mbps Ethernet WAN/LAN, RJ-45 1x 2.5G Ethernet LAN, RJ-45 2x 1G Ethernet LAN, RJ-45 1x USB 2.0 Port |
| LEDs | 1 tri-color LED and 8x single-color LEDs |
| Auxiliary Ports | 1x Reset Pinhole, 1x SYNC, 1x POWER |
| Power | |
| Maximum Power Consumption |
18W |
| Physical | |
| Dimension | Unit: 205mm(L) x 130mm(W) x 35.5mm(H) Entire Package: 356mm(L) x 309.5mm(W) x 62mm(H) |
| Weight | Unit: 400g Entire Package: 855g |
| Mounting | Desktop or indoor wall mount |
| Package Content | GWN7062M router, Power Adapter, Ethernet Cable, Quick Installation Guide |
| Environmental | |
| Temperature | Operation: 0°C to 45°C Storage: -30°C to 60°C |
| Humidity | 10% to 90% Non-condensing |
| Compliance | |
| FCC, CE, RCM, IC | |
Προσοχή! Βάσει της ισχύουσας Ελληνικής Νομοθεσίας, του Ε.Κ.Κ.Ζ.Σ. και των όσων προβλέπει το Π.Δ. 98/2017 η νόμιμη χρήση του προϊόντος αυτού στη ζώνη συχνοτήτων 2400 – 2483,5 MHz, προβλέπει μέγιστη ισχύ εκπομπής τα 100 mW e.i.r.p.
Στην ισχύ αυτή συνυπολογίζεται η ισχύς εξόδου του πομπού και το κέρδος της κεραίας. Αρμόδια για την εποπτεία του φάσματος είναι η E.E.T.T.
Το προϊόν αυτό είναι εφοδιασμένο με σήμα συμμόρφωσης CE βλ. Π.Δ. 98/2017
Το προϊόν αυτό προορίζεται για χρήση σε εσωτερικούς χώρους.
Προσοχή! Bάσει της ισχύουσας Ελληνικής Νομοθεσίας, του Ε.Κ.Κ.Ζ.Σ. και των όσων προβλέπει το Π.Δ. 98/2017 η νόμιμη χρήση του προϊόντος αυτού στις ζώνες συχνοτήτων 5150 – 5250MHz και 5250 – 5350MHz προβλέπει μέγιστη ισχύ εκπομπής τα 200 mW e.i.r.p. και στη ζώνη συχνοτήτων 5470 – 5725MHz, προβλέπει μέγιστη ισχύ εκπομπής το 1 W e.i.r.p.
Στην ισχύ αυτή συνυπολογίζεται η ισχύς εξόδου του πομπού και το κέρδος της κεραίας. Αρμόδια για την εποπτεία του φάσματος είναι η E.E.T.T.
Το προϊόν αυτό είναι εφοδιασμένο με σήμα συμμόρφωσης CE Βλ. Π.Δ. 98/2017
Το προϊόν αυτό προορίζεται για χρήση σε εσωτερικούς χώρους.
