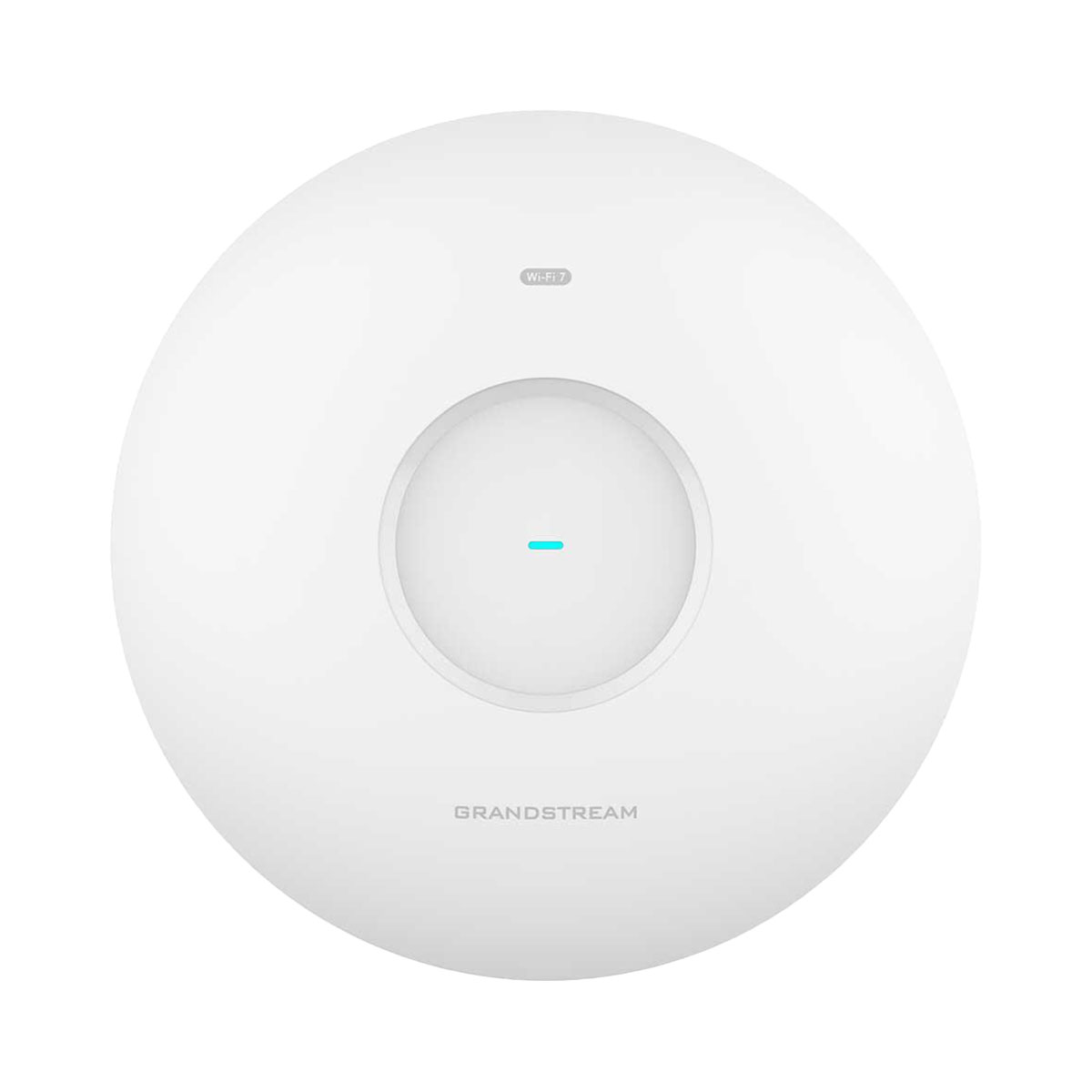

Grandstream GWN7674 High-Performance Tri-Band WiFi 7 Access Point
Grandstream GWN7674 High-Performance Tri-Band WiFi 7 Access Point
The GWN7674 is a powerful enterprise-grade Wi-Fi 7 access point that provides speeds up to 21Gbps (BE21000), ideal for demanding environments with medium-to-high user density. It offers 4x4:4 MU-MIMO on 5G and 6G band, 2x2:2 MU-MIMO on 2.4G band with DL/UL Enhanced OFDMA technology and a sophisticated antenna design for maximum network throughput and expanded Wi-Fi coverage range. It is equipped with an independent scanning radio module, that can monitor the wireless quality in the environment and the signal status of terminal device in real time. GWN7674 is also equipped with advanced Wi-Fi 7 technology such as Multi-RU, Preamble Puncturing technology, 4096 QAM modulation and MLO technology to ensure a smooth experience for every user. To ensure easy installation and management, the GWN7674 uses a controller-less distributed network management design in which the controller is embedded within the product’s Web user interface. The GWN7674 is also supported by GDMS Networking and GWN Manager, Grandstream’s cloud and on-premise Wi-Fi management platform. It is the ideal Wi-Fi AP for voice-over-Wi-Fi deployments and offers a seamless connection with Grandstream’s Wi-Fi capable IP phones. With support for low-latency real- time applications, mesh networks, captive portals, BLE 5.3, 768 concurrent clients per AP, 1 x 2.5 Gigabit network port and 1 x 10 Gigabit network port with PoE++, GWN7674 is an ideal Wi-Fi access point for medium wireless network deployments with medium-to-high user density
Features:
• 21Gbps aggregate wireless throughput, 12.5Gbps aggregate wired throughout
• Integrated Wi-Fi 7 & 4x4:4 MU-MIMO on 5G and 6G band and 2x2:2 MU-MIMO on 2.4G band with MLO, 4KQAM, MRU, Premable Puncturing Technology
• Up to 175-meter coverage range
• Supports 768 concurrent Wi-Fi client devices
• Advanced QoS to ensure real-time performance of low-latency applications
• Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
• Self power adaptation upon auto detection of PoE++
• Embedded controller can manage up to 50 local GWN series APs; GDMS Networking offers unlimited AP management; GWN Manager offers premise based software controller
| Specifications | |
| Radio | |
| Antenna | 12 single built-in antennas 2.4GHz x 2, gain 4.5dBi 5GHz x 4, gain 5.5dBi 6GHz x 4, gain 6.0dBi BT x 1, gain 4.5dBi Scanning x 1, gain 2.4G:4.5dBi/ 5G:5.5dBi |
| MIMO | 2.4GHz: 2x2:2, MU-MIMO 5GHz: 4x4:4, MU-MIMO 6GHz: 4x4:4, MU-MIMO |
| Frequency Bands | 2.4GHz Radio: 2400 - 2483.5 MHz 5GHz Radio: 5150 - 5850 MHz 6GHz Radio: 5945 - 7125 MHz *Not all frequency bands can be used in all regions |
| Channel Bandwidth | 2.4G: 20 and 40MHz 5G: 20, 40, 80, 160 and 240MHz 6G: 20, 40, 80, 160 and 320MHz |
| Wi-Fi Data Rates | 2.4G IEEE 802.11be: Up to 688 Mbps IEEE 802.11ax: 7.3Mbps to 574 Mbps IEEE 802.11n: 6.5Mbps to 300Mbps IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps IEEE 802.11b: 1, 2, 5.5, 11 Mbps 5G IEEE 802.11be: Up to 8647 Mbps IEEE 802.11ax: 7.3 Mbps to 4804 Mbps IEEE 802.11ac: 6.5 Mbps to 3466 Mbps IEEE 802.11n: 6.5 Mbps to 1200 Mbps IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 6G: IEEE 802.11be: Up to 11529 Mbps IEEE 802.11ax: 8 Mbps to 4804 Mbps *Actual throughput may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment and mix of devices in the network |
| Maximum TX Power | 2.4G: 27dBm 5G: 27dBm 6G: 25dBm *Maximum power varies by country, frequency band and MCS rate |
| Receiver Sensitivity | 2.4G 802.11b: -96dBm @1Mbps, -88dBm @11Mbps; 802.11g: -93dBm @6Mbps, -75dBm @54Mbps; 802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz: -70dBm @MCS7; 802.11ax 20MHz: -65dBm @MCS11; 802.11ax 40MHz: -62dBm @MCS11; 802.11be 20MHz: -65dBm @MCS13; 802.11be 40MHz: -62dBm @MCS13; 5G 802.11a: -92dBm @6Mbps, -74dBm @54Mbps; 802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz: -70dBm @MCS7; 802.11ac 20MHz: -70dBm @MCS8; 802.11ac 40MHz: -65dBm @MCS9; 802.11ac 80MHz: -62dBm @MCS9; 802.11ac 160MHz: -59dBm @MCS9; 802.11ax 20MHz: -64dBm @MCS11; 802.11ax 40MHz: -61dBm @MCS11; 802.11ax 80MHz: -59dBm @MCS11; 802.11ax 160MHz: -55dBm@ MCS11; 802.11be 20MHz: -59dBm @MCS13; 802.11be 40MHz: -56dBm @MCS13; 802.11be 80MHz: -54dBm @MCS13; 802.11be 160MHz: -52dBm @MCS13; 6G 802.11ax 20MHz: -62dBm @MCS11; 802.11ax 40MHz: -59dBm @MCS11; 802.11ax 80MHz: -57dBm @MCS11; 802.11ax 160MHz: -53dBm@ MCS11; 802.11be 20MHz: -57dBm @MCS13; 802.11be 40MHz: -54dBm @MCS13; 802.11be 80MHz: -52dBm @MCS13; 802.11be 160MHz: -50dBm @MCS13; 802.11be 320MHz: -47dBm @MCS13 |
| Coverage Range | Up to 175 meters *Coverage range can vary based on environment |
| Bluetooth® | BLE 5.3 |
| Interfaces | |

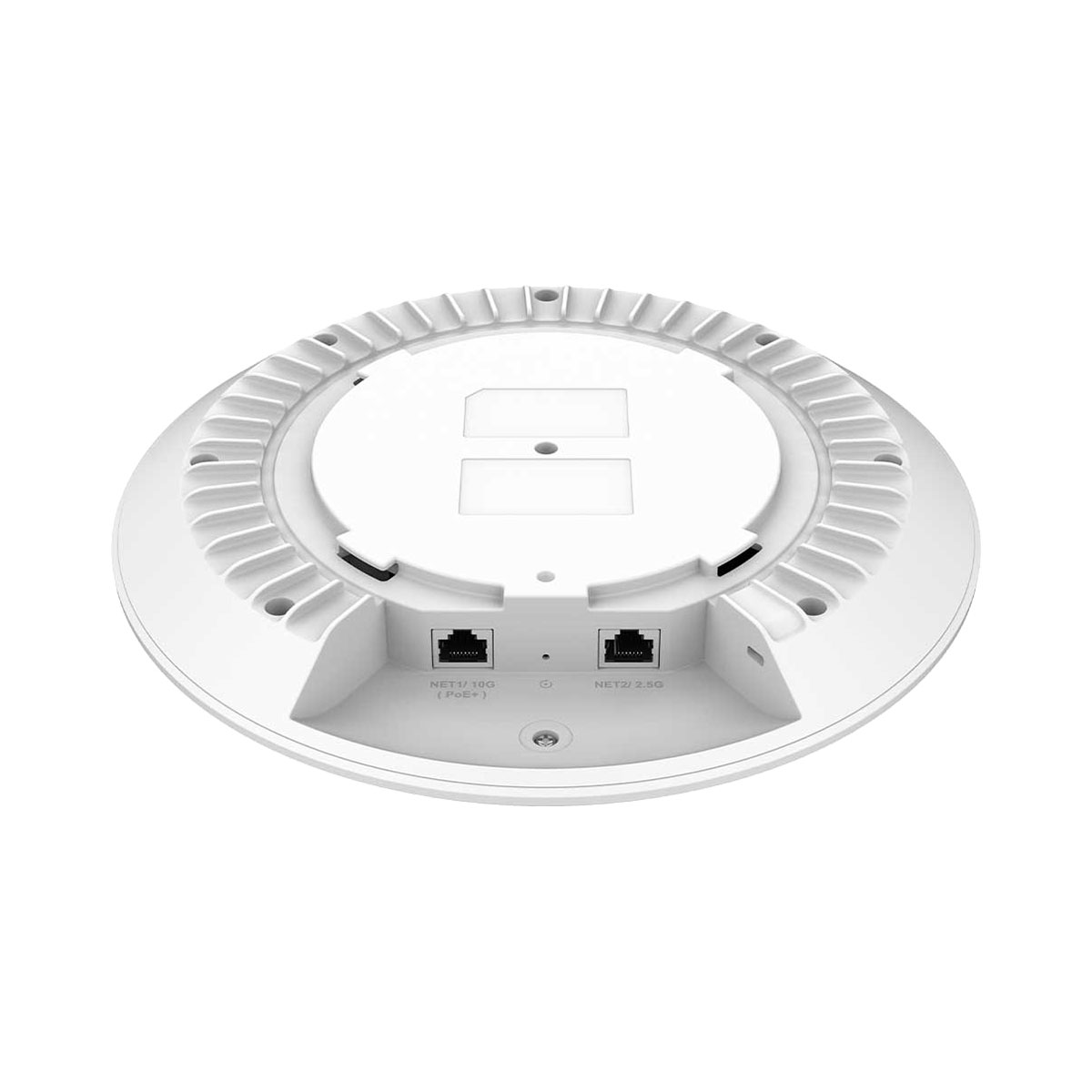

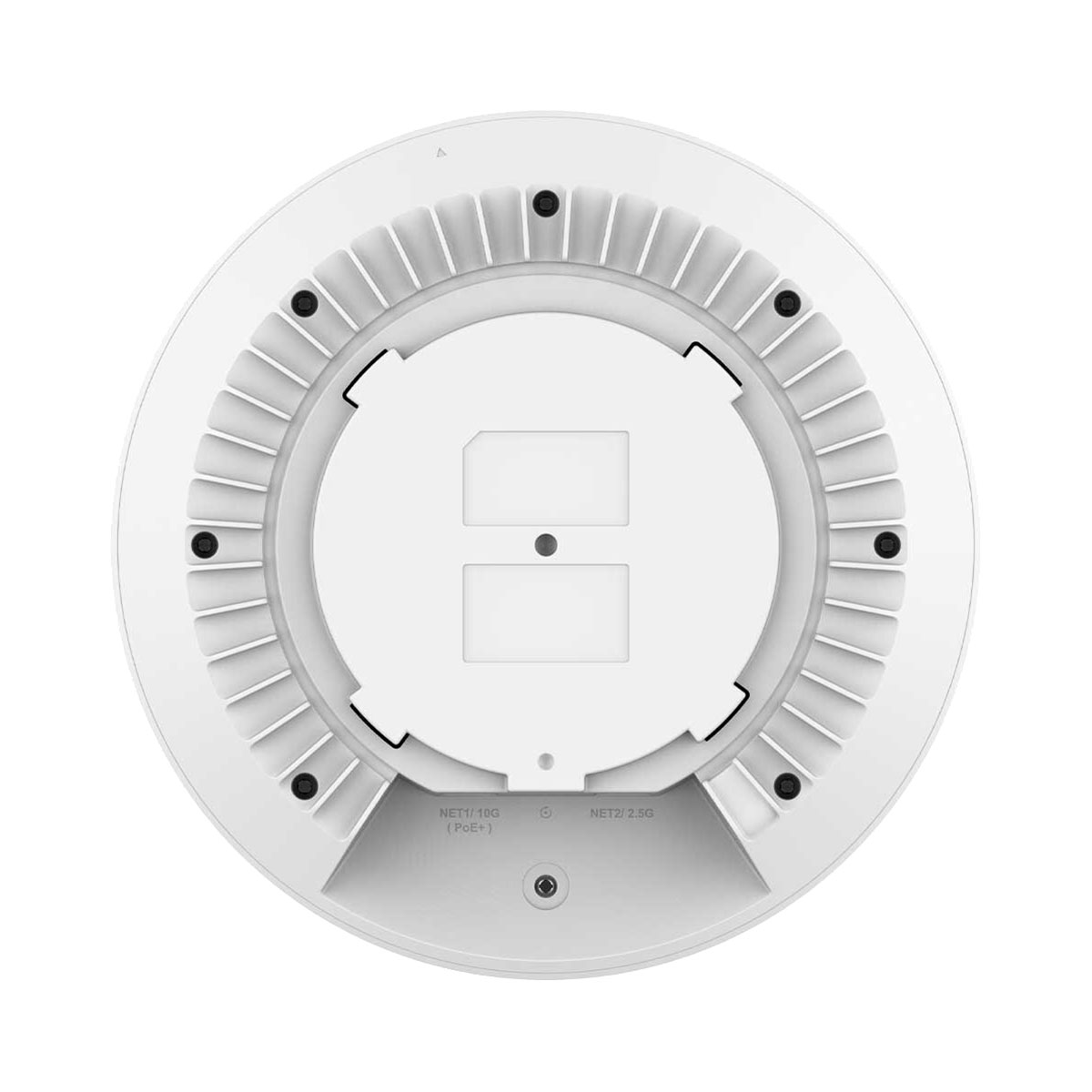

| Network Ports | 1x 10G Ethernet RJ45 port, PoE input 1x 2.5G Ethernet RJ45 port, PoE input |
| LEDs | 1x tri-color LED for device tracking and status indication |
| Auxiliary Ports | 1x Reset Pinhole, 1x Kensington Lock |
| Power | |
| PoE Input | 802.3bt |
| Maximum Power Consumption | 36W |
| Physical | |
| Dimension | Unit: 250 x 250 x 54.5mm Entire Package: 307 × 299.5 × 92 mm |
| Weight | Unit: 1132.9g Entire Package: 1648.6g |
| Mounting | Indoor wall mount or ceiling mount, kits included |
| Package Content | GWN7674 Wi-Fi 7 Wireless AP, Mounting Kits, Quick Start Guide |
| Environmental | |
| Temperature | Operation: 0°C to 45°C Storage: -30°C to 60°C |
| Humidity | 10% to 90% Non-condensing |
| Compliance | FCC, CE, RCM, IC |
Προσοχή! Βάσει της ισχύουσας Ελληνικής Νομοθεσίας, του Ε.Κ.Κ.Ζ.Σ. και των όσων προβλέπει το Π.Δ. 98/2017 η νόμιμη χρήση του προϊόντος αυτού στη ζώνη συχνοτήτων 2400 – 2483,5 MHz, προβλέπει μέγιστη ισχύ εκπομπής τα 100 mW e.i.r.p.
Στην ισχύ αυτή συνυπολογίζεται η ισχύς εξόδου του πομπού και το κέρδος της κεραίας. Αρμόδια για την εποπτεία του φάσματος είναι η E.E.T.T.
Το προϊόν αυτό είναι εφοδιασμένο με σήμα συμμόρφωσης CE βλ. Π.Δ. 98/2017
Το προϊόν αυτό προορίζεται για χρήση σε εσωτερικούς χώρους.
Προσοχή! Bάσει της ισχύουσας Ελληνικής Νομοθεσίας, του Ε.Κ.Κ.Ζ.Σ. και των όσων προβλέπει το Π.Δ. 98/2017 η νόμιμη χρήση του προϊόντος αυτού στις ζώνες συχνοτήτων 5150 – 5250MHz και 5250 – 5350MHz προβλέπει μέγιστη ισχύ εκπομπής τα 200 mW e.i.r.p. και στη ζώνη συχνοτήτων 5470 – 5725MHz, προβλέπει μέγιστη ισχύ εκπομπής το 1 W e.i.r.p.
Στην ισχύ αυτή συνυπολογίζεται η ισχύς εξόδου του πομπού και το κέρδος της κεραίας. Αρμόδια για την εποπτεία του φάσματος είναι η E.E.T.T.
Το προϊόν αυτό είναι εφοδιασμένο με σήμα συμμόρφωσης CE Βλ. Π.Δ. 98/2017
Το προϊόν αυτό προορίζεται για χρήση σε εσωτερικούς χώρους.
Προσοχή! Βάσει της ισχύουσας Ελληνικής Νομοθεσίας, του Ε.Κ.Κ.Ζ.Σ. και των όσων προβλέπει το Π.Δ. 98/2017 η νόμιμη χρήση του προϊόντος αυτού στη ζώνη συχνοτήτων 5945 – 6425 MHz ορίζεται στο παρόν έγγραφο. Αρμόδια για την εποπτεία του φάσματος είναι η E.E.T.T.
Το προϊόν αυτό είναι εφοδιασμένο με σήμα συμμόρφωσης CE βλ. Π.Δ. 98/2017
