| • Authentication to prevent forgery • Jamming detection and communication channels encryption • Tampering alarm |

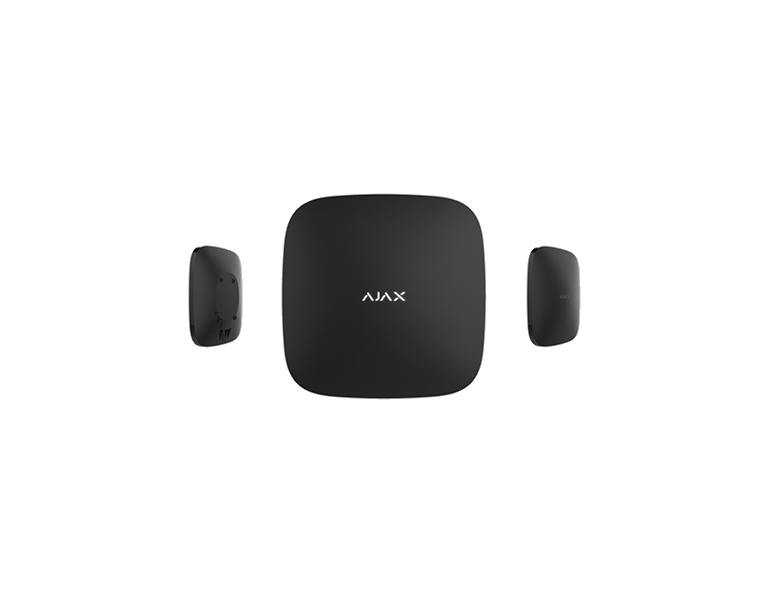

The Hub intelligent control panel is a key element of the Ajax security system. The device monitors operation of all Ajax detectors and immediately sends an alarm signal to the owner and the Central Monitoring Station.
Principle of operation
The device collects information on detector operation in an encrypted format, analyzes the data, and in case of alarm, notifies the system owner and the Central Monitoring Station in just milliseconds.
Features
The device uses Jeweller radio technology to monitor the detectors and ensure a quick response to danger. It switches the entire system to clear frequencies during jamming. The device is protected against viruses at software level.
Installation and set up
Ready to operate straight out the box. It is set using the mobile application, and the detectors are connected with just one click. It can be mounted in just a few minutes using the SmartBracket mount.
| Capacity | |
|
Wireless Ajax devices |
up to 100
Specifically, up to 10 sirens or keypads with a built-in siren and 1 range extenders
|
|
IP cameras or DVRs |
up to 10
• Seamless integration with Dahua,Hikvision, Safire, EZVIZ, Uniview IP cameras, and DVRs. • RTSP support. |
| Users | up to 50 |
| Automation scenarios |
up to 5
|
| Security groups | up to 9 |
| Rooms | up to 50 |
|
Wireless communication |
|
| Jeweller communication Technology | Proprietary wireless communication technology to transmit alarms and events. |
|
Maximum effective radiated power (ERP) |
up to 20 mW
Featured automatic power control to reduce power consumption and noise interference.
|
|
Radio signal range |
Up to 2,000 m
Between the hub and connected devices (in an open space).
Maximum range depends on the connected device. |
| Encrypted communication | All the data stored and transmitted are protected by block encryption with a dynamic key |
| Frequency hopping | Used to prevent radio interference and radio signal interception |
| Communication channels | |
| Ethernet |
10/100 Mbps
|
| Cellular | 1 micro-SIM slot |
| Cellular bands | 2G |
| Notifications | |
| Supported notification types | Push / SMS / Calls |
| Power Supply | |
| Main |
110–240 V~, 50/60 Hz
Up to 10 W of mains power consumption.
|
| Backup |
Built-in backup battery: Li-ion 2 А·h
Up to 15 hours of offline operation when Ethernet is disconnected.
|
| Alternative |
12 V⎓
Connected via an alternative power supply unit 12V PSU for Hub/Hub Plus/ReX. 12V PSU is sold separately.
|
| Enclosure | |
| Dimensions | 163 × 163 × 36 mm |
| Weight | 350 g |
| Operating temperature range | from −10°C to +40°C |
| Operating humidity | up to 75% |
| Protection class | IP20 |
| Package contents |
Hub Jeweller
SmartBracket mounting panel
Power supply cable
Ethernet cable
Installation kit
GSM start package (available not in all countries)
Quick Start Guide
|
