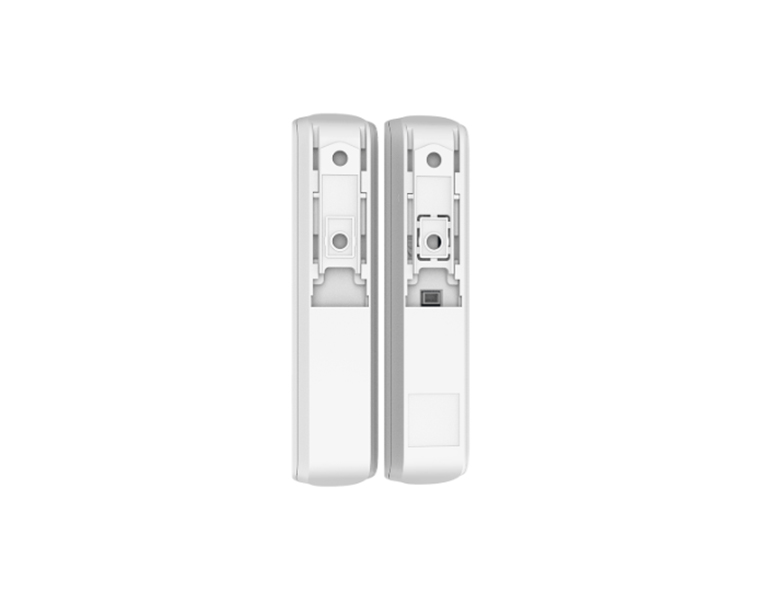

AJAX SYSTEMS AJ-DP-PLUS-W - DOOR PROTECT PLUS WHITE
| • Built-in accelerometer for shock and titl detection • Ignores chattering and single shocks to avoid false alarms • Up to 5 years of operation on pre-installed battery • Remote control and setup via the app • Adjustable titl angle alarm triggering • Additional NC input for connecting a third-party detector • Up to 1,200m of two-way encrypted wireless communication • Pairing via QR code |
Principle of operation
The device detects the door or window being opened by means of British-made hi-end reed switches on which the magnetic field acts. It can operate in the transmitter mode, sending a signal from the wired sensor to the hub.
Features
The device protects even windows left open for ventilation. The accelerometer registers changes in vertical slope angle, bangs or vibration and sends an alarm to the hub.
Installation and set up

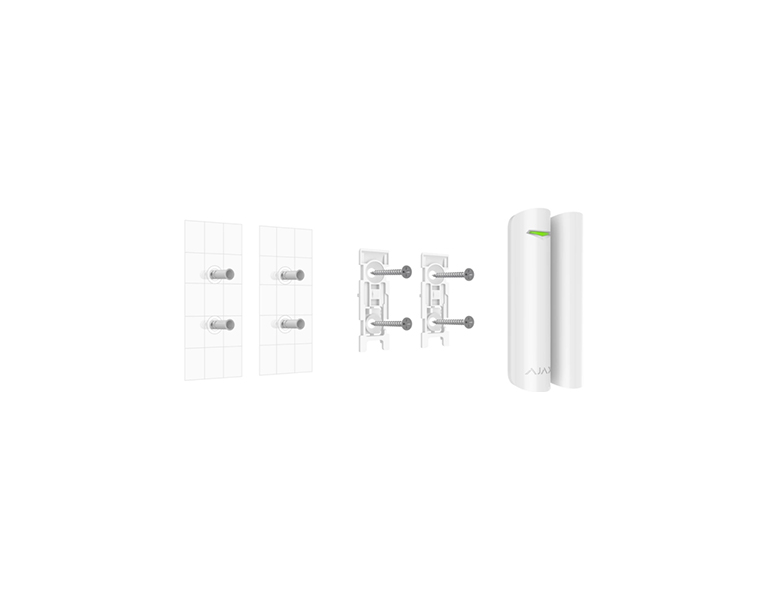

Ready to operate straight out the box: the battery is already installed, therefore there is no need to disassemble the detector. With one click, it can be connected to the hub in the mobile application. It can be mounted on the SmartBracket in just a few minutes.
| Technical Specifications | |
| Compatibility | |
| Control panels | All Ajax hubs |
| Range extenders | All Ajax range extenders |
| Jeweller communication technology | Proprietary wireless communication technology to transmit commands, alarms and events |
| Maximum effective radiated power (ERP) | up to 20 mW |
| Radio communication range | up to 1,200 m |
| Encrypted communication | All the data stored and transmitted are protected by block encryption with a dynamic key |
| Frequency hopping | To prevent radio interference and radio signal interception |
| Detection | |
| Sensitive element | • 1 reed switch • 1 accelerometer |
| Maximum number of openings | up to 2,000,000 |
| Additional detector connection | Third-party wired detector with the NC (normally closed) contact type. |
| Shock sensitivity | 3 levels |
| Tilt sensor activation threshold | from 5° to 25° |
| Anti-Sabotage protection | • Tamper alarm • Protection against spoofing |
| Power supply | |
| Battery | 1 × CR123A |
| Enclosure | |
| Dimensions | Ø 20 × 90 mm |
| Detector weight | 29 g |
| Operating temperature range | From -10°С to +40°С |
| Operating humidity | Up to 75% |
| Protection class | IP50 |
| Package contents |
DoorProtect Plus Jeweller
SmartBracket mounting panel
CR123A battery (pre-installed)
Big magnet
Small magnet
Terminal to connect a third-party detector
Installation kit
Quick start guide
|
Προσοχή! Βάσει της ισχύουσας Ελληνικής Νομοθεσίας, του Ε.Κ.Κ.Ζ.Σ. και των όσων προβλέπει το Π.Δ. 98/2017 η νόμιμη χρήση του προϊόντος αυτού στη ζώνη συχνοτήτων 863 – 870 MHz, προβλέπει μέγιστη ισχύ εκπομπής όπως περιγράφεται στην απαίτηση διεπαφής ραδιοεξοπλισμού 105. Αρμόδια για την εποπτεία του φάσματος είναι η E.E.T.T.
Το προϊόν αυτό είναι εφοδιασμένο με σήμα συμμόρφωσης CE βλ. Π.Δ. 98/2017
Το προϊόν αυτό προορίζεται για χρήση σε εσωτερικούς και εξωτερικούς χώρους.
