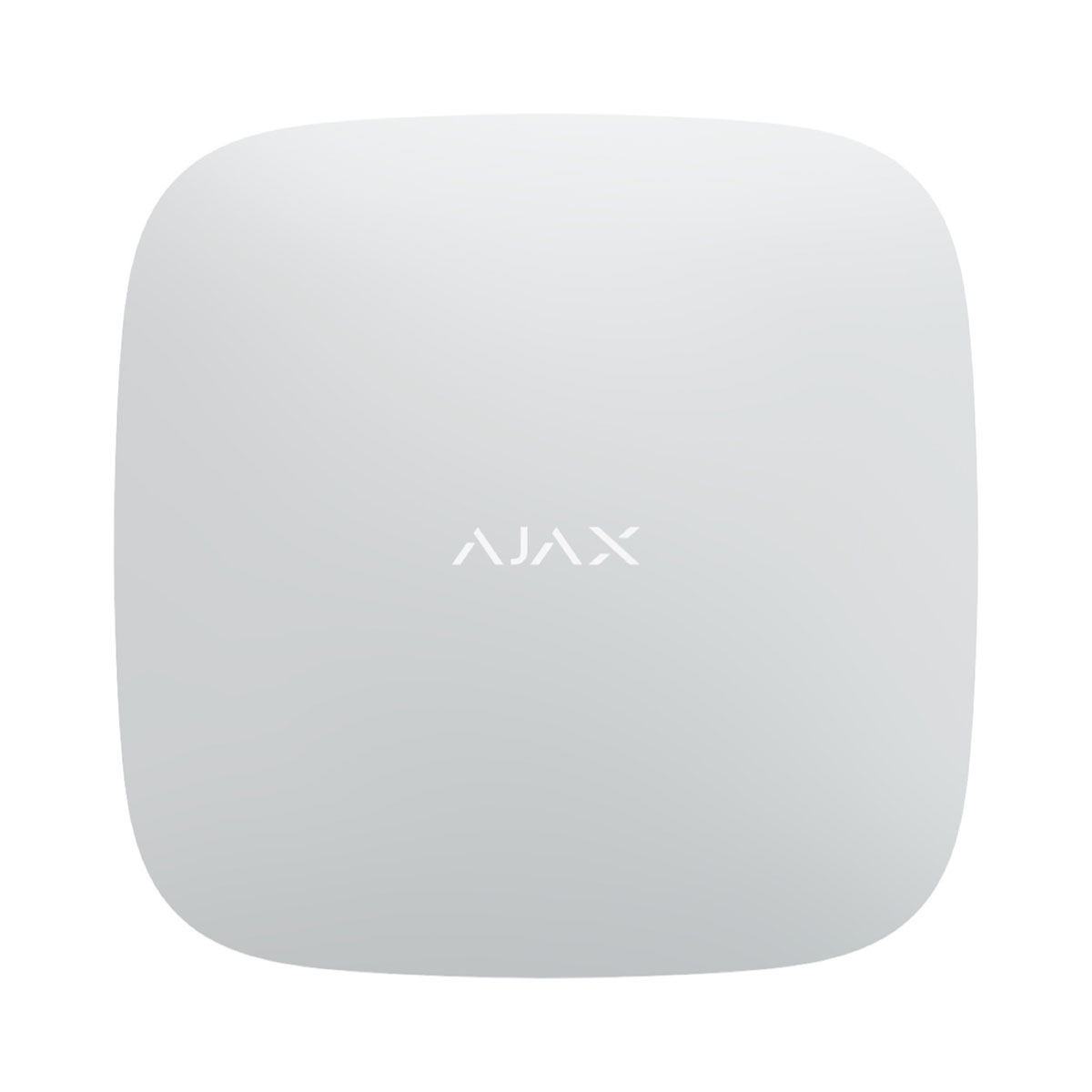

AJAX SYSTEMS AJ-REX-W - RANGE EXTENDER WHITE
| • Frequency hopping against jamming • Tampering alarm for lid protection • Up to 35 hours on the back-up battery in case of external power loss • Over-the-air updates • Fast connection with security system via QR code • Remote control and setup via an Ajax apps |
Security on a massive scale
ReX is the radio signal range extender that boosts the range of all Ajax security system devices and manages their communication with the hub. The intelligent radio signal range extender enables users to place Ajax devices at a considerable distance from the hub for protecting multi-story offices, detached buildings, and even production plants. Connecting 5 ReXs to the security system extends its coverage to up to 35 km².
Reliable link for secure communication
ReX can manage some or all the devices in the system. Yet, the number of connected devices does not affect the alarm delivery speed.
Enhances the security system
ReX integrates the devices into an autonomous group within the system. The extender takes full control of the situation if the connection with the hub is interrupted for some reason. If one of its detectors sends an alarm signal, ReX may activate the siren to attract attention to the incident and scare off the burglar.
The second decision-making center
ReX runs on OS Malevich and is as capable as the hub. The intelligent extender manages its connected devices and makes critical decisions in a blink of an eye. The capabilities and the role of ReX in the security system continue to evolve with the free OS Malevich updates available for all the users.
Holds off the intruder attacks
The OS Malevich unique operation logic protects ReX against software and hardware attacks and makes it resistant to viruses or exploits. Moreover, all the ReX communications are encrypted, which makes any signal interception practically impossible. And even during a blackout, ReX will continue to stay on guard of your property using the in-built back-up battery.
Intuitive connection and installation

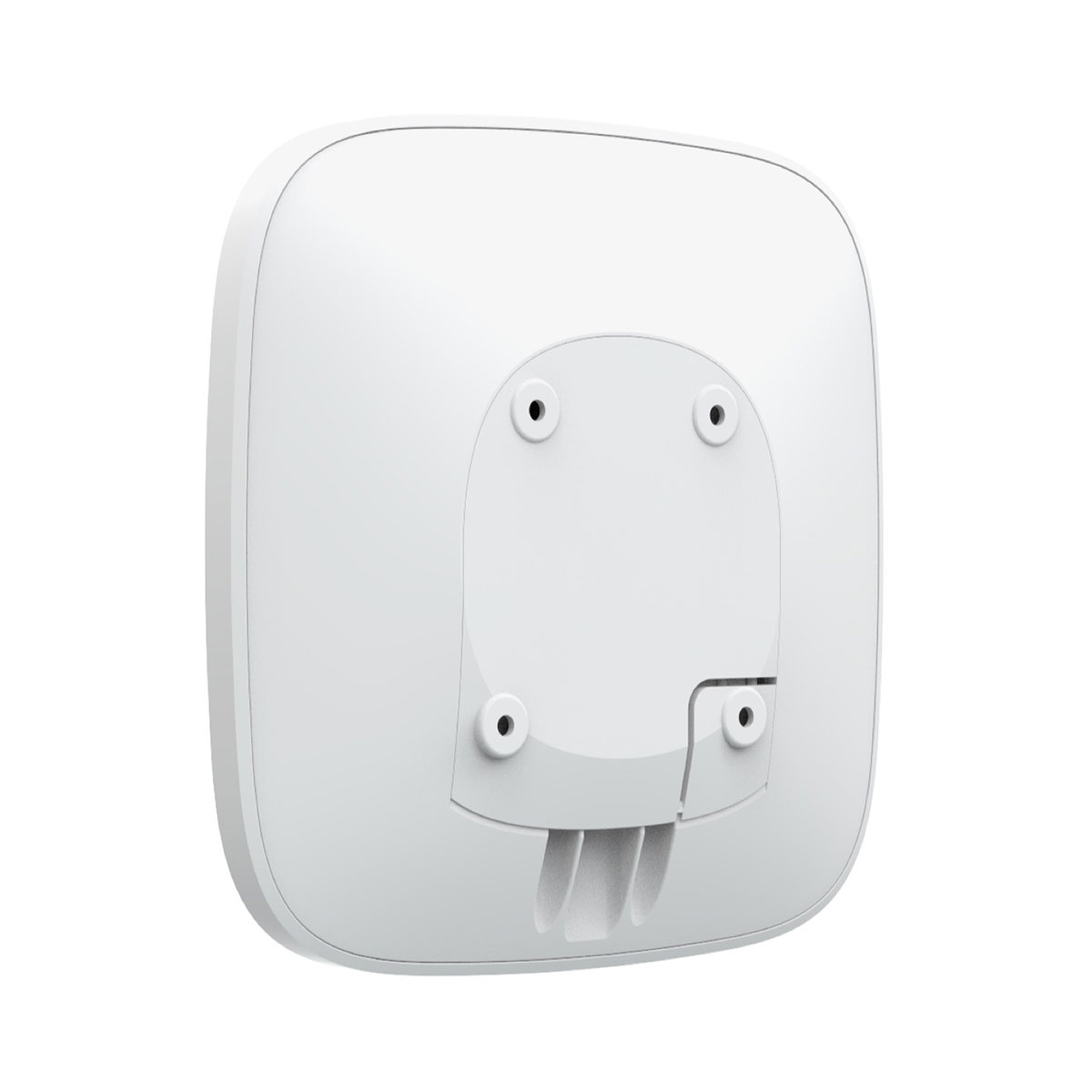

To connect ReX to the system, scan the QR code, name it, and switch it on. Then, select the devices which should operate via the range extender from the list. Proceed by installing ReX in a safe spot. No disassembling required. Just use the SmartBracket mount.
| Technical Specifications | |
| Classification | Radio channel range extender |
| Device type | Wireless |
| Installation method | Indoors |
| Compatibility | Hub Plus / Hub / Hub 2 (2G) / Hub 2 (4G) / Hub 2 Plus / Hub Hybrid (2G) / Hub Hybrid (4G) |
| Alarm signal delivery time | 0.3 seconds |
| Maximum connected devices (in a system with one range extender) | • Hub, Hub 2, Hub Hybrid — up to 99 • Hub Plus — up to 149 • Hub 2 Plus — up to 199 |
| Max number of connected ReX per hub* | Hub — 1 Hub Plus/Hub 2/Hub 2 Plus/Hub Hybrid — 5 *ReX can only be directly connected to the hub. ReX cannot be connected to another ReX |
| Operating system | OS Malevich |
| Power supply | 110-240 V from mains or 12 V when using 12V PSU for Hub/Hub Plus/ReX Built-in back-up battery: Li-Ion 2 А·h Up to 35 hours of offline operation |
| Jeweller radio technology | Communication range with detectors — up to 1,800 m in an open space Two-way communication between devices |
| Operating temperature range | From −10°С to +40°С |
| Permissible humidity | Up to 75% |
| Anti-sabotage | • Protection against fraud • Jamming detection • Tamper-resistant |
| Dimensions | 163 × 163 × 36 mm |
| Weight | 330 g |
| Package contents | Intelligent radio signal range extender ReX SmartBracket mounting panel Power cable Installation kit Quick Start Guide |
Προσοχή! Βάσει της ισχύουσας Ελληνικής Νομοθεσίας, του Ε.Κ.Κ.Ζ.Σ. και των όσων προβλέπει το Π.Δ. 98/2017 η νόμιμη χρήση του προϊόντος αυτού στη ζώνη συχνοτήτων 863 – 870 MHz, προβλέπει μέγιστη ισχύ εκπομπής όπως περιγράφεται στην απαίτηση διεπαφής ραδιοεξοπλισμού 105. Αρμόδια για την εποπτεία του φάσματος είναι η E.E.T.T.
Το προϊόν αυτό είναι εφοδιασμένο με σήμα συμμόρφωσης CE βλ. Π.Δ. 98/2017
Το προϊόν αυτό προορίζεται για χρήση σε εσωτερικούς και εξωτερικούς χώρους.
