AJAX SYSTEMS AJ-CP-W - COMBI PROTECT WHITE
| • SmartDetect algorithm to prevent false alarms • Temperature compensation • Pet immunity • DualTone two-factor glass break verification algorithm: by low and high frequencies • Filter for false alarms caused by dog barking or truck-passing sounds |
Single device. Dual protection

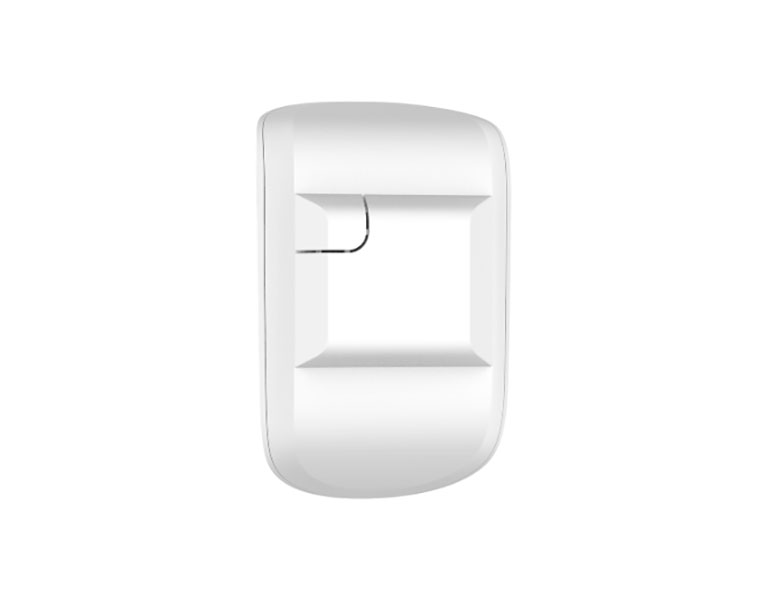

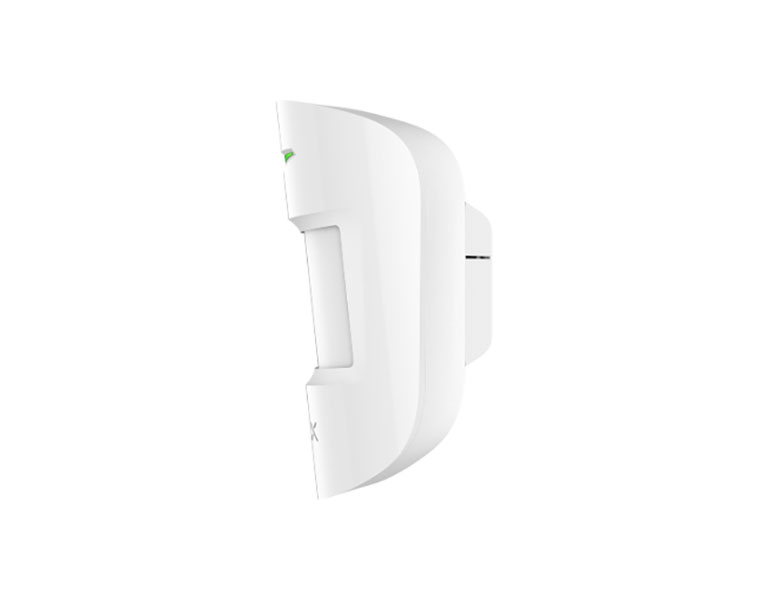

We have combined the functions of our two detectors and created a universal security solution for different types of objects — CombiProtect Jeweller. The device features software algorithms to prevent false alarms and has two primary functions — motion detection and glass break detection. Both sensors can be remotely configured in the app, as well as the required sensitivity level. It is also possible to test the device via the app. The intuitive interface and hassle-free installation create a satisfying PRO and end-user experience.
Enhanced glass break detection
CombiProtect Jeweller uses a sensitive electret microphone and the DualTone digital algorithm to detect the sound of glass breaking. To register a glass break and report an alarm, the device must detect a dull (low-frequency) sound of an impact and a ringing (high-frequency) sound of glass breaking in 1.5 seconds. This two-stage glass break detection algorithm decreases the risk of false alarms. Three sensitivity levels can be configured in the Ajax app, making the detector suitable for any object.
Wire-free flexibility and reliable performance
Baseline devices operate without any wires, offering maximum flexibility during installation. The pre-installed CR123A battery from proven manufacturers ensures a hassle-free setup, requiring no additional steps to start operating the devices. In addition to real-time testing during battery production, Ajax Systems inspects every unit to ensure the accuracy of the battery characteristics. The battery is easily replaceable, allowing one to swap them out after approximately five years of autonomous operation. The battery status is always accessible via the Ajax app. Users and security companies receive low battery level warnings months in advance, allowing for timely replacement without rushing.
Scaled and comprehensive
ReX 2 Jeweller boosts the radio range of all Ajax devices via Jeweller and ensures stable communication even through steel and concrete via Ethernet using the wire as the additional communication channel. Up to 5 range extenders can operate within one Ajax system to expand the network twice as big, covering underground parking, basement, or metal hangar.
System supervision
All Ajax devices perform automatic self-diagnosis and report their states to the hub. Essential parameters, such as a tamper state, communication, power supply, and sensor statuses, are continuously monitored. The Ajax Cloud server controls communication between the hub and Ajax apps, ensuring instant notifications for ARCs, security companies, and users. In case of any malfunction or communication failure, an engineer is informed immediately to provide necessary services.
Effortless installation and setup
CombiProtect Jeweller is ready to operate straight out of the box. Using the SmartBracket panel, an installer can effortlessly mount the device on the wall, eliminating the need to disassemble the enclosure. Ajax apps help quickly make the device a part of the ecosystem: simply pair the device with the hub by scanning the QR code. It can always be reconfigured remotely without the need for on-site visits.
| Technical Specifications | |
| Compatibility | Hub (2G) / Hub (4G) / Hub 2 (2G) / Hub 2 (4G) / Hub 2 Plus / Hub Hybrid (2G) / Hub Hybrid (4G) / Hub Plus, Rex, Rex2 |
| Communication | |
|
Jeweller communication technology |
Proprietary wireless communication technology to transmit commands, alarms, and events. Key features: |
| Maximum effective radiated power (ERP) |
up to 20 mW Automatic power control to reduce power consumption and radio interference. |
| Radio communication range | up to 1,200 m Between the device and a hub (or a range extender) in an open space. |
| Detection | |
| Sensitive element | PIR sensor |
| Motion detection distance | up to 12 m When installed at the height of 2.4 m. |
| Motion detection angle | horizontal: 88.5° |
| Motion detection speed | from 0.3 to 2 m/s The direction of the detector lens should be perpendicular to an alleged intrusion path into the facility. |
| Pet immunity | Weight — up to 20 kg Height — up to 50 cm |
| Temperature compensation | Effective motion detection at temperatures from −10 °C to +40 °C |
| Glass break detection | |
| Sensitive element | electret microphone |
| Glass break detection distance | from 0.3 to 9 m |
| Glass break detection angles | horizontal: 180° |
| Sensitivity | 3 levels |
| Glass break characteristics | |
| Minimum glass size | 279 × 279 mm Detection distance is up to 9 m or all glass types when the High sensitivity level is selected. |
| Sabotage protection | • Tamper alarm • Protection against spoofing • Communication loss detection |
| Power Supply | |
| Battery | 1 x CR123A Pre-installed. |
| Type | Type c |
| Calculated battery life | up to 5 years |
| Enclosure | |
| Dimensions | 110 × 65 × 50 mm |
| Weight | 92g |
| Operating temperature humidity | from -10°C to +40°C |
| Operating humidity | up to75% |
| Protection class | IP50 |
| Package contents |
CombiProtect Jeweller
SmartBracket mounting panel CR123A battery (pre-installed) Installation set Quick start guide |
Προσοχή! Βάσει της ισχύουσας Ελληνικής Νομοθεσίας, του Ε.Κ.Κ.Ζ.Σ. και των όσων προβλέπει το Π.Δ. 98/2017 η νόμιμη χρήση του προϊόντος αυτού στη ζώνη συχνοτήτων 863 – 870 MHz, προβλέπει μέγιστη ισχύ εκπομπής όπως περιγράφεται στην απαίτηση διεπαφής ραδιοεξοπλισμού 105. Αρμόδια για την εποπτεία του φάσματος είναι η E.E.T.T.
Το προϊόν αυτό είναι εφοδιασμένο με σήμα συμμόρφωσης CE βλ. Π.Δ. 98/2017
Το προϊόν αυτό προορίζεται για χρήση σε εσωτερικούς και εξωτερικούς χώρους.
