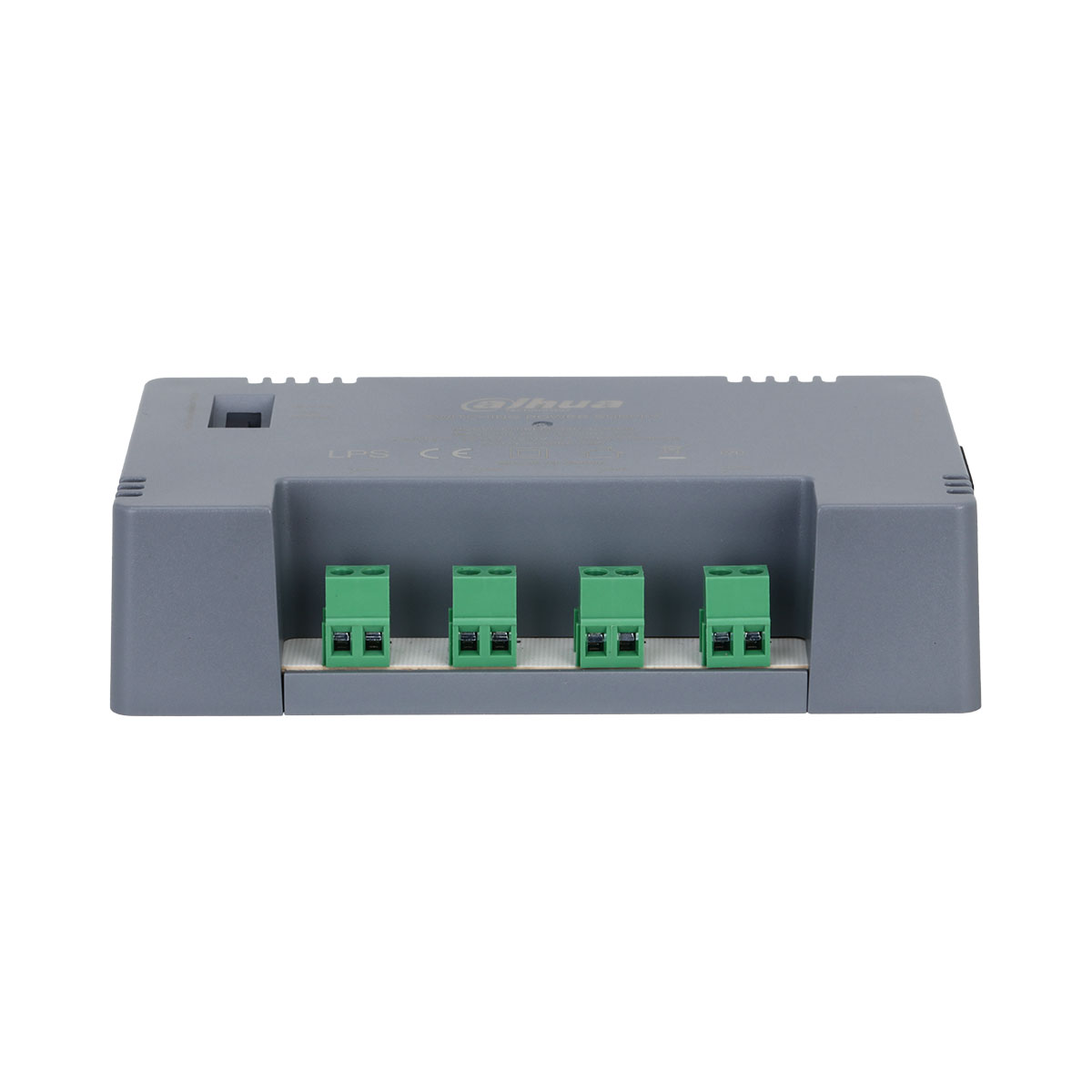

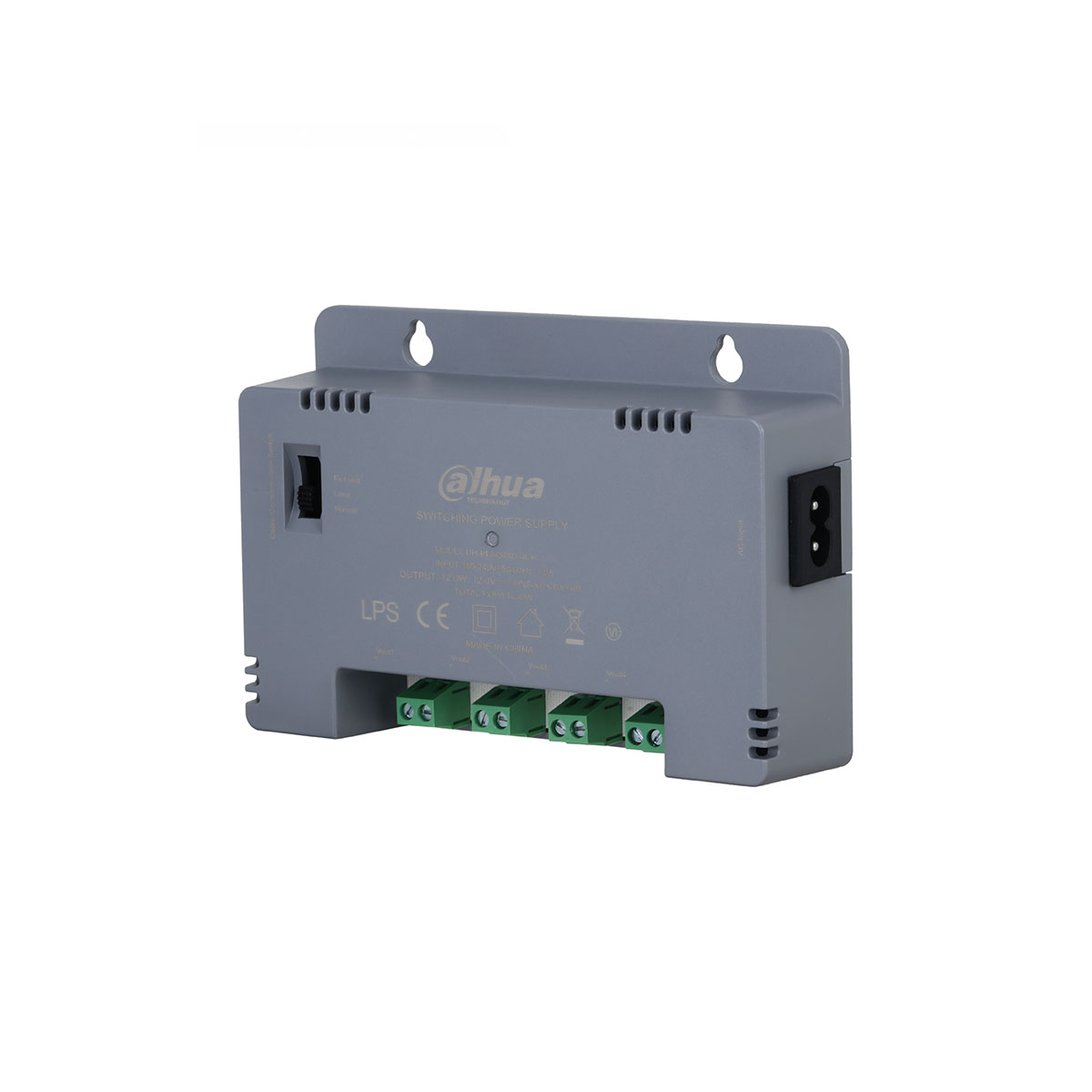

DAHUA PFM344D-4CH-EN 4-Channel Switching Power Supply 12V 2.5A
Κωδικός προϊόντος:
PFM344D-4CH-EN
Άμεσα διαθέσιμο
DAHUA PFM344D-4CH-EN 4-Channel Switching Power Supply 12V 2.5A
Υπολογισμός κόστους μεταφορικών:
Καλέστε για τιμή
Περιγραφή
Χαρακτηριστικά
Λήψεις
Περιγραφή
• Outputs through 4 channels and can supply to multiple devices at the same time
• The output voltage can be adjusted to 3 levels, making it easily adapt to various types of devices
• Easy to install, the device supports wall mount installation
• Designed with protection against overcurrent, overvoltage, and short circuits
• Surge protection: common mode: ±4 kV, differential mode: ±2 kV
• V-0 fireproof
• CE certification
• Efficiency Level: VI
Χαρακτηριστικά
| Technical Specification | |
| Function | |
| Input Voltage | 185 VAC–240 VAC |
| Output Voltage | Normal: 12 VDC Long: 13.5 VDC Ex-Long: 15 VDC |
| Rated Output Current | Normal: 2.5 A Long: 2.25 A Ex-Long: 2 A |
| Rated Power | Output power: 12 W (for one channel) Total power: 60 W |
| Power Consumption In Idle | ≤0.1 W |
| Efficiency | ≥86.95% |
| Port | |
| Input Port | 2-core female seat C8, with European standard cable |
| Output Plug | 4 channel output terminal |
| Protection | |
| Protection | Overcurrent protection, overvoltage protection and short circuit protection |
| Surge Protection Grade | Common mode: ±4 kV Differential mode: ±2 kV |
| Statics Protection | Air discharge: ±8 kV Contact discharge: ±6 kV |
| Structure | |
| Installation |
Wall mount |
| Product Dimensions | 140.1 mm × 94.5 mm × 34.2 mm |
| Appearance Color | Gray |
| Net Weight | 0.23 kg |
| Gross Weight | 0.31 kg |
| Packaging Dimensions | 143 mm × 41 mm × 144 mm |
| Input Cable Length | 1000 mm |
| Environment | |
| Operating Temperature | 0 °C to +40 °C |
| Operating Humidity | 10%–90% (RH) |
| Storage Temperature | –40 °C to +80 °C |
| Storage Humidity | 5%–95% (RH) |
| Compliance Standard | |
| Compliance Standard | EN 55032: 2015 EN 55035: 2017 EN 61000-3-2: 2014 EN 61000-3-3: 2013 EN 62368-1: 2014 + A11: 2017 |
| Certifications | |
| Certifications | CE |
