Ubiquiti UA-HUB-GATE UniFi Access Gate Hub
Κωδικός προϊόντος:
UA-HUB-GATE
345,00 €
(Περιλαμβάνει ΦΠΑ 24%)
Τιμή χωρίς ΦΠΑ:
278,23 €
Άμεσα διαθέσιμο
Ubiquiti UA-HUB-GATE UniFi Access Gate Hub
Υπολογισμός κόστους μεταφορικών:
Ποσότητα
Κατηγορία:
Κατασκευαστής:
Περιγραφή
Χαρακτηριστικά
Λήψεις
Περιγραφή
ΠΡΟΣΟΧΗ Η ΣΥΣΚΕΥΑΣΙΑ ΔΕΝ ΠΕΡΙΛΑΜΒΑΝΕΙ ΤΡΟΦΟΔΟΤΙΚΟ POE

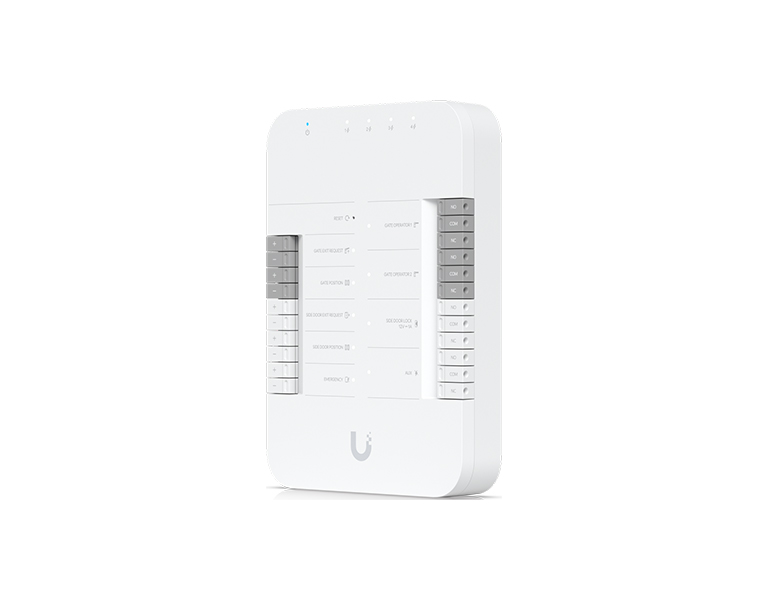

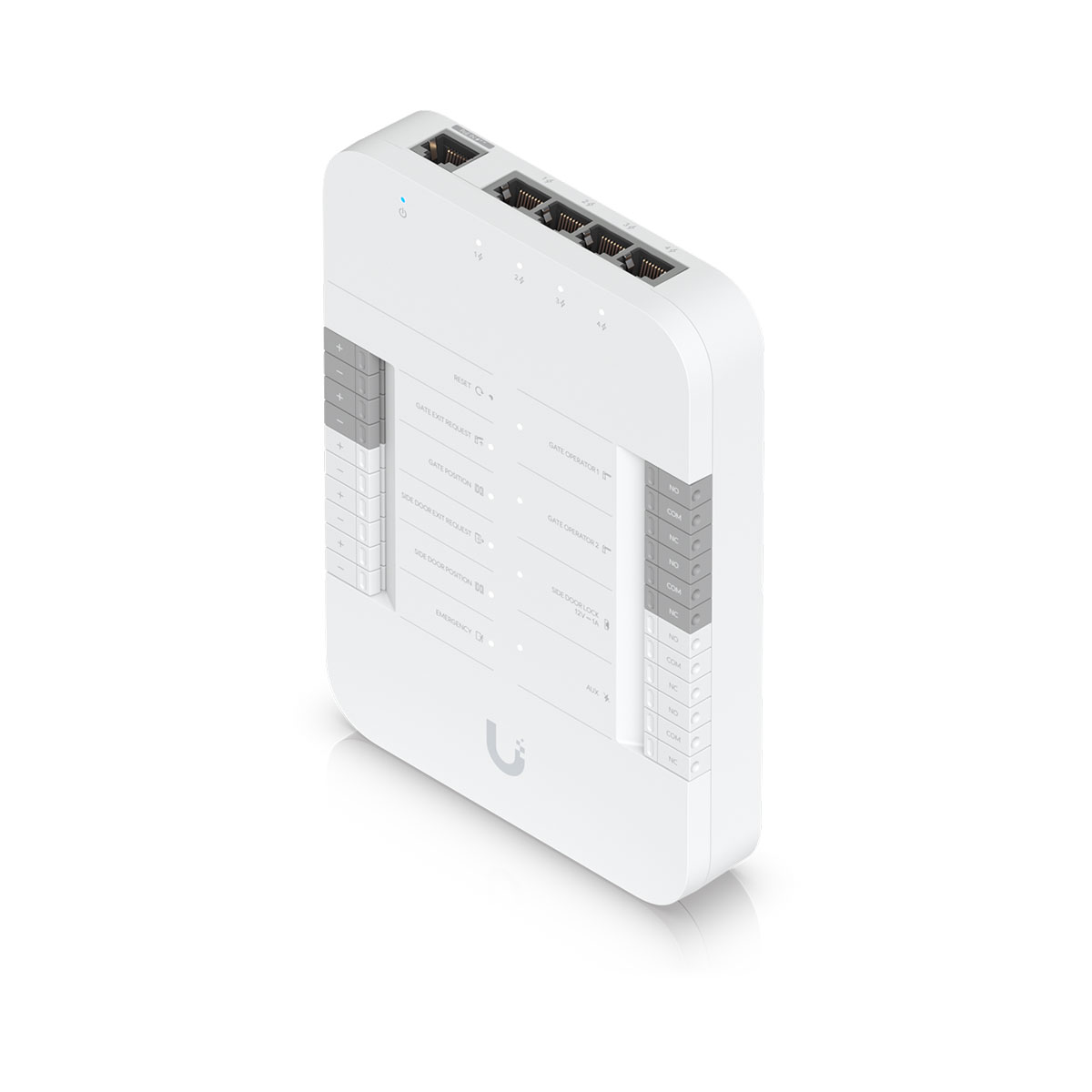

UA-Hub-Gate, part of the UniFi Access product line, enables convenient control of entry gates and doors. Operation can be easily automated using connected readers, intercoms, and AI cameras, facilitated by four RJ45 PoE output ports with a total power budget of 28W. The controller is designed for indoor use but can be installed outdoors in a weatherproof enclosure.

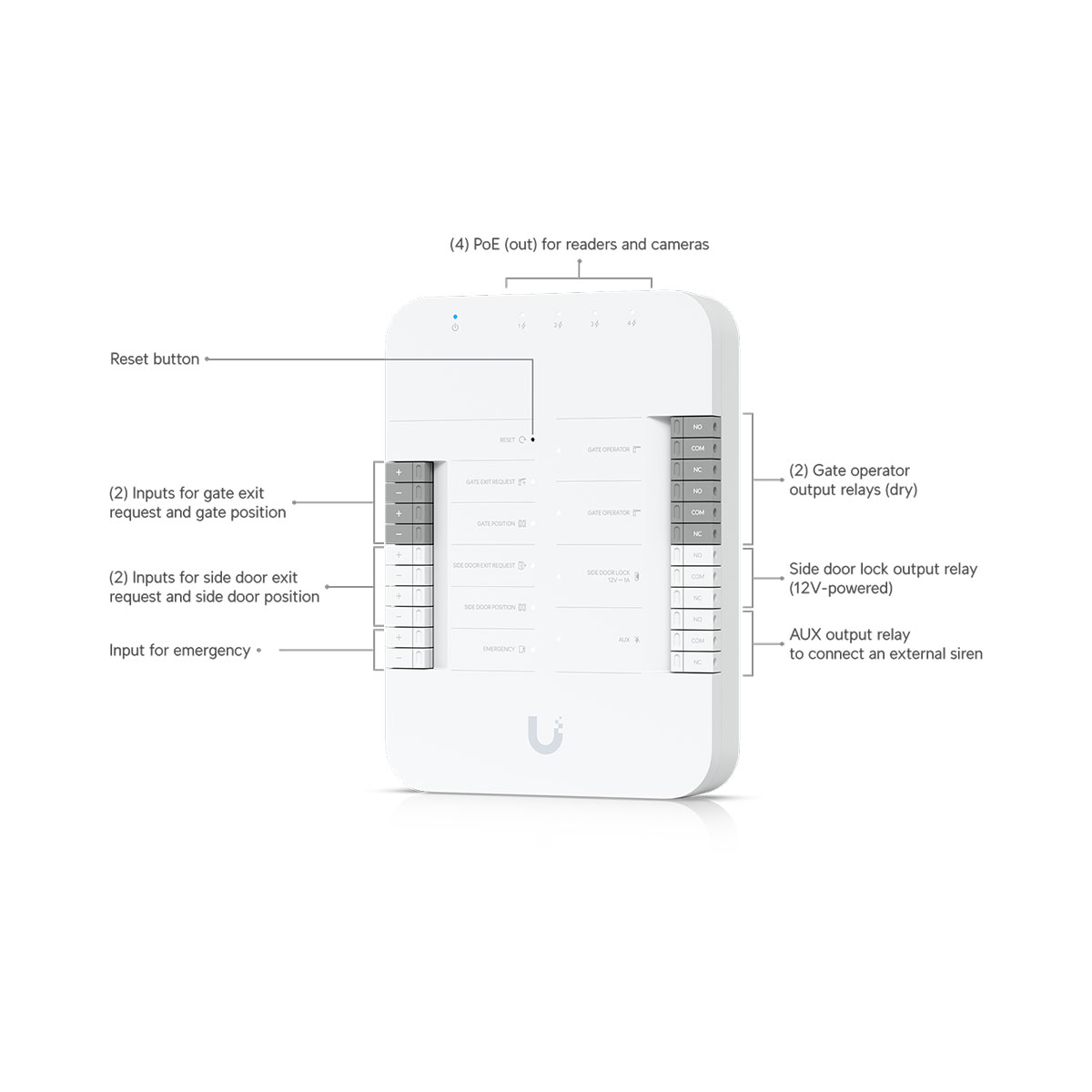

Peripheral Connections:
- (2) Gate operator terminals (dry)
- Lock terminal for side door (12V)
- AUX terminal for an external siren
- (5) Additional inputs for sensors and emergency

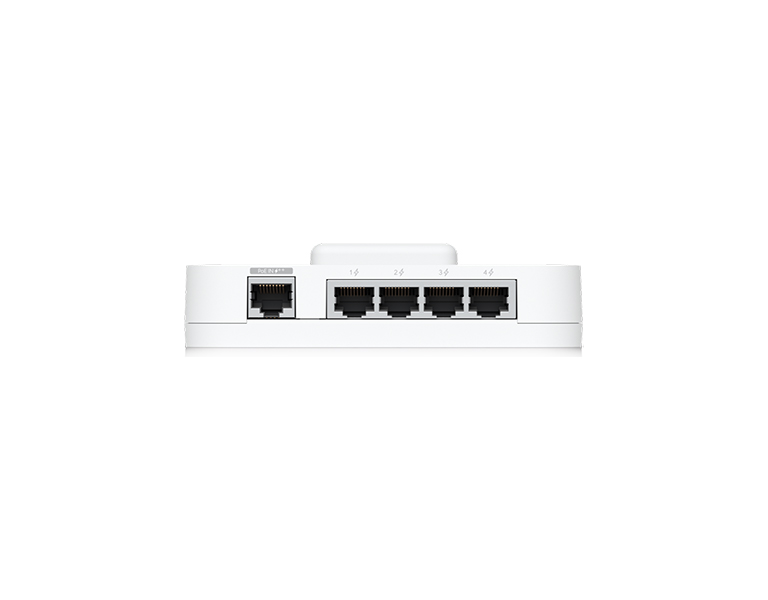

- (5) 10/100/1000Mbps LAN ports (1x PoE-in, 4x with PoE Passthrough support)
With a connected UniFi Protect camera featuring AI capabilities, the gate can be opened automatically based on license plate recognition. The controller can connect up to 4 readers, intercoms, or cameras, with a maximum power consumption of 28W.

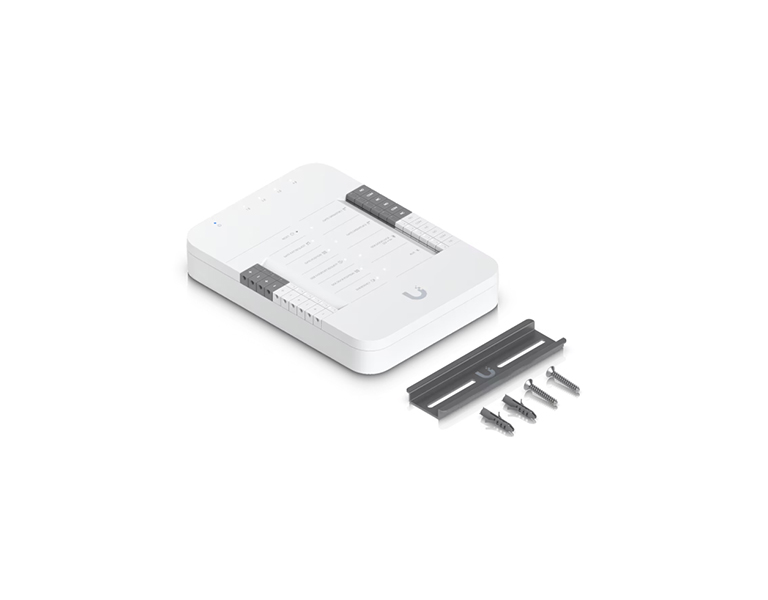

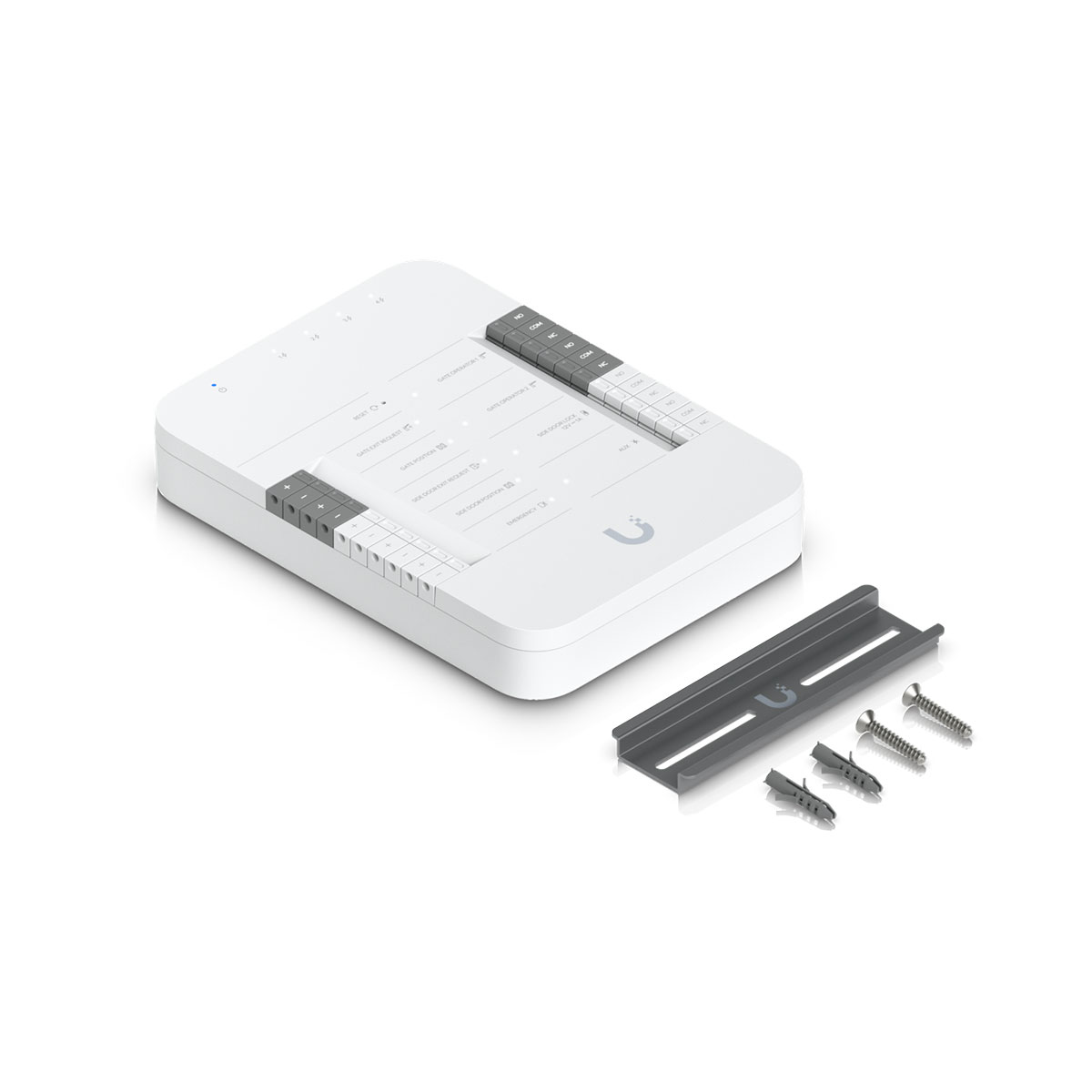

- Device
- DIN rail
- (2) Screws and wall plugs
| Εγγυήσεις - Επιστροφές: | |
| Επιστροφή Χρημάτων: | Επισκευή - Αντικατάσταση: |
| 20 ημέρες | 24 μήνες |
Χαρακτηριστικά
| Specifications | |

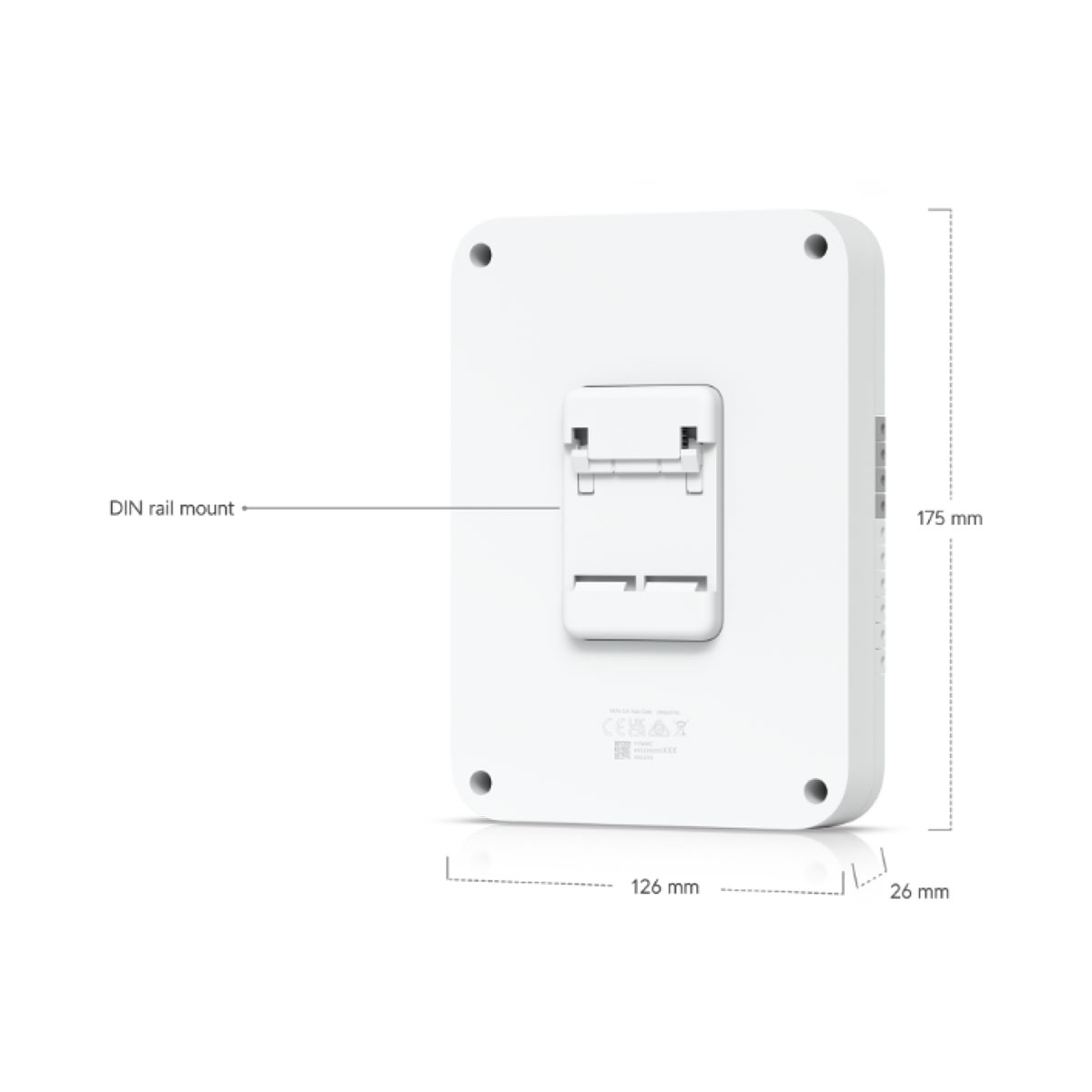

| Dimensions | 175 x 126 x 26 mm |
| Supported Doors | 1 gate, 1 side door |
| Input Terminals | (1) Gate exit request (1) Gate position (1) Side door exit request (1) Side door position (1) Emergency |
| Power Method | PoE++ UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU |
| NDAA Compliant | Yes |
| UL 294 Level | Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I |
| Mechanical | |
| Weight | 460 g |
| Enclosure Material | Polycarbonate |

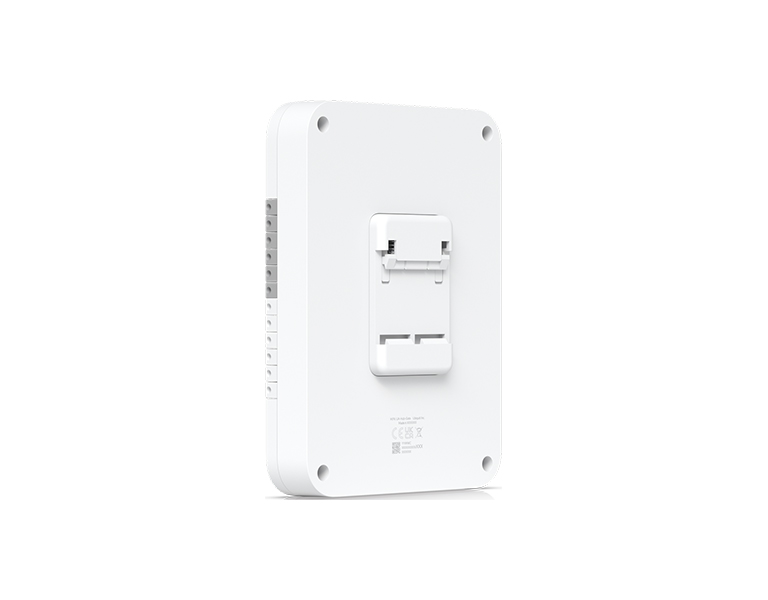

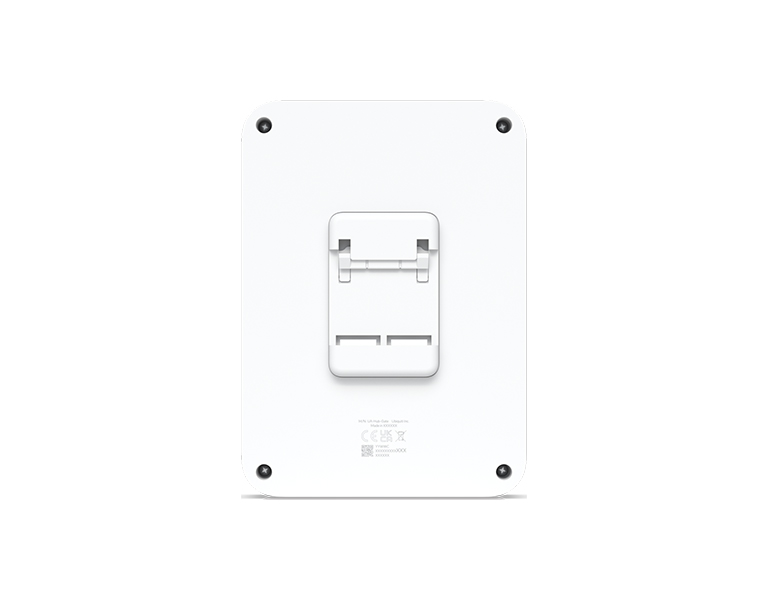

| Mounting | DIN-rail (Included) |
| Hardware | |
| Digital Input | Gate exit request, gate position, side door exit request, side door position, emergency |
| Dry Output Relay | (2) Operator: rated 30V DC, up to 1A (1) Aux: rated 30V DC, up to 1A |
| Powered Output Relay | Side door lock: 12V DC, up to 1A |
| Indoor and Outdoor Use | Indoor only: device itself Outdoor: with waterproof junction box |
| Ambient Operating Temperature | -30 to 60° C |
| Ambient Operating Humidity | 5 to 90% noncondensing |
| Networking Interface | (5) 10/100/1000 Base-T |
| PoE Interface | (1) PoE++ input, 50V DC, 1A (4) PoE outputs, 50V DC, Max. 28W |
| Max. Power Consumption | 22W (Without PoE output) 50W (With PoE output) |
| LEDs | W/B Learn More |
| Buttons | (1) Factory-reset |
| Software | |
| Management Application | Access |
| Software Information | The software version can be checked at https://unifi.ui.com |
