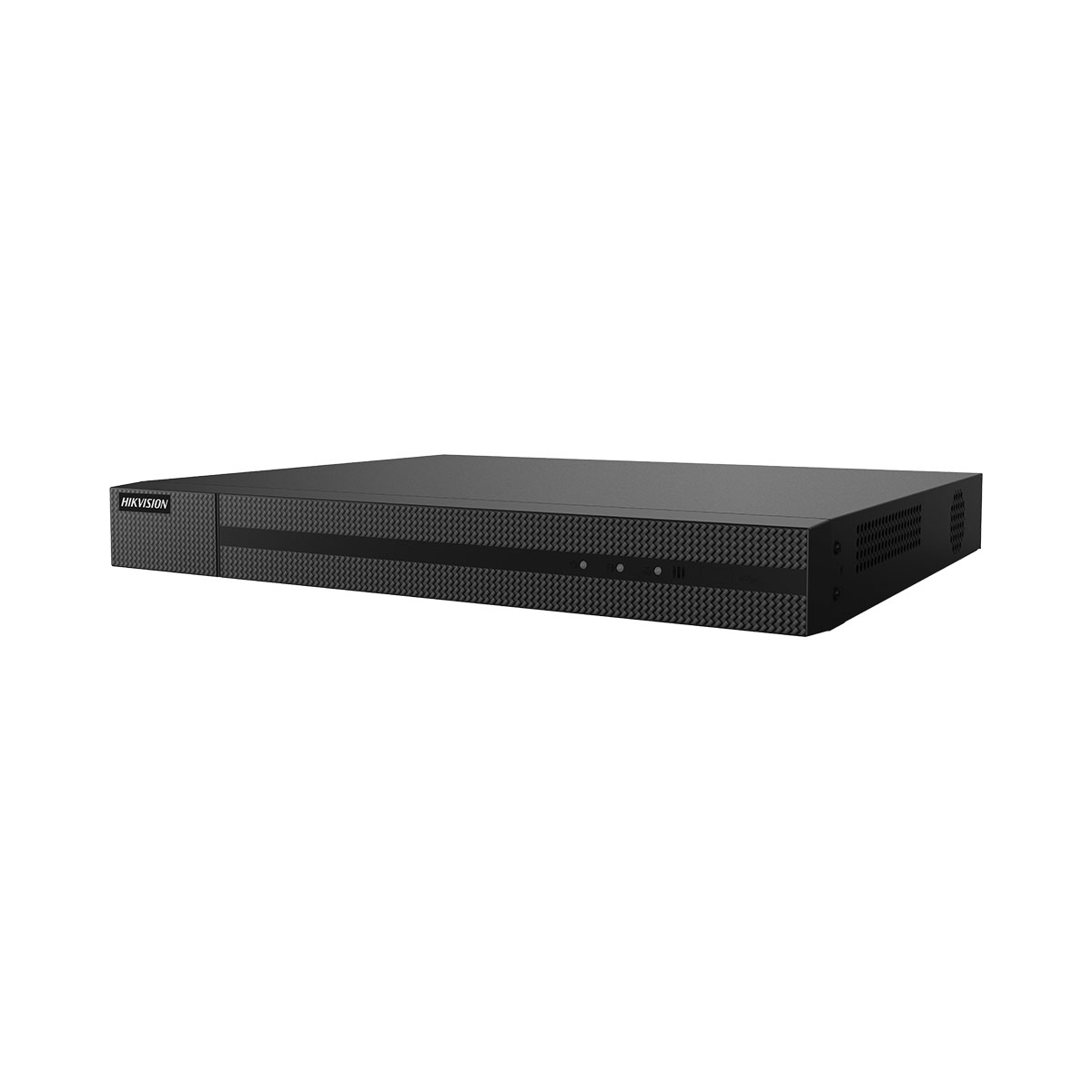

Hikvision HiWatch HWN-4216MH-16P(E), 16-Channel 1U 8MP NVR With 16 PoE
Κωδικός προϊόντος:
HWN-4216MH-16P(E)
-n-main.jpg "Hikvision HiWatch HWN-4216MH-16P(E), 16-Channel 1U 8MP NVR With 16 PoE")
Περιγραφή
Χαρακτηριστικά
Λήψεις
Περιγραφή
• Up to 16-ch IP camera inputs
• H.265+/H.265/H.264+/H.264 video formats
• Up to 2-ch@8 MP/4-ch@4 MP/8-ch@1080p decoding capacity
• Up to 160 Mbps incoming bandwidth
Χαρακτηριστικά
| Specification | |
| Motion Detection 2.0 |
|
| Human/Vehicle Analysis | 4-ch |
| Video and Audio | |
| IP Video Input | 16-ch |
| Incoming Bandwidth | 160 Mbps |
| Outgoing Bandwidth | 80 Mbps |
| HDMI Output | 1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz; HDMI/VGA simultaneous output,1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz; HDMI/VGA simultaneous output |
| VGA Output | 1-ch, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1280×720 /60Hz |
| Video Output Mode | HDMI/VGA simultaneous output |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 k Ω) |
| Decoding | |
| Decoding Format | H.265+,H.265,H.264+,H.264 |
| Recording Resolution | 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF |
| Synchronous playback | 16-ch |
| Decoding Capability | AI&4K Off: 8-ch@1080p(30fps) AI/4K On: 6-ch@1080p(30fps) *: The length or width of camera resolution (each track) cannot exceed 4096 pixels. |
| Network | |
| Remote Connection | 32 |
| Network Protocol | TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS |
| Network Interface | 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
| Auxiliary Interface | |
| SATA | 2 SATA interfaces |
| Capacity | Up to 8TB capacity for each disk |
| USB Interface | 2 × USB 2.0 |
| General | |
| Power Supply | AC100V~240V，190W |
| Consumption | ≤ 10 W |
| Working Temperature | -10 °C to 55 °C |
| Working Humidity | 10% to 90% |
| Chassis | 1U |
| Dimension (W × D × H) | 384 × 315 × 52 mm |
| Weight | ≤ 3.7 kg |
| Certification | |
| CE | 55032/55035/61000-3-2/61000-3-3/50130-4 |
