Ubiquiti UP-SUPERLINK, Wireless Gateway for UniFi Protect Sensors
Ubiquiti UP-SUPERLINK, Wireless Gateway for UniFi Protect Sensors
A wireless gateway with very long range and low latency, designed for UniFi Protect sensors (e.g. UP-Sense). Supports up to 96 SuperLink clients with a range of up to 2 km (line of sight). The device can be powered via PoE or USB Type-C. It offers wall or DIN rail mounting options. SuperLink sensors will be available soon, with coverage range comparable to Wi-Fi.
Key Features
- Wireless gateway with proprietary wireless communication
- Supports up to 96 SuperLink clients with a range of up to 2 km (line of sight)
- Supports up to 7x UP-Sense sensors
- Powered via PoE or USB-C

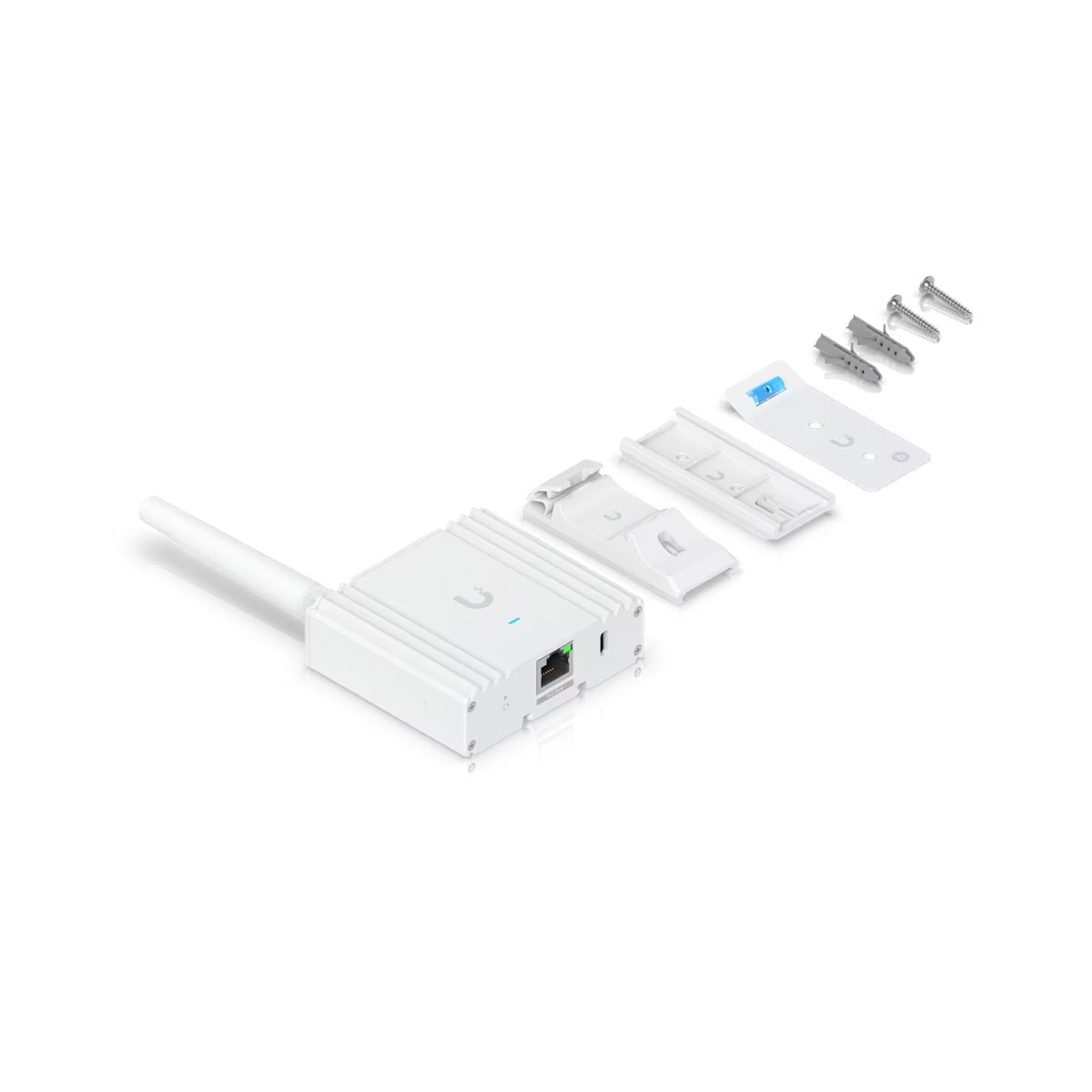

- Wall or DIN rail mounting options
- Long-range BLE comparable to Wi-Fi coverage
| Overview | |

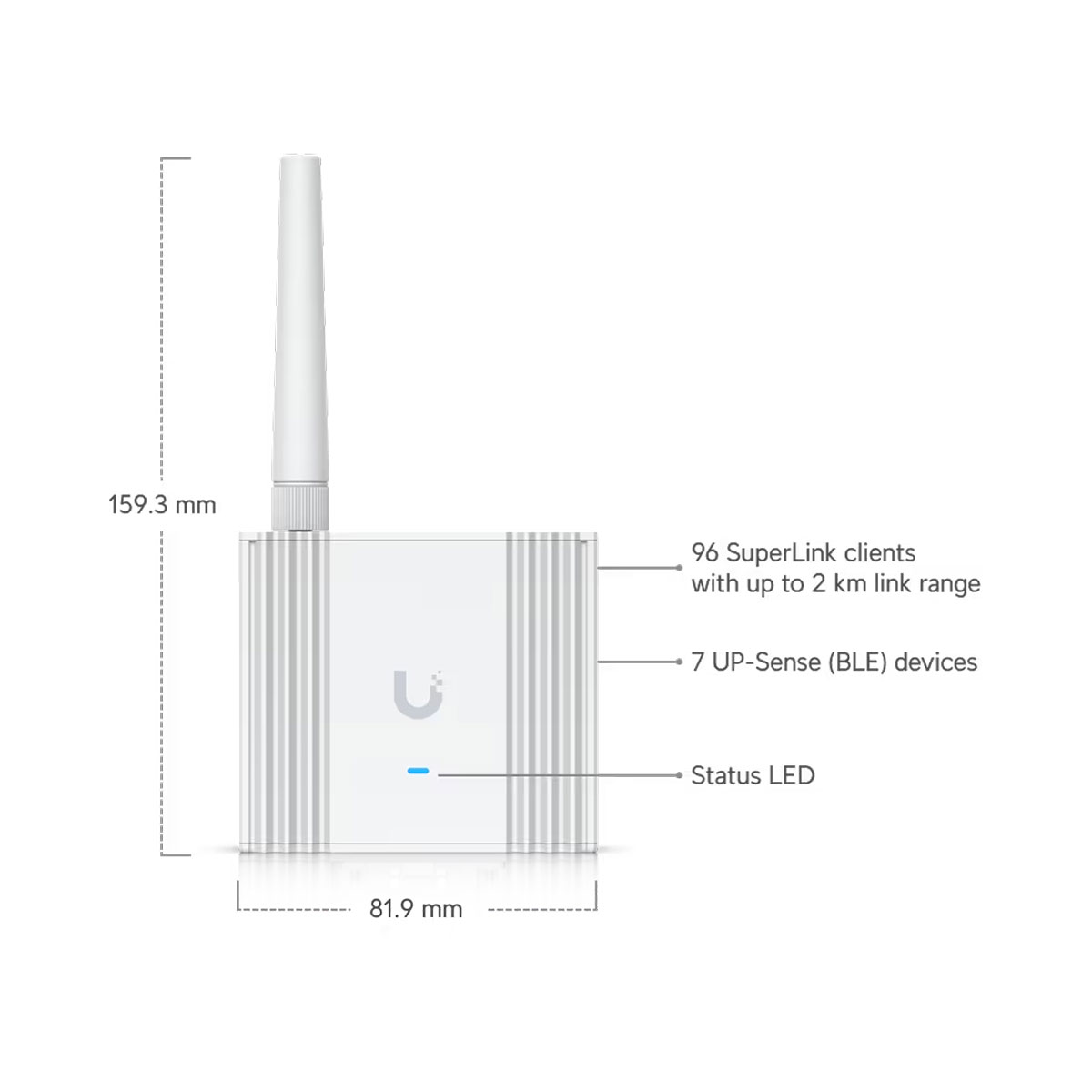

| Dimensions | With antenna: 159.3 x 81.9 x 26 mm With DIN rail mount: 159.3 x 81.9 x 38.5 mm With wall mount: 159.3 x 81.9 x 30.5 mm |
| Mounting | Wall and DIN rail mount |
| UniFi Application Suite | Protect |
| Performance | |
| Networking Interface | (1) 10/100 MbE RJ45 port |
| Connectivity | Bluetooth® 5.2 |
| SuperLink (Proprietary) | |
| Operating Frequency | SuperLink - 865.1–869.5MHz Bluetooth - 2400–2480 MHz |
| Antenna Gain | Bluetooth 3 dBi |
| SuperLink 2 dBi | |
| Max. TX Power | Bluetooth 10 dBm |
| SuperLink 27 dBm | |
| Max. Range | Bluetooth Up to 100m |
| SuperLink 2km 🛈 Line of Sight (LOS) |
|
| Max. Client Count | Bluetooth 7 |
| SuperLink 96 | |
| Hardware | |
| Max. Power Consumption | 3.4W |
| Power Method | PoE USB Type-C, 5V, 1A (Optional) |
| Weight | 179 g |
| Enclosure Material | Polycarbonate, aluminum alloy |
| Mount Material | Polycarbonate |
| Antenna Connector | (1) RP-SMA female |
| Buttons | (1) Factory-reset |
| LEDs | (1) Status: B/W |
| Ambient Operating Temperature | 0 to 40° C |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| NDAA Compliant | ✓ |
| Software | |
| Application Requirements | Web Application - UniFi Protect |
| Mobile App - UniFi Protect iOS™ and Android™ | |
Προσοχή! Βάσει της ισχύουσας Ελληνικής Νομοθεσίας, του Ε.Κ.Κ.Ζ.Σ. και των όσων προβλέπει το Π.Δ. 98/2017 η νόμιμη χρήση του προϊόντος αυτού στη ζώνη συχνοτήτων 863 – 870 MHz, προβλέπει μέγιστη ισχύ εκπομπής όπως περιγράφεται στην απαίτηση διεπαφής ραδιοεξοπλισμού 105. Αρμόδια για την εποπτεία του φάσματος είναι η E.E.T.T.
Το προϊόν αυτό είναι εφοδιασμένο με σήμα συμμόρφωσης CE βλ. Π.Δ. 98/2017
Το προϊόν αυτό προορίζεται για χρήση σε εσωτερικούς και εξωτερικούς χώρους.
