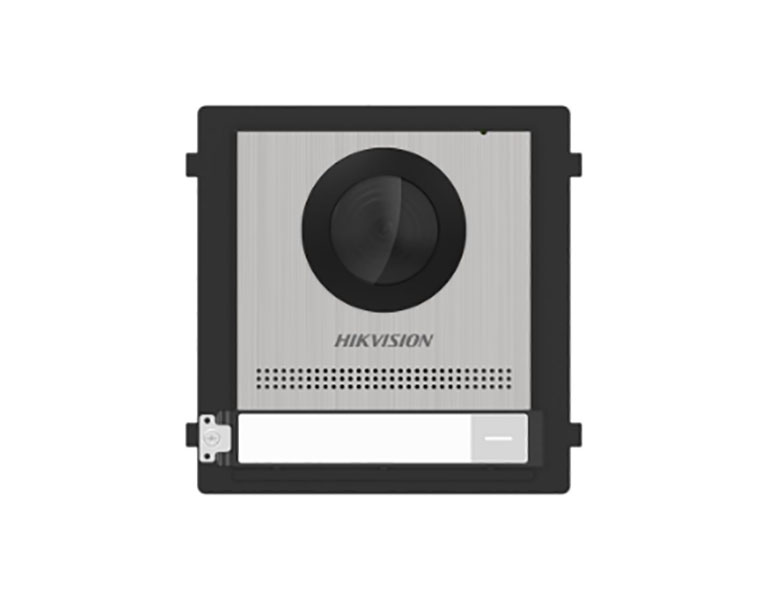

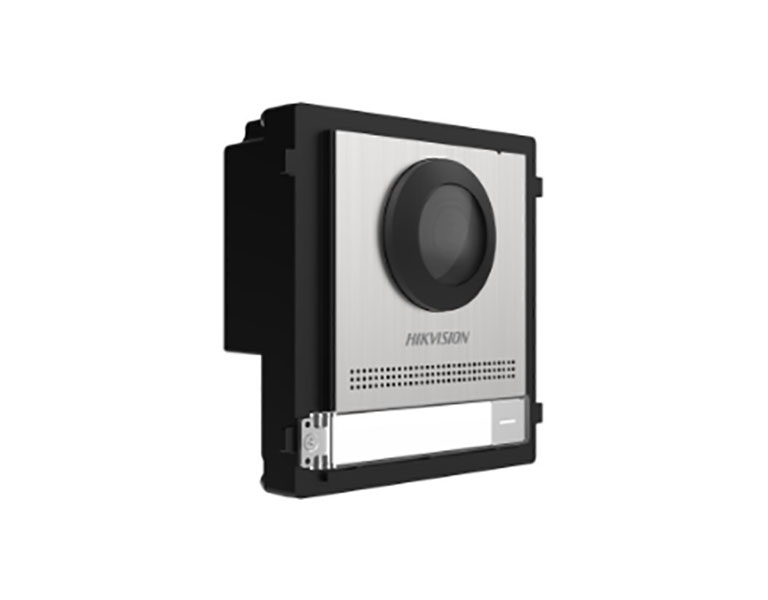

Hikvision DS-KD8003-IME1(B)/S KD8 Series Pro Modular Door Station
Κωδικός προϊόντος:
DS-KD8003-IME1(B)/S
-S-2.jpg "Hikvision DS-KD8003-IME1(B)/S KD8 Series Pro Modular Door Station")
-S-1.jpg "Hikvision DS-KD8003-IME1(B)/S KD8 Series Pro Modular Door Station")
-S.jpg "Hikvision DS-KD8003-IME1(B)/S KD8 Series Pro Modular Door Station")
Άμεσα διαθέσιμο
Hikvision DS-KD8003-IME1(B)/S KD8 Series Pro Modular Door Station
Υπολογισμός κόστους μεταφορικών:
Καλέστε για τιμή
Περιγραφή
Χαρακτηριστικά
Λήψεις
Περιγραφή
• Main unit of modular door station
• 2 MP fisheye camera with IR supplement
• One call physical button for easier calls
• Two-lock control
• Standard PoE power supply
• IP65 protection level
• Convenient configuration via Web remotely
• Directly provide 12 V, 500 mA power output for one electronic lock without additional power supply
• Stainless Steel high quality material
Χαρακτηριστικά
| Specifications | |
| System parameters | |
| Operating system | Linux |
| ROM | 32 MB |
| RAM | 256 MB |
| CPU | Embedded high performance processor |
| Video parameters | |
| Lens | 2 MP HD camera |
| Resolution | 2 MP |
| FOV | Horizontal: 146°, Vertical: 82° |
| Supplement light | Low illumination, IR supplement lights |
| Video compression standard | H.264 |
| WDR | Support |
| Audio parameters | |
| Audio input | 1 built-in omnidirectional microphone |
| Audio output | Built-in loudspeaker |
| Audio compression standard | G.711 U/G.711 A |
| Audio compression rate | 64 Kbps |
| Audio quality | Noise Suppression and Echo Cancellation |
| Volume adjustment | Adjustable |
| Capacity | |
| User capacity | 2000 |
| Card capacity | 6000 |
| Linked indoor station capacity | 500 |
| Sub door station capacity | 16 |
| Network parameters | |
| Communication protocol | TCP/IP, RTSP |
| Device interfaces | |
| Alarm input | 4 (2 exit buttons and 2 door contacts by default) |
| Network interface | 1 RJ-45, 10/100 Mbps self-adaptive |
| TAMPER | 1 |
| Exit button | 2 (2 for lock control) |
| Door contact input | 2 |
| RS-485 | 1 (1 for Hikvision's sub module communication) |
| Lock control | 2 (2 relays, max to 30 V, 2 A) |
| Door contact input | 2 |
| General | |
| Power Supply | 12 VDC, 500 mA, IEEE 802.3af, PoE |
| Working temperature | -40° C to +60° C |
| Button | 1 |
| IP protection level | IP65 |
| Installation | Surface mounting and flush mounting |
| Dimensions (L x W x H) | 98 mm × 100 mm × 42 mm |
| Language | English, French, Portuguese, BrazilianPortuguese, Spanish, Russian, German, Italian, Polish, Turkish, Vietnamese, Arabic, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Slovak |
| Indicator | 0 |
| Weight | Net weight: 410 g Gross weight: 581 g |
| Application environment | Outdoor |
| Power consumption | ≤ 5 W |
