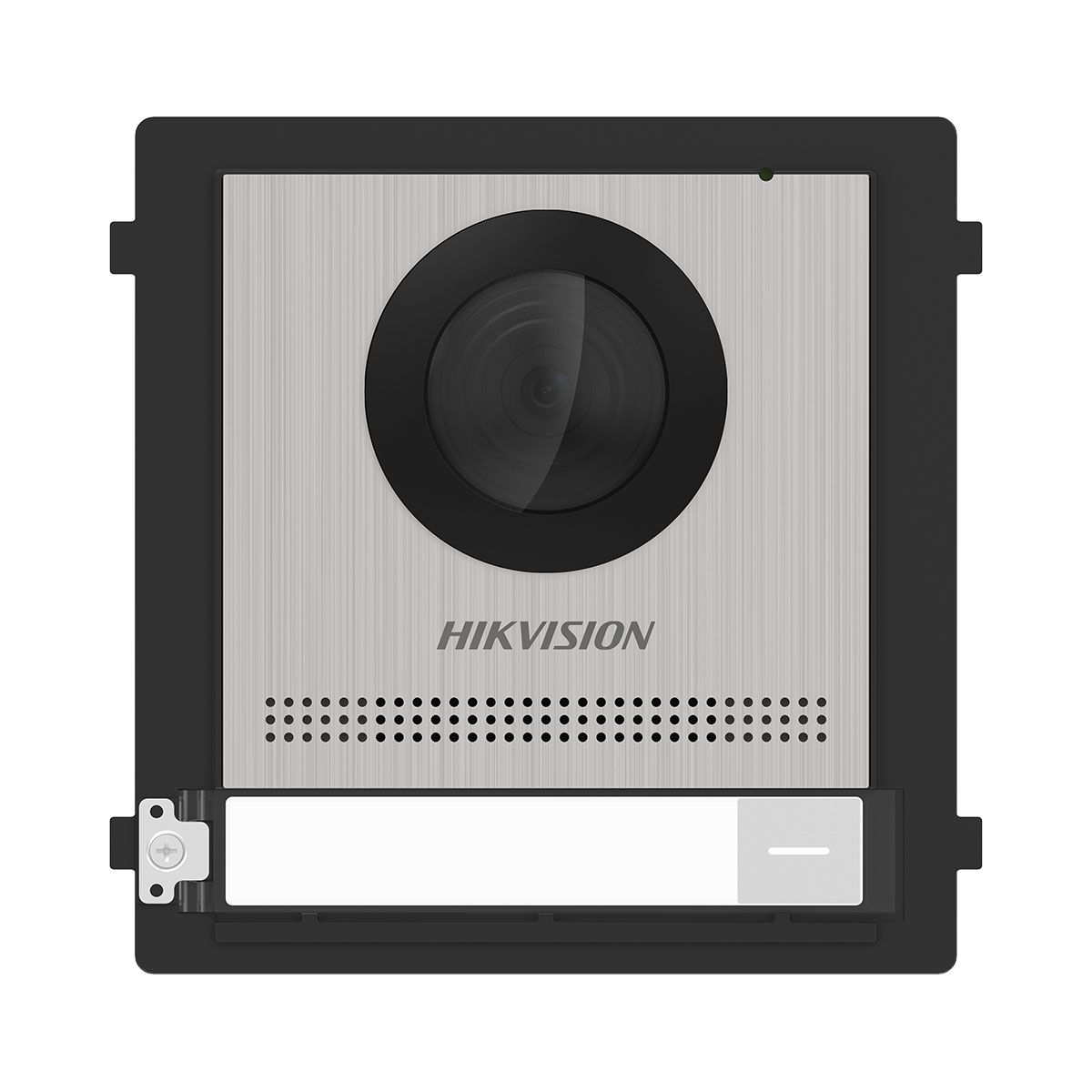

Hikvision DS-KD8003-IME1(B)/S KD8 Series Pro Modular Door Station

Product Code:
DS-KD8003-IME1(B)/S
Available
Hikvision DS-KD8003-IME1(B)/S KD8 Series Pro Modular Door Station
Shipping cost calculation:
Call for pricing
Manufacturer:
Warranty:
36 Months
Description
Characteristics
Downloads
Description

• Main unit of modular door station
• 2 MP fisheye camera with IR supplement
• One call physical button for easier calls
• Two-lock control
• Standard PoE power supply
• IP65 protection level
• Convenient configuration via Web remotely
• Directly provide 12 V, 500 mA power output for one electronic lock without additional power supply
• Stainless Steel high quality material



Characteristics
Specifications
System parameters
Operating system Linux
ROM 32 MB
RAM 256 MB
CPU Embedded high performance processor
Video parameters
Lens 2 MP HD camera
Resolution 2 MP
FOV Horizontal: 146°, Vertical: 82°
Supplement light Low illumination, IR supplement lights
Video compression standard H.264
WDR Support
Audio parameters
Audio input 1 built-in omnidirectional microphone
Audio output Built-in loudspeaker
Audio compression standard G.711 U/G.711 A
Audio compression rate 64 Kbps
Audio quality Noise Suppression and Echo Cancellation
Volume adjustment Adjustable
Capacity
User capacity 2000
Card capacity 6000
Linked indoor station capacity 500
Sub door station capacity 16
Network parameters
Communication protocol TCP/IP, RTSP
Device interfaces
Alarm input 4 (2 exit buttons and 2 door contacts by default)
Network interface 1 RJ-45, 10/100 Mbps self-adaptive
TAMPER 1
Exit button 2 (2 for lock control)
Door contact input 2
RS-485 1 (1 for Hikvision's sub module communication)
Lock control 2 (2 relays, max to 30 V, 2 A)
Door contact input 2
General
Power Supply 12 VDC, 500 mA, IEEE 802.3af, PoE
Working temperature -40° C to +60° C
Button 1
IP protection level IP65
Installation Surface mounting and flush mounting
Dimensions (L x W x H) 98 mm × 100 mm × 42 mm
Language English, French, Portuguese, BrazilianPortuguese, Spanish, Russian, German, Italian, Polish, Turkish, Vietnamese, Arabic, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian,
Croatian, Serbian, Greek, Slovak
Indicator 0
Weight Net weight: 410 g
Gross weight: 581 g
Application environment Outdoor
Power consumption ≤ 5 W
