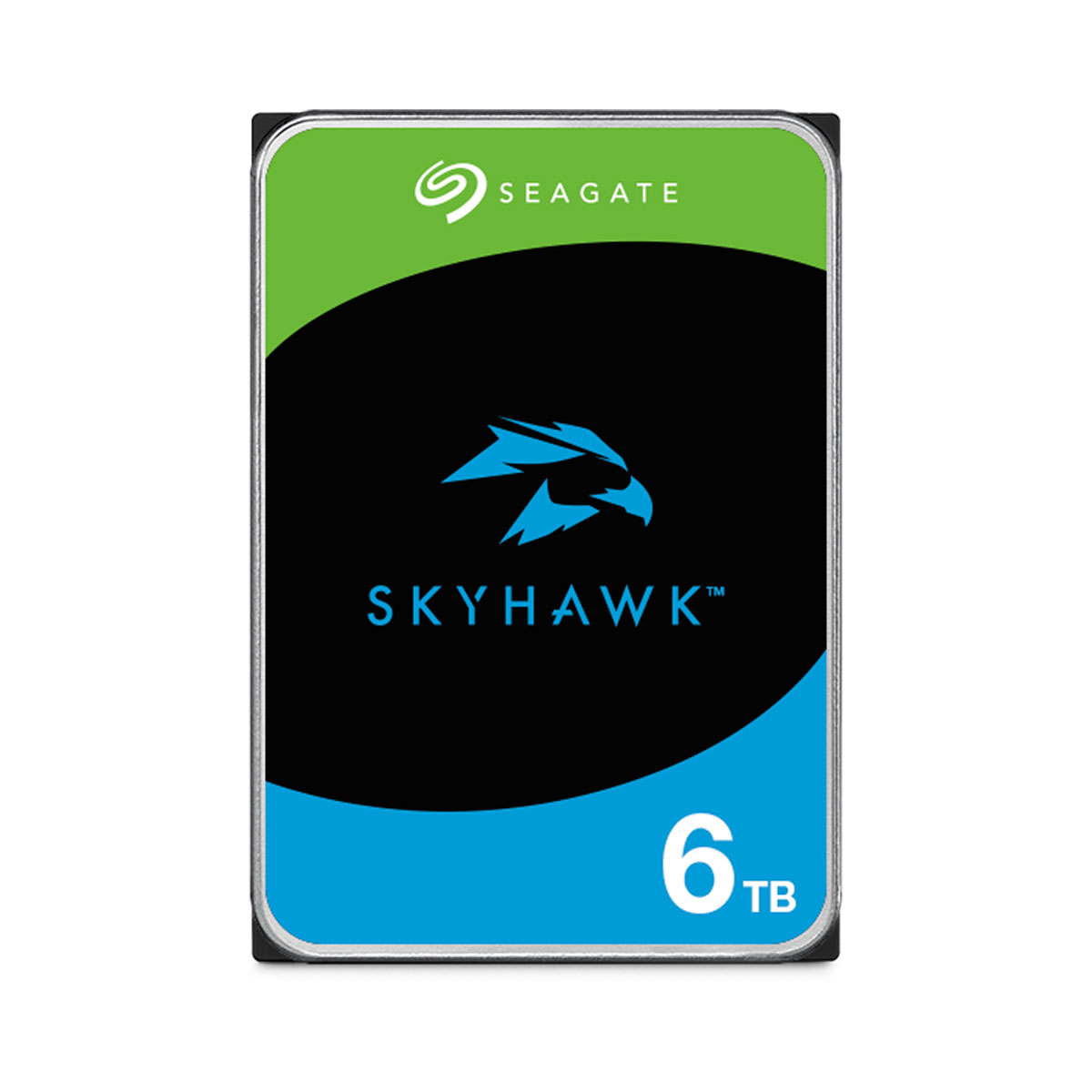

Seagate HDD Skyhawk 6TB , 3.5'', ST6000VX009
Seagate HDD Skyhawk 6TB , 3.5'', ST6000VX009
SkyHawk
SkyHawk™ leverages Seagate's extensive experience in designing drives purpose-built for surveillance applications.
Key Advantages
ImagePerfect™ firmware is designed to ensure seamless video footage capture in
24×7 workloads | that record video from 64 HD cameras.
SkyHawk Health Management actively helps protect your video storage by focusing
on prevention, intervention, and recovery options | Included is RAID RapidRebuild™,
which provides 3× faster volume rebuilds over traditional RAID rebuilds.
Unparalleled data protection with included Rescue Data Recovery Services plan,
helping protect important video data with Seagate's in-house data recovery services.
RV sensors built in allow drives to maintain performance in multi-bay systems, giving
customers the flexibility to scale their systems when more storage is needed.
ATA streaming support enables recordings from up to 64 HD cameras for smooth,
uninterrupted footage.
1M hours MTBF, 3-year limited warranty | represents an improved total cost of
ownership (TCO) with reduced maintenance costs.
Lower power consumption means a reduction in heat emissions, which improves
reliability in surveillance solutions. Tarnish-resistant components help protect drive from
environmental elements, increasing field reliability.
1 SkyHawk video drives are designed for always-on workloads of 180TB/year. For higher transaction workloads, see Seagate’s
enterprise-class drive offerings.
2 Seagate does not recommend operating at sustained extreme temperatures. Operating at higher temperatures will reduce useful
life of the products.
| Specifications | |
| SkyHawk™ Health Management Included | Yes |
| Interface | SATA 6Gb/s |
| Recording Technology | CMR |
| Drive Design | Air |
| Features and Performance | |
| Drive Bays Supported | Up to 16 |
| Cameras Supported | Up to 64 |
| RV Sensors | Yes |
| Max Sustained Transfer Rate OD (MB/s) | 180MB/s |
| Cache (MB) | 256 |
| Reliability/Data Integrity | |
| Tarnish Resistan | Yes |
| Load/Unload Cycles | 600,000 |
| Nonrecoverable Read Errors Rate, Max | 1 per 10E14 |
| Power-On Hours per year | 8760 |
| Workload Rate Limit (WRL) 1 | 180 |
| Mean Time Between Failures (MTBF) (hours) | 1,000,000hr |
| Power Management | |
| Startup Current, Typical (12V, A) | 1.8 |
| Average Operating Power (W) | 5.3W |
| Idle Average (W) | 3.4W |
| Standby Mode/Sleep Mode, Typical (W) | 0.25W |
| Voltage Tolerance (5V) | ±5% |
| Voltage Tolerance (12V) | ±10% |
| Environmental/Temperature | |
| Operating (ambient, min °C) | 0 |
| Operating (drive reported, max °C) 4 | 65°C |
| Nonoperating (ambient, min °C) | -40°C |
| Physical | |
| Height (mm, max) | 26.1mm |
| Width (mm, max) | 101.6mm/ |
| Depth (mm, max) | 146.99mm |
| Weight (g, typical) | 630g |
1 SkyHawk surveillance drives are designed for always-on workloads of 180TB/year. For higher transaction workloads, see Seagate’s enterprise-class drive offerings.
2 Seagate does not recommend operating at sustained extreme temperatures. Operating at higher temperatures will reduce useful life of the products.
