Ubiquiti UISP-Cable-Pro FTP outdoor wire cable Cat5e, 24AWG by meter
Κωδικός προϊόντος:
UISP-CABLE-PRO-M
0,70 €
(Περιλαμβάνει ΦΠΑ 24%)
Τιμή χωρίς ΦΠΑ:
0,56 €
Άμεσα διαθέσιμο
Ubiquiti UISP-Cable-Pro FTP outdoor wire cable Cat5e, 24AWG by meter
Υπολογισμός κόστους μεταφορικών:
Ποσότητα
Περιγραφή
Χαρακτηριστικά
Λήψεις
Περιγραφή

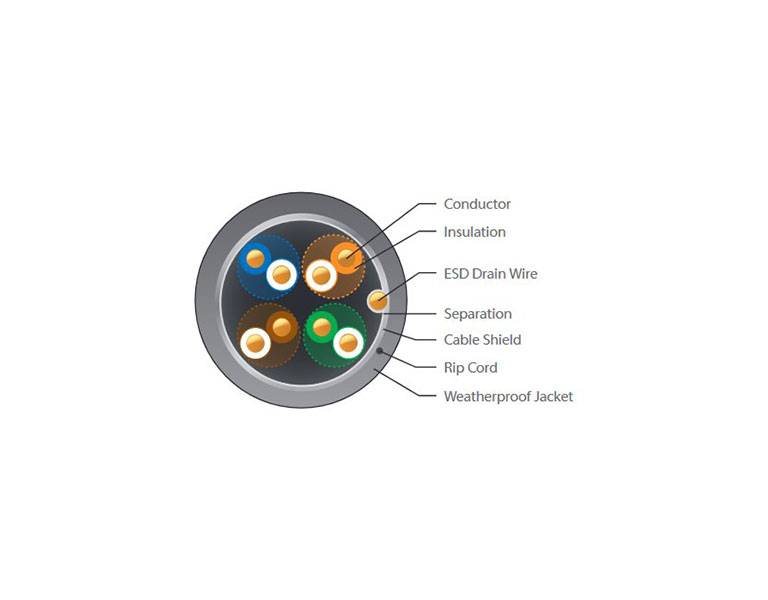

The UISP-Cable-Pro is a Category 5e cable with a highly insulating, weatherproof jacket that prevents damage from rain, snow, and other extreme climatic conditions. The cable is also fortified with internal foil shielding and a drain wire that collectively shield it from electrostatic discharge (ESD) and allow it to maintain Gigabit Ethernet link rates even when electromagnetic interference is present.
Features:
• 1,000 ft (305 m) Category 5e cable
• 24 AWG solid copper conductor pairings
• Insulated, weatherproof cable jacket
• Internal foil shielding and drain wire for increased ESD damage protection
Χαρακτηριστικά
| Specifications | |
| Cable | CAT5e, Shielded |
| Box Dimensions | 330 x 330 x 340 mm |
| Box Weight | 12 kg |
| Cable Length | 305 m |
| Cable Color | Black |
| Ethernet Support | Up to 1 Gbps |
| Conductor Wire Gauge | 24 AWG |
| Conductor | Solid Bare Copper |
| Conductor Diameter | 0.500 ± 0.005 mm |
| Insulation Type | Solid Polyethylene |
| Insulation Thickness | AVG: 0.26 mm, MIN: 0.25 mm |
| Insulation Diameter | 1.04 ± 0.03 mm |
| Separation (Polyester Wrapping) | Thick: 0.025 mm, Extent: 20 mm |
| Anti-Crosstalk Divider | None |
| Cable Shield (Aluminum Foil) | Thick: 0.060 mm, Extent: 18 mm |
| ESD Drain Wire | 0.4 CCS |
| Rip Cord | Yes |
| Jacket Material | Polyethylene |
| Jacket Thickness | AVG: 0.50 mm, MIN: 0.46 mm |
| Jacket Outer Diameter | 6.0 ± 0.30 mm |
| Jacket Color | Black |
| Storage Temperature | -30 to 75° C |
| Installation Temperature | -20 to 60° C |
| Operation Temperature | -40 to 80° C |
| Standards | ANSI/TIA-568-C.2 (2009) ISO/IEC 11801 (Edition 2.2) |
