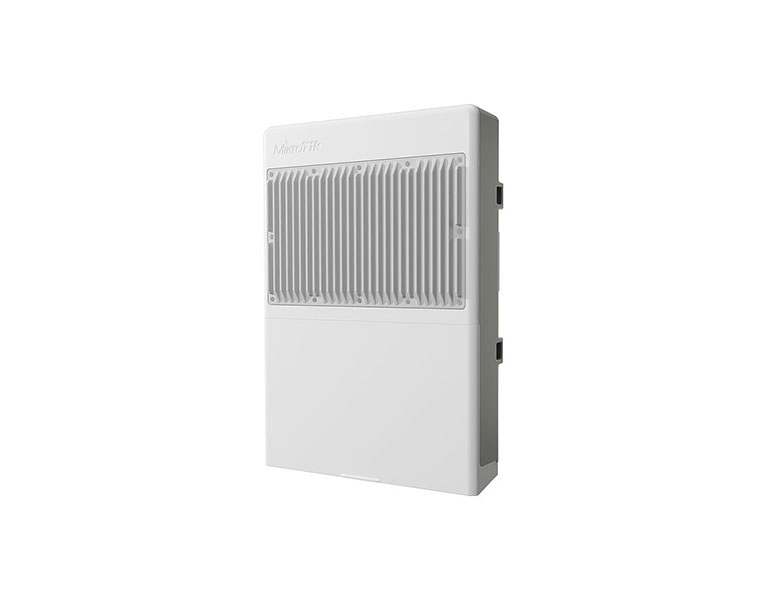

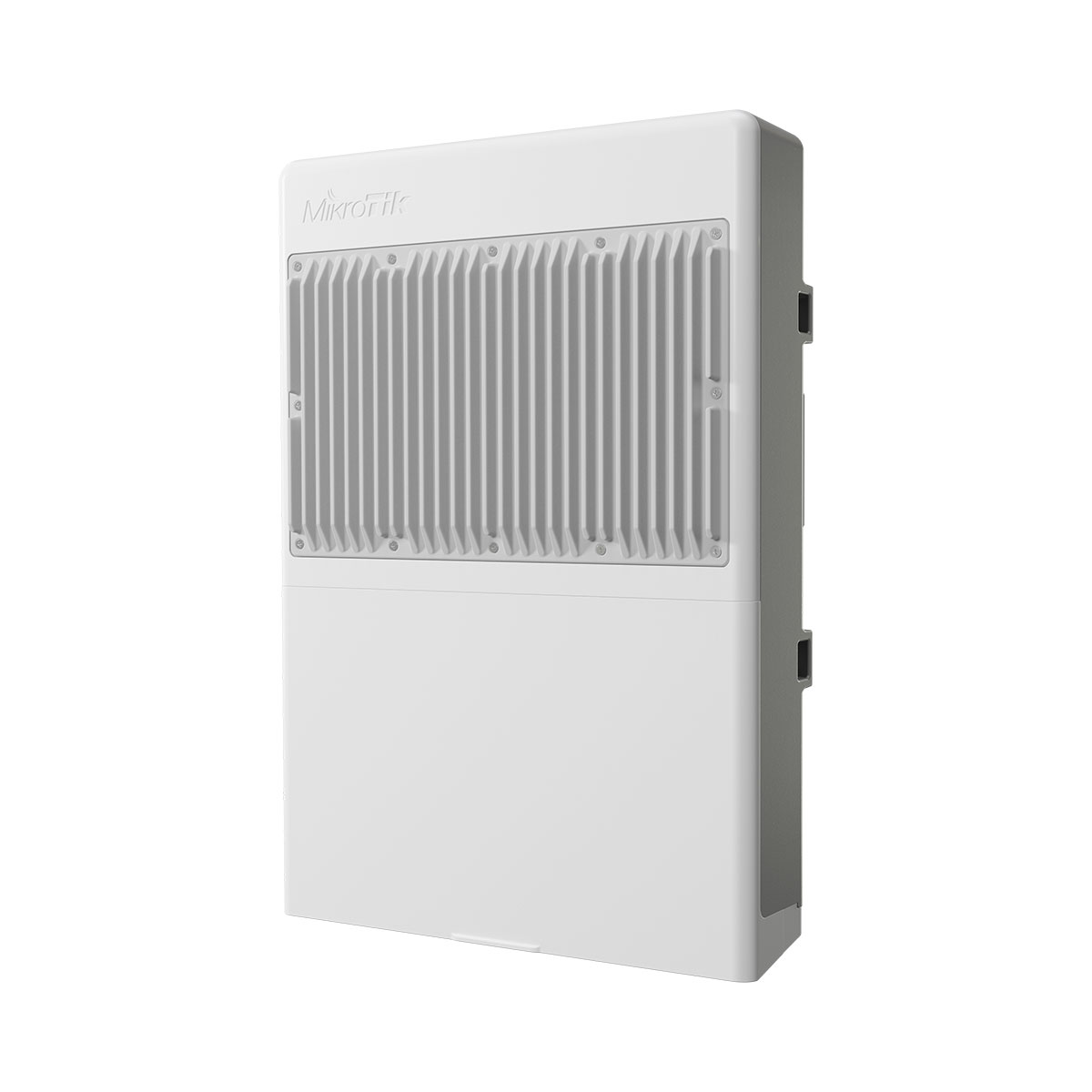

MikroTik CRS318-16P-2S+OUT, netPower 16P, 2xSFP+, RouterOS/SwOS L5
ΠΡΟΣΟΧΗ!!! Στην συσκευασία δεν συμπεριλαμβάνεται τροφοδοτικό!!!

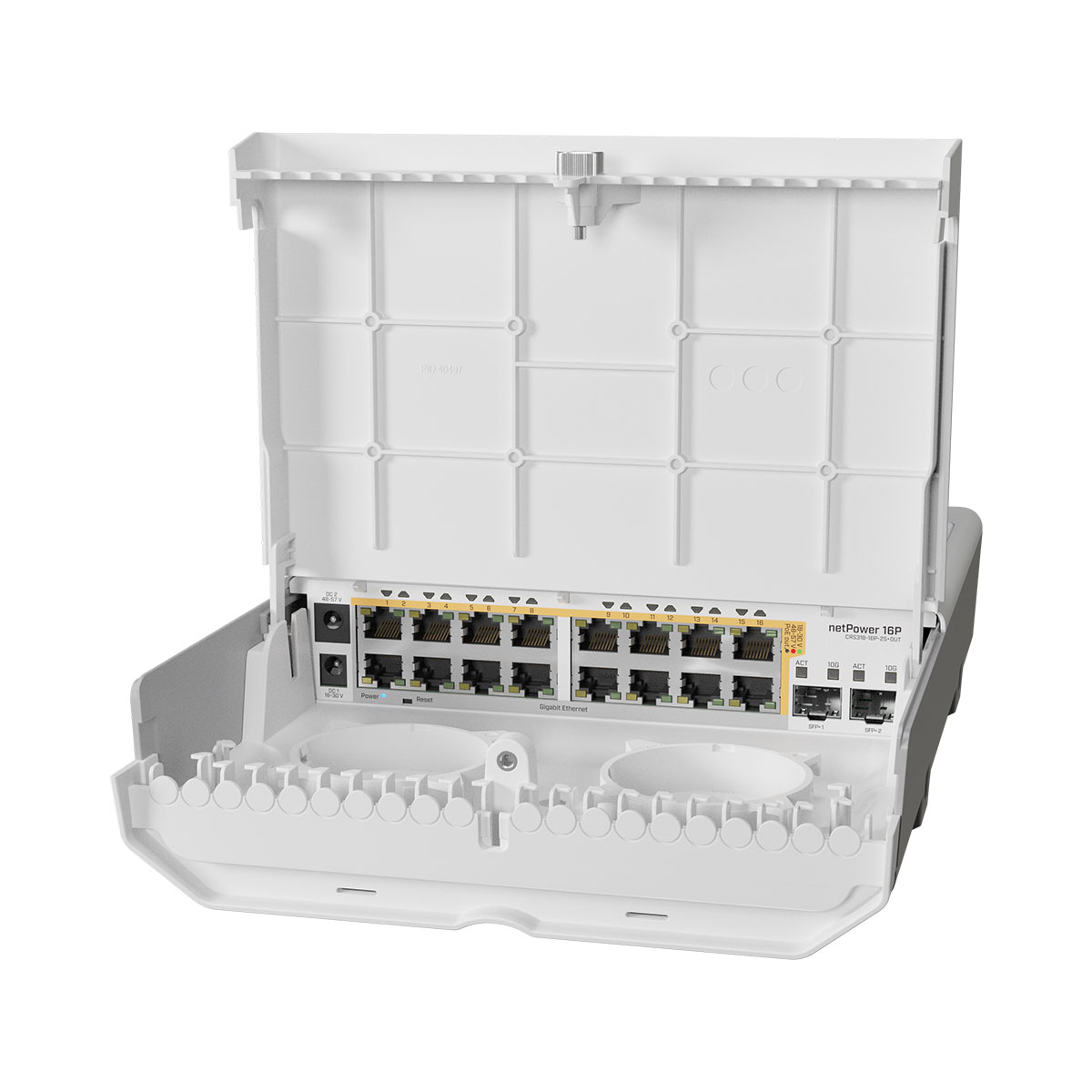

Powering a bunch of access points or IP cameras and a few uplinks on a tower has never been easier. netPower 16P has 16 Gigabit Ethernet ports with PoE-out and two SFP+ ports for 10G fiber uplinks.

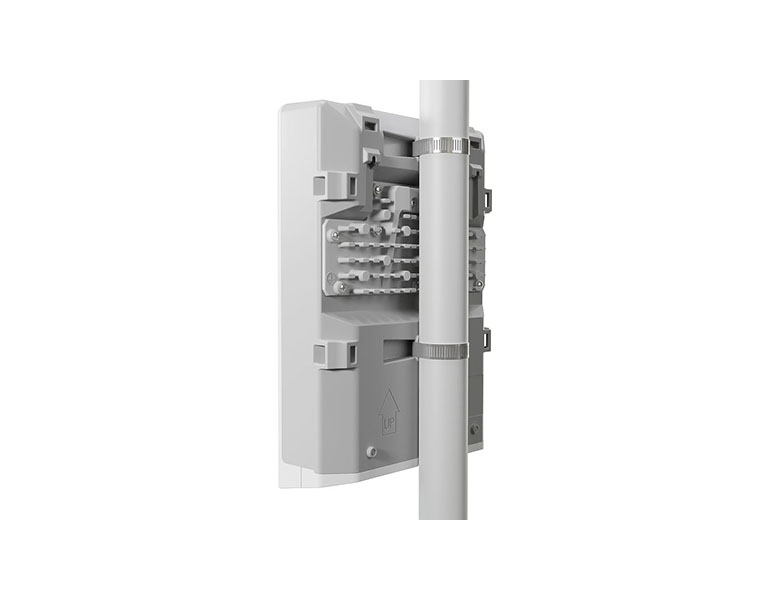

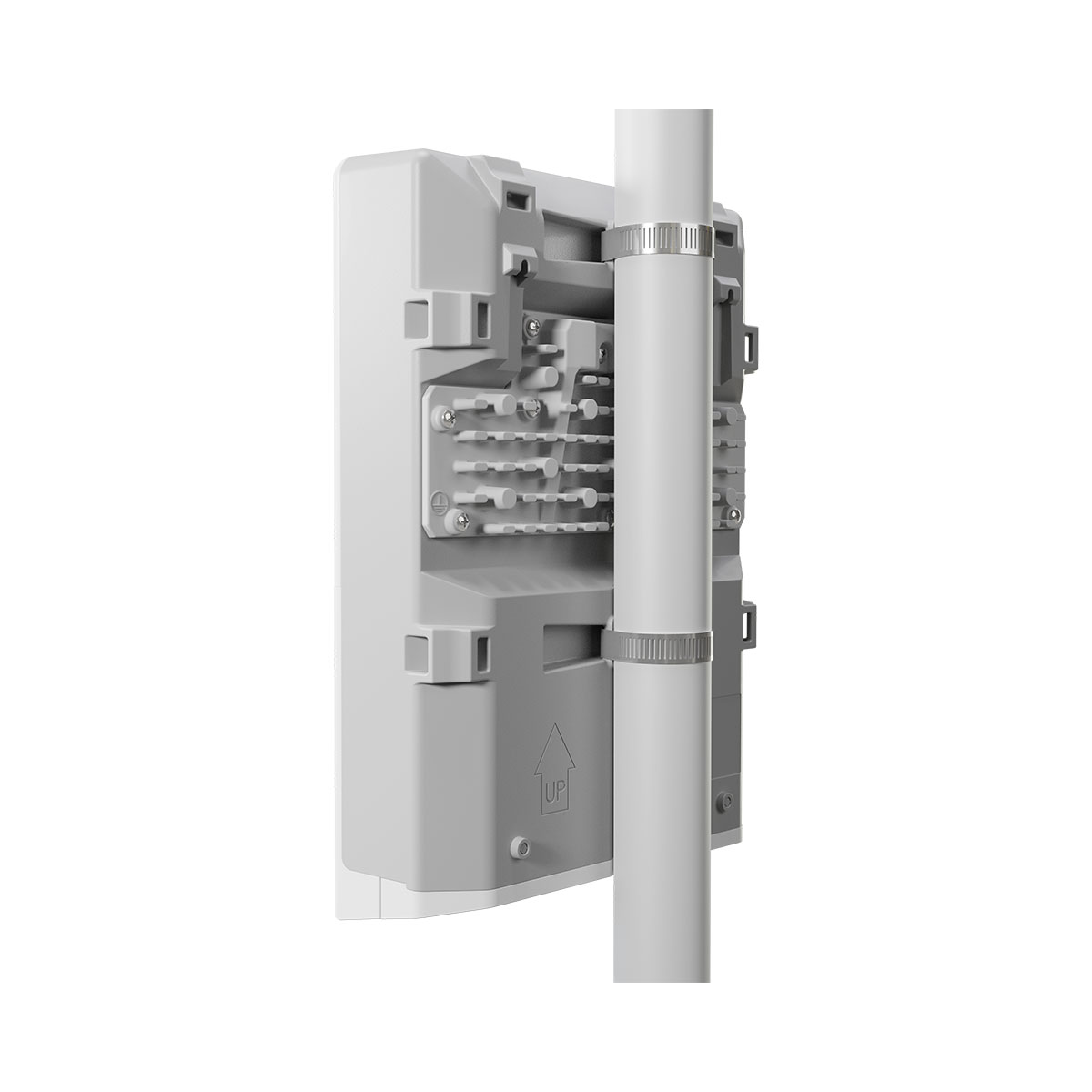

Its sturdy and compact outdoor enclosure allows the switch to be mounted in all kinds of environments – from damp attics and shafts to towers, masts and poles with hose clamps.
netPower 16P has a non-blocking throughput of 36 Gbps, switching capacity of 72 Gbps and forwarding rate of 53.6 Mpps.
When using both the high and low voltage adapters, the netPower will automatically choose the correct PoE standard and voltage, based on the devices you connect to each port. You can also specify it manually.

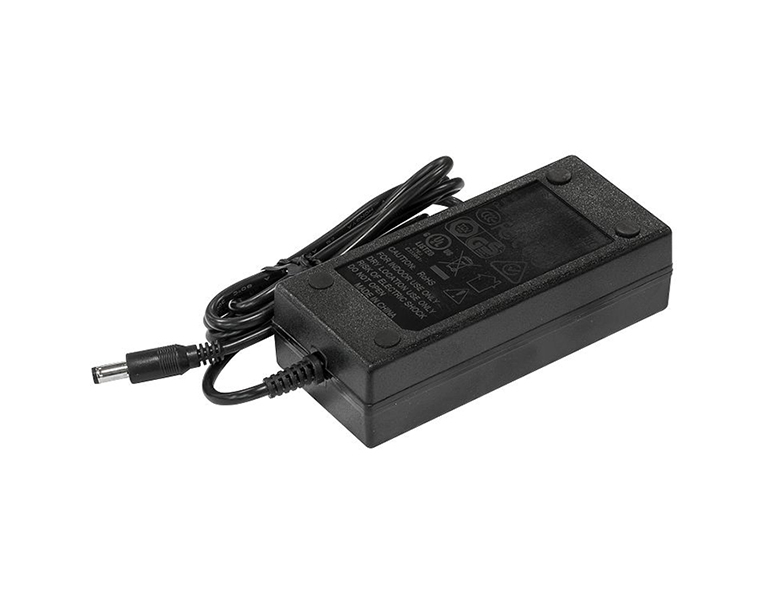

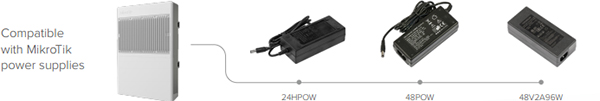

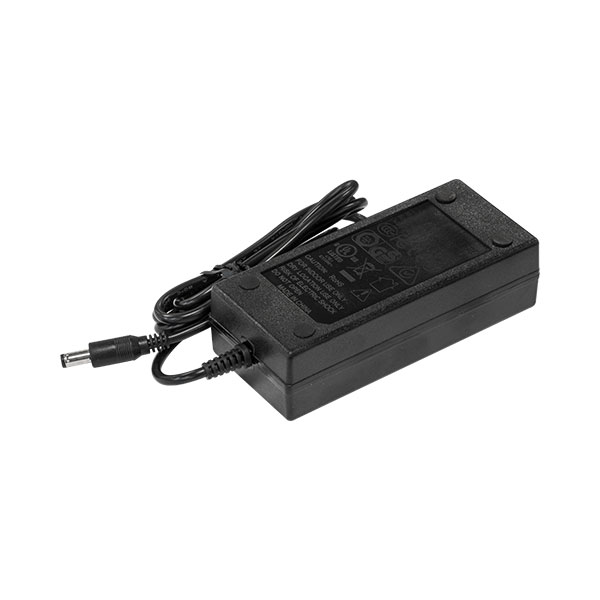

*Power supply is NOT included with the product. You are welcome to use your preferred power option, like battery pack etc. Compatible also with MikroTik power supplies 24HPOW, 48POW and 48V2A96W.
| Specifications | |
| Product code | CRS318-16P-2S+OUT |
| Architecture | ARM 32bit |
| CPU | 98DX226S |
| CPU core count | 1 |
| CPU nominal frequency | 800 MHz |
| Dimensions | 303 x 212 x 78 mm |
| License level | 5 |
| Operating System | RouterOS/SwitchOS |
| Size of RAM | 256 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| Tested ambient temperature | -40°C to 70°C |
| Powering | |
| Number of DC inputs | 2 (DC jack) |
| DC jack input Voltage | 18-57 V |
| Max power consumption | 316 W |
| Max power consumption without attachments | 16 W |
| PoE-out | |
| PoE-out ports | Ether1-Ether16 |
| PoE out | Passive PoE with auto sensing, 802.3af/at |
| Max PoE-out on low (< 30 V) voltage | 5.6 A (2.8 A per 8port group, max 1.1 A per port) |
| Max PoE-out on high (> 30 V) voltage | 2.8 A (1.4 A per 8port group, max 0.6 A per port) |
| Max total out (A) | 2.8A (24V) & 1.4A (48V-57V) x2 A A |
| Ethernet | |
| 10/100/1000 Ethernet ports | 16 |
| Number of 1G Ethernet ports with PoE-out | 16 |
| Fiber | |
| SFP+ ports | 2 |
| Other | |
| CPU temperature monitor | Yes |
| Voltage Monitor | Yes |
| Certification & Approvals | |
| Certification | CE/RED, EAC, ROHS |
