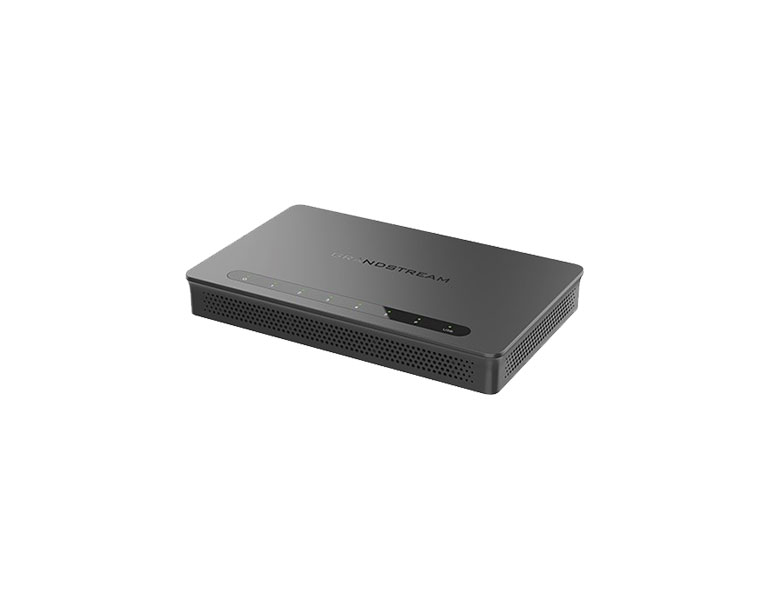

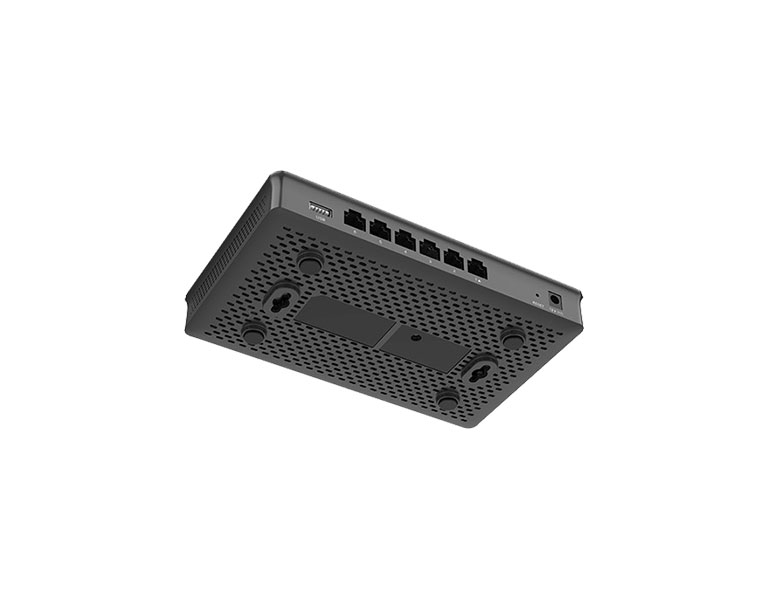

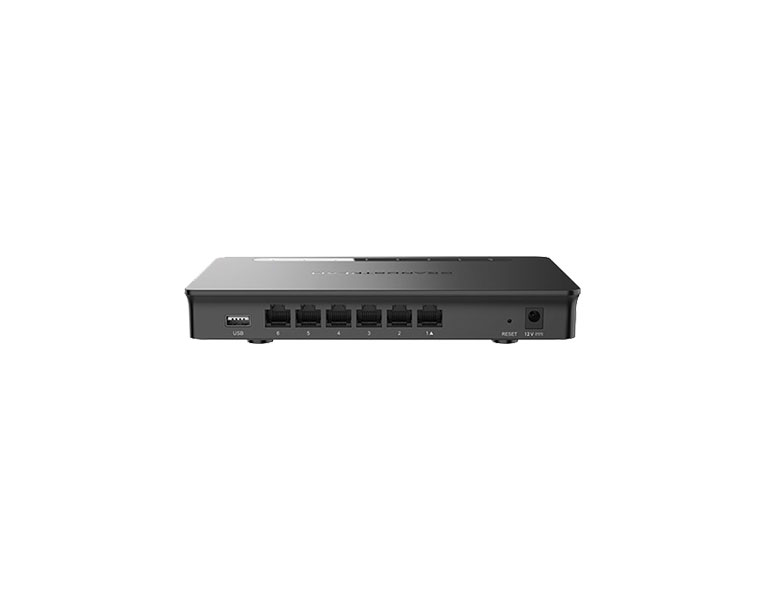

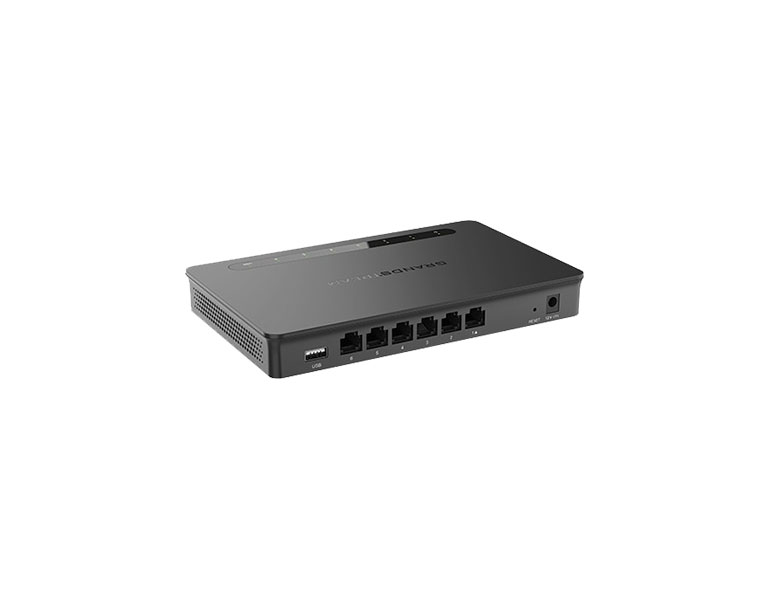

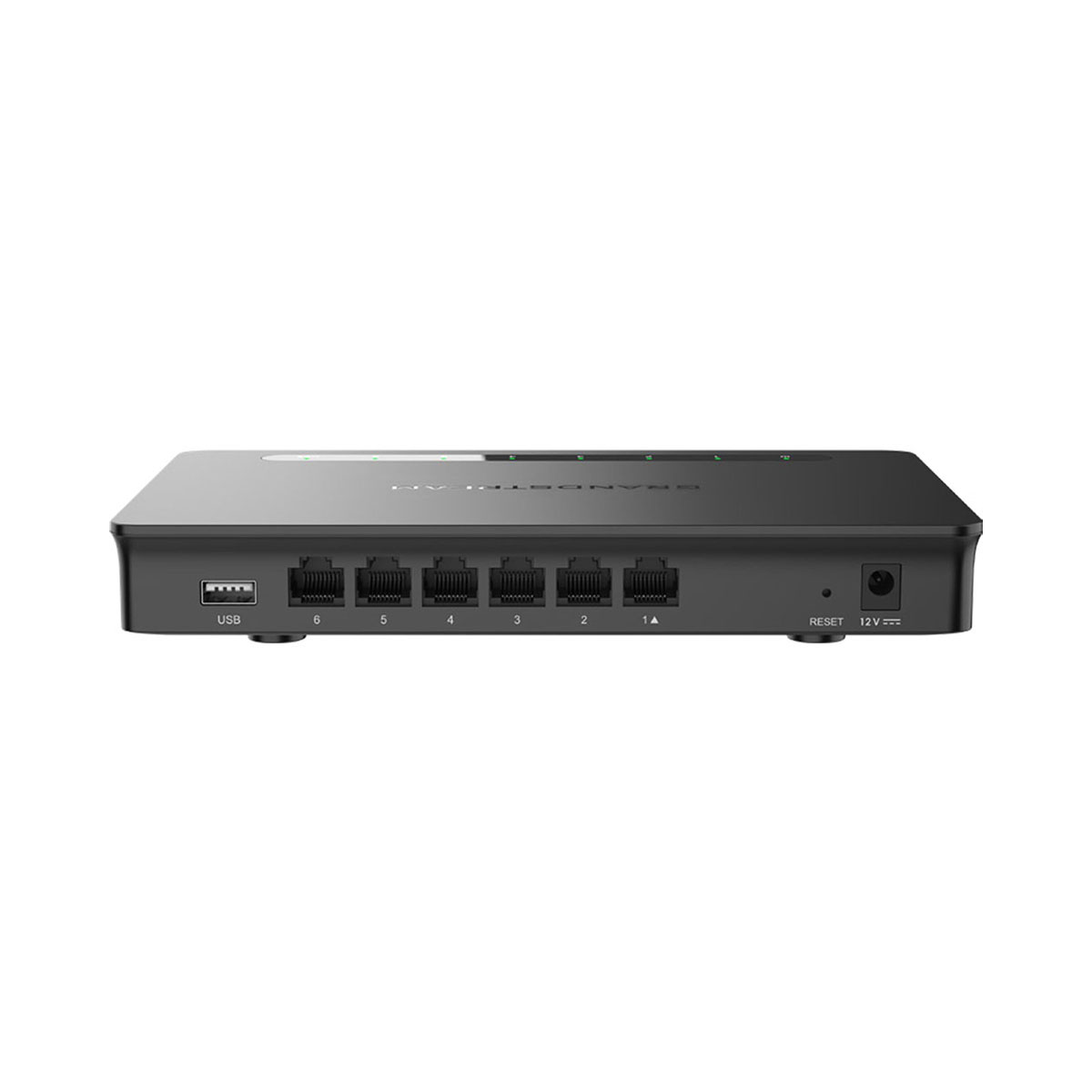

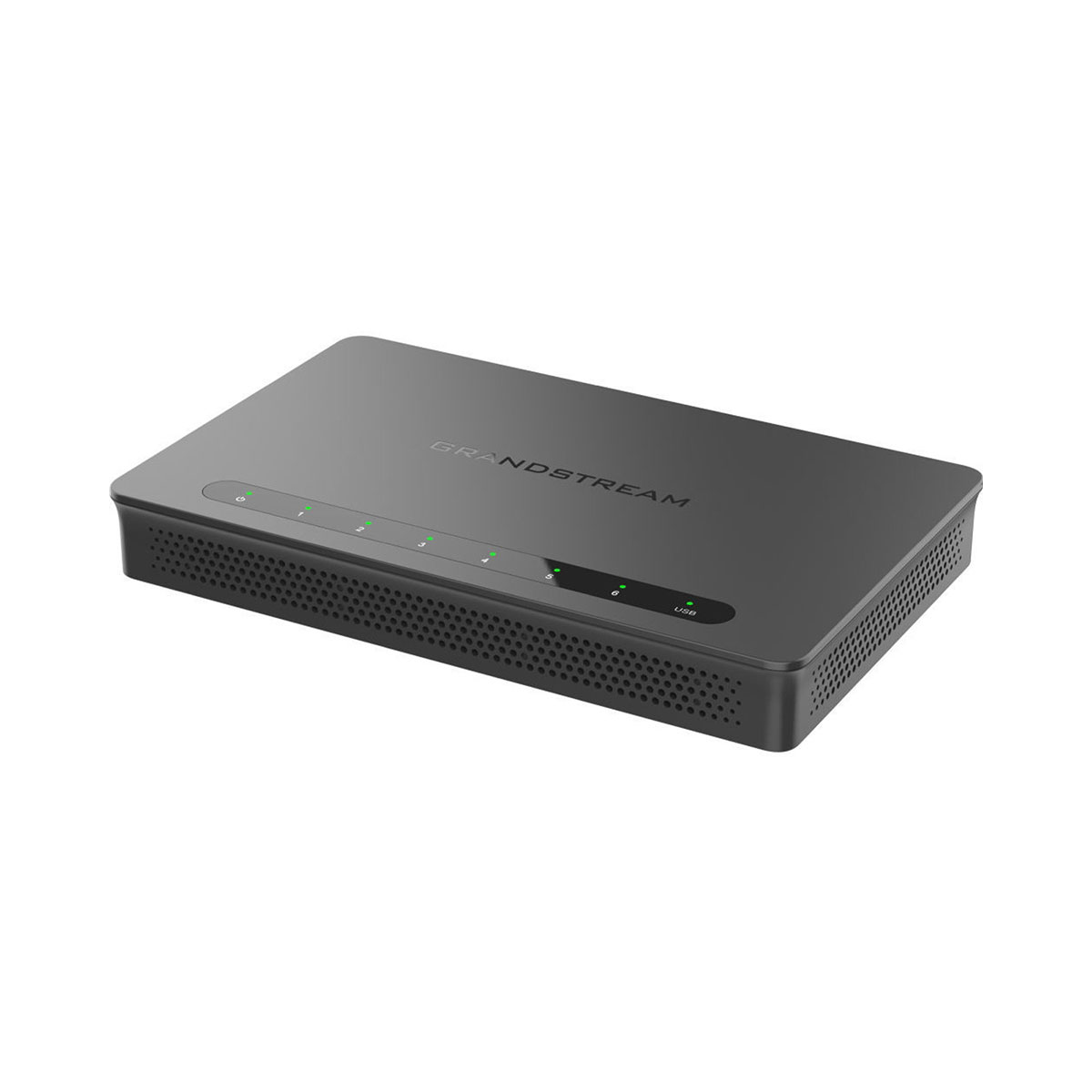

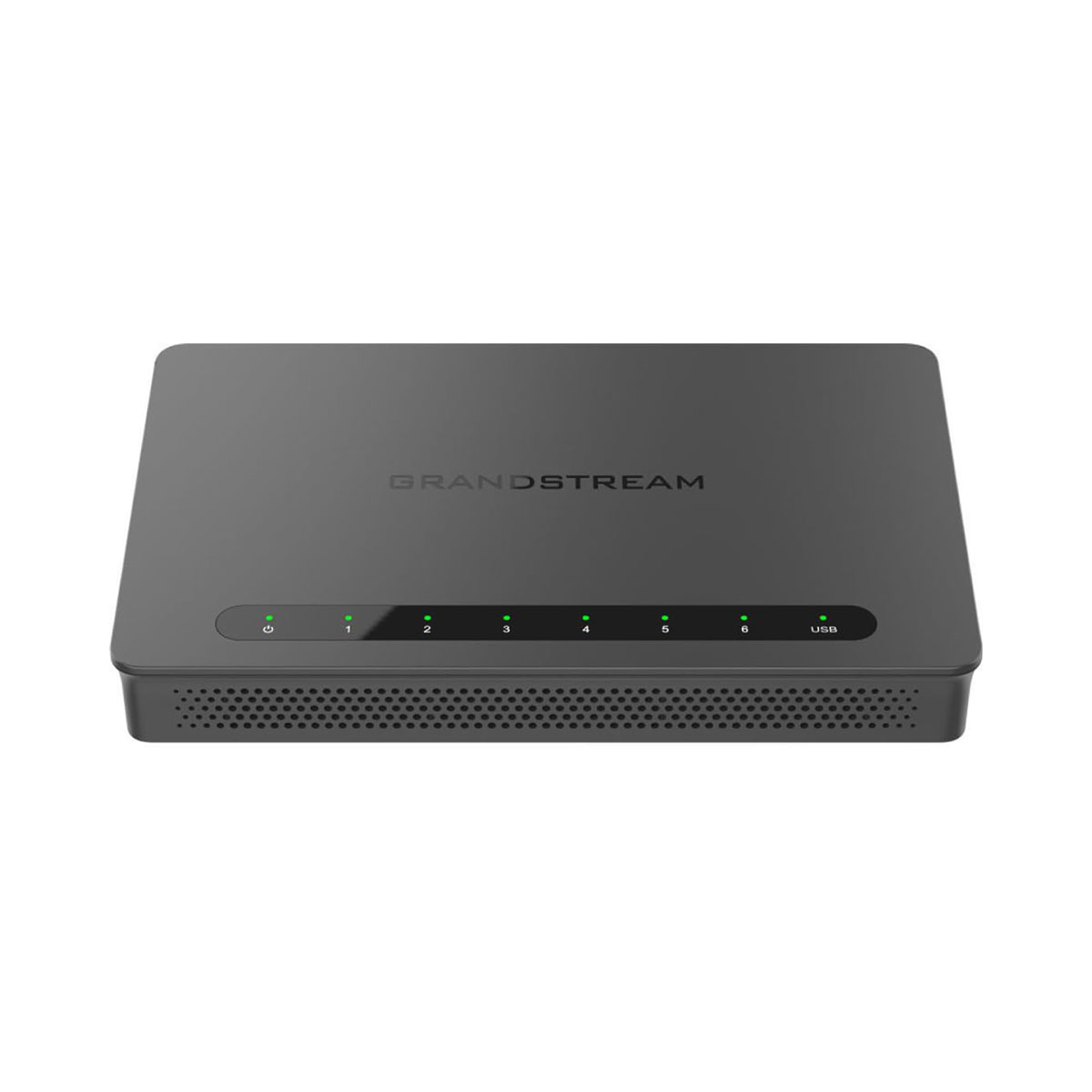

Grandstream GWN7001 Multi-WAN Gigabit VPN Router
GWN7001 are Multi-WAN Gigabit VPN routers with built- in firewalls that allow businesses to build comprehensive wired, wireless and VPN networks for one or many locations. They offer high-performance routing and switching power along with built-in VPN support for secure in-office and inter-office connectivity. To provide enterprise-grade security protection and ensure stable network operation, the GWN7001 features a built-in firewall with advanced content security, filtering, threat detection, attack prevention and more.
Features:
• Supports multiple Gigabit RJ45 ports and Gigabit SFP ports
• Built-in VPN support allows easy access to corporate networks for remote employees
• Multiple WAN ports with load balancing and failover to maximize connection reliability
• Rich firewall features including DDNS, port forwarding, DMZ, UPnP, Anti-Dos, traffic rules, NAT and ALG
• Supports application/protocol monitoring and traffic statistics with Deep Packet Inspection (DPI)
• Advanced QoS to ensure real-time performance of low-latency applications
• Supports application, URL,DNS, and web content filtering to block access from unsecure contents
• Embedded controller can manage itself and up to 150 GWN APs; GWN. Cloud offers a free cloud management platform for unlimited routers and GWN APs
| Εγγυήσεις - Επιστροφές: | |
| Επιστροφή Χρημάτων: | Επισκευή - Αντικατάσταση: |
| 20 ημέρες | 36 μήνες |
| Specifications | |
| CPU | Dual ARM Cortex A53 1GHz |
| Memory and NAT Sessions | 256MB RAM, 256MB Flash, 30K NAT sessions |
| Network Interfaces | 6x Gigabit Ethernet ports *All ports support WAN/LAN configurable |
| NAT Throughput | 2.2Gbps |
| IPsec VPN Throughput | 530Mbps |
| Auxiliary Ports | 1x USB 2.0 port, 1x Reset Pinhole |

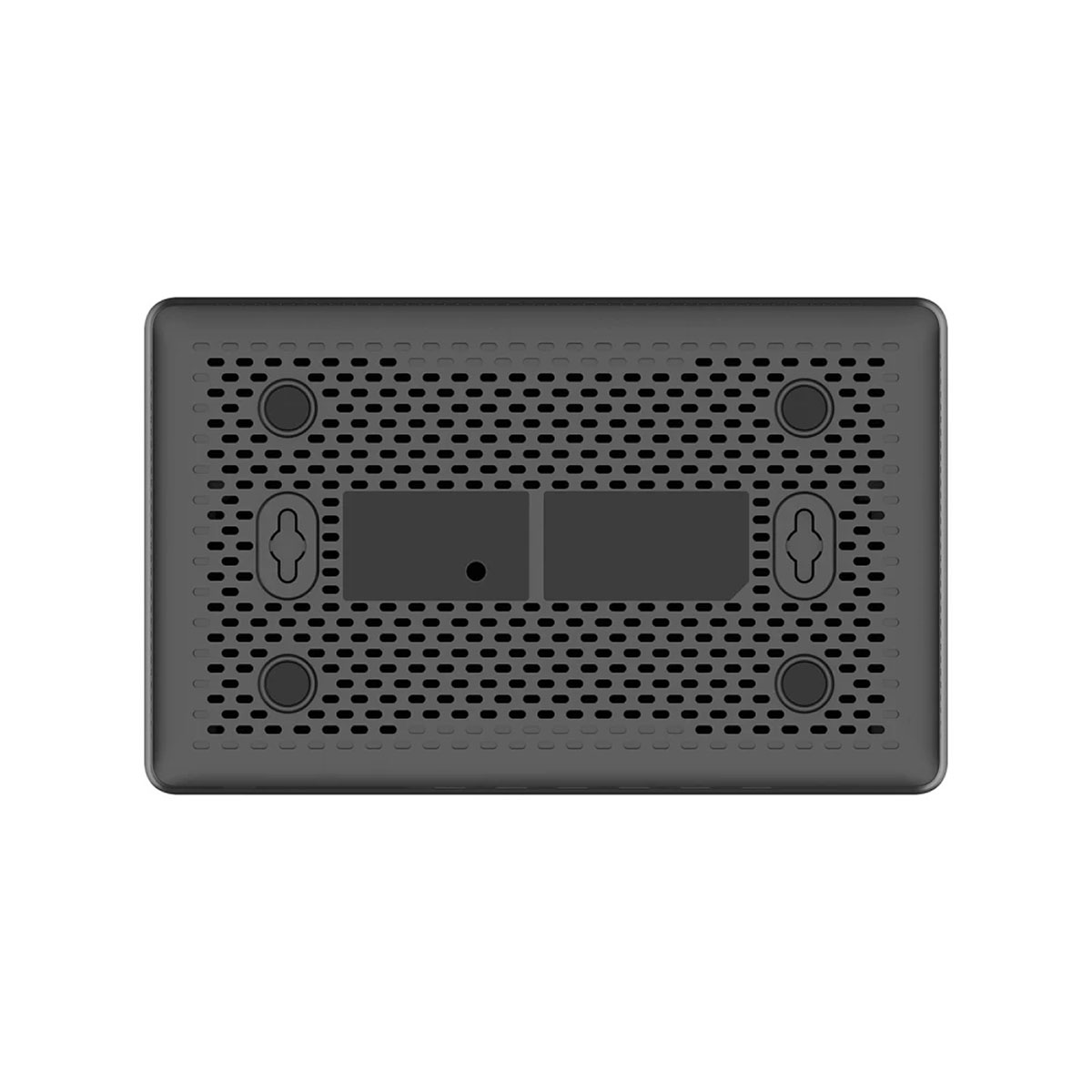

| Mounting | Desktop and wall mounting |
| LEDs | 8 x single-color LEDs for device tracking and status indication |
| Connection Type | DHCP, Static IP, PPPoE, PPTP, L2TP |
| Network Protocols | s IPv4, IPv6, IEEE802.1Q,IEEE 802.1p, IEEE802.1x, IEEE802.3, IEEE 802.3u, IEEE 802.3x,IEEE802.3ab |
| QoS | • VLAN, TOS • Support multiple traffic classes, filter by port, IP address, DSCP, and policing • App Qos • VoIP Prioritization |
| Firewall | DDNS, Port Forwarding, DMZ, UPnP, Anti-DoS, traffic rules, NAT, ALG |
| Security | • Application/protocol monitoring and traffic statistics • Content filtering: Supports Application/URL/DNS/Web Content Filtering • Safe search |
| VPN | • SSL VPN Server / Client-to-Site • IPsec VPN Client-to-Site / Site-to-Site • PPTP VPN Server / Clien-to-Site • L2TP Client-to-Site • WireGuard (pending) • IPSec Encryption: DES, 3DES, AES • IPSec Authentication: MD5, SHA-1, SHA2-256 • IPSec Key Exchange: Main/Aggressive Mode, Pre-shared Key, DH Groups 1/2/5/14 • IPSec Protocols: ESP • IPSec NAT Traversal • SSL VPN Encryption: AES, DES • SSL Authentication: MD5, SHA-1, SHA2-256, SHA2-384, SHA2-512 • SSL VPN Certificate: RSA • PPTP Encrpytion: MPPE 40-bit, 128-bit, IPSec • PPTP/L2TP Authentication: MS-CHAPv1/2 |
| Max Concurrent VPN Tunnels | Up to 50 Tunnels |
| Network Management | GWN7001 embedded controller can manage itself and up to 100 GWN APs |
| PoE Input | N/A |
| PoE Output | N/A |
| PoE Power Budget | N/A |
| Power & Green Energy Efficiency | Universal power adaptor included Input: 100-240VAC 50-60Hz Output: 12V DC 1A (12W) |
| Environmental | Operation: 0°C to 40°C Storage: -30°C to 60°C Humidity: 10% to 90% Non-condensing |
| Physical | Unit Dimension: 210mm(L)x130mm(W)x35mm(H) Unit Weight: 453g Package Dimension: 246mm(L)x235mm(W)x54mm(H) Package Weight: 672g |
| Package Content | GWN7001 Router Universal Power Supply Network Cable Quick Installation Guide |
| Compliance | FCC, CE, RCM, IC, UKCA |
