The top-notch all-in-one solution for modern networks offers IDS/IPS throughput of up to 25 Gbps and extensive connectivity including 10G ports and SFP slots. Thanks to Multi-WAN with load balancing, it ensures stable and smooth operation even under heavy load. Support for UniFi applications allows for centralized management of thousands of devices and users on one platform.
Designed for continuous operation with the option of redundant power supply and HA mode (shadow), minimizing downtime. The integrated storage and disk slots enable recording of up to 100 cameras in FullHD, ideal for comprehensive surveillance systems. The performance easily supports more than 7500 clients and extensive corporate networks.
Key Features
- IDS/IPS throughput of up to 25 Gbps
- 8× 10Gbps port, 2× 1Gbps, 2× SFP28, 2× SFP+
- Multi-WAN with load balancing
- Redundant power supply and HA mode (shadow)
- Support for more than 7500 clients and 750 devices
- Recording of up to 100 cameras (FullHD)

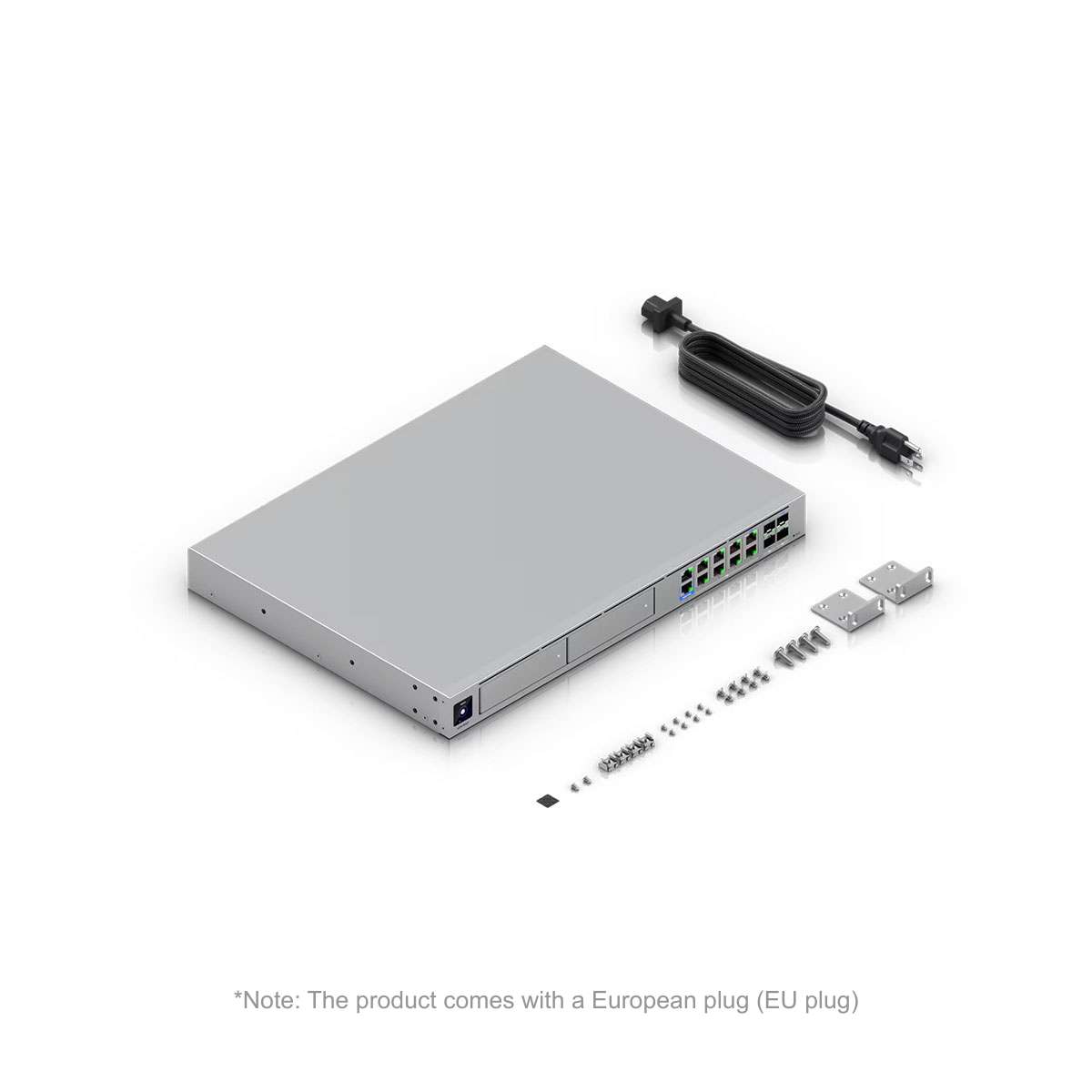

Package Contents
- Device
- Mounting accessories
- Power cable
| Mechanical | |

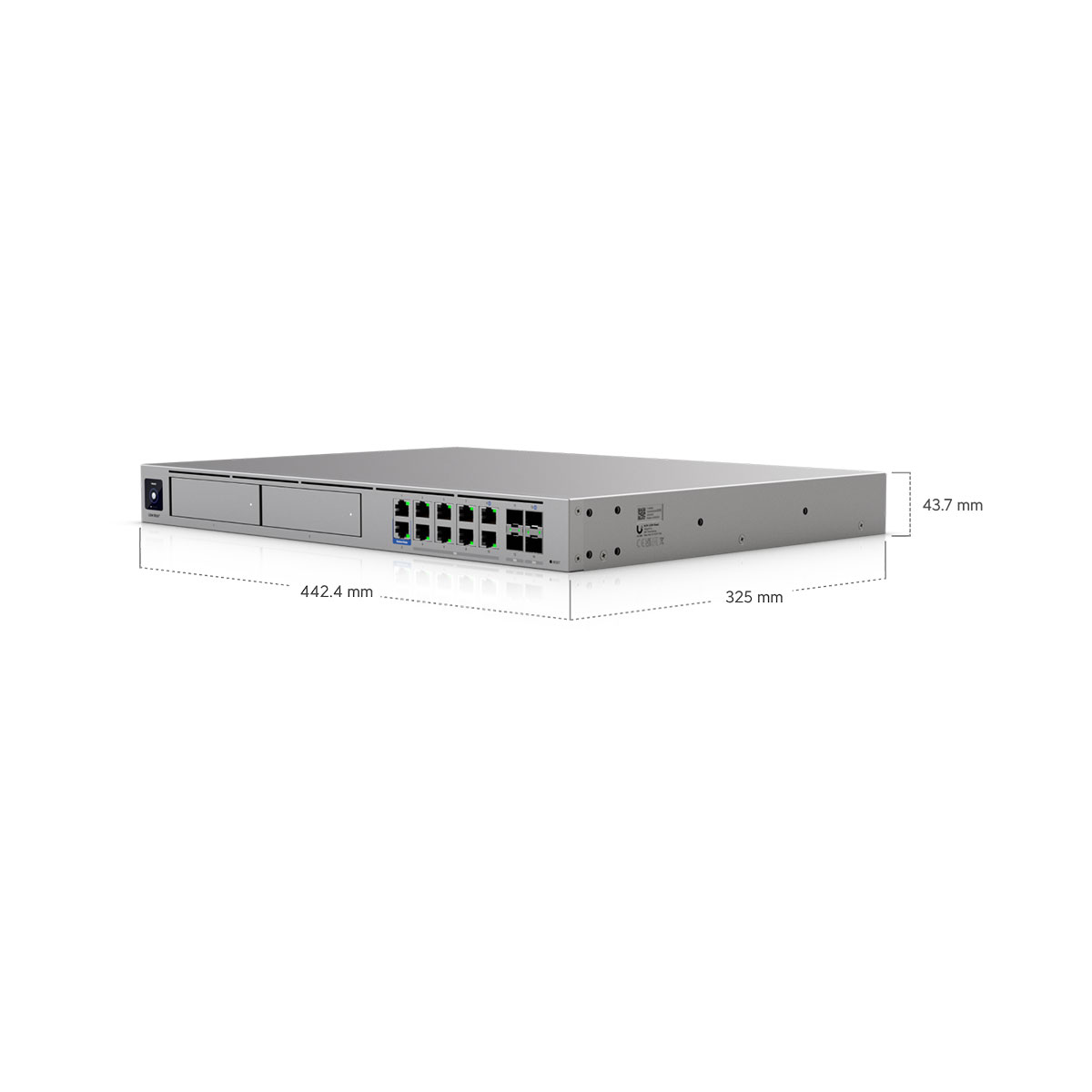

| Dimensions | 442.4 x 43.7 x 325 mm |
| UniFi Application Suite | |
| Network | ✓ 🛈Powerful gateways, WiFi access points, and switches enabling next-gen security and scalable SD-WAN. |
| Protect | ✓ 🛈AI-powered camera system with flexible alarm integrations, and smart detections for streamlined incident management. |
| Access | ✓ 🛈Secure Ethernet-based access control for doors, gates, and elevators, featuring flexible unlock mechanisms. |
| Talk | ✓ 🛈Plug-and-play VoIP system with advanced call routing and automations for seamless communication. |
| Connect | ✓ 🛈Manage digital signage. EV chargers, and Lutron lighting systems with ease. |
| Managed UniFi Devices | 750+ |
| Managed Cameras | (100) HD (60) 2K (40) 4K |
| Managed Access Hubs | 200 🛈Please note, Reader Pro and Intercom quantities must be below Protect supported camera limits. |
| Simultaneous Users Connected | 7,500+ |
| Max. WAN Port Count | 8 |
| Default WAN Ports | (1) 25G SFP28 (1) 10 GbE RJ45 |

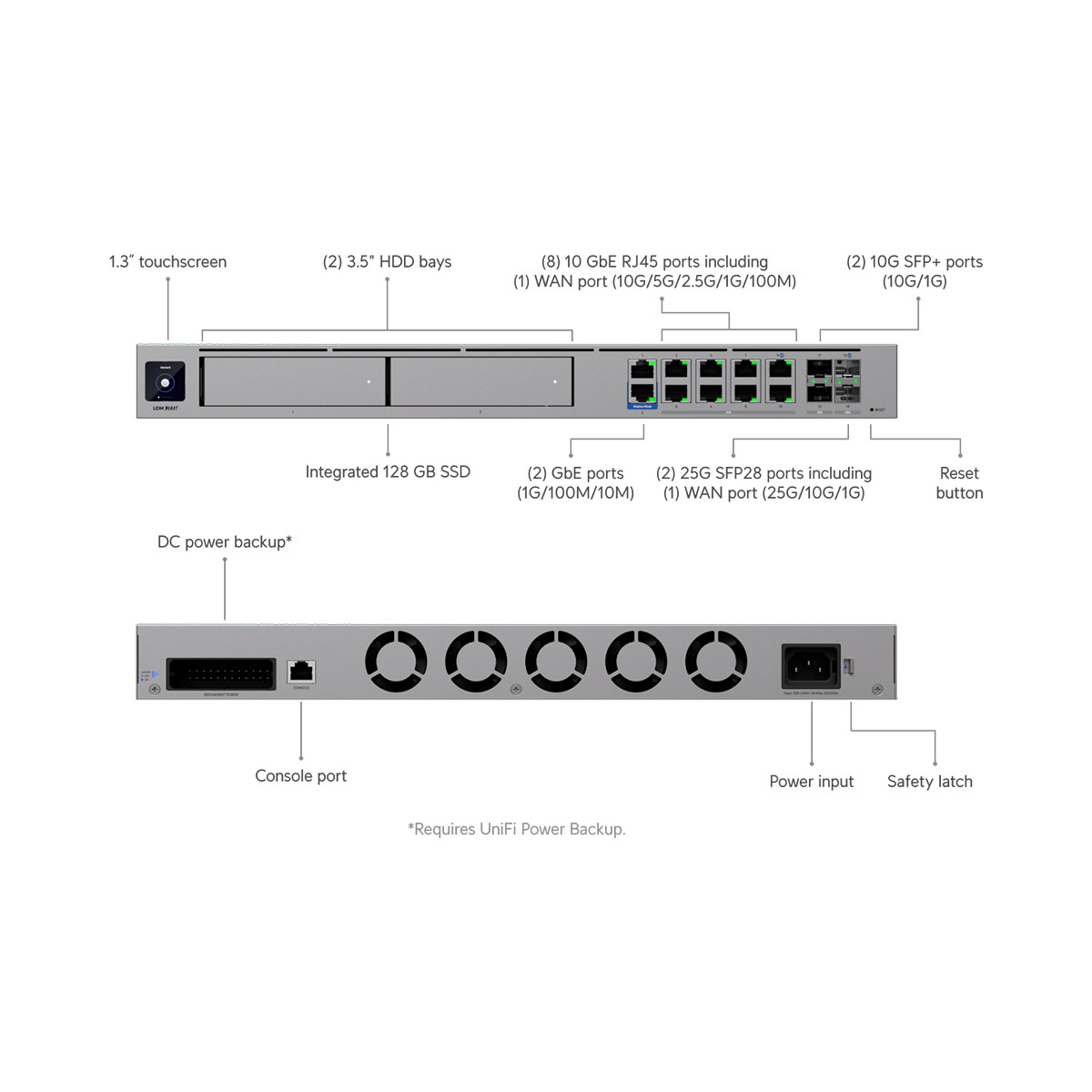

| Port Layout |
1 GbE RJ45 - 2 (1G/100M/10M) 10 GbE RJ45 - 8 (10G/5G/2.5G/1G/100M) 10G SFP+ - 2 (10G/1G) 25G SFP28 - 2 (25G/10G/1G) Console - 1 |
| IDS/IPS Throughput | 25 Gbps |
| Form Factor | Rack mount (1U) |
| Redundancy | Shadow Mode (VRRP) Gateway Failover DC Power Backup 🛈Enable DC power backup using UniFi RPS. |
| Security | |
| Stateful Firewall | ✓ |
| Application-Aware Layer 7 Firewall | ✓ |
| DPI & Traffic Identification | ✓ |
| Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps) | ✓ |
| Content Filtering | ✓ |
| Intrusion Prevention (IPS/IDS) | ✓ |
| Ad Blocking | ✓ |
| IDS/IPS Signatures | 55,000+ with CyberSecure |
| VPN & SD-WAN | |
| License-Free SD-WAN | ✓ |
| Site-to-Site VPN |
Site Magic - ✓ IPsec - ✓ OpenVPN - ✓ |
| Certifications | CE, FCC, IC |
| VPN Server |
Identity Endpoint One-Click VPN - ✓ Teleport Zero-Configuration VPN - ✓ WireGuard - ✓ OpenVPN - ✓ L2TP - ✓ |
| VPN Client |
OpenVPN - ✓ WireGuard - ✓ |
| Networking | |
| Multi-WAN Load Balancing | ✓ |
| Shadow Mode (VRRP) High Availability | ✓ |
| LACP Port Aggregation | ✓ |
| Dynamic Routing |
OSPF - BGP - |
| Advanced QoS | ✓ |
| Multicast DNS (mDNS) | ✓ |
| Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT) | ✓ |
| Integrated RADIUS Server | ✓ |
| RADIUS over TLS (RadSec) | ✓ |
| Additional Internet Failover with UniFi LTE Backup | ✓ |
| Internet Quality and Outage Reporting | ✓ |
| MAC Address Table Size | 32,000 |
| Policy-based WAN and VPN Routing | ✓ |
| Customizable DHCP Server | ✓ |
| IPv6 ISP Support | ✓ |
| IGMP Proxy | ✓ |
| All Traffic Flows | ✓ |
| Hardware | |
| NVR Storage |
(2) 3.5" NVR HDD bays Built-in 128 GB SSD for Faster Experience |
| Max. Power Consumption | 100W |
| Power Method | (1) Universal AC input, 100–240V AC, 3A Max., 50/60 Hz (1) USP-RPS DC input, 11.5V DC, 13.05A |
| Power Supply | AC/DC, internal, 150W |
| Supported Voltage Range | 100–240V AC |
| Heat Dissipation |
342 BTU/hr |
| Processor |
Octa-core ARM® v9 at 2.1 GHz |
| System Memory | 16 GB |
| On-board Storage | Integrated 128 GB SSD |
| Weight | 5.5 kg |
| Enclosure Material | Aluminium CNC, SGCC steel |
| Mount Material | SGCC steel |
| LCM Display | 1.3" touchscreen |
| Management | Ethernet Bluetooth |
| LEDs |
Ethernet - ✓ SFP+ - ✓ SFP28 - ✓ RPS - ✓ HDD - ✓ |
| Button | (1) Factory reset |
| ESD/EMP Protection | Air: ± 8kV, contact: ± 4kV |
| Ambient Operating Temperature | 0 to 40° C |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| NDAA Compliant | ✓ |
| Certifications |
CE, FCC, IC |
| Software | |
| Application Requirements | Mobile App UniFi iOS™: Version 10.34.0 and later UniFi Android™: Version 10.37.1 and later |
