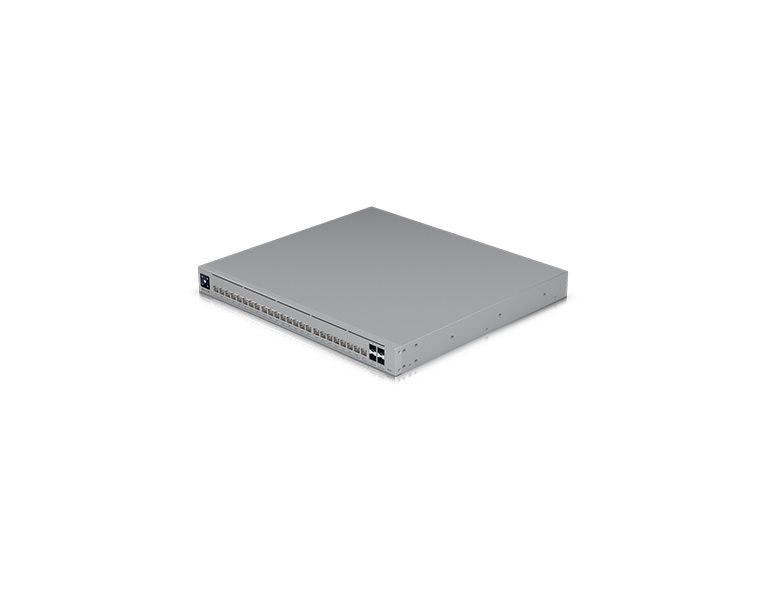

Ubiquiti USW-PRO-HD-24-POE UniFi Switch 24-Port PoE
Ubiquiti USW-Pro-HD-24-PoE is a 24-port PoE switch with L3 functionality. The switch features 22x 2.5Gb and 2x 10Gb ports, all supporting PoE 802.3af/at/bt up to 60W per port. The total PoE budget of the switch is 600W. Additionally, the switch includes 4x SFP+ ports and supports redundant power via the Ubiquiti UniFi SmartPower Redundant Power System (USP-RPS).
Key Features:
• 1.3" touch display
• 22x 2.5G + 2x 10G Ethernet with POE++ support
• 4x SFP+ ports
• 600W PoE budget
• Redundant power option (USP-RPS)
• Etherlighting technology for Ethernet and SFP ports
• L3 features: DHCP/DHCP relay, Inter-VLAN routing, Static routing, Network isolation with ACLs
• Managed via UniFi Network application v8.6.9 or later

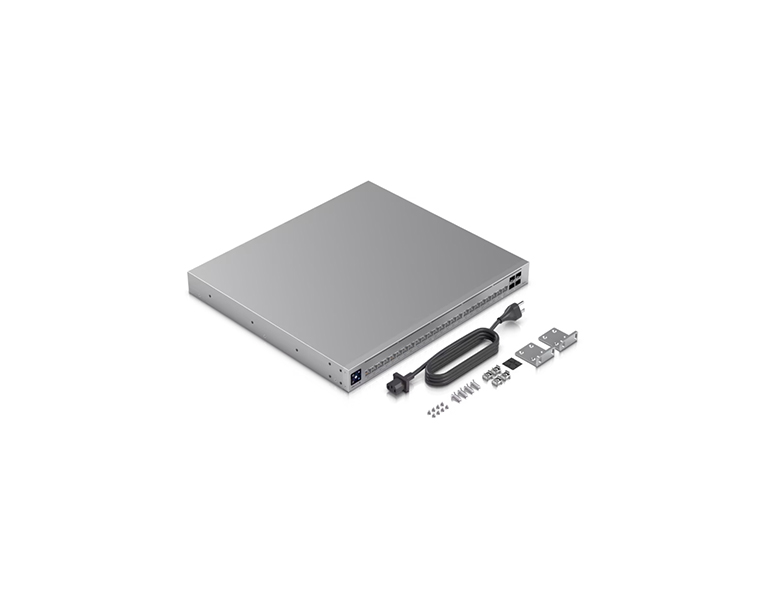

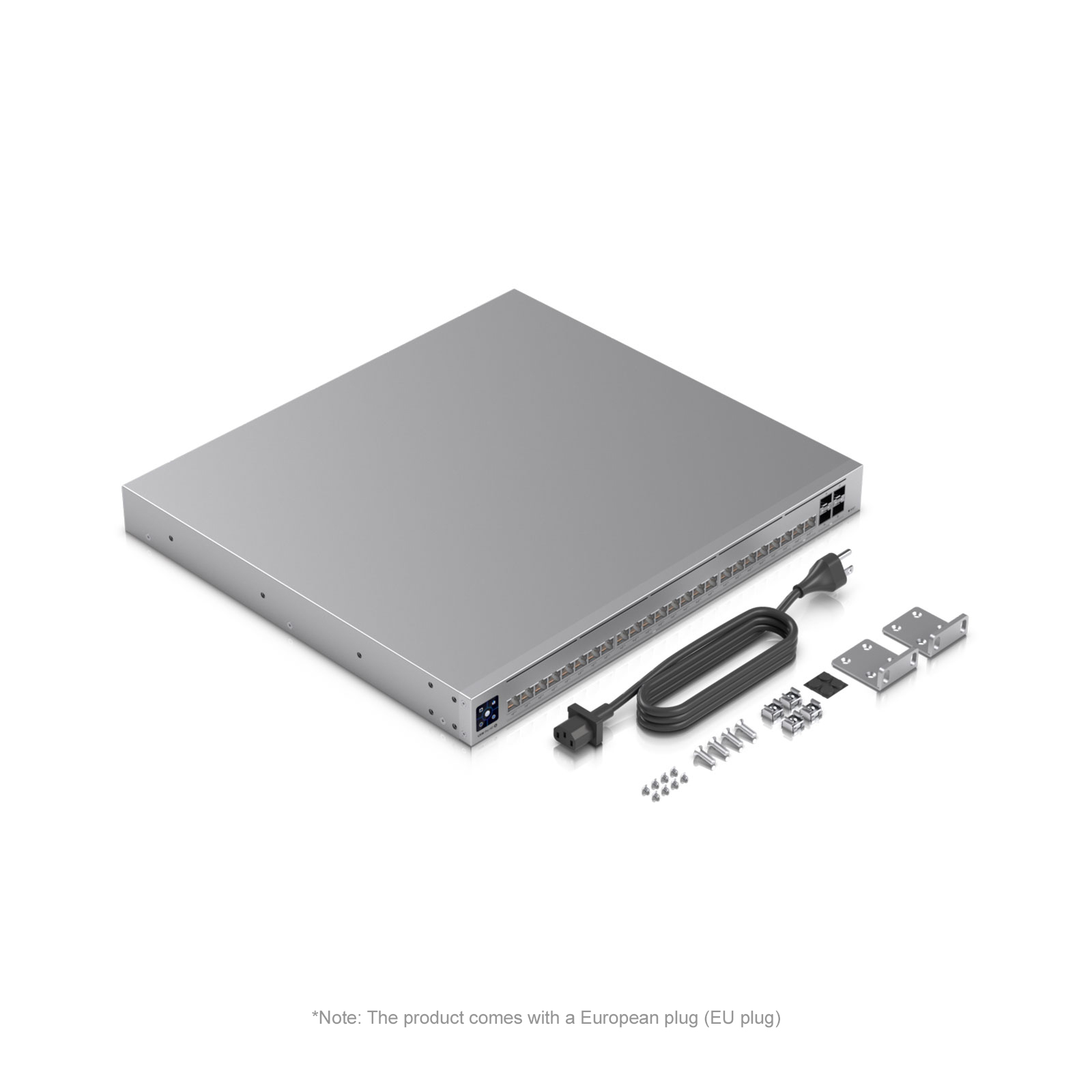

Package Contents:
• Switch
• 230V power cable
• 19" rack mount brackets
• (4) Cage nuts
• (4) 10#-32 screws
• (8) M4 screws
• (4) Rubber adhesive feet
| Εγγυήσεις - Επιστροφές: | |
| Επιστροφή Χρημάτων: | Επισκευή - Αντικατάσταση: |
| 20 ημέρες | 24 μήνες |
| Specifications | |
| Dimensions | 442 x 400 x 44 mm |
| Weight | Without Mount: 4.47 kg With Mount: 4.57 kg |
| Port Layout |
2.5 GbE RJ45
22 (All PoE++) (2.5G/1G/100M/10M)
10 GbE RJ45
2 (All PoE++) (10G/5G/2.5G/1G/100M)
10G SFP+
4 (10G/1G)
|
| Max. PoE Output | Up to PoE++ |
| Total PoE Availability | 600W |
| Redundancy | DC Power Backup |
| Layer 3 | Yes |
| Form Factor | Rack mount (1U) |
| Etherlighting™ | Yes |
| Performance | |
| Switching Capacity | 230 Gbps |
| Total Non-Blocking Throughput | 115 Gbps |
| Forwarding Rate | 171 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 32,000 |
| L3 Table Size |
ARP Entries
12,000
IPv4 Routes
12,000
|
| Packet Buffer Size | 2 MB |
| Hardware | |
| PoE Ports |
PoE++
24
|
| Max. PoE Wattage per Port by PSE |
PoE
15.4W
30W
64W
|
| Max. Power Consumption | 60W (Excluding PoE Output) 660W (Including PoE Output) |

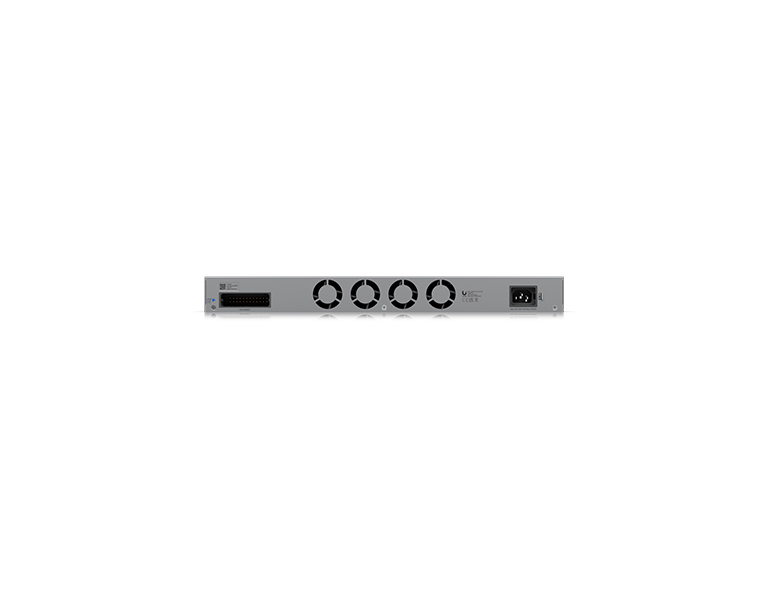

| Power Method | (1) Universal input, 100—240V AC, 50/60 Hz (1) USP RPS DC input |
| Power Input Method | AC input |
| Power Supply | AC/DC, internal, 660W |
| Supported Voltage Range | 100—240V AC |
| Management | Ethernet AR |
| Weight | Without mounting brackets: 6.2 kg With mounting brackets: 6.3 kg |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |
| LCM Display | 1.3" touchscreen |
| Ambient Operating Temperature | -5 to 40° C |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Etherlighting™ |
Ethernet
SFP+
|
| Certifications | CE, FCC, IC |
| NDAA Compliant | Yes |
| Software | |
|
Application Requirements
|
UniFi Network
Version 9.0.114 and later
|
