Ubiquiti USW-LITE-8-POE UniFi Switch Lite 8 PoE
Κωδικός προϊόντος:
USW-LITE-8-POE
Περιγραφή
Χαρακτηριστικά
Λήψεις
Περιγραφή

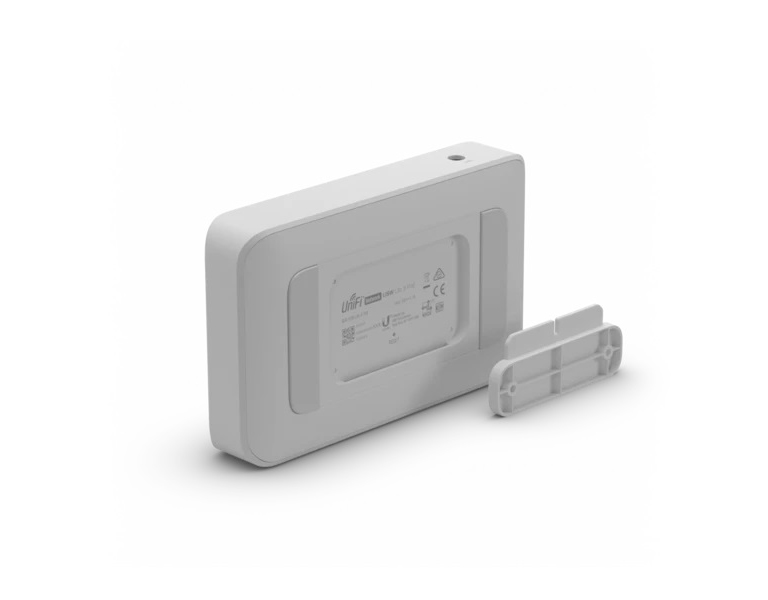

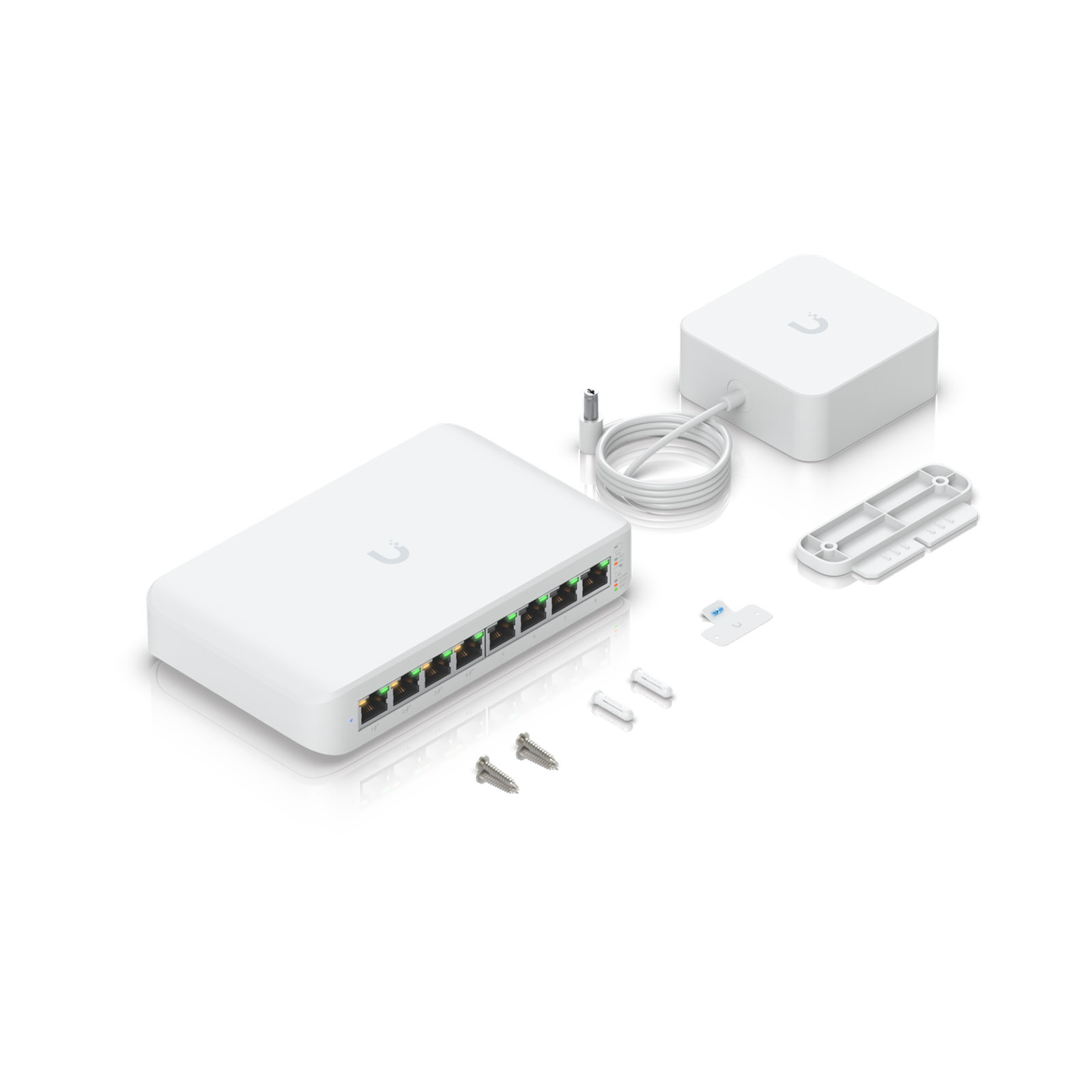

| • (8) Gigabit RJ45 ports including (4) 802.3at PoE+ ports • Managed by UniFi Controller (5.13.10 or later) • External 60W power adapter • Wall-mountable (Kit included) |
Overview

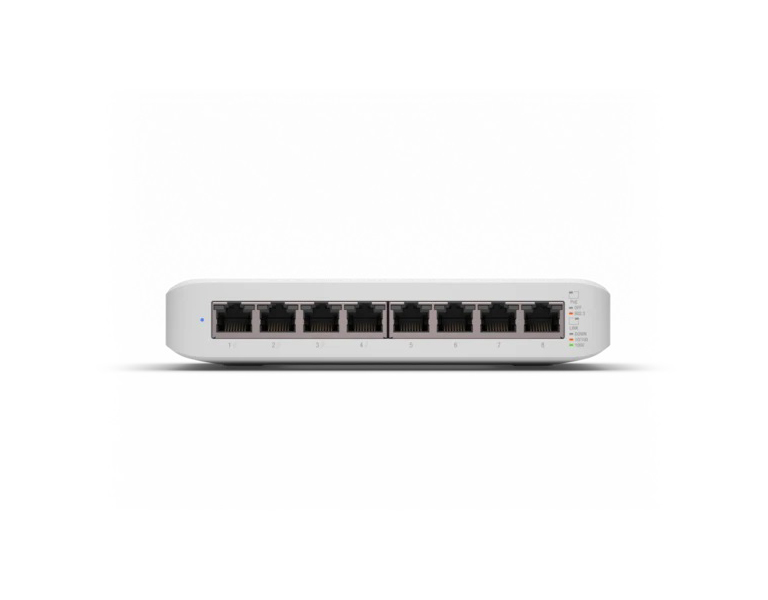

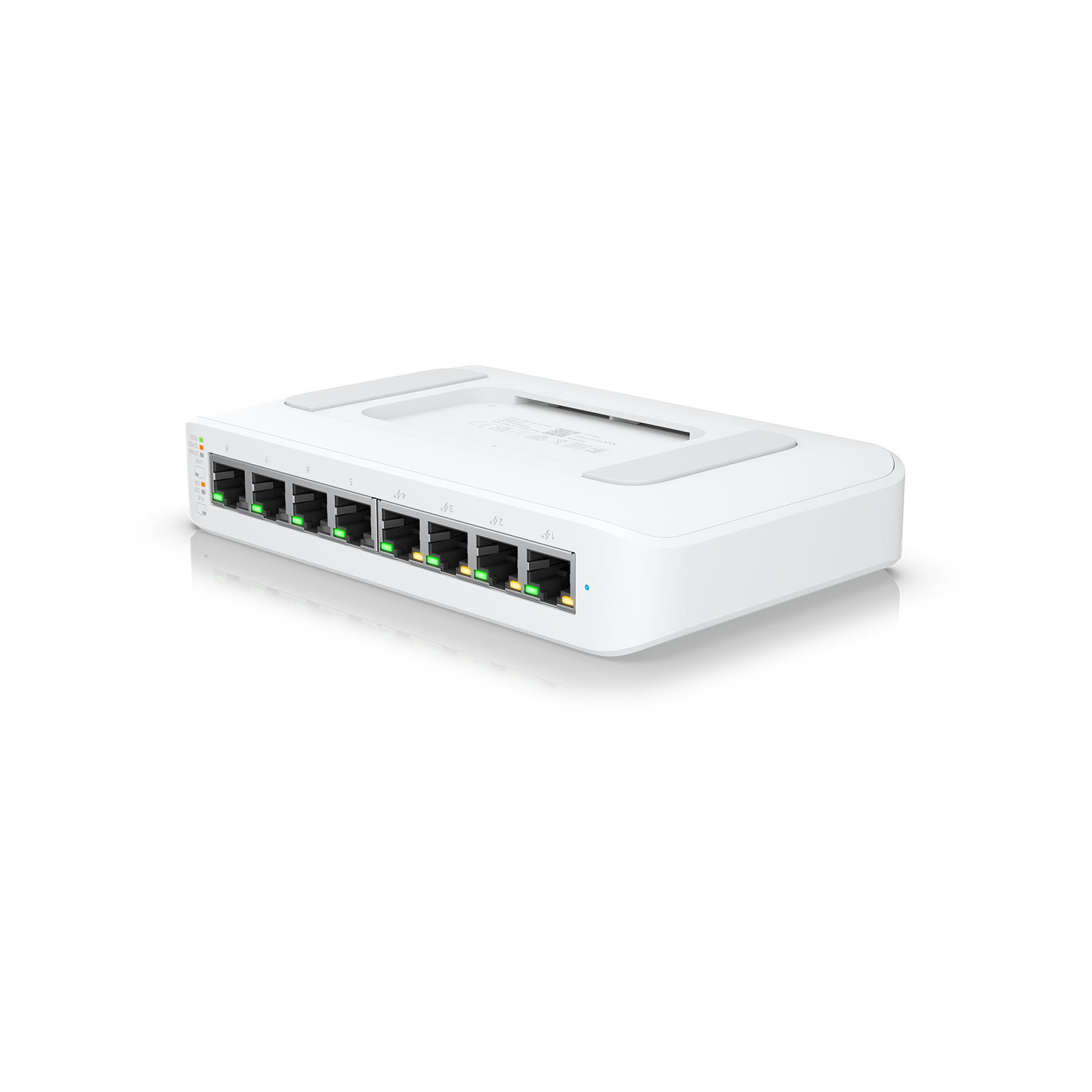

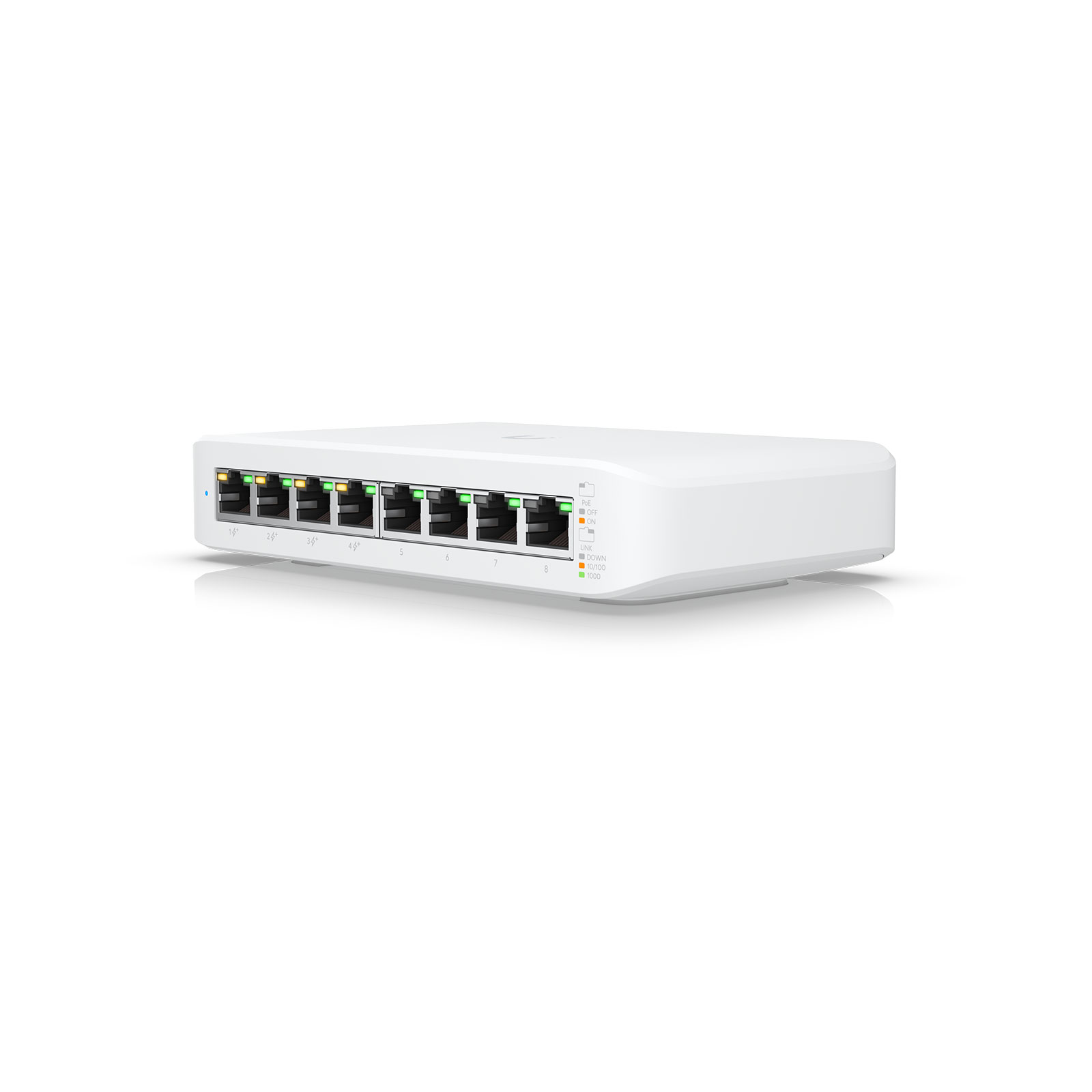

The USW-Lite-8-PoE is a fully managed Layer 2 switch with eight Gigabit Ethernet ports for your RJ45 Ethernet devices. Four ports also offer auto-sensing 802.3at PoE+ that provide up to a total PoE wattage of 52W for UniFi Access Points or other PoE devices.
Managed and configured by the UniFi Network Controller with UniFi mobile app support, the USW-Lite-8-PoE offers Layer 2 switching protocols and features. The UniFi Network Controller and mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface from anywhere.
Χαρακτηριστικά
| Specifications | |

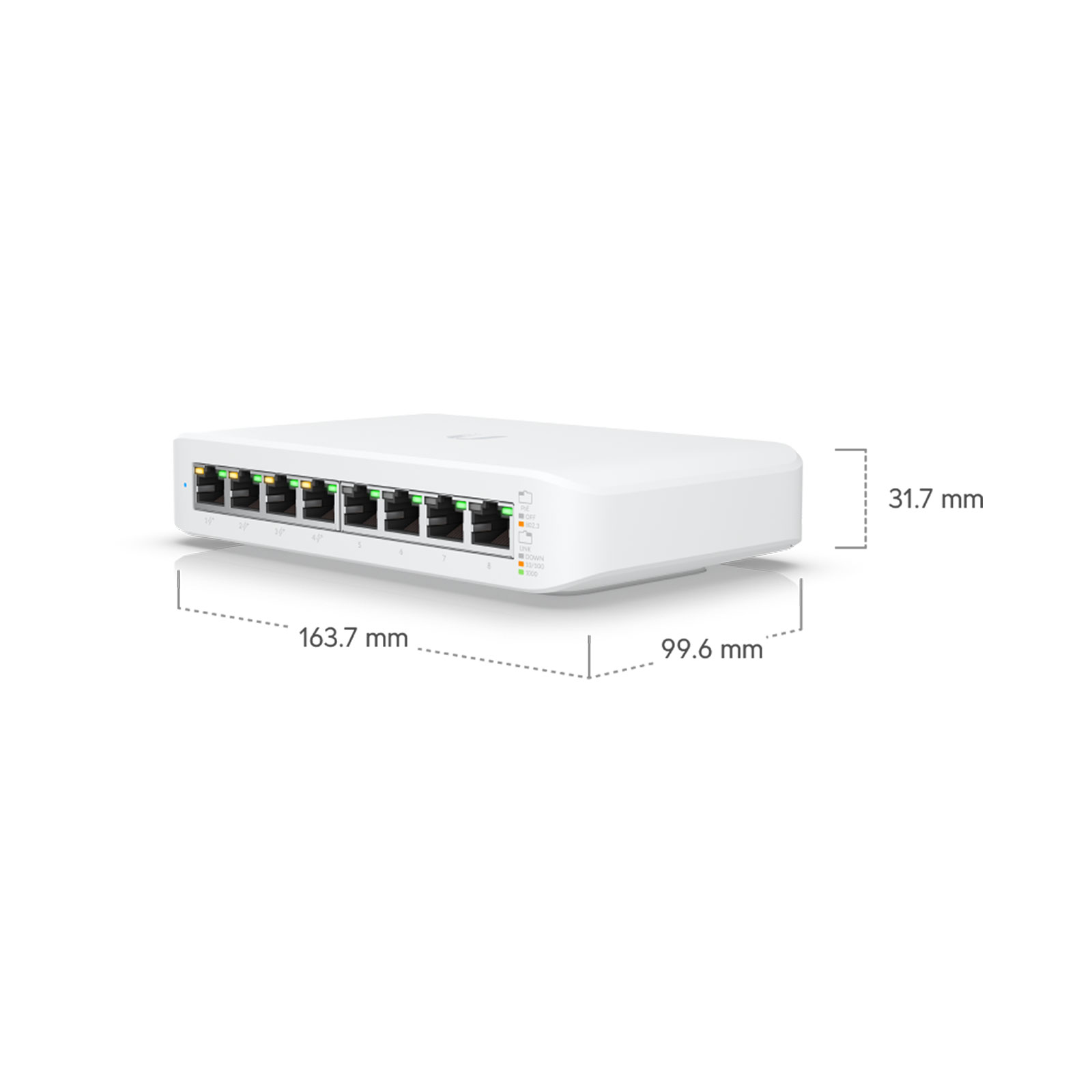

| Dimensions | 99.6 x 163.7 x 31.7 mm |
| Weight | 450 g |
| Total Non-Blocking Line Rate | 8 Gbps |
| Max. Power Consumption | 8W |

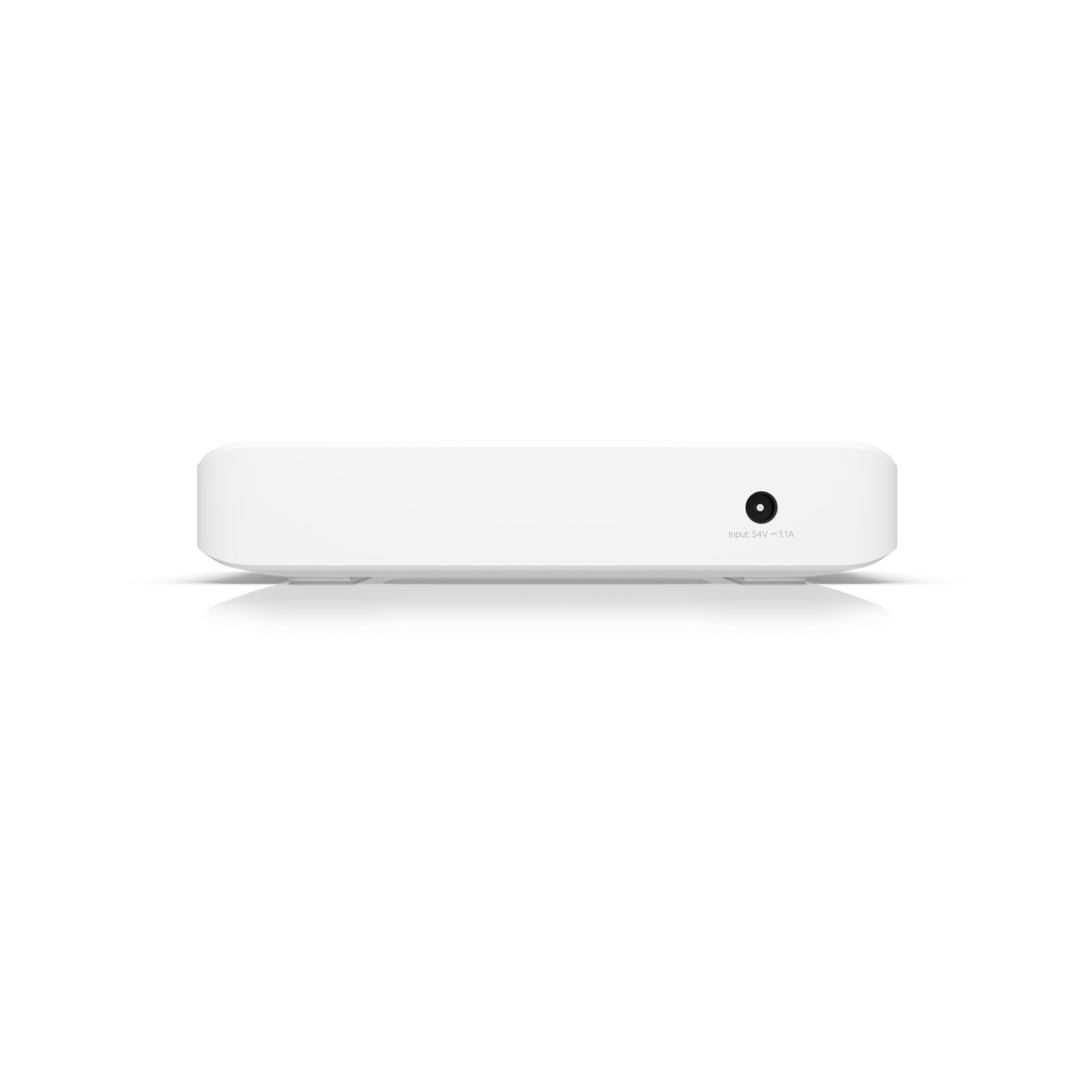

| Power Method | 54VDC, 1.1A Power Adapter |

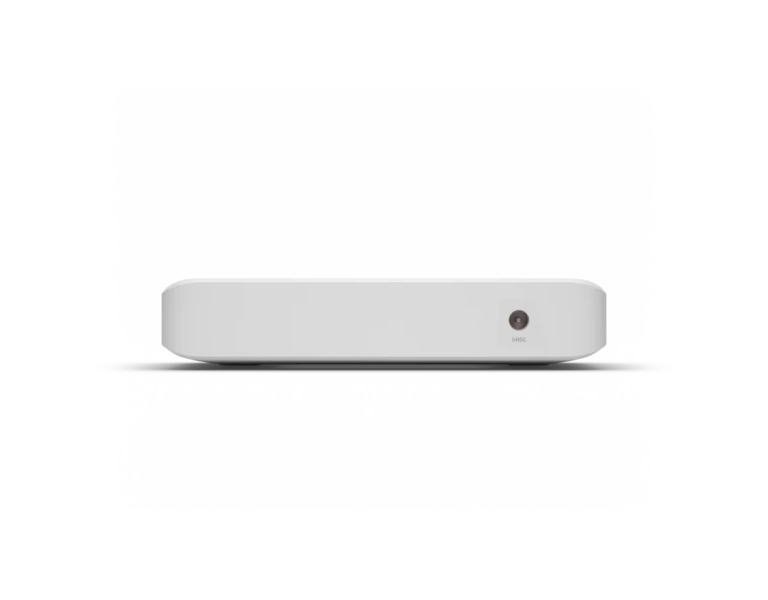

| Power Supply | External 54V/60W Power Adapter |
| Supported Voltage Range | DC 50V to 57V |
| Networking Interfaces | (8) 10/100/1000 Mbps Ethernet RJ45 Ports |
| PoE Interfaces | (4) PoE+ IEEE 802.3af/at(Pins 1, 2+; 3, 6-) |
| Management Interface | Ethernet In-Band |
| Max PoE+ Wattage per Port by PSE | 30W |
| Modes | SMB Layer 2 PoE Gigabit Ethernet Switch |
| Operating Temperature | -15 to 40° C |
| Operating Humidity | 10 - 90% Noncondensing |
| Certifications | CE, FCC, IC |
| LEDs | |
| System | (1) Power, Blue/White Flashing White: Bootup in Progress Flashing Blue: Firmware Upgrading Steady White: Factory Defaults, Awaiting Adoption Steady Blue: Device is Adopted |
| Ethernet | Green: 1G, Amber: 10/100 Mbps |
| PoE | Amber: IEEE 802.3af/at |
