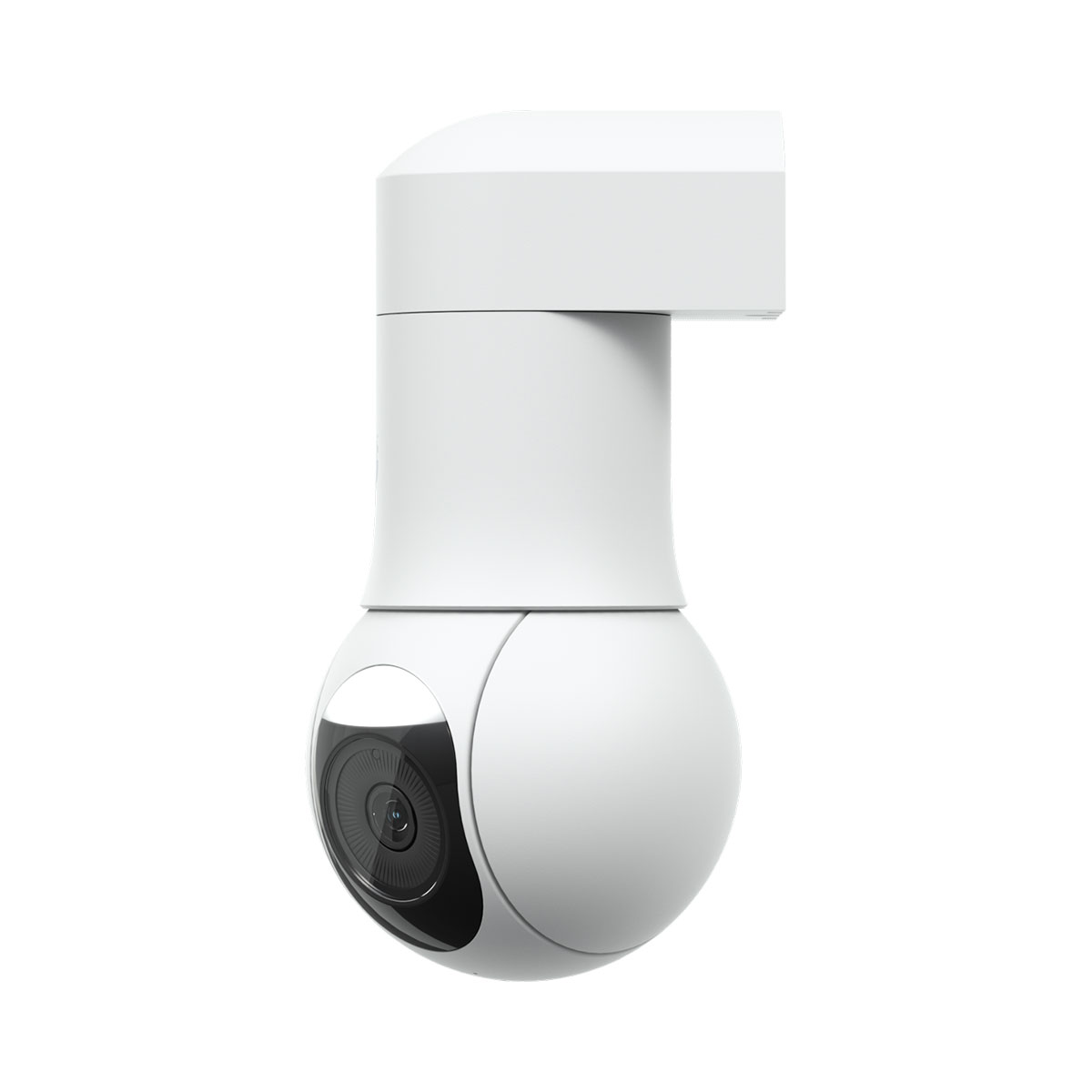

Ubiquiti UVC-G5-PTZ UniFi Protect
Ubiquiti UVC-G5-PTZ UniFi Protect
PTZ camera designed for activities where dynamic response to movement and detailed long-range observation is required. Thanks to the PTZ function (pan, tilt, zoom), it is easy to cover large areas and focus precisely on important points without losing recording continuity. Advanced tracking algorithms help automatically keep the object in the center of the frame and speed up the operator's reaction time.
High resolution and powerful zoom
With an image quality of 5 MPx (2688 x 1512 px), the camera offers sharp images suitable for identifying individuals and fine details. The built-in 2x optical zoom allows you to zoom in on the scene without compromising sharpness or resolution. Ideal for situations where you need to capture details better at a greater distance – for example, when monitoring outdoor areas, entry points, or specific areas of interest.
Durability and easy installation
Robust construction with IP66 certification withstands harsh weather and attempts to damage, making the camera suitable for demanding outdoor environments. Support for PoE++ simplifies installation — power and data run over a single cable, saving time and costs when expanding the system. The combination of reliability, high image quality, and flexibility of PTZ functions creates a comprehensive solution for professional security deployment.

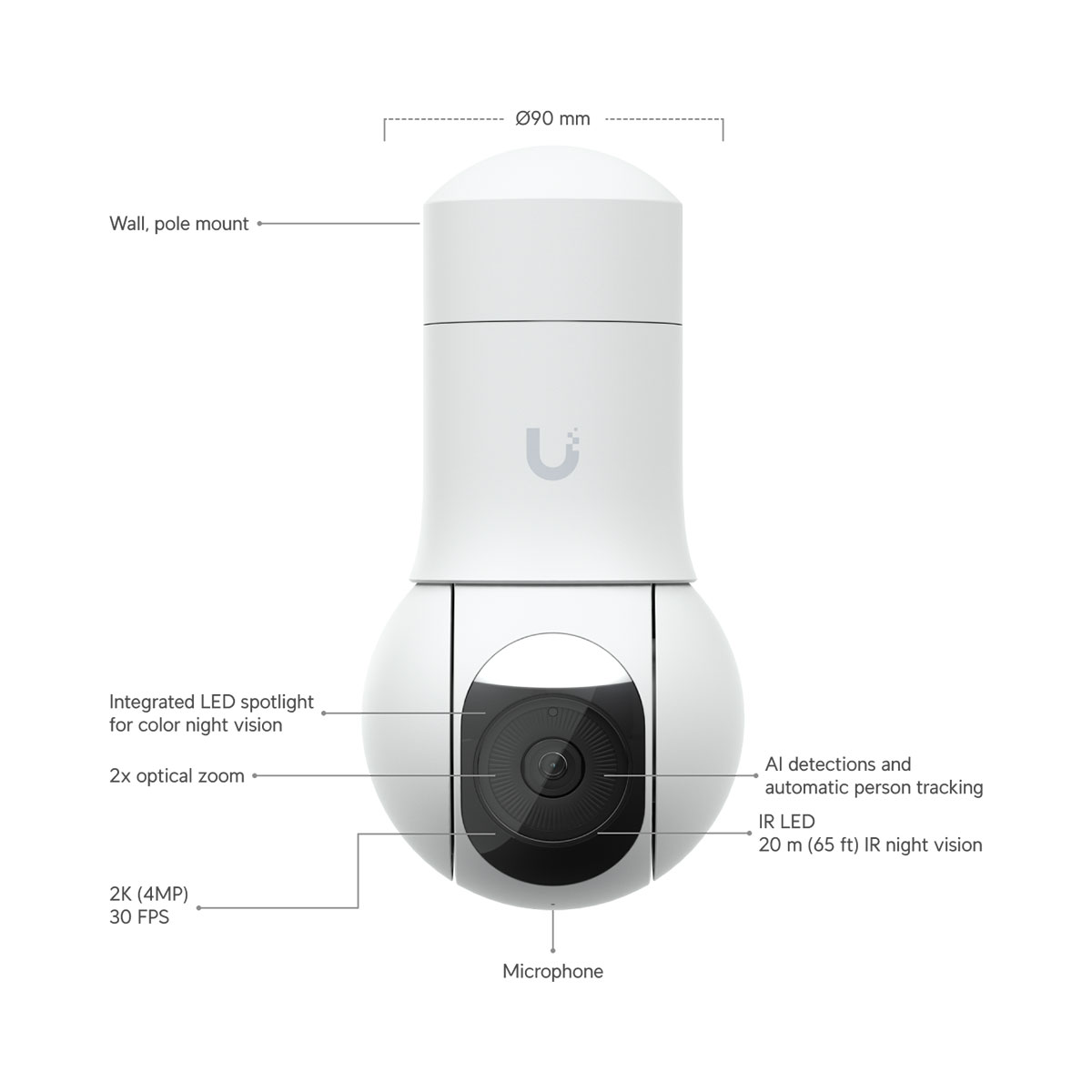

Key features
- PTZ function (pan, tilt, zoom) for flexible monitoring
- 5 MPx resolution (2688 x 1512 px) for sharp and detailed images
- 2x optical zoom without quality loss
- Durable construction with IP66 certification
- Easy installation thanks to PoE++ support
| Overview | |

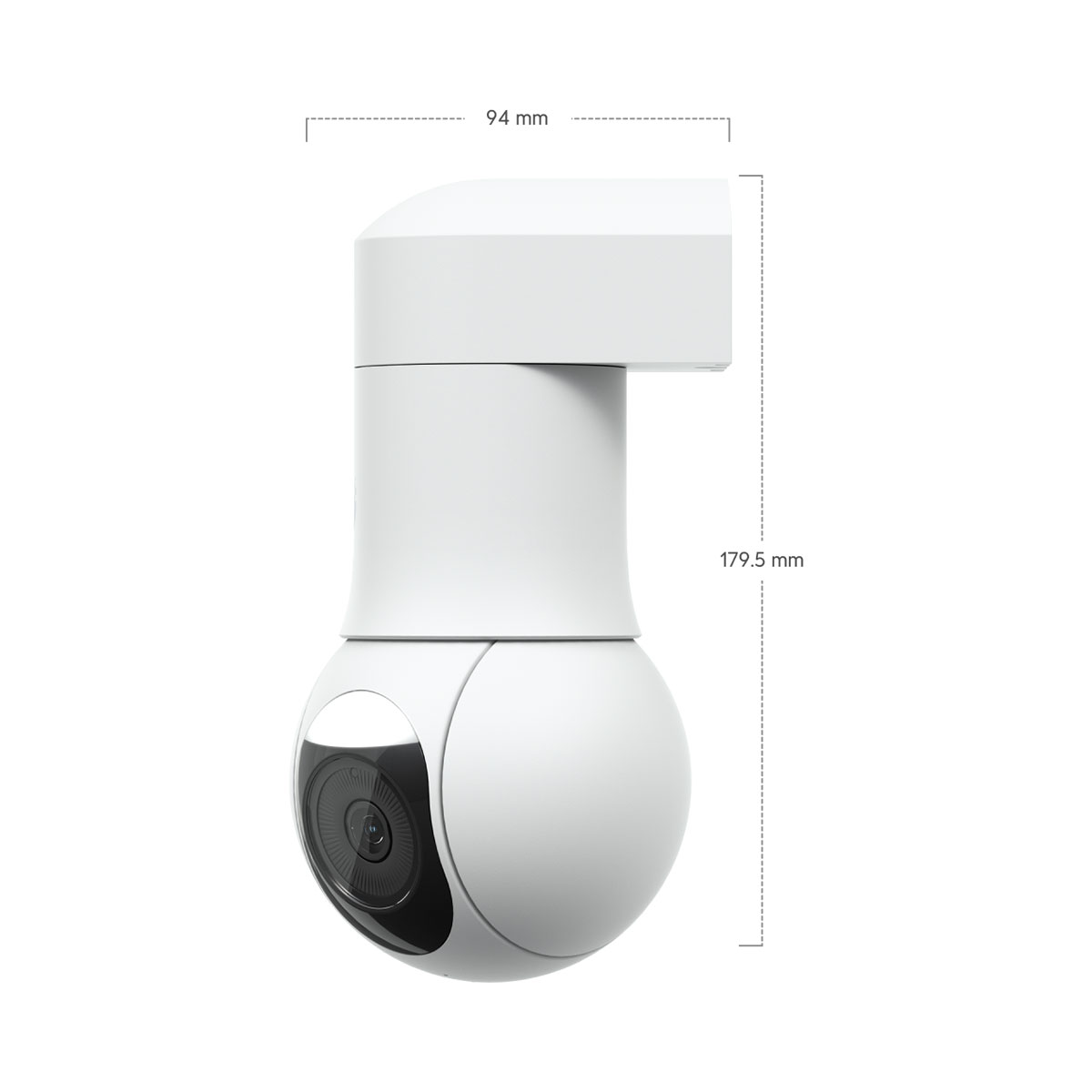

| Dimensions | Without mount: ⌀90 x 152.5 mm With mount: 90 x 94 x 179.5 mm |
| IR Night Vision | 20 m |
| Zoom Mode | 2x Optical |
| Smart Detections (People, Vehicles, Animals) | ✓ |
| Resolution | 2K |
| Field of View | Wide: H: 99.7°, V: 51.9°, D: 121° Tele: H: 45.5°, V: 25.4°, D: 52.4° |
| Pan-Tilt Range | Pan: 350° Tilt: 100° |
| Audio | Two-way audio |
| Weatherproofing | IP66 |
| Tamper Resistance | IK04 |

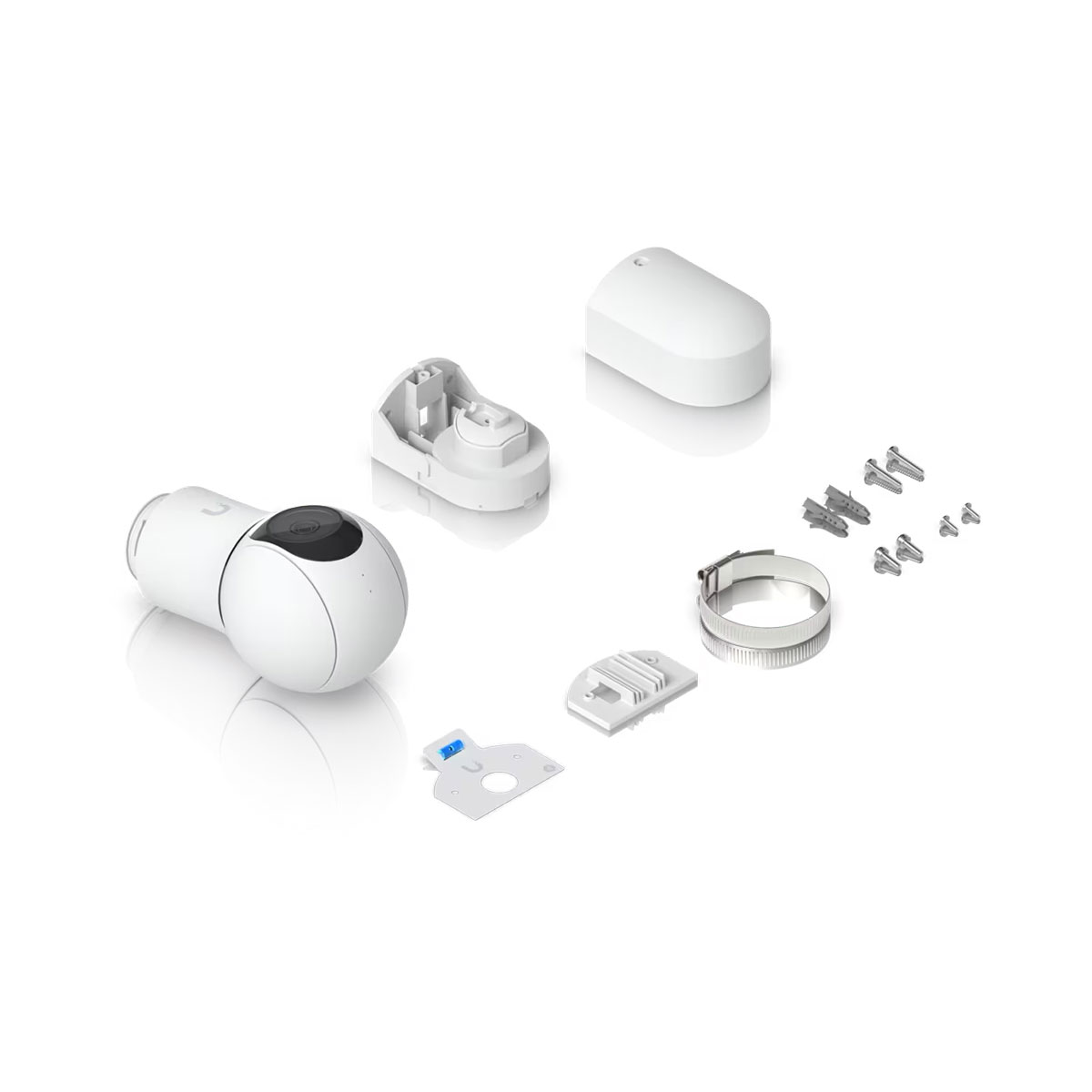

| Mounting | Wall mount, pole mount (Included) Conduit adapter, surface, in-ceiling, pendant, corner mount (Optional) |
| Power Method | PoE+ |
| Performance | |

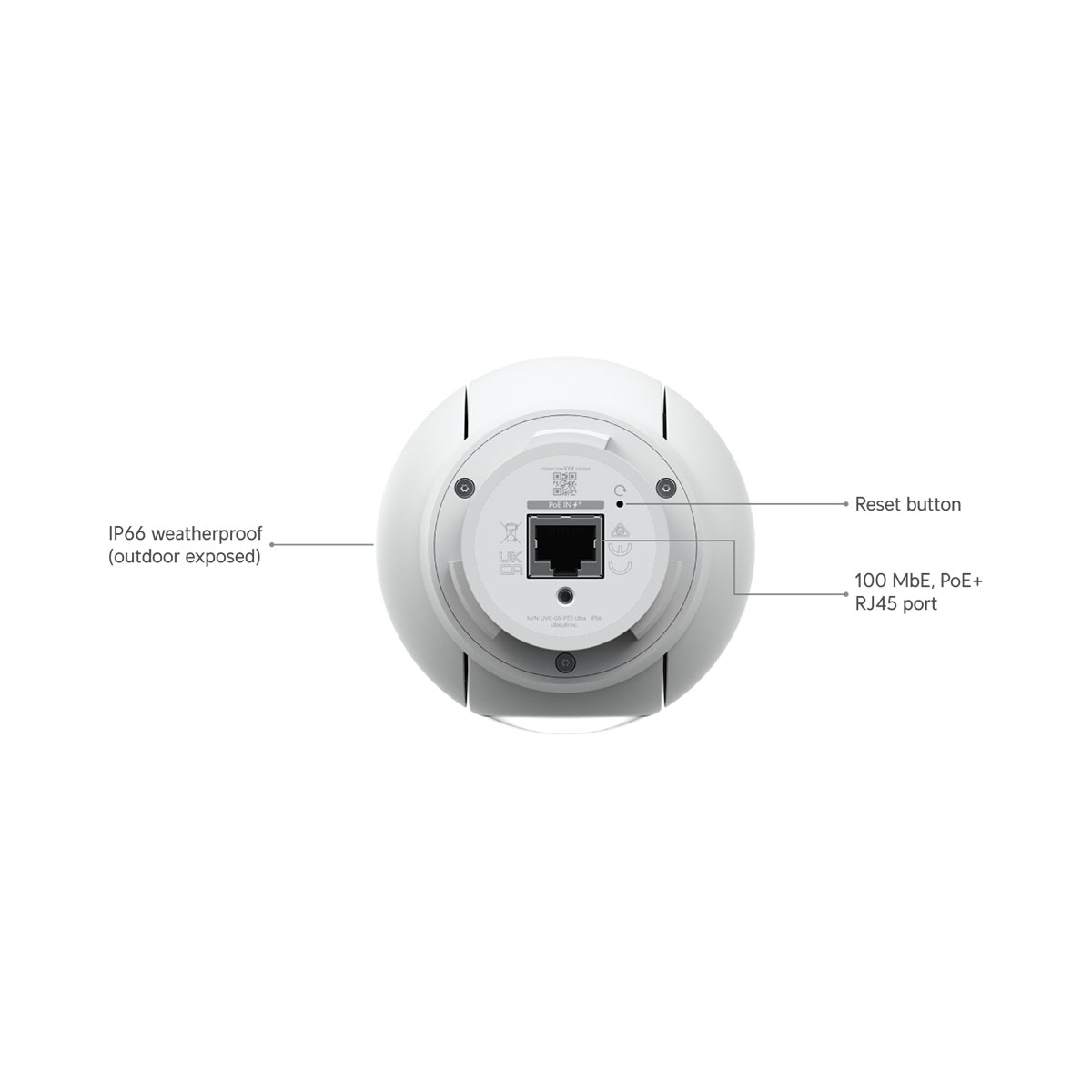

| Networking Interface | 10/100 MbE RJ45 port |
| Video |
Max. Frame Rate - 30 FPS Resolution - 4MP 2688 x 1512 (16:9) |
| Optics |
Sensor - 5MP 1/2.7" CMOS Lens - F 3.42–6.85 mm; ƒ/1.85–ƒ/2.4 Night Mode - Built-in IR & white LED illumination with IR cut filter |
| Hardware | |
| Max. Power Consumption | 14W |
| Supported Voltage Range | 37—57V DC |
| Power Method | PoE+ |
| Pole Mount Diameter | 38–50 mm |
| Weight | Without mount: 580 g With mount: 650 g |
| Enclosure Material | Aluminum alloy, polycarbonate |
| Mount Material | Wall mount: polycarbonate Pole mount: aluminum alloy |
| Button | (1) Factory-reset |
| Ambient Operating Temperature | -30 to 45º C |
| Ambient Operating Humidity | 0 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| NDAA Compliant | ✓ |
