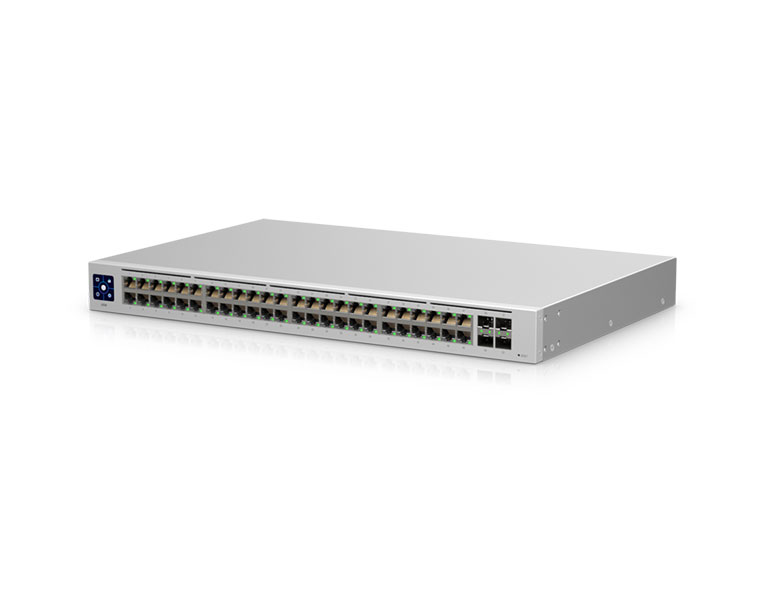

Ubiquiti USW-48 UniFi Switch 48 Port Gigabit with SFP
| • (48) Gigabit RJ45 ports • (4) 1G SFP ports • Layer 2 features • Fanless, silent cooling • 1.3" touchscreen display, supports UniFi Network AR • Managed by UniFi Network Controller (5.13.10 or later) |
The USW-48 is a configurable Gigabit Layer 2 switch with 48 Gigabit Ethernet ports and 4 SFP ports, providing 1 Gigabit links to your devices and fiber uplink options to your enterprise network. It features a 1.3" touch LCM, and a fanless design. The LCM provides current switch states and the necessary information you need for quick diagnosis. Managed and configured by the UniFi Network Controller and mobile app, the UniFi Switch offers an extensive suite of advanced Layer 2 switching protocols and features, including operation mode (switching, mirroring, or aggregate) per port. The UniFi Network Controller and mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface from anywhere.
Works with UniFi Network Controller
• Manage Your Networks from a Single Control Plane
• Intuitive and Robust Configuration, Control and Monitoring
• Remote Firmware Upgrade
• Users and Guests
• Guest Portal/Hotspot Support
| Specifications | |
| Mechanical | |
| Dimensions | 442.4 x 285 x 43.7 mm |
| Weight | Without Mount: 3.9 kg With Mount: 3.99 kg |
| Enclosure Characteristics | SGCC Steel |
| Hardware | |
| Total Non-Blocking Line Rate | 52 Gbps |
| Max. Power Consumption | 40W |
| Forwarding Rate | 77.376 Mpps |
| Power Method | Universal AC Input: 100-240VAC, 50/60 Hz |
| Power Supply | AC/DC, Internal, 60W |
| Supported Voltage Range | 100 - 240VAC |
| Networking Interfaces | (48) 10/100/1000 Mbps Ethernet RJ45 Ports (4) 1 Gbps SFP Ports |
| Management Interface | Ethernet In-Band |
| Modes | SMB Layer 2 Gigabit Ethernet Switch |
| Operating Temperature | -15 to 40° C (5 to 104° F) |
| Operating Humidity | 10 - 90% Noncondensing |
| Certifications | CE, FCC, IC |
| LEDs | |
| System | (1) Bootup Animation: Bootup in Progress Firmware Upgrade Icon: Firmware Upgrading Steady White: Factory Defaults, Awaiting Adoption Steady Blue: Device is Adopted |
| Ethernet | Green: 1G, Amber: 10/100 Mbps |
| SFP | Green: 1G |
