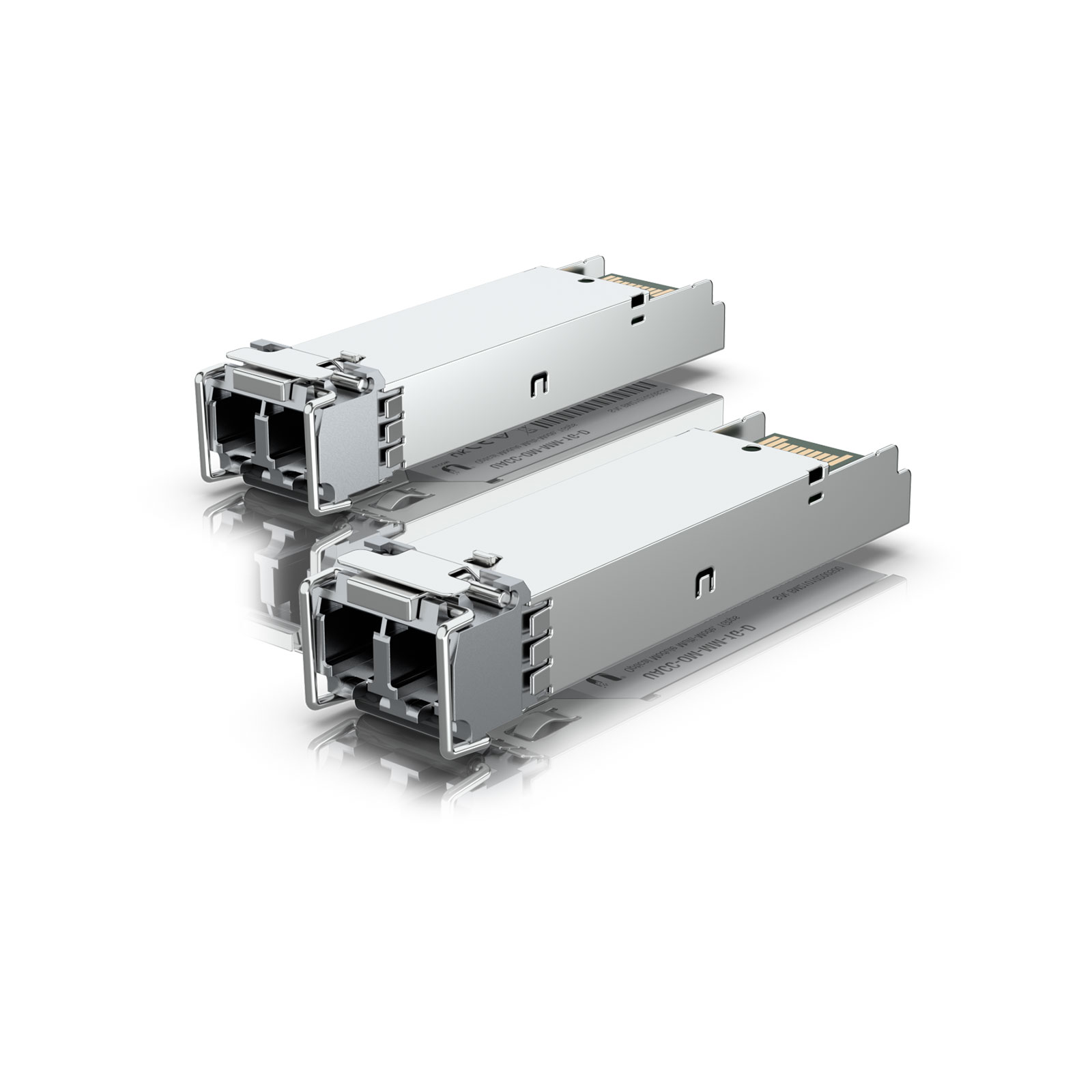

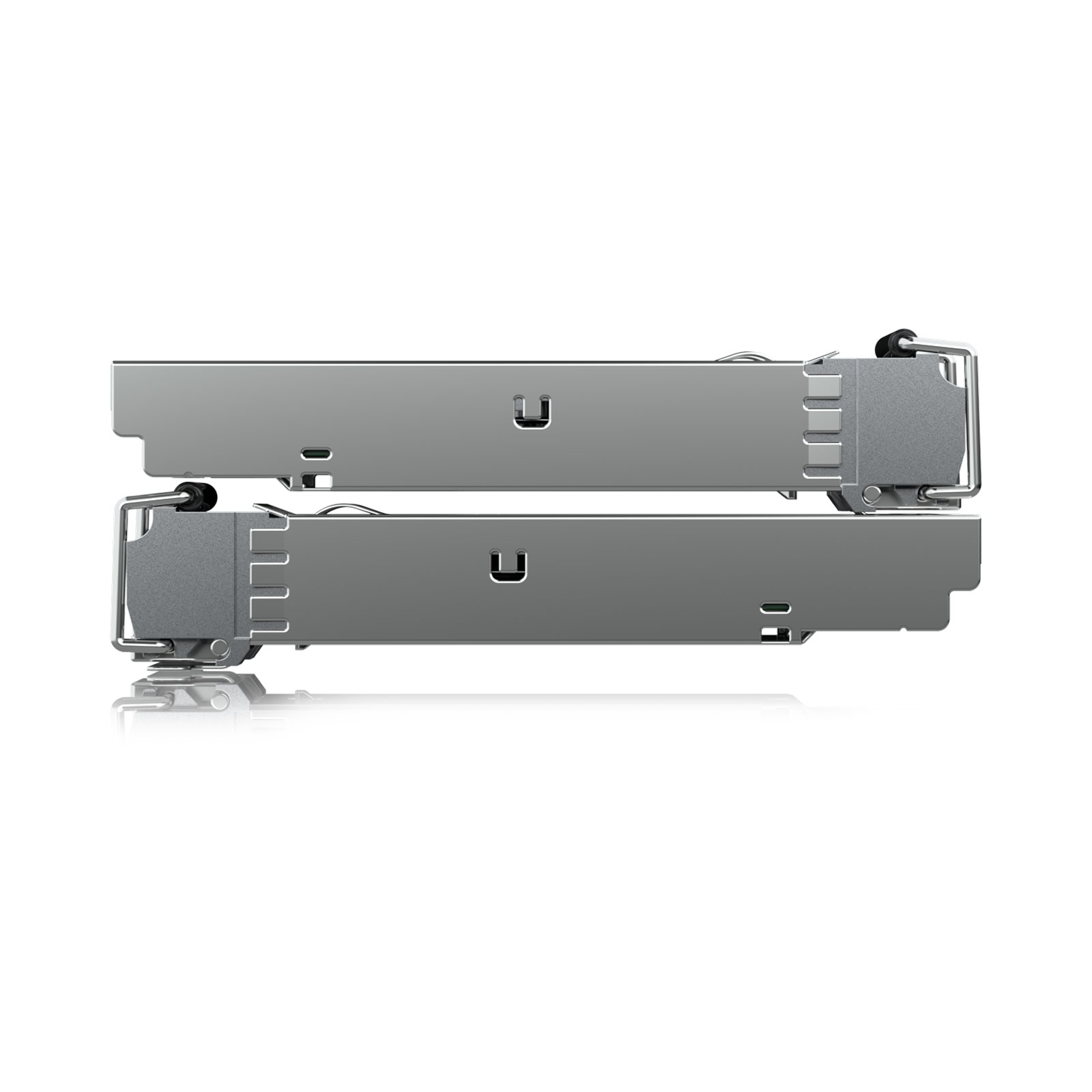

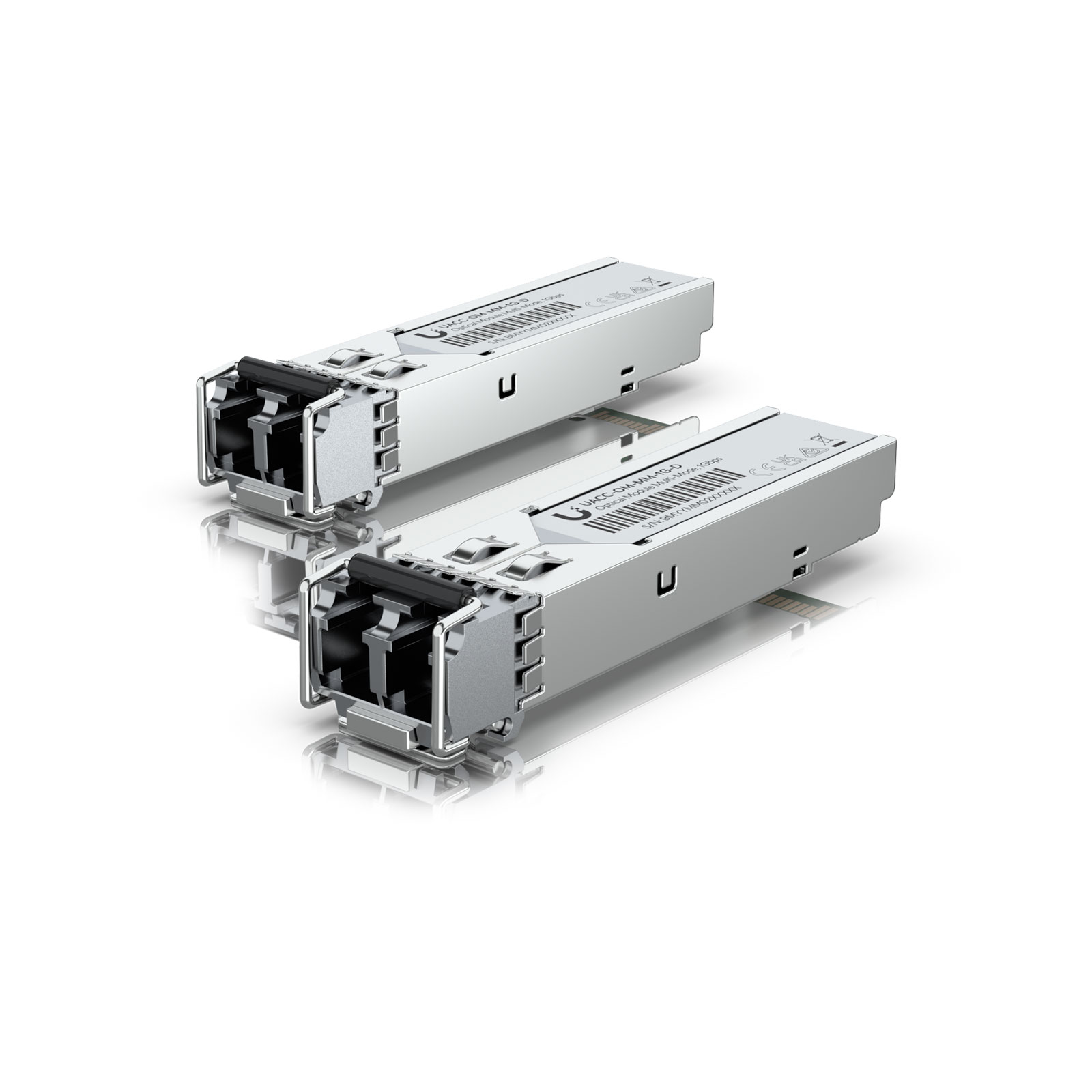

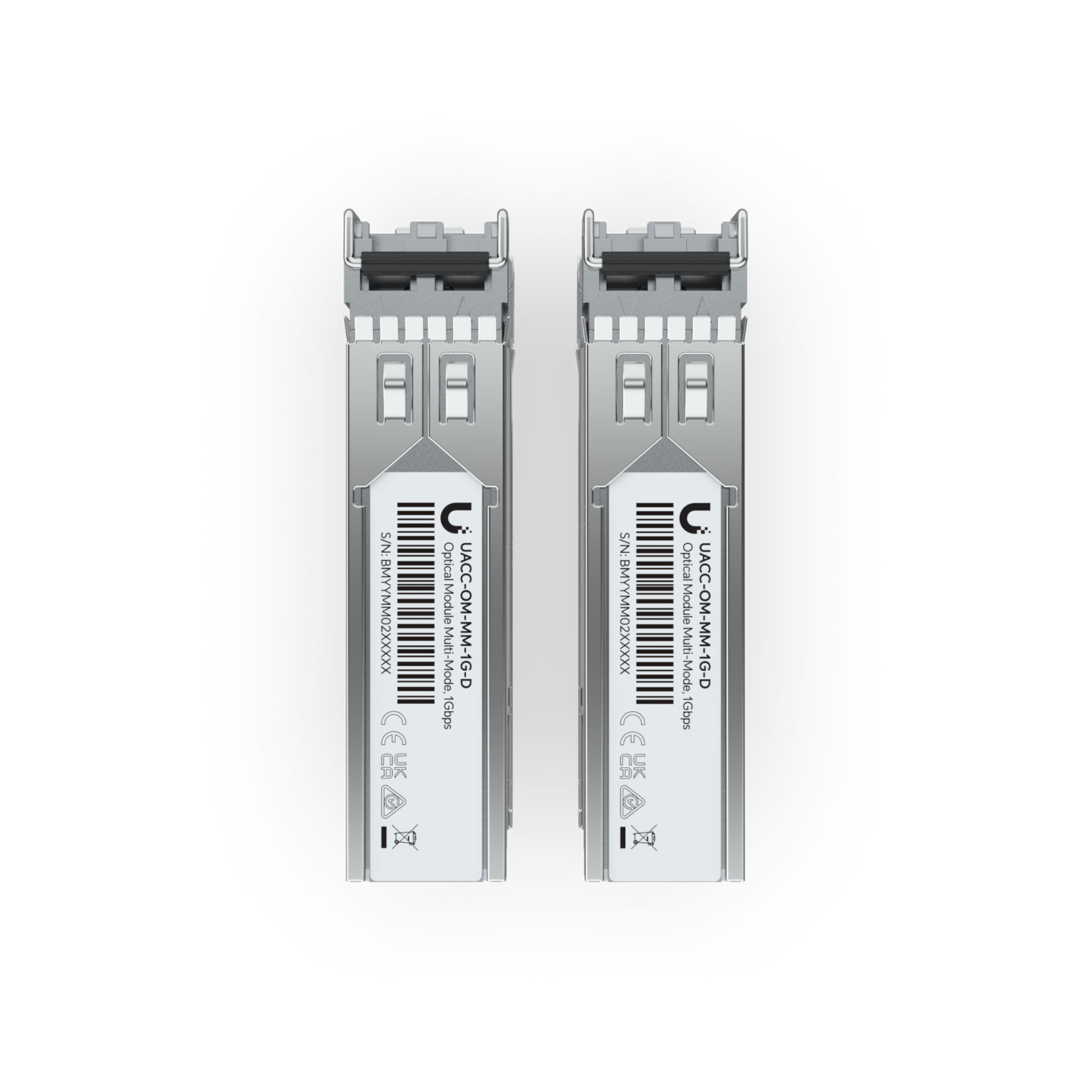

Ubiquiti UACC-OM-MM-1G-D-2 U Fiber, Multi-Mode Module, 1G, 2-Pack
Κωδικός προϊόντος:
UACC-OM-MM-1G-D-2
23,80 €
(Περιλαμβάνει ΦΠΑ 24%)
Τιμή χωρίς ΦΠΑ:
19,19 €
Άμεσα διαθέσιμο
Ubiquiti UACC-OM-MM-1G-D-2 U Fiber, Multi-Mode Module, 1G, 2-Pack
Υπολογισμός κόστους μεταφορικών:
Ποσότητα
Περιγραφή
Χαρακτηριστικά
Λήψεις
Περιγραφή
Multi-mode, duplex, fiber transceiver module.
The 1 Gbps Multi-mode Optical Module is a duplex transceiver that delivers up to 1.25 Gbps speed over distances up to 550 meters.
Features
• 1.25 Gbps throughput
• Duplex LC connector
• Supports connections up to 550 m
• Supported media: MM Fiber (Fiber cable is not included)
Χαρακτηριστικά
| Specifications | |
| Supported Media | Multi-Mode Fiber |
| Connector Type | (2) LC |
| TX Wavelength | Black Latch: 850 nm |
| RX Wavelength | Black Latch: 850 nm |
| Data Rate | 1.25 Gbps |
| Cable Distance | 550 m |
| Max. Power Consumption | 0.66W |
| Operating Temperature | 0 to 70° C |
| WARNING | CLASS 1 LASER PRODUCT, IEC/EN 60825-1:2014 – Do notlook into the ends of the ber optic cable or SFP module while converters are powered. |
| Model Comparison | ||||||
| UF-MM-1G | UF-MM-10G | UF-SM-1G-S | UF-SM-10G | UF-SM-10G-S | UF-RJ45-1G | |
| Supported Media | Multi-Mode Fiber | Multi-Mode Fiber | Single-Mode Fiber S | Single-Mode Fiber | Single-Mode Fiber | Copper |
| Connector Type | (2) LC | (2) LC | (1) LC | (2) LC | (1) LC | RJ45 |
| BiDi | ✓ | ✓ | ||||
| TX Wavelength | 850 nm | 850 nm | Blue: 1310 nm Yellow: 1550 nm |
1310 nm | Blue: 1270 nm Red: 1330 nm |
|
| RX Wavelength | 850 nm | 850 nm | Blue: 1550 nm Yellow: 1310 nm |
1310 nm | Blue: 1330 nm Red: 1270 nm |
|
| Data Rate | 1.25 Gbps SFP | 10 Gbps SFP+ | 1.25 Gbps SFP | 10 Gbps SFP+ | 10 Gbps SFP+ | 10/100/1000 Mbps |
| Cable Distance | 550 m | 300 m | 3 km | 10 km | 10 km | 100 m |
