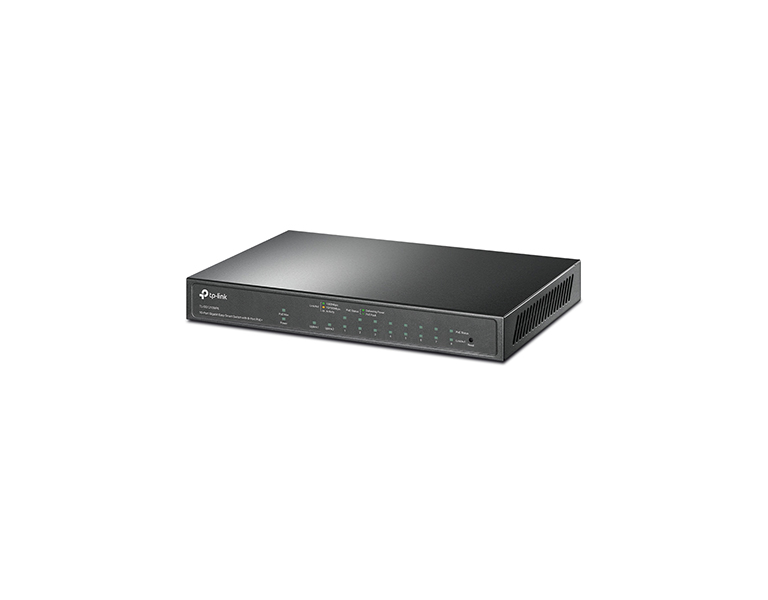

TP-LINK TL-SG1210MPE V3 10-Port Gigabit Easy Smart Switch with 8-Port PoE+
| • 9× gigabit RJ45 ports and 1× combo gigabit SFP/RJ45 port • Equipped with eight 802.3af/at PoE+ ports with up to 30 W for each port, the switch can transfer data and power via one single cable • Supports PoE power up to 123 W for all PoE ports* • Provides network monitoring, traffic prioritization, VLAN features, and PoE Auto Recovery • Simple network set-up on top of plug-and-play connectivity • Web-based user interface and Easy Smart Configuration Utility simplify configuration • Fanless design lowers energy consumption and eliminates operating noise |
Multiple Application Scenarios
The TL-SG1210MPE is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices, such as PCs, printers, and IPTV.
Dedicated 8 PoE+ Ports (123 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30W on each PoE port. The total 123 W PoE power budget* for the 8× gigabit PoE+ ports makes it has wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.
Value-Added Features Bring Unexpected Experiences
QoS for a Lag-Free Experience
-Ensures smooth traffic for latency-sensitive applications, such as voice and videoEnsures smooth traffic for latency-sensitive applications, such as voice and video
IGMP Snooping for Multicast Optimization
-Ensures a better network experience, especially for applications like IPTV, by optimizing multimedia traffic delivery.
VLAN for Security
-Helps to create network with higher security and better overall performance by dividing network into smaller groups
Making Management Easy
TL-SG1210MPE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG1210MPE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.
Multiple Features Guarantee Stable Operation
System Self-Healing with PoE Auto Recovery
-The switch automatically detects and reboots the PD devices, such as cameras and APs, when they fall offline or go unresponsive, guaranteeing the stable operation of PoE-connected devices, without need for manual monitoring and restart.
Intelligent Power Management to Prevent Power Overload
-Automatically cuts lower priority ports’ power to ensure high-priority ports’ power supply when the total PoE power consumption exceeds 123 W. This protects the device from power overload operation.
Great Compatibility with PD Detection
-Automatically detects the required PoE power for your device and protects your non-PoE equipment from being damaged.
Durable Metal Casing
The interior components of TL-SG1210MPE are protected by a high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG1210MPE delivers switching performance you can depend on.
*PoE budget calculations are based on laboratory testing. The actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.
| Hardware Features & Performance | |
| Physical Features | |
| Interface | 10 10/100/1000 Mbps RJ45 Ports 1 1000 Mbps SFP Slot (Combo) |
| PoE Standard | 802.3af/at |
| PoE Ports | Port 1-8, up to 30 W per port |
| PoE Power Budget | 123 W |
| External Power Supply | External Power Adapter(output: 53.5 VDC/2.43 A) |
| Max Power Consumption | 7.66 W (220 V/50 Hz. no PD connected) 141.54 W (220 V/50 Hz. with 123 W PD connected) |
| Max Heat Dissipation | 26.12 BTU/h (220 V/50 Hz. no PD connected) 482.65 BTU/h (220 V/50 Hz. with 123 W PD connected) |
| Fan Quantity | Fanless |
| LED | Power, PoE Max, Speed/Link/Act, PoE Status |
| Certification | CE, FCC |

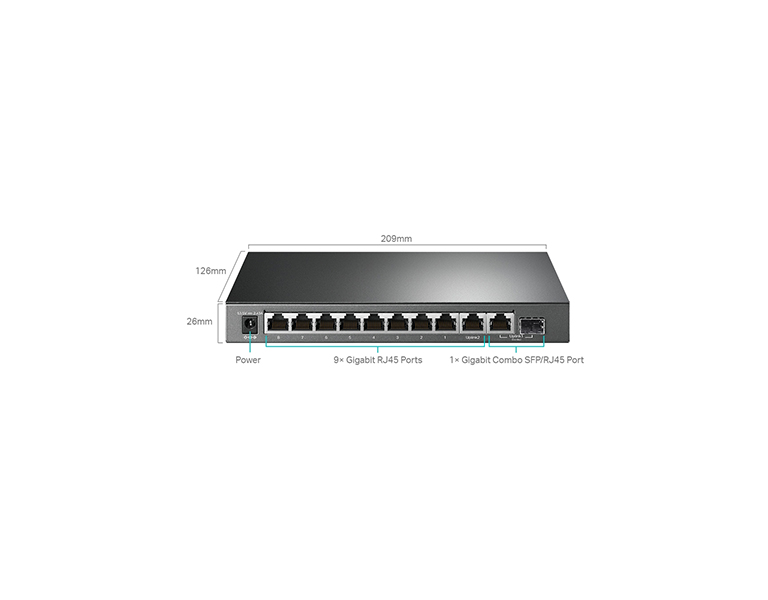

| Dimensions | 209 × 126 × 26 mm |
| Environment | Operating Temperature: 0°C to 40°C Storage Temperature: -40°C to 70°C Operating Humidity: 10% to 90% RH, non-condensing Storage Humidity: 5% to 95% RH, non-condensing |
| Performance | |
| Switching Capacity | 20 Gbps |
| Forwarding Rate | 14.88 Mpps |
| MAC Address Table | 4K |
| Jumbo Frame | 16 KB |
| Software Features | |
| L2 Switching Features | • IGMP Snooping - IGMP Snooping - Supports 128 Groups • Link Aggregation - Supports static link aggregation - Supports up to 4 aggregation groups, containing 4 ports per group • Port Mirroring - One to One - Many to One • Cable Test • Loop Prevention |
| VLAN | • Supports up to 32 VLANs (out of 4K VLAN IDs) • MTU/Port/802.1Q VLAN |
| Quality of Service (QoS | • Support Port-based/802.1p/DSCP priority • Support 4 priority queues • Rate Limit • Storm Control |
| PoE | • Extend Mode • PoE Auto Recovery |
| Management | • Web-based Graphic User Interface (GUI) • Easy Smart Conguration Utility - Central Management - Friendly user interface |
| Ethernet Protocols | • IEEE 802.3i 10BASE-T • IEEE 802.3u 100BASE-TX/FX • IEEE 802.3ab 1000BASE-T • IEEE 802.3x Flow Control • IEEE 802.1q VLANs/VLAN tagging • IEEE 802.1p QoS |
* PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.
**The speed of the ports which are under extend mode will be downgraded to 10Mbps. Actual transmission distance may vary from the quality of the cables.
