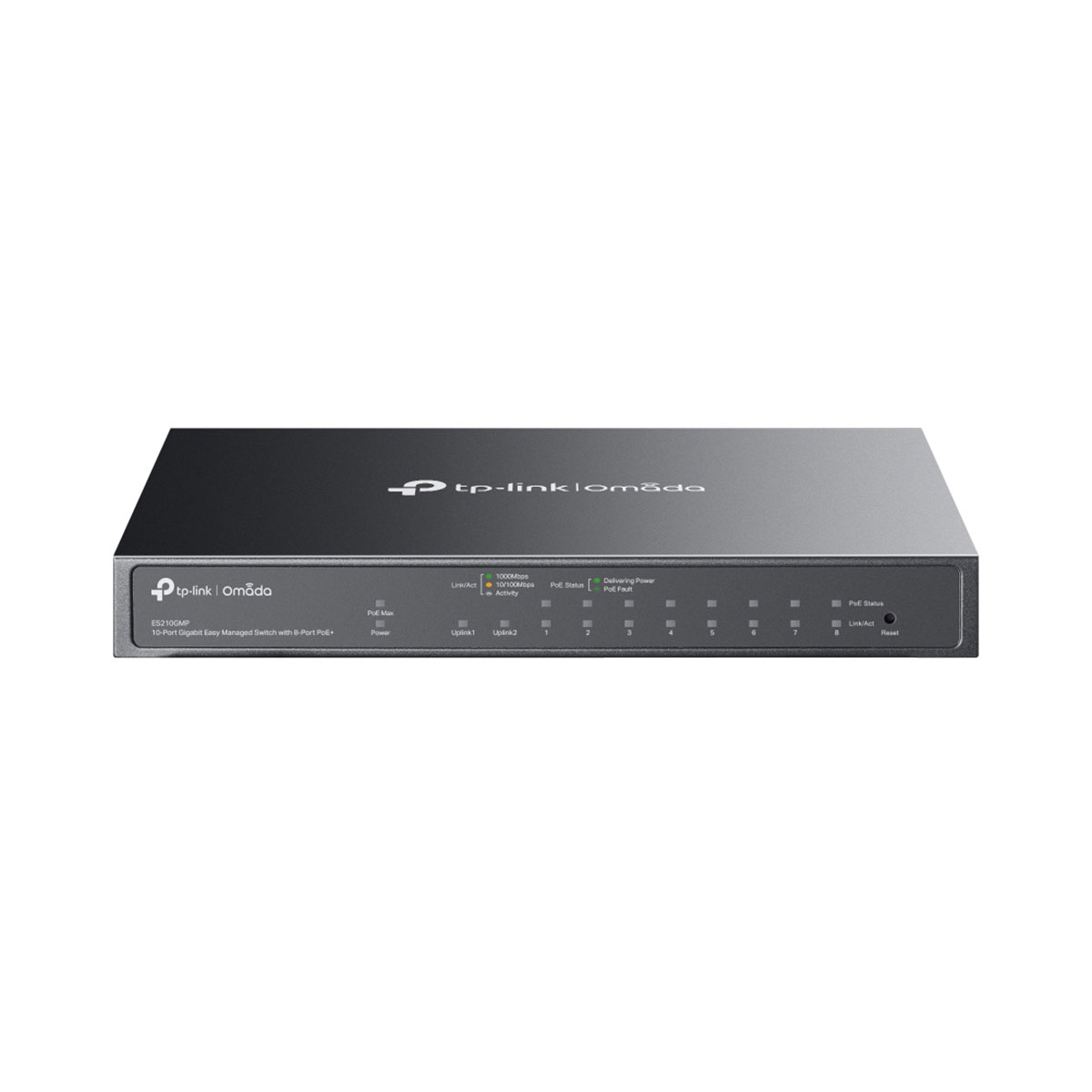

TP-LINK ES210GMP, OMADA 10-PORT Gigabit Easy Managed Switch with 8-Port POE+

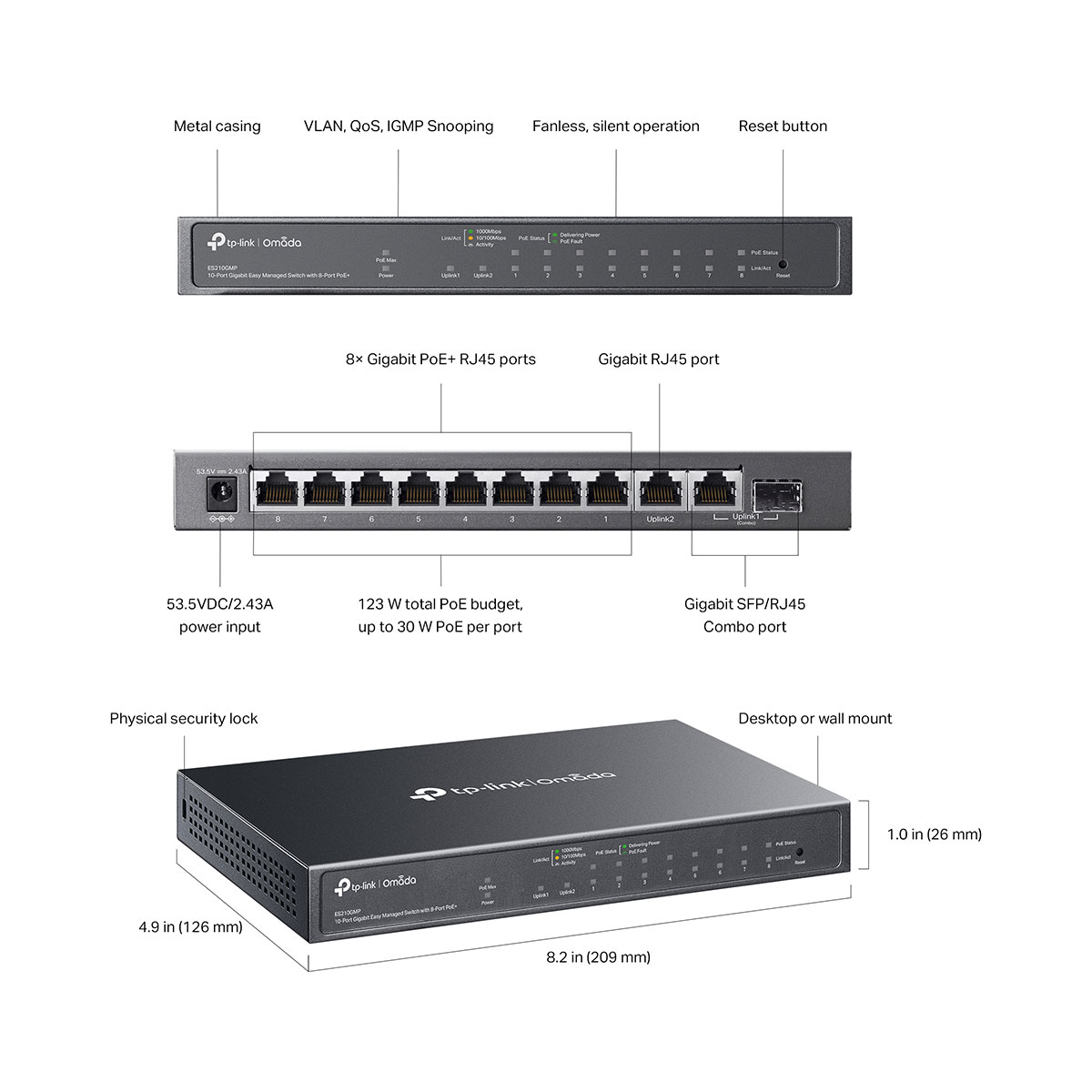

| • 9× 10/100/1000Mbps RJ45 ports (8× 802.3af/at-compliant PoE+) • 1× Gigabit SFP/RJ45 Combo port • 123W Power Budget, with up to 30W for each PoE port* • Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features • Centralized Cloud Management via the web or the Omada app† • Up to 250m PoE**, QoS△, PoE Auto Recovery‡, and Port Isolation for reliable surveillance networking • Automatic Loop Prevention, VLAN, and IGMP Snooping • Fanless design for silent operation • Durable metal casing and desktop/wall mounting design |
Omada Cloud Essentials — A Free and Easy Cloud-Based Network Management
Omada Cloud Essentials is a free, easy-to-use cloud-based management option for the Omada networking system§, covering access points, switches, and gateways. It enables simple, centralized network management and monitoring with essential features, making it ideal for surveillance networks and small businesses that don't require the complexity of larger operations.
Multiple Application Scenarios
1. Surveillance - Works with IP Cameras
2. Wi-Fi Coverage - Works with Access Points
3. Wired Connections - Works with Non-PoE Devices such as PCs and Printers

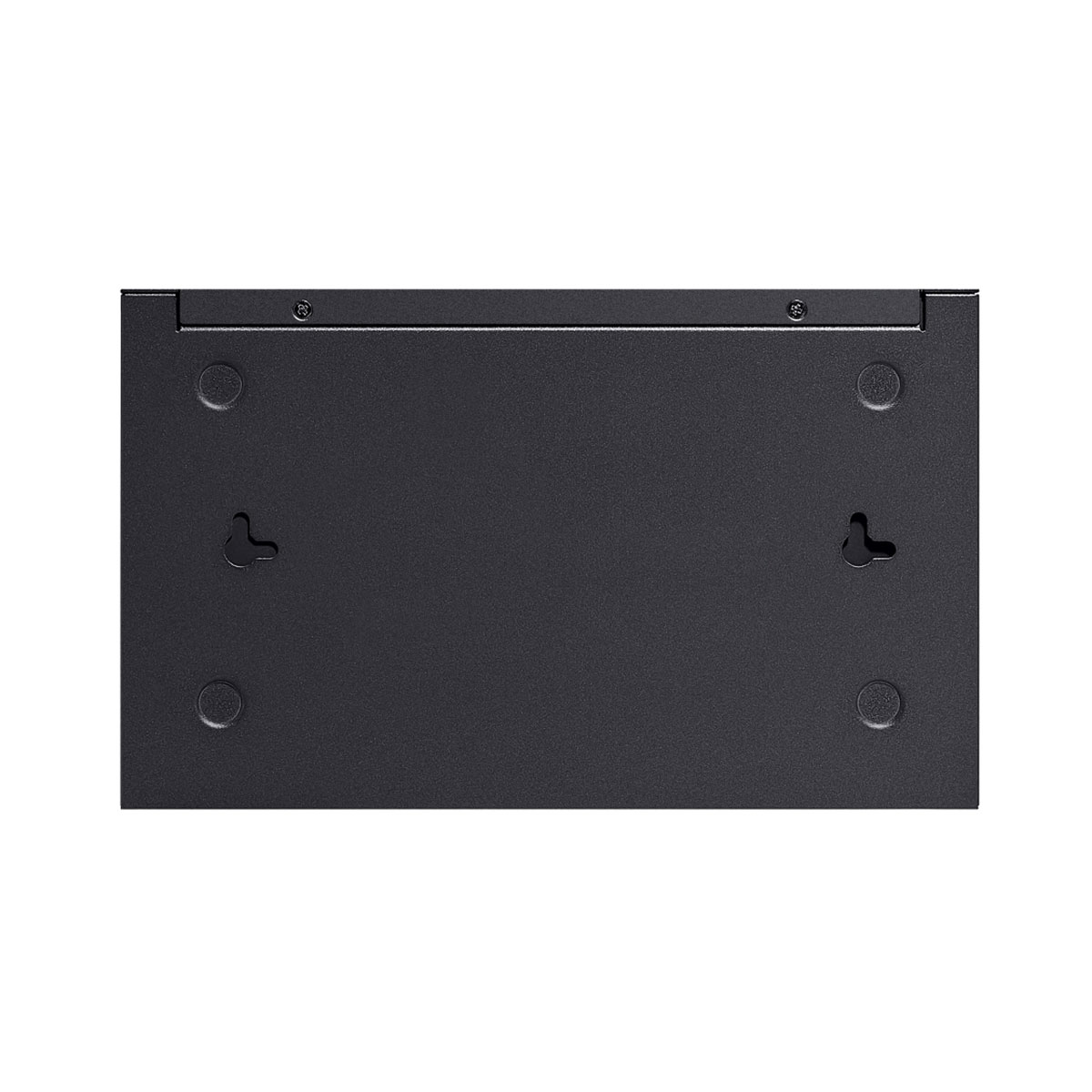

Durable Metal Casing, Featuring Desktop/Wall Mounting and a Fanless Design
†These functions require the use of the Omada SDN Controller. Zero-Touch Provisioning requires the use of the Omada Cloud-Based Controller. Go to the Omada Cloud-Based Controller Product List to find all the models supported by the Omada Cloud-Based Controller.
‡This switch supports PoE Auto Recovery under Standalone Mode (managed separately without a controller) and supports manual PoE Recovery under Controller Mode (centrally managed with a controller).
△QoS and Priority Mode are supported under Standalone Mode.
*PoE budget calculations are based on laboratory testing. The actual PoE power budget is not guaranteed and will vary due to client limitations and environmental factors.
**The speed of the ports that support 250m PoE transmission will be downgraded to 10 Mbps. Actual transmission distance may vary depending on the quality of the cables.
| General | |
| Interface | 8× 10/100/1000 Mbps PoE+ RJ45 Ports 1× 10/100/1000 Mbps RJ45 Port 1× Gigabit SFP/RJ45 Combo Port |
| Flash | 64 Mbit |
| Port Standard | IEEE 802.3i:10BASE-T Ethernet; IEEE 802.3u:100BASE-X Fast Ethernet; IEEE 802.3ab:1000BASE-T Gigabit Ethernet; IEEE 802.3x: Flow Control IEEE 802.1p: Traffic Class Expediting and Dynamic Multicast Filtering IEEE 802.1q: Virtual Bridged Local Area Networks |
| PoE | |
| PoE Standard | 802.3af/at |
| PoE Ports | 8, up to 30 W /per port |
| PoE Power Budget | 123 W |
| Performance | |
| Switching Capacity | 20 Gbps |
| Packet Forwarding Rate | 14.88 Mpps |
| MAC Address Table | 8K |
| Packet Buffer | 4 Mbit |
| Transmission Method | Store and Forward |
| Jumbo Frame | 15 KB |
| Physical & Environment | |
| Power Supply | 53.5 VDC / 2.43A |
| Surge Protection | ±6 kV in common mode for Ethernet Ports |
| ESD Protection | Air: ±8 kV, Contact: ±4 kV |
| MTBF | 411681h @ 25°C |
| Dimensions(WxDxH) | 209×126×26 mm |
| Fan Quantity | Fanless |
| Installation | Desktop/Wall-Mounting |
| Operating Temperature | 0 °C to 40 °C |
| Storage Temperature | -40 °C to 70 °C |
| Operation Humidity | 10% to 90% RH, non-condensing |
| Storage Humidity | 5% to 90% RH, non-condensing |
| Certification | CE, FCC, RoHS |
| Software Features | |
| SDN Support | • Support Hardware Controller, Software Controller, Cloud-Based Controller • Automatic Device Discovery • Batch Configuration • Batch Firmware Upgrading • Unified Configuration |
| L2 Features | • Link Aggregation - Static Link Aggregation - Up to 4 aggregation groups and up to 6 ports per group • Loopback Detection • Flow Control - 802.3x Flow Control • Mirroring - Port Mirroring - One-to-One - Many-to-One - Ingress/Egress/Both • Port Statistics - Port Mirror Status - Traffic Statistics • 802.1ab LLDP |
| L2 Multicast | • IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave |
| VLAN | • MTU VLAN • Port-Based VLAN • 802.1Q Tag VLAN - Max 32 VLAN Groups - 4K VID |
| QoS | • 802.1p DSCP Priority • 8 Priority Queues • Priority Schedule Mode - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port-Based Rating Limit • Storm Control - Multiple Control Modes (kbps/pps) - Broadcast/Multicast/Unknown-Unicast Control |
| Management |
• Web-based GUI |
* PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.
**The speed of the ports which are under extend mode will be downgraded to 10Mbps. Actual transmission distance may vary from the quality of the cables.
