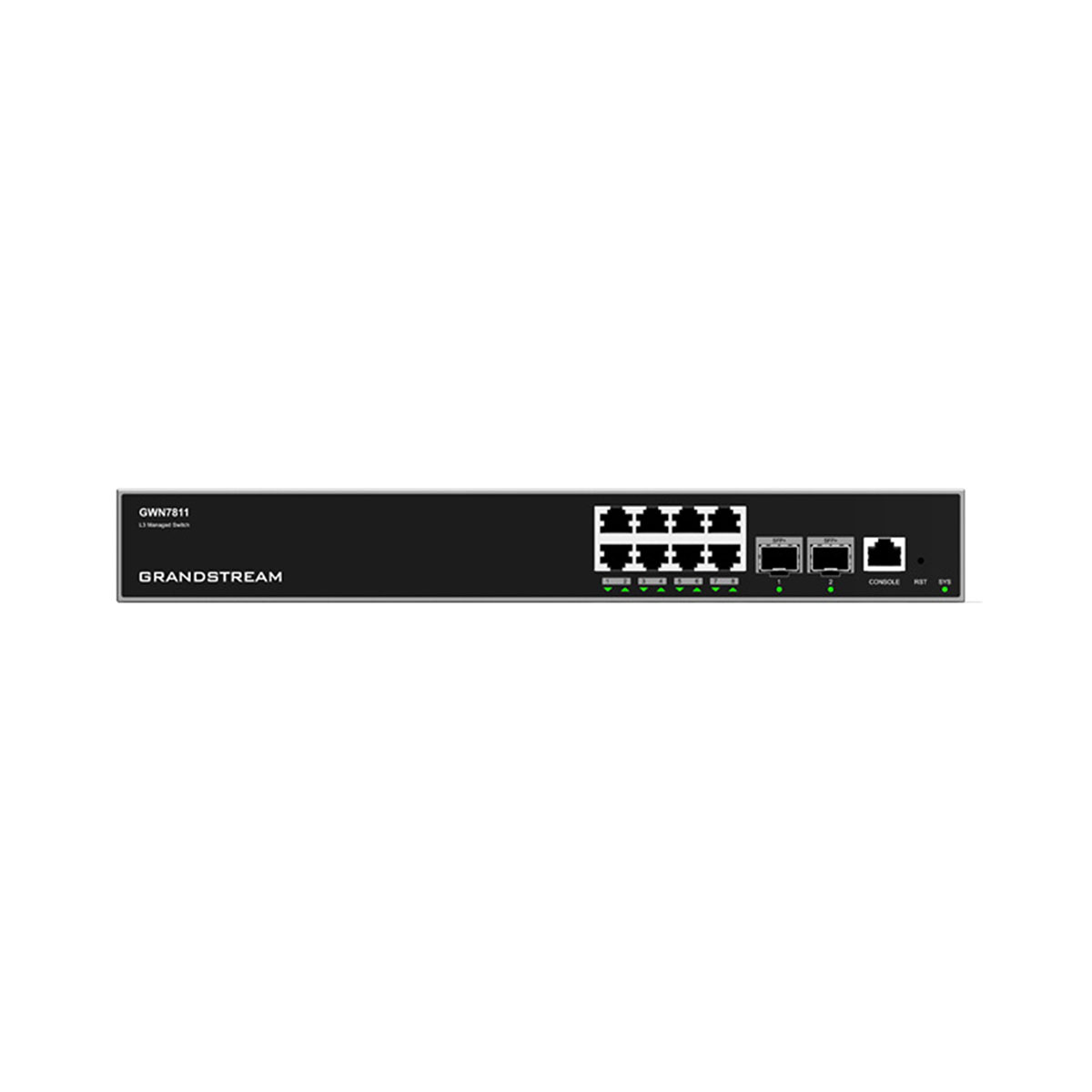

Grandstream GWN7811 Enterprise Layer 3 Managed Network Switch
The GWN7811 series are Layer 3 managed network switches that allow medium-to-large enterprises to build scalable, secure, high performance and smart business networks that are fully manageable. It supports advanced VLAN for flexible and sophisticated traffic segmentation, advanced QoS for prioritization of network traffic, IGMP/MLD Snooping for network performance optimization, and comprehensive security capabilities against potential attacks. The PoE models provide smart dynamic PoE output to power IP phones, IP cameras, Wi-Fi access points and other PoE endpoints. GWN7810 series can be managed in a number of ways, including the local Web user interface of the GWN7811 series switch and CLI, the command-line interface. The series is also supported by GWN. Cloud and GWN Manager, Grandstream’s cloud and on-premise network management platform. The GWN7811 series are the best value enterprise-grade managed network switches for medium-to-large businesses.
Features:
• 8 Gigabit Ethernet ports and 2 10Gigabit SFP+ ports
• Supports deployment in IPv6 and IPv4 networks
• ARP Inspection, IP Source Guard, DoS protection, port security & DHCP snooping
• Embedded controller to manage switch; GWN.Cloud and GWN Manager, Grandstream’s cloud and on-premise network management platform
• Built-in QoS allows for prioritization of network traffic
| Specifications | |
| Network Protocol | IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3x, IEEE 802.3af/at/bt, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1d, IEEE 802.1s, IEEE 802.3az, IEEE 802.3ad, IEEE 802.3AB, IEEE 802.1p, IEEE 802.1D, IEEE 802.1x |
| Memory | 256MB RAM 128MB Nand Flash, 8MB Nor Flash |
| Jumbo Frame(Bytes) | 12288 |
| Gigabit Ethernet Ports | 8 |
| 10Gigabit SFP+ Ports | 2 Note: Supports DAC cable, and must be ≤ 5m |
| Maximum no. of Supported Modules | SM-10G: 2 MM-10G: 2 RJ45-10G: 2 |
| Console | 1 |
| Link Aggregation | 32 |
| Surge Protection | ± 6KV CM and DM for power ± 4KV CM for network ports |
| ESD | ± 12KV for contact discharge |
| Auxiliary Ports | 1x Reset Pinhole |
| Forwarding Mode | Store-and-forward |
| Total non-blocking throughput | 28Gbps |
| Switching Capability | 56Gbps |
| Forwarding Rate | 41.644Mpps |
| Packet Buffer | 12MB |
| Network Latency | <4µs |
| Stacking | Yes, Up to 4 devices |
| Switching | • 16K MAC addresses, including static, dynamic, filtering and sticky MAC address • 4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, MAC-based VLAN, protocol-base VLAN, QinQ • Private VLAN • Voice VLAN including auto voice VLAN, tagged OUI and untagged OUI • 16 VLAN virtual interface with 9216 MTU • GVRP (pending) • Spanning tree, 32 instances for STP/RTSP/MSTP/PVST(+)/RPVST(+) • 1K ARP/NDP |
| Routing | • 512 (IPv4)/128 (IPv6) routes • 32 (IPv4)/32 (IPv6) static routing • Dynamic routing, including RIP, RIPng, OSPF, OSPFv3 and BGP • Routing Policy |
| Multicast | •IGMP Snooping with IGMPv2 and IGMPv3, 256 IGMP Snooping groups • MLD Snooping with MLDv1 and MLDv2, 256 MLD Snooping groups • MVR |
| QoS/ACL | • Port priority • Priority mapping • Queue scheduling, including SP, WRR, WFQ, SP-WRR and SP-WFQ • Traffic shaping • Rate limit • 2K ACL for Ethernet, IPv4 and IPv6 |
| DHCP | DHCP server, DHCP relay, DHCP Option 82, 60, 160 and 43 |
| Maintenance | • Fan and PWR/RPS monitoring • CPU and memory monitoring • SNMP inckuding SNMPv1, SNMPv2c, SNMPv3 • RMON • LLDP&LLDP-MED • Backup & Restore • Syslog • Diagnostics including Ping, Traceroute, Mirroring including SPAN and RSPAN, UDLD (TBD) and copper test • Upgrade via FTPS / TFTP / HTTP / HTTPS or local upload, mass provisioning using DHCP Option / TR-069 (pending) / GDMS Networking / GWN Manager / GWN Series Routers |
| Security | • User hierarchical management and password protection, HTTPS, SSH, Telnet • 802.1X authentication • MAC authentication • AAA authentication including RADIUS, TACACS+ • Storm control • Port isolation, port security, sticky MAC • Filtering MAC address •IP/IPv6 source guard, DoS attack prevention, ARP inspection • DHCP/DHCPv6 Snooping • Loop protection including BPDU protection, root protection and loopback protection • Kensington Security Slot (Kensington Lock) support |
| Mounting | Desktop, Wall-Mount, or Rack-Mount(rack-mounting kits included) |
| System LEDs | 1x tri-color LED for device tracking and status indication |
| Data Transferring LEDs | 10x green-color LEDs |
| Environmental | Operation: 0°C to 45°C, humidity 10-90% RH(Non-condensing) Storage: -10°C to 60°C, humidity: 5% to 95% RH(Non-condensing) |
| Dimensions | 330mm(L)x176mm(W)x44mm(H) |
| Unit Weight | 1.45Kg |
| Package Content | 1x Switch 1x 1.2m(10A) AC Cable 1x 25cm Ground Cable 4x Rubber Footpads 1x Power Cord Anti-Trip 8x Screws (KM 3*6) 1x Quick Installation Guide 1x Console Cable(Optional) 2x Extended Rack-Mounting Kits |
| Compliance | FCC, CE, RCM, IC, UKCA |
