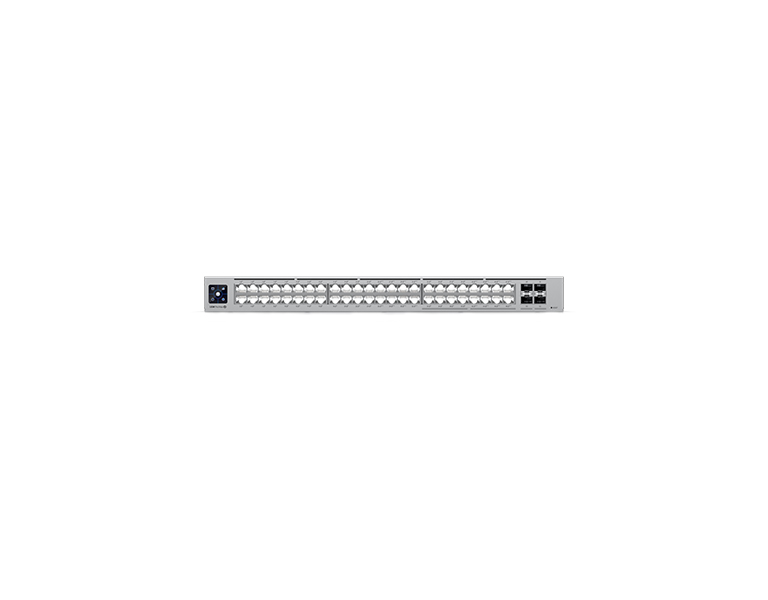

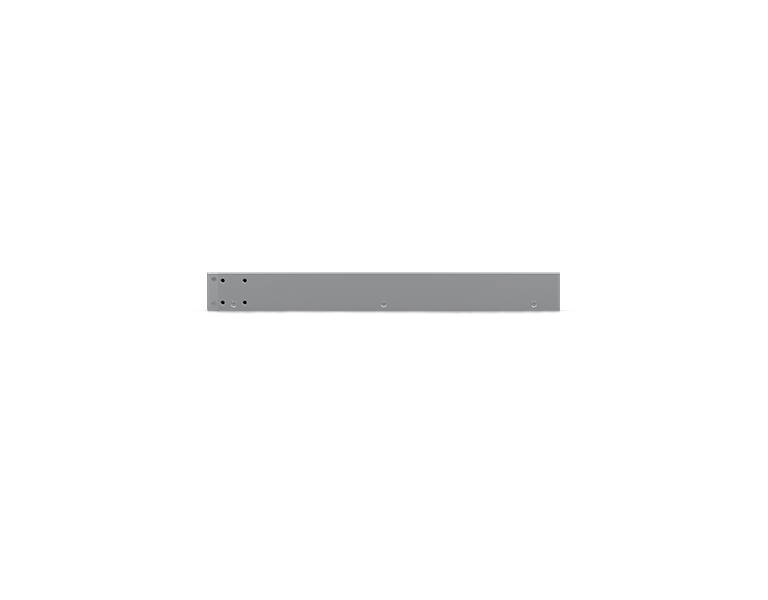

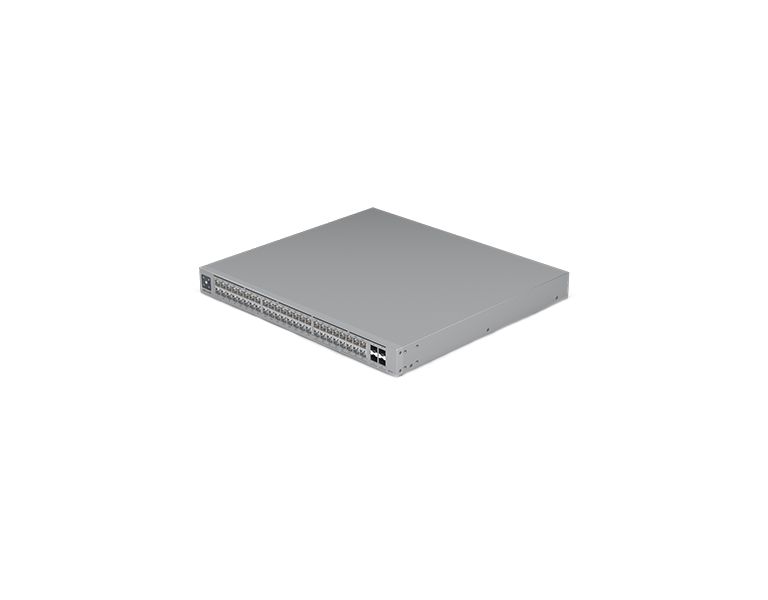

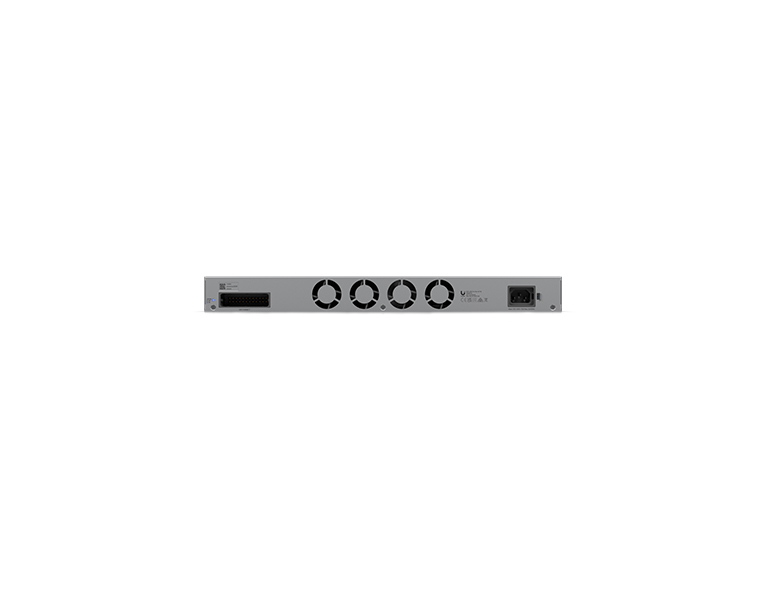

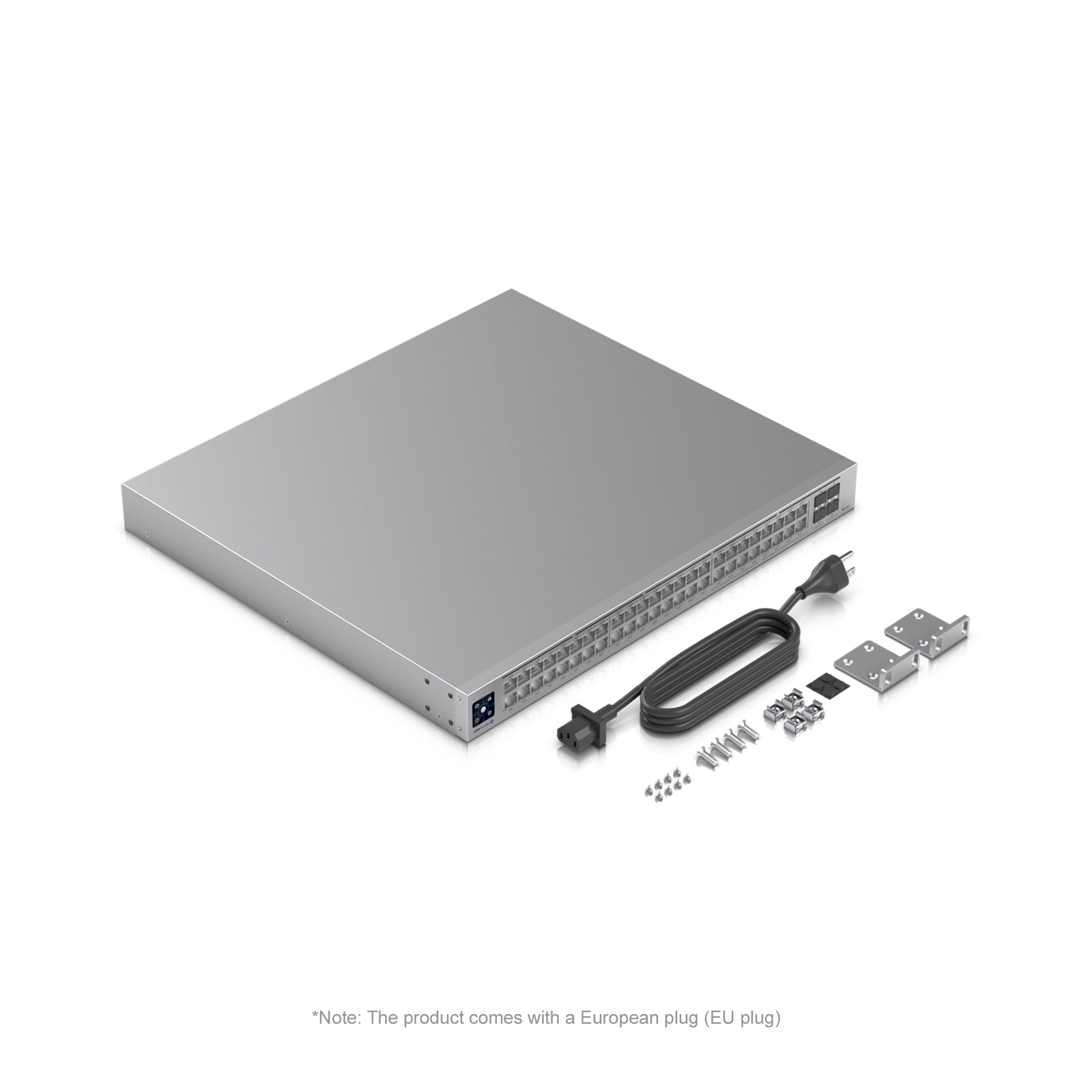

Ubiquiti USW-PRO-MAX-48-POE 48-Port PoE Switch
Κωδικός προϊόντος:
USW-PRO-MAX-48-POE
Περιγραφή
Χαρακτηριστικά
Λήψεις
Περιγραφή
A 48-port, Layer 3 Etherlighting™ switch capable of high-power PoE++ output.
• Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network*
• (16) 2.5 GbE ports including (8) PoE+ and (8) PoE++
• (32) GbE ports including (24) PoE+ and (8) PoE++
• (4) 10G SFP+ ports
• DC power backup ready
• 720W total PoE availability
*Pair with UniFi Etherlighting Patch Cables for optimal brightness
Χαρακτηριστικά
| Specifications | |
| Dimensions | 442.4 x 399.6 x 43.7 mm |
| Weight | Without mounting brackets: 6.2 kg With mounting brackets: 6.3 kg |
| Enclosure material | SGCC steel |
| Hardware | |
| Management interface | Ethernet In-Band |
| Networking interface | (32) GbE RJ45 ports (16) 1/2.5 GbE RJ45 ports (4) 10G SFP+ ports |
| PoE interface | (32) PoE/PoE+ (Pins 1, 2+; 3, 6-) (16) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-) |
| Total non-blocking throughput | 112 Gbps |
| Switching capacity | 224 Gbps |
| Power method | Universal input, 100—240V AC, 50/60 Hz USP RPS DC input |
| Power supply | AC/DC, internal, 820W |
| Supported voltage range | 100—240V AC |
| Max. power consumption | 100W (Excluding PoE output) |
| Total available PoE | 720W |
| Max. PoE wattage per port by PSE | PoE: 15.4W PoE+: 30W PoE++: 60W |
| Voltage range PoE mode | PoE: 44—57V PoE+: 50—57V |
| LCM display | (1) 1.3" touchscreen |
| Button | Factory reset |
| Operating temperature | -5 to 40° C |
| Operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| Etherlighting™ | |
| Ethernet | Locating Speed/link Native VLAN/network |
| SFP+ | Locating Speed/link Native VLAN/network |
| LEDs | |
| System | Status |
| RPS | Status |
