Περιγραφή

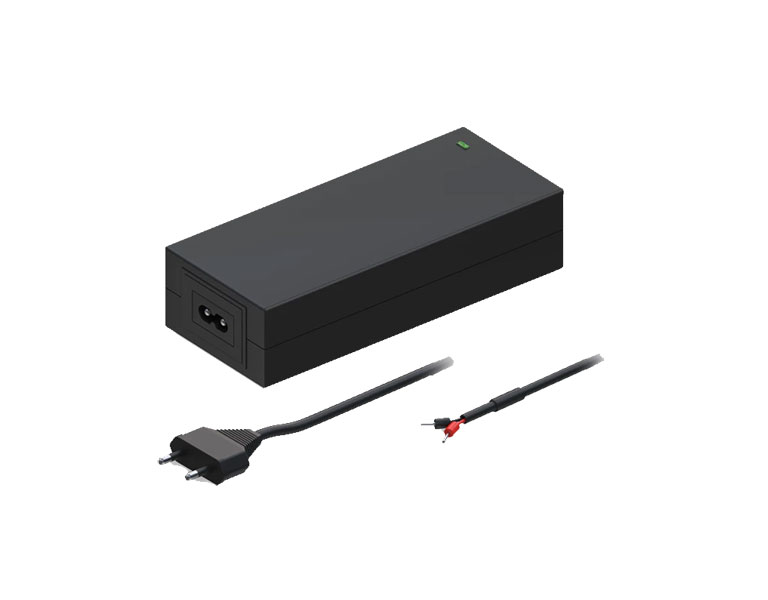

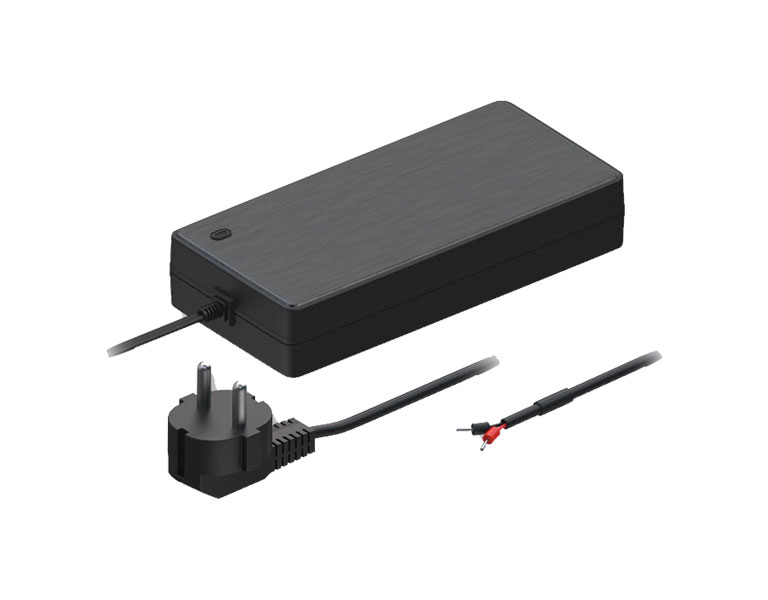

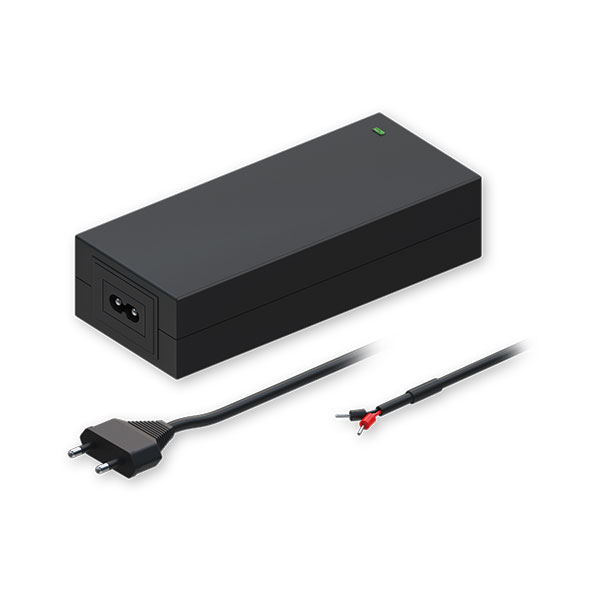

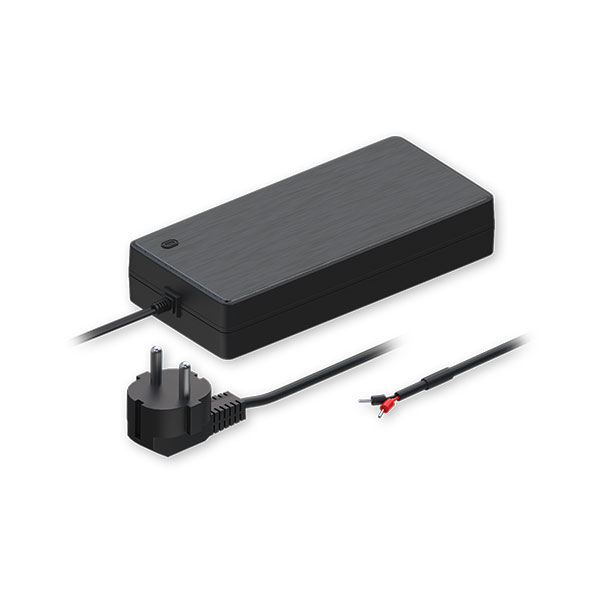

.:ΠΡΟΣΟΧΗ Η ΣΥΣΚΕΥΑΣΙΑ ΔΕΝ ΠΕΡΙΛΑΜΒΑΝΕΙ ΤΡΟΦΟΔΟΤΙΚΟ ΤΟ ΟΠΟΙΟ ΘΑ ΠΡΕΠΕΙ ΝΑ ΑΓΟΡΑΣΤΕΙ ΧΩΡΙΣΤΑ:.

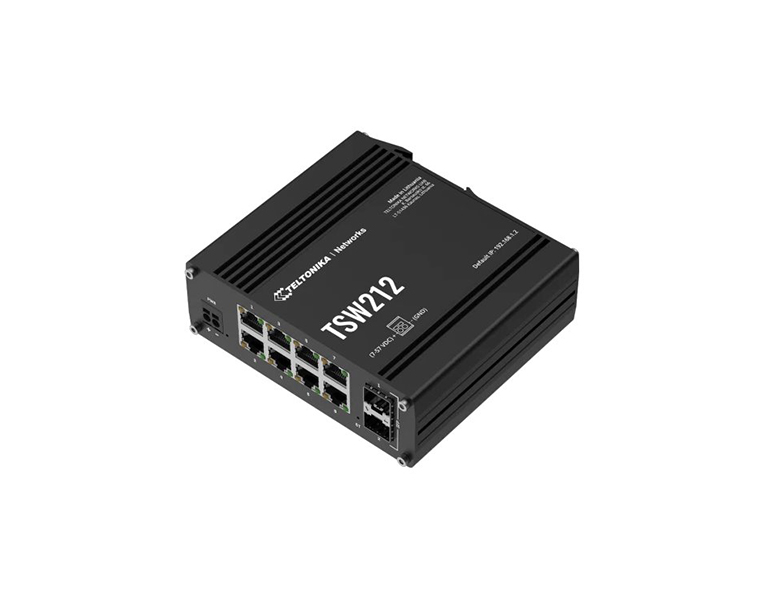

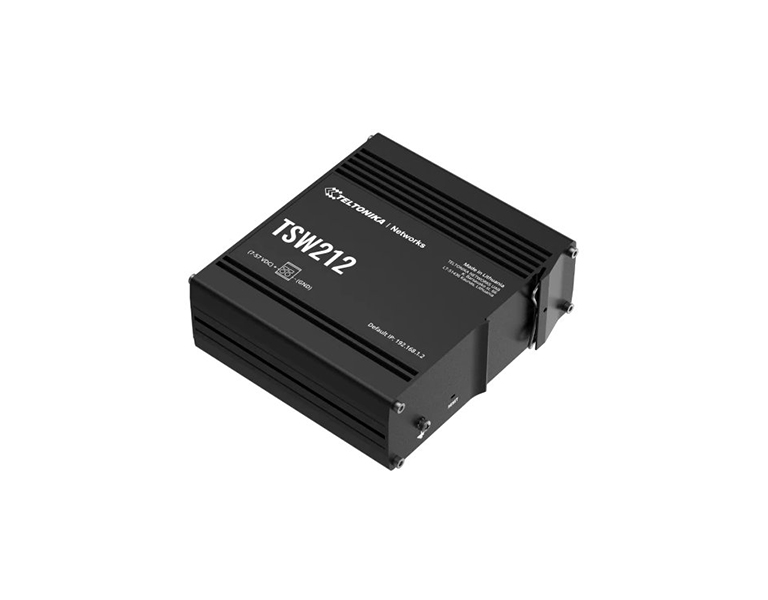

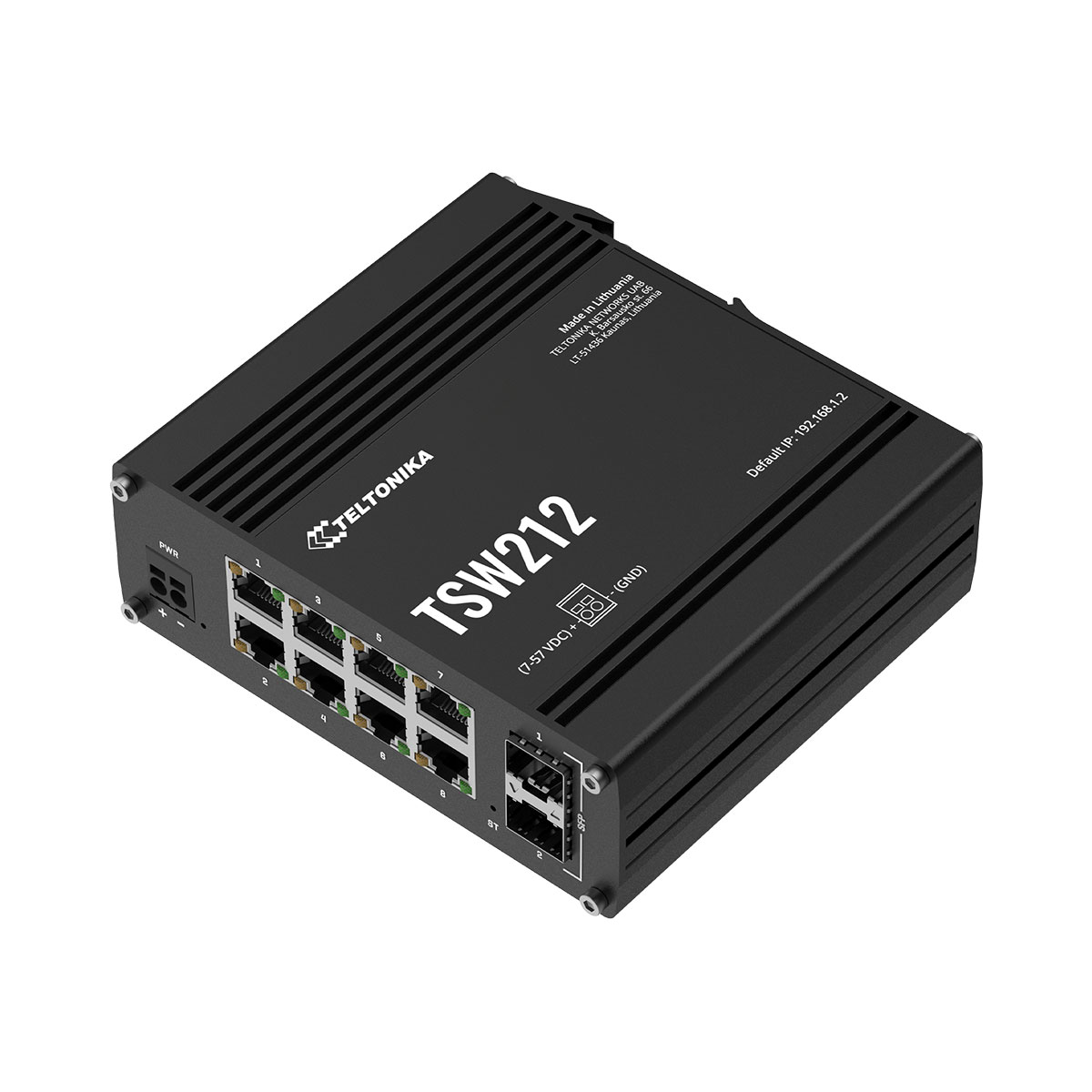

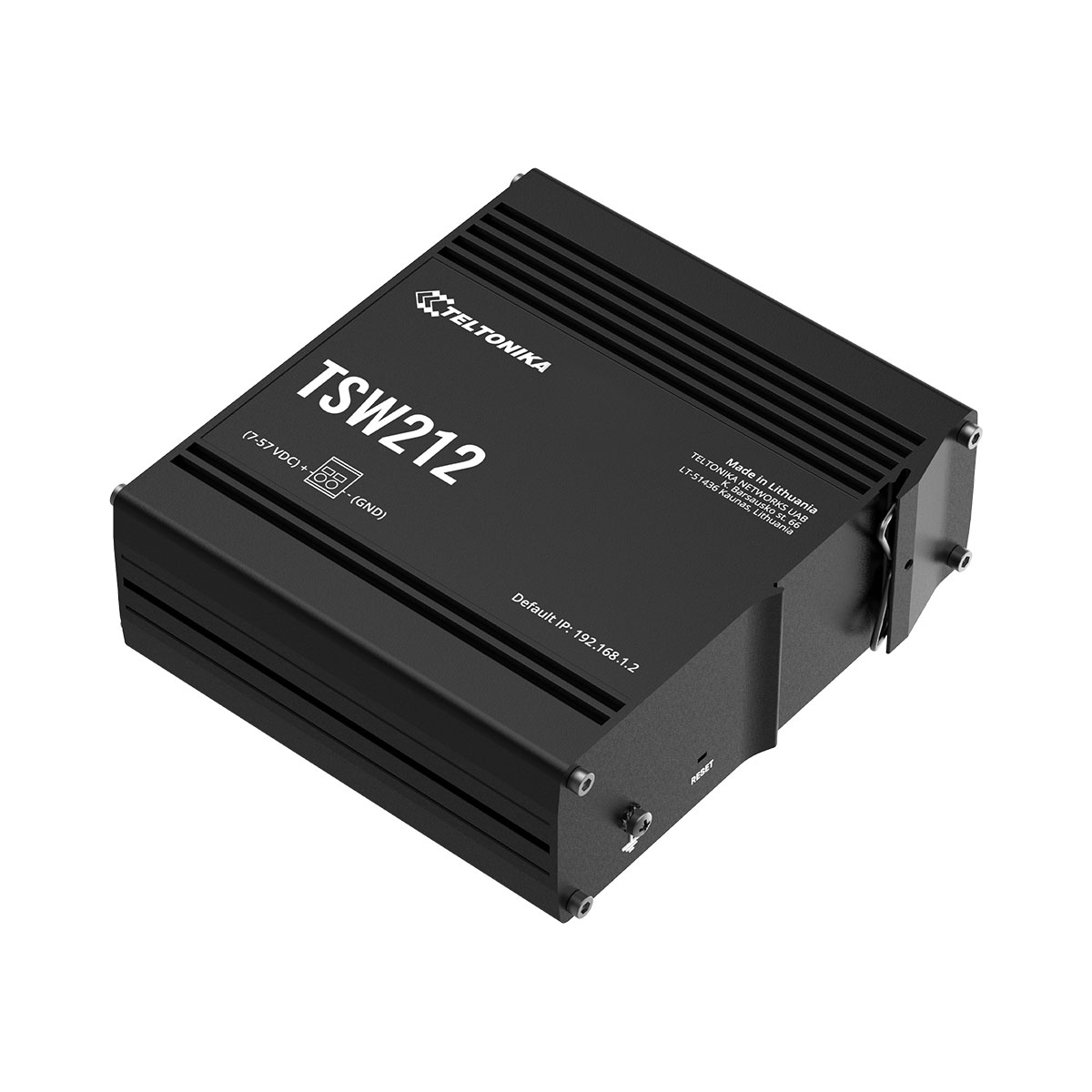

TSW212 is an L2 Teltonika Networks managed switch with additional L3 features, like DHCPv6 client support and static IPv6 routing for greater network management. This switch supports multiple industrial protocols, including EtherNet/IP, PROFINET, and MRP, and has 8 Gigabit Ethernet ports and 2 SFP ports to ensure robust long-range fibre optic communication. Encased in rugged aluminum housing, the TSW212 excels in withstanding extreme temperatures and resisting severe vibrations – all with effortless installation thanks to an integrated DIN rail mount.
Χαρακτηριστικά
| Hardware | |
| RAM | 128MB, DDR3 |
| Flash storage | 16MB serial flash |
| Powering options | 2-pin industrial DC power socket, 7 - 57 VDC |
| Power consumption | Idle: < 2.5 W / Max: 6 W |
| Status LEDs | 1 x Power LED, 1 x Aux LED, 16 x ETH status LEDs, 2 x SFP status LEDs |

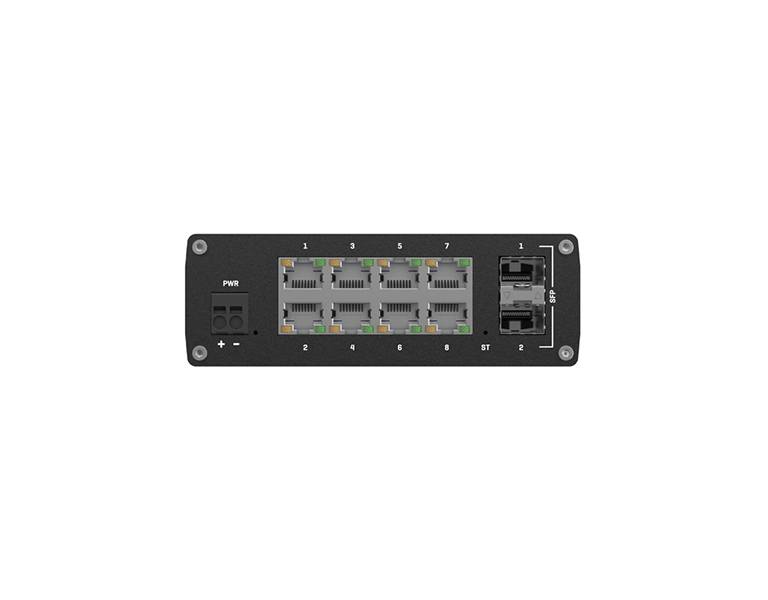

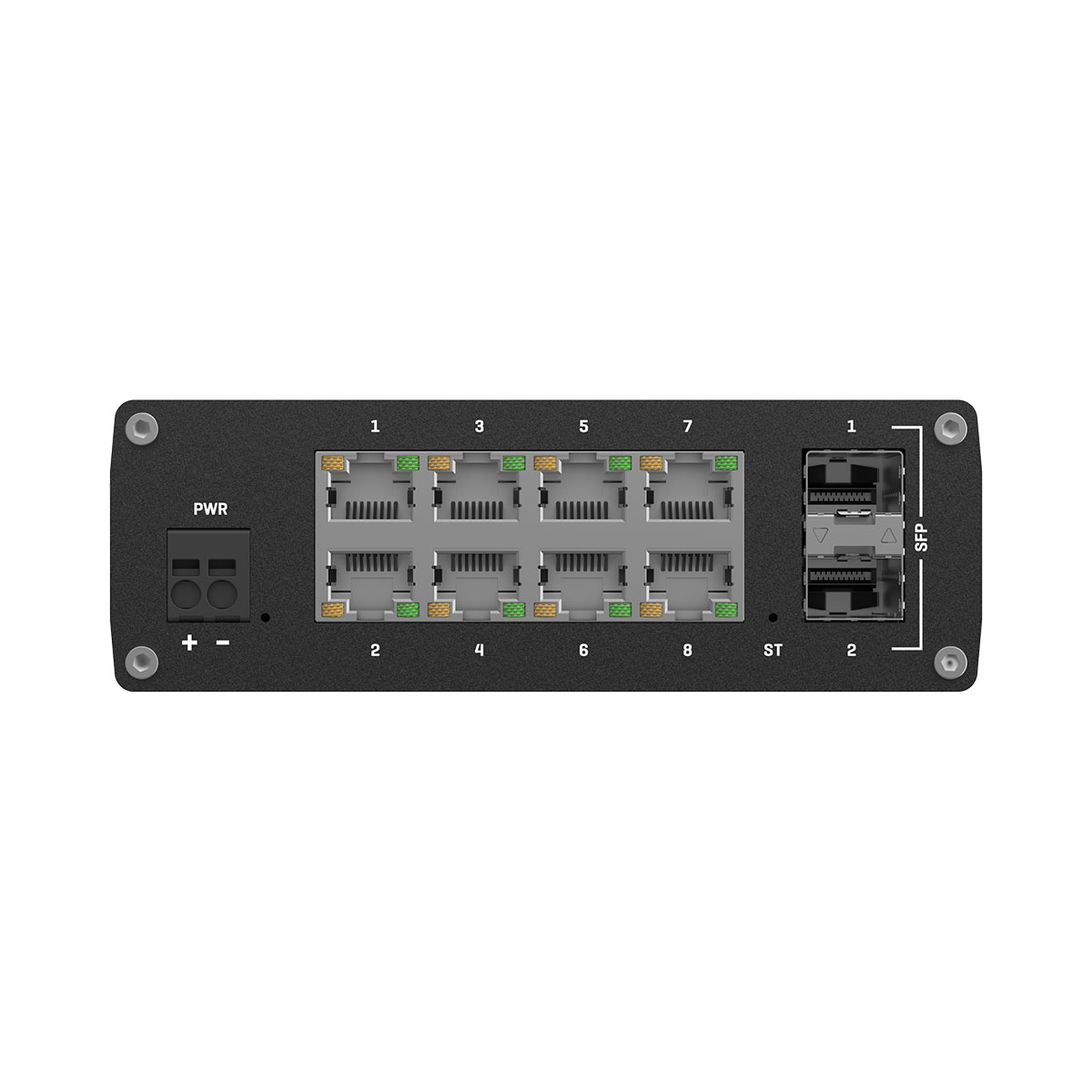

| Ethernet | 8 x RJ45 ports, 10/100/1000 Mbps |
| SFP | 2 x SFP ports |
| Ingress protection rating | IP30 |
| Operating temperature | -40 °C to 75 °C |
| Dimensions (W x H x D) | 132 x 44.2 x 122.2 mm |
| Weight | 615 g |

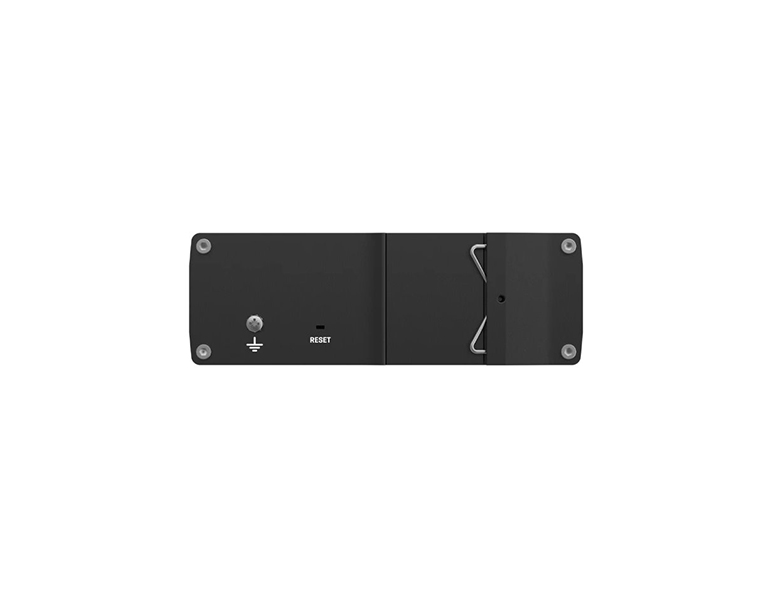

| Mounting options | Integrated DIN rail bracket, wall mount, flat surface (additional kit needed) |
| Performance Specifications | |
| Bandwidth (Non-blocking | 20 Gbps |
| Packet buffer | 512 KB |
| MAC address table size | 8K entries |
| Jumbo frame support | 10000 bytes |
| SERVICES | |
| Supported services | EtherNet/IP, PROFINET (class B), SNMP V2, V3, LLDP, Network Management |
| NETWORK | |
| MRP | MRP client role, MRP manager role |
| L2 features | Loop protection, Forwarding table, VLAN, STP/RSTP |
| DHCP | DHCP server, DHCP client, DHCP static leases capable of using MAC with wildcards |
| Port Settings | Enable/disable, link speed control, port isolation, PoE Management, EEE (802.3az) management, Port Mirroring |
| L3 Features | Static IPv4 routing, static IPv6 routing, DHCPv6 client, static IPv6 address |
| QOS | |
| QOS | Port priority, DSCP priority, 802.1p priority, TOS |
| Scheduling method | SP/WFQ/WRR |
| Bandwidth control | Rate limiting, storm control |
| DIAGNOSTICS | |
| Tools | Cable diagnostic, ping, traceroute, nslookup |
| Package contains | • TSW212 • QSG (Quick Start Guide) • Packaging box |
