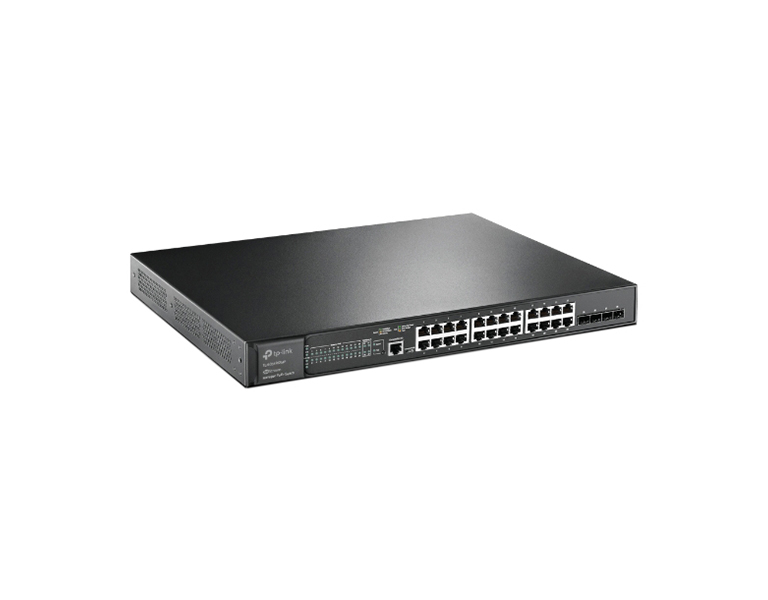

TP-LINK TL-SG3428XMP V3.2 24-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 24-Port PoE+
| • 4× 10 Gbps SFP+ slots • 24× Gigabit 802.3af/at PoE+ ports • 384 W total PoE budget with up to 30 W PoE output per port* • Centralized cloud management via the web or the Omada app† • Standalone management via web, CLI, SNMP, and RMON • Static Routing helps route internal traffic for higher efficiency • VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM • ERPS supports rapid protection and recovery in a ring topology • Durable metal casing and rack-mountable design |
Easily Build a Whole 10G Multi-gigabit Network
Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.
Multiple Application Scenarios
• Surveillance
Works with IP Cameras
• Conference Call
Works with IP Phones
• Wi-Fi Coverage
Works with Access Points
• Wired Connections
Works with Non-PoE Devices such as PCs and Printers
†These functions require the use of the Omada SDN Controller. Zero-Touch Provisioning requires the use of the Omada Cloud-Based Controller. Go to the Omada Cloud-Based Controller Product List to find all the models supported by the Omada Cloud-Based Controller.
*PoE budget calculations are based on laboratory testing. The actual PoE power budget is not guaranteed and will vary due to client limitations and environmental factors.
**ISP features can only be configured in standalone mode.
Attention: It is recommended to use only one SM5310-T (TL-SM5310-T) module for the SG3428XMP.
| Εγγυήσεις - Επιστροφές: | |
| Επιστροφή Χρημάτων: | Επισκευή - Αντικατάσταση: |
| 20 ημέρες | 60 μήνες |
| HARDWARE FEATURES | |
| Interface | 24 10/100/1000Mbps RJ45 Ports 4 10GE SFP+ Slots |
| Console Port | 1 RJ45 Console Port, 1 Micro-USB Console Port |
| Flash | 32 MB |
| DRAM | 256 MB |
| Port Standard | IEEE 802.3i:10BASE-T Ethernet; IEEE 802.3u:100BASE-X Fast Ethernet; IEEE 802.3ab:1000BASE-T Gigabit Ethernet; IEEE 802.3z:1000BASE-X Gigabit Ethernet (Optical fiber) IEEE 802.3ae: 10 Gigabit Ethernet over fiber |
| POE | |
| PoE Standard | 802.3af/at |
| PoE Ports | 24, up to 30W |
| PoE Power Budget | 384 W |
| PERFORMANCE | |
| Switching Capacity | 128 Gbps |
| Packet Forwarding Rate | 95.23 Mpps |
| MAC Address Table | 16K |
| Transmission Method | Store and Forward |
| Packet Buffer | 12 Mbit |
| Number of IP Interfaces | 16 K |
| Number of Static Routers | 48 (IPv4, IPv6) |
| Jumbo Frame | 9 KB |
| PHYSICAL & ENVIRONMENT | |
| Power Supply | 100-240 V AC~50/60 Hz |
| Max Power Consumption | 486.2 W (110V/60Hz) ( with 384 W PD connected) |
| Max Heat Dissipation | 1658.78 BTU/hr (110 V/60 Hz) (with 384 W PD connected) |
| Standby Power Consumption | 17.6 W (110V/60 Hz) |
| Dimensions(WxDxH) | 440 x 330 x 44 mm |
| Fan Quantity | 2 |
| Installation | Rack Mountable |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Environment | Operating Temperature: 0 °C–45 °C Storage Temperature: -40 °C–70 °C Operating Humidity: 10% to 90% RH, non-condensing Storage Humidity: 5% to 90% RH, non-condensing |
