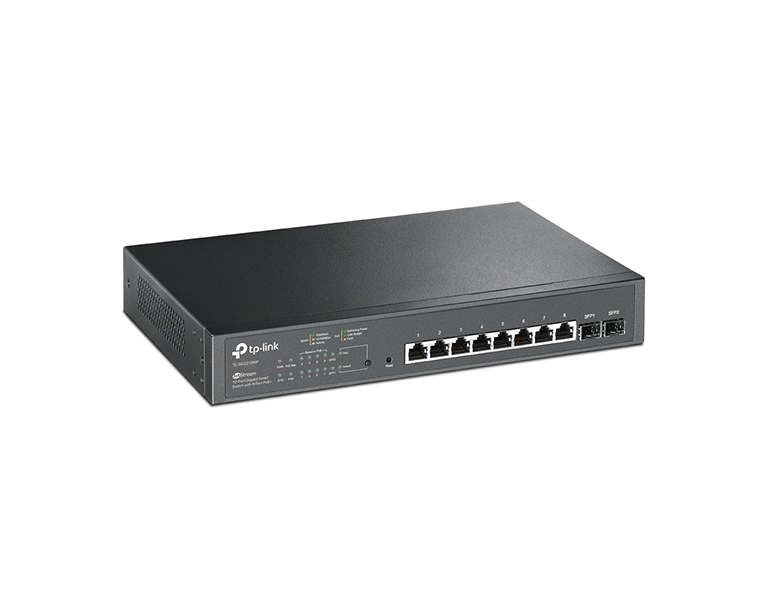

TP-LINK SG2210MP V5 JetStream 10-Port Gigabit Smart Switch with 8-Port PoE+
Κωδικός προϊόντος:
SG2210MP
149,00 €
(Περιλαμβάνει ΦΠΑ 24%)
Τιμή χωρίς ΦΠΑ:
120,16 €
3-5 Ημέρες
TP-LINK SG2210MP V5 JetStream 10-Port Gigabit Smart Switch with 8-Port PoE+
Υπολογισμός κόστους μεταφορικών:
Ποσότητα
Περιγραφή
Χαρακτηριστικά
Λήψεις
Περιγραφή
| • 8× Gigabit 802.3af/at PoE+ ports and 2× Gigabit SFP slots • 150 W total PoE budget with up to 30 W PoE output per port* • Centralized cloud management via the web or the Omada app† • Standalone management via web, CLI, SNMP, and RMON • Static Routing helps route internal traffic for higher efficiency • VLAN, ACL, QoS, and IGMP Snooping • Fanless design for silent operation • Durable metal casing and desktop/rack mounting design |
Seamless Integration into the Omada SDN
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.
†These functions require the use of the Omada SDN Controller. Zero-Touch Provisioning requires the use of the Omada Cloud-Based Controller. Go to the Omada Cloud-Based Controller Product List to find all the models supported by the Omada Cloud-Based Controller.
*PoE budget calculations are based on laboratory testing. The actual PoE power budget is not guaranteed and will vary due to client limitations and environmental factors.
| Εγγυήσεις - Επιστροφές: | |
| Επιστροφή Χρημάτων: | Επισκευή - Αντικατάσταση: |
| 20 ημέρες | 60 μήνες |
Χαρακτηριστικά
| SPECIFICATIONS | |
| Interface |
8× 10/100/1000 Mbps RJ45 Ports, all supporting PoE+ (Auto-Negotiation/
Auto MDI/MDIX)
2× 100/1000 Mbps SFP Slots
|
| Flash | 32 ΜΒ |
| DRAM | 256 MB |
| Port Standard | IEEE 802.3i:10BASE-T Ethernet; IEEE 802.3u:100BASE-X Fast Ethernet; IEEE 802.3ab:1000BASE-T Gigabit Ethernet; IEEE 802.3z:1000BASE-X Gigabit Ethernet (Optical fiber) |
| PoE Standard | 802.3af/at |
| PoE Ports | 8, up to 30W per port |
| PoE Power Budget | 150 W |
| Switching Capacity | 20 Gbps |
| Packet Forwarding Rate | 14.88 Mpps |
| MAC Address Table | 8K |
| Packet Buffer | 4.1 Mbit |
| Transmission Method | Store and Forward |
| Number of IP Interfaces | 32 |
| Number of Static Routers | 32 (IPv4, IPv6) |
| Jumbo Frame | 9 KB |
| Power Supply | 100-240V AC, 50/60Hz |
| Max Power Consumption |
174.77 W (110 V/60 Hz) (with 150 W PD connected)
|
| Max Heat Dissipation | 594.22 BTU/hr (110 V/60 Hz) (with 150 W PD connected) |
| Standby Power Consumption | 5.36 W (no link,110v/60 Hz) |
| Dimensions(WxDxH) | 294 x 180 x 44 mm |
| Surge Protection | 6 KV for port and 4 KV for power module |
| Fan Quantity | Fanless |
| Installation | Rack Mountable |
| Operating Temperature | 0 °C to 45 °C (32 °F to 122 °F) |
| Storage Temperature | -40 °C to 70 °C (-40 °F to 158 °F) |
| Operation Humidity | 10% to 90% RH, non-condensing |
| Storage Humidity | 5% to 90% RH, non-condensing |
| Certification | CE, FCC, RoHS |
| Package Contents | SG2210MP Power Cord Installation Guide Rackmount Kit Rubber Feet |
