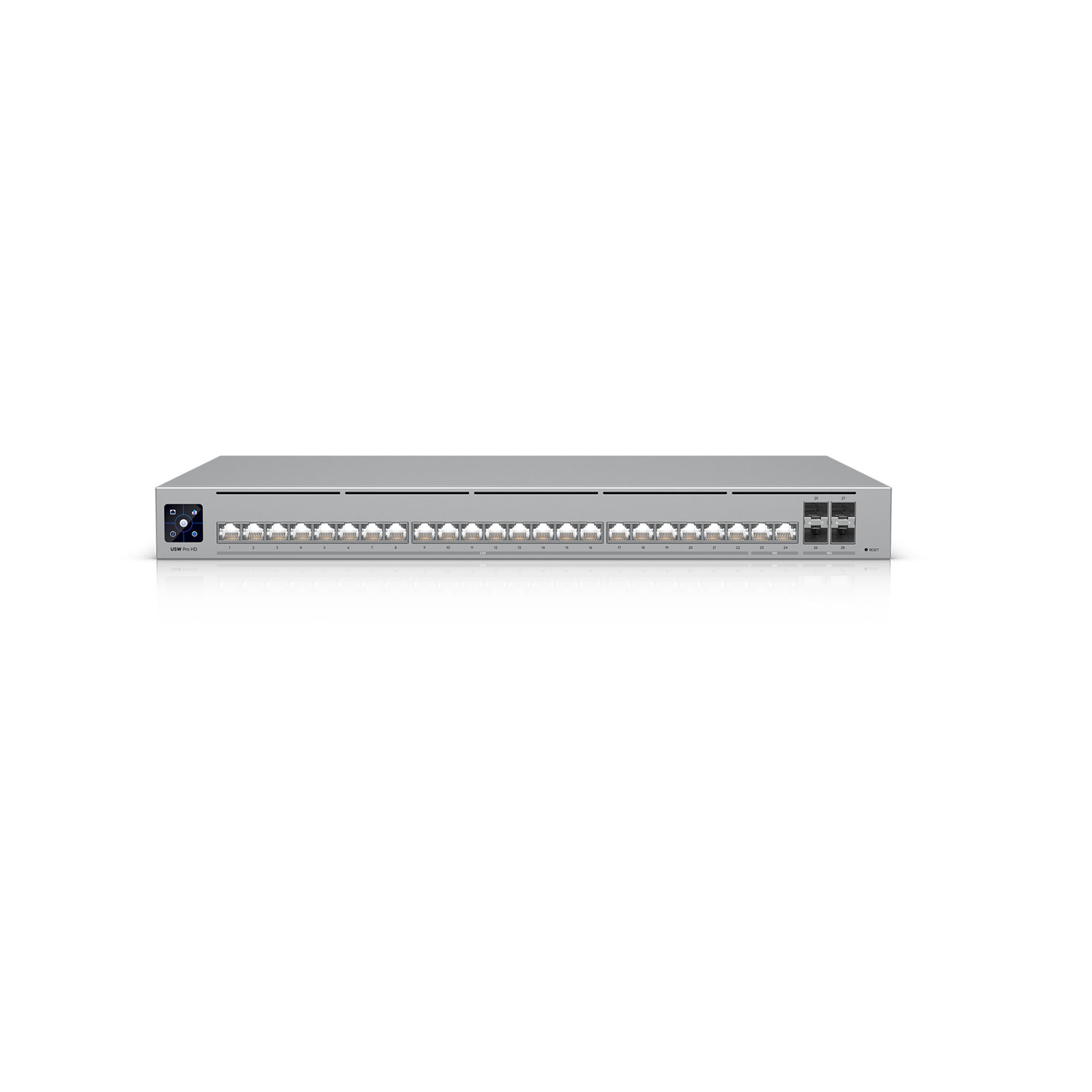

Ubiquiti USW-PRO-HD-24, UniFi Switch Professional HD 24-Port
The UniFi Switch Pro HD 24 is a reliable 2.5 Gigabit L3 managed switch with a switching capacity of 230 Gbps. It features (2) 1/2.5/5/10 Gigabit and (22) 2.5 Gigabit LAN ports, along with four SFP+ slots supporting 1/10Gbps. Equipped with a 1.3" touch display, it provides real-time system data, port statistics, and more. The device supports both 230V power and backup via UniFi SmartPower RPS. The new Etherlighting feature provides color-coded port lighting for quick identification of ports, speeds, and VLANs.
Centralized Management
The UniFi switch is centrally managed through the UniFi Network and mobile app, offering a wide array of L2/L3 features. It supports configurations like port mirroring, VLAN tagging, and link aggregation, accessible via an intuitive graphical interface.
Redundant Power Supply
Supports backup power via the UniFi SmartPower unit to ensure uninterrupted operation during a primary power failure.
Key Features
- (2) 1/2.5/5/10 Gbps LAN
- (22) 100/1000/2500 Mbps LAN
- (4) 1/10G SFP+ slots
- 1.3" touch display
- Etherlighting for port visibility
- Backup power via SmartPower RPS
- Managed through UniFi Network (8.6.9+)

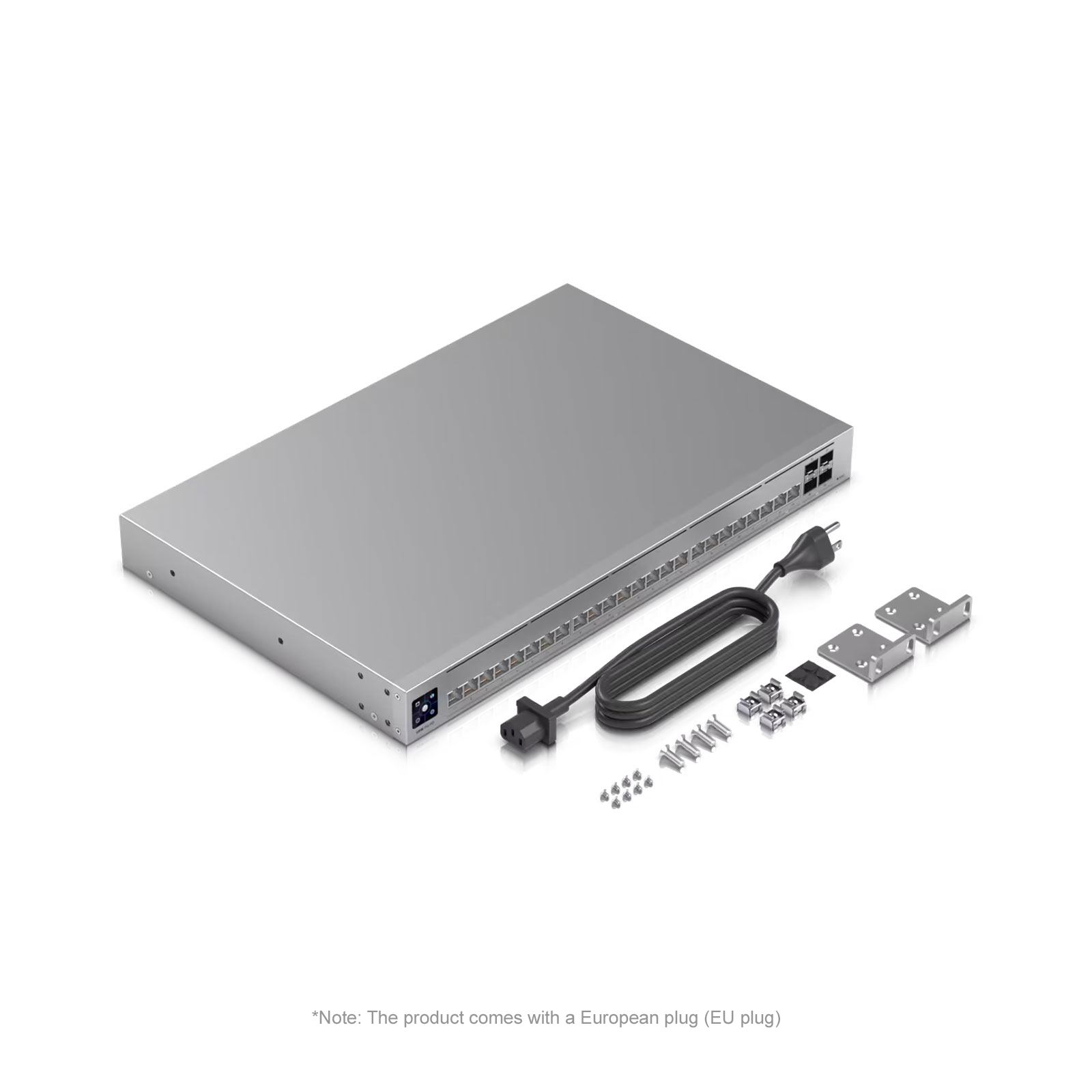

Package Contents
- Switch
- Power cable
- 19" rack mounts
- Rack installation kit
| Specifications | |

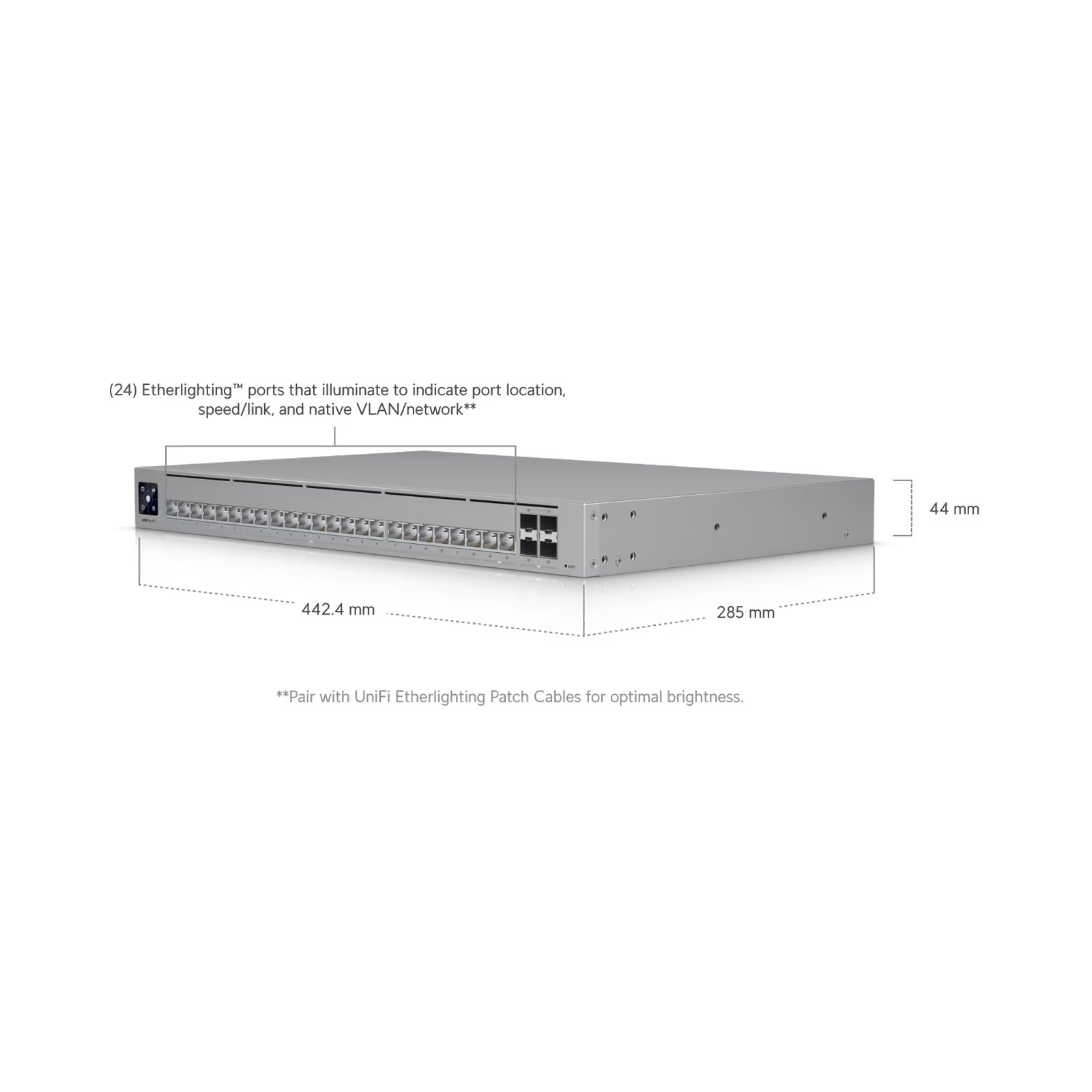

| Dimensions | 442 x 285 x 44 mm |

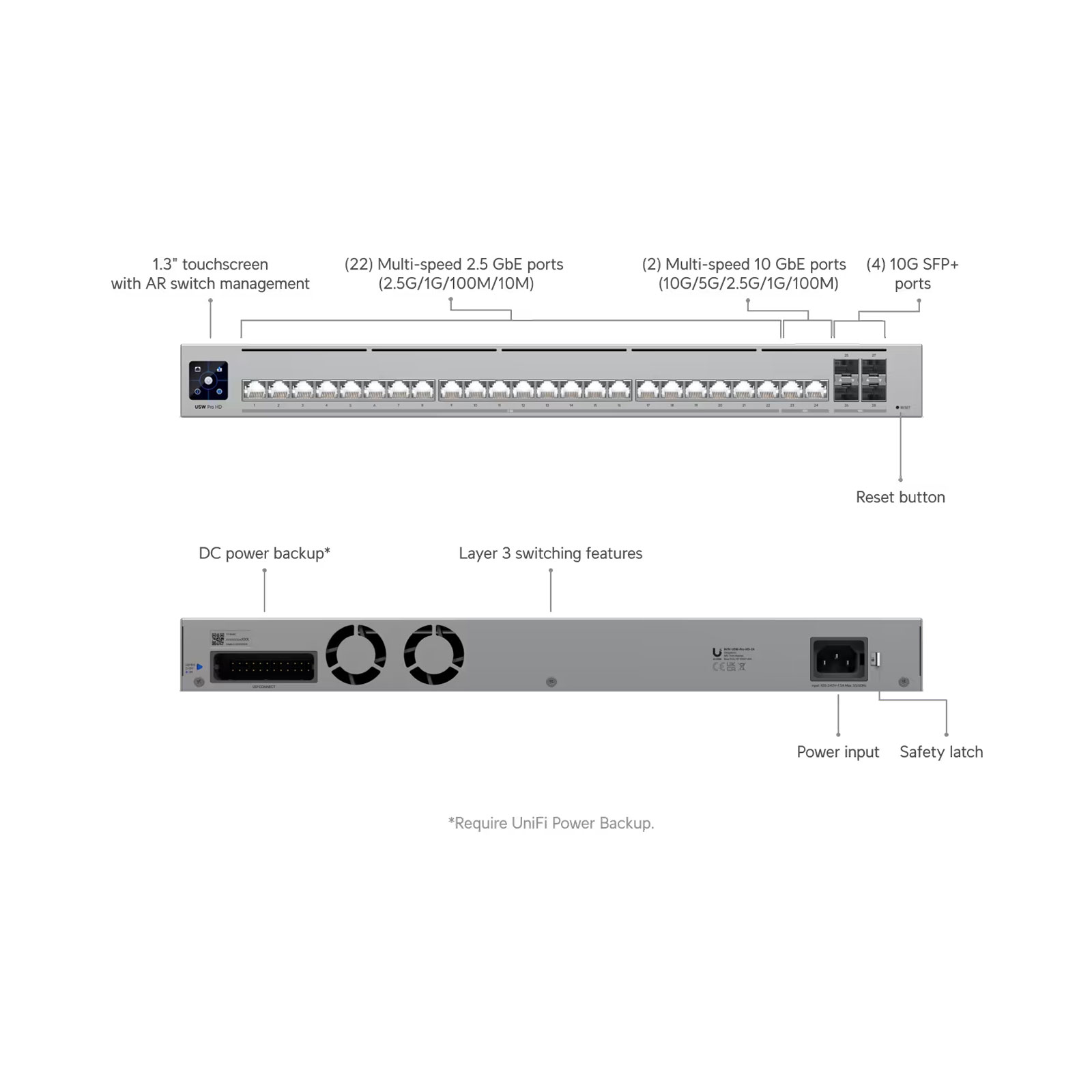

| Port Layout | 2.5 GbE RJ45: 22 (2.5G/1G/100M/10M) 10 GbE RJ45: 2 (10G/5G/2.5G/1G/100M) 10G SFP+: 4 (10G/1G) |
| Redundancy | DC Power Backup 🛈 With UniFi RPS |
| Layer 3 | ✓ |
| Form Factor | Rack mount (1U) |
| Etherlighting™ | ✓ |
| Performance | |
| Switching Capacity | 230 Gbps |
| Total Non-Blocking Throughput | 115 Gbps |
| Forwarding Rate | 171.12 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 32,000 |
| Packet Buffer Size | 2 MB |
| Access Lists | IPv4: 128 MAC: 128 |
| Layer 3 Features | |
| DHCP Server (Local Networks) | ✓ |
| DHCP Relay | ✓ |
| Inter-VLAN Routing (Local Networks) | ✓ |
| Static Routing (Local Networks) | ✓ |
| Layer 2 Features | |
| LACP Port Aggregation | ✓ |
| STP & RSTP | ✓ |
| QoS (DSCP) | ✓ |
| Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron) | ✓ |
| Advanced IGMP Configuration (Querier, Fast Leave, Router Port) | ✓ |
| IGMP Snooping | ✓ |
| 802.1X Control | ✓ |
| MAC-Based ACLs & Device Isolation | ✓ |
| DHCP Snooping & Guarding | ✓ |
| Egress Rate Limit | ✓ |
| Flow Control | ✓ |
| Storm Control | ✓ |
| Multicast & Broadcast Rate Limiting | ✓ |
| MAC Address Blocking | ✓ |
| IP-Based ACLs & Network Isolation | ✓ |
| MAC-Based Port Restriction | ✓ |
| Port Isolation | ✓ |
| Port Mirroring | ✓ |
| Jumbo Frames | ✓ |
| LLDP-MED | ✓ |
| Voice VLAN | ✓ |
| Loop Protection | ✓ |
| Virtual Network Override | ✓ |
| Hardware | |
| Max. Power Consumption | 60W |
| Power Method | (1) Universal input, 100—240V AC, 50/60 Hz (1) USP RPS DC input |
| Power Input Method | AC input |
| Power Supply | AC/DC, internal, 60W |
| Supported Voltage Range | 100—240V AC |
| Management | Ethernet AR |
| Heat Dissipation | 102 BTU/hr |
| Weight | Without mounting brackets: 4.2 kg With mounting brackets: 4.3 kg |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |
| Supported Rack Depth | 400~1200 mm |
| LCM Display | 1.3" touchscreen |
| Ambient Operating Temperature | -5 to 40° C |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Etherlighting™ | Ethernet - ✓ SFP+ - ✓ |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC, Anatel: 03853-25-08356 |
| Software | |
| Application Requirements | UniFi Network: Version 9.0.114 and later |
