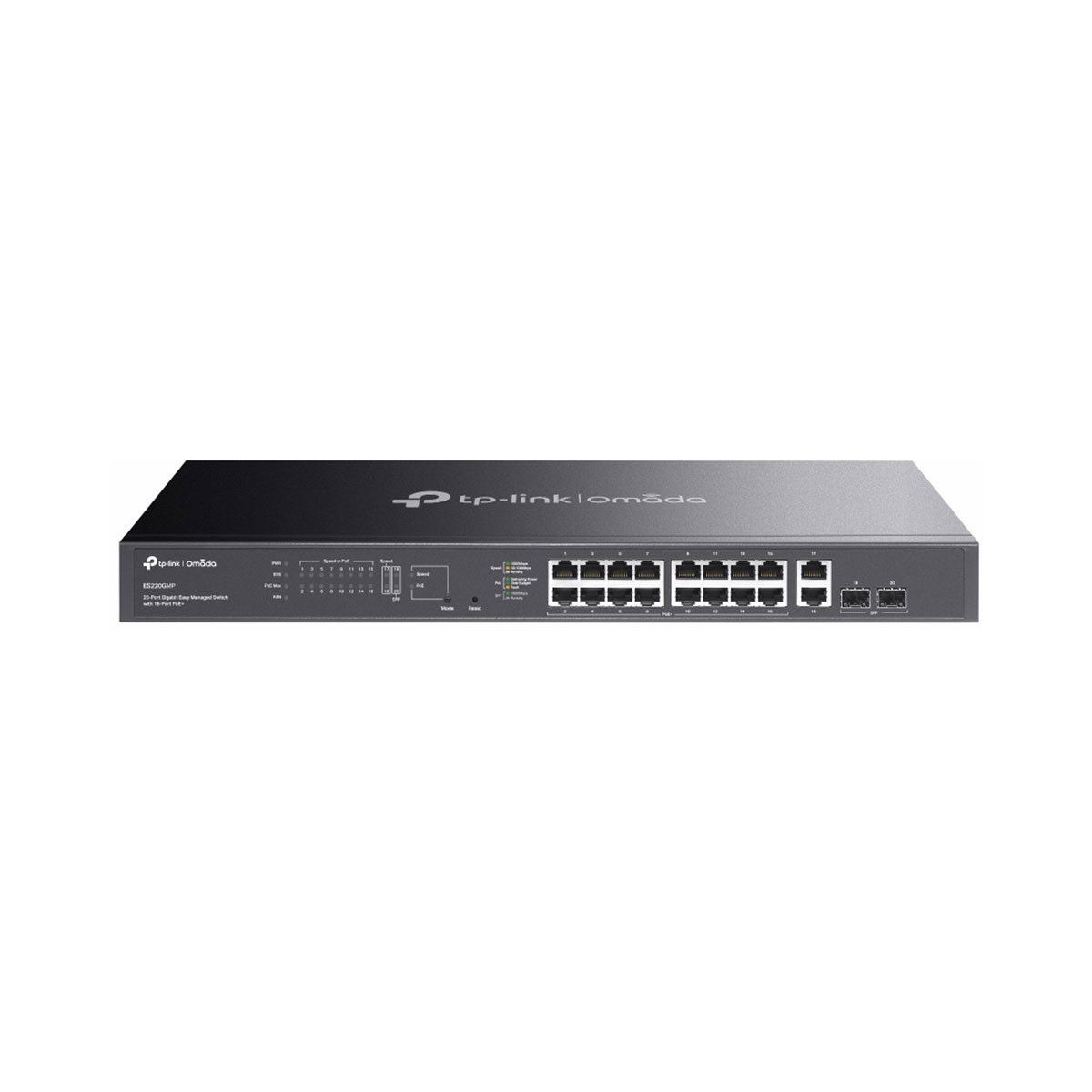

TP-LNK ES220GMP V1.2 Omada 20-Port Gigabit Easy Managed Switch with 16-Port PoE+
| • 18× 10/100/1000Mbps RJ45 ports (16× 802.3af/at-compliant PoE+) • 2× Gigabit SFP slots • 250W Power Budget, with up to 30W for each PoE port* • Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features • Centralized Cloud Management via the web or the Omada app† • Up to 250m PoE**, QoS△, PoE Auto Recovery‡, and Port Isolation for reliable surveillance networking • Automatic Loop Prevention, VLAN, and IGMP Snooping • Durable metal casing and rack-mountable design |
Omada Cloud Essentials — A Free and Easy Cloud-Based Network Management
Omada Cloud Essentials is a free, easy-to-use cloud-based management option for the Omada networking system§, covering access points, switches, and gateways. It enables simple, centralized network management and monitoring with essential features, making it ideal for surveillance networks and small businesses that don't require the complexity of larger operations.
Multiple Application Scenarios
Surveillance - Works with IP Cameras
Wi-Fi Coverage - Works with Access Points
Wired Connections - Works with Non-PoE Devices such as PCs and Printers
§The Omada Cloud-Based Controller offers the Essentials version of cloud services for free, while the Standard version, which includes advanced features, requires a license.
†These functions require the use of the Omada Controller. Zero-Touch Provisioning requires the use of the Omada Cloud-Based Controller (Omada Cloud Standard or Omada Cloud Essentials). Go to the Omada Cloud-Based Controller (Omada Cloud Standard) Product List or Omada Cloud Essentials Product List to find all the supported models.
‡This switch supports PoE Auto Recovery under Standalone Mode (managed separately without a controller) and supports manual PoE Recovery under Controller Mode (centrally managed with a controller).
△QoS and Priority Mode are supported under Standalone Mode.
*PoE budget calculations are based on laboratory testing. The actual PoE power budget is not guaranteed and will vary due to client limitations and environmental factors.
**The speed of the ports that support 250m PoE transmission will be downgraded to 10 Mbps. Actual transmission distance may vary depending on the quality of the cables.
| Hardware Features & Performance | |
| General |
|

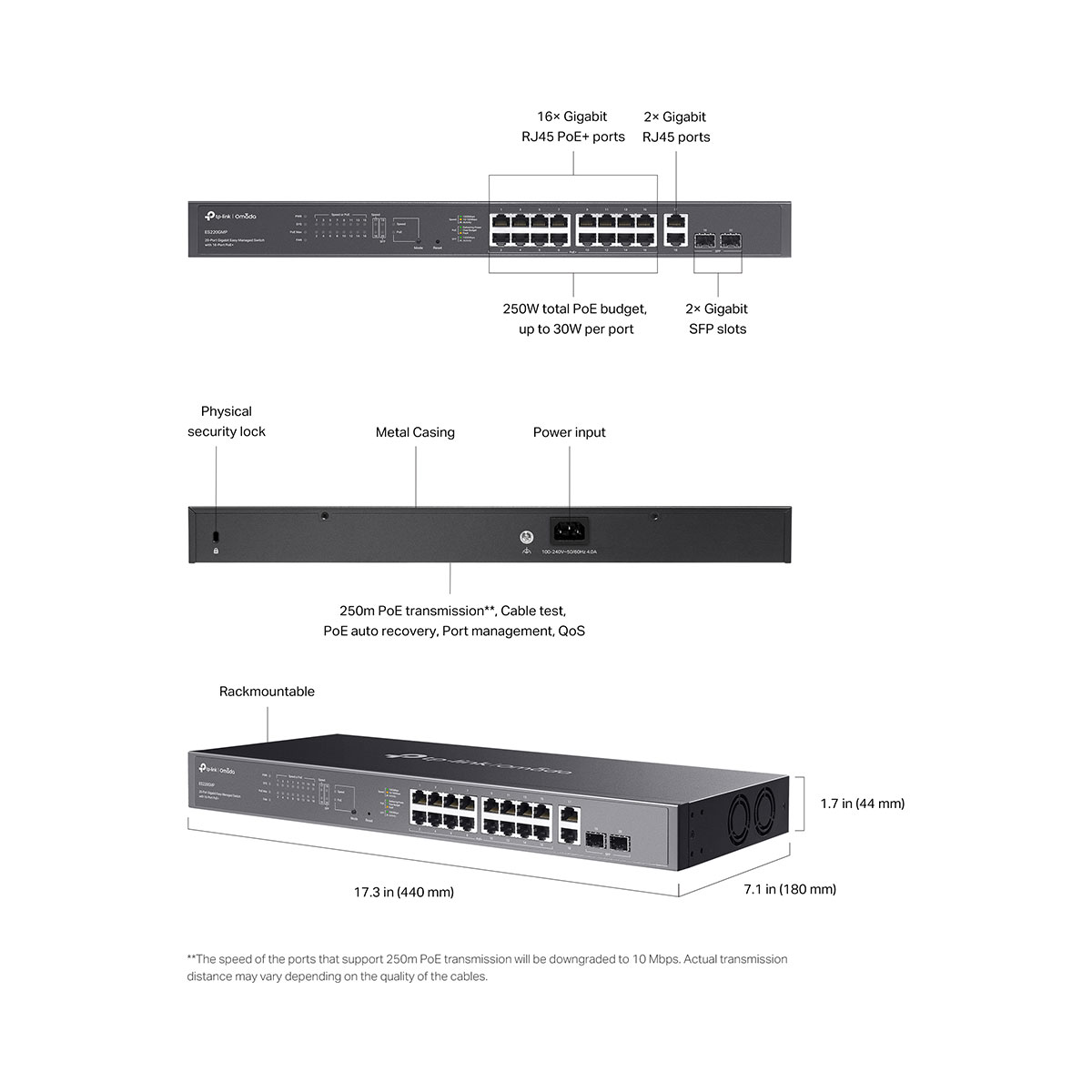

| Interface | 16× 10/100/1000 Mbps PoE+ RJ45 Ports 2× 10/100/1000 Mbps RJ45 Ports 2× Gigabit SFP Ports |
| Flash | 64 Mbit |
| Port Standard | IEEE 802.3: Ethernet Media Access Control (MAC) Protocol IEEE 802.3i:10BASE-T Ethernet IEEE 802.3u:100BASE-X Fast Ethernet IEEE 802.3ab:1000BASE-T Gigabit Ethernet IEEE 802.3z:1000BASE-X Gigabit Ethernet (Optical Fiber) IEEE 802.3x: Flow Control IEEE 802.1p: Traffic Class Expediting and Dynamic Multicast Filtering IEEE 802.1q: Virtual Bridged Local Area Networks IEEE 802.1ab: Station and Media Access Control Connectivity Discovery (LLDP) |
| PoE | |
| PoE Standard | 802.3af/at |
| PoE Ports | 16, up to 30 W per port |
| PoE Power Budget | 250 W |
| Fast PoE | YES |
| Perpetual PoE | YES |
| Performance | |
| Switching Capacity | 40 Gbps |
| Packet Forwarding Rate | 29.76 Mpps |
| MAC Address Table | 8K |
| Packet Buffer | 4 Mbit |
| Transmission Method | Store and Forward |
| Jumbo Frame | 15 KB |
| Physical & Environment | |
| Dimensions (W x D x H) | 440×180×44 mm |
| Net Weight | 2.4 kg |
| Fan Quantity | 2 |
| Noise | Min: 33.4 dBA @ 1m 25 °C Max: 48.5 dBA @ 1m 25 °C |

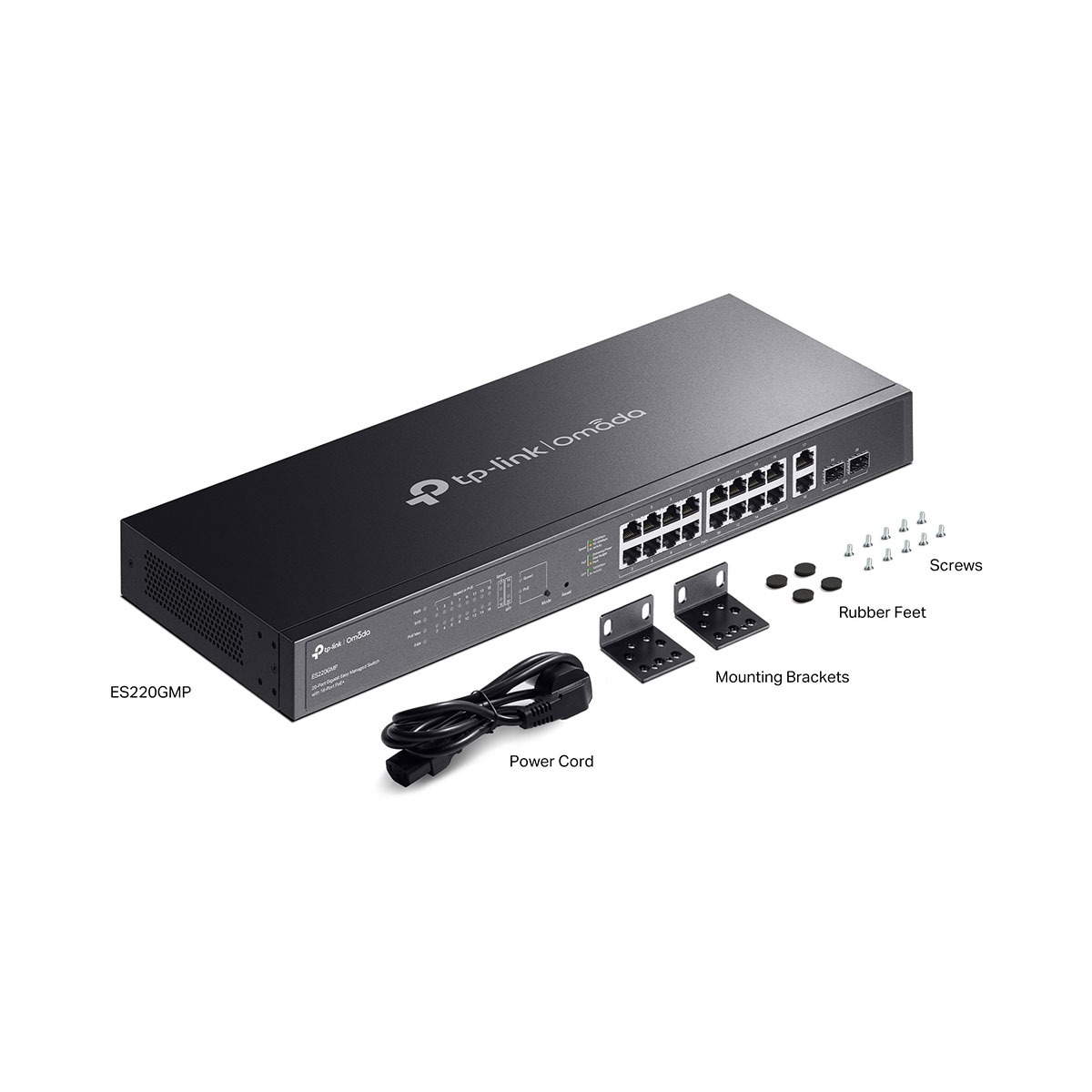

| Installation | Desktop / Rack Mounting |
| Operating Temperature | -5 °C to 50 °C |
| Storage Temperature | -40 °C to 70 °C |
| Operation Humidity | 10% to 90% RH, non-condensing |
| Storage Humidity | 5% to 90% RH, non-condensing |
| Surge Protection | ±6 kV in common mode for Ethernet Ports |
| ESD Protection | Air: ±8 kV, Contact: ±4 kV |
| Certification | CE, FCC, RoHS |
