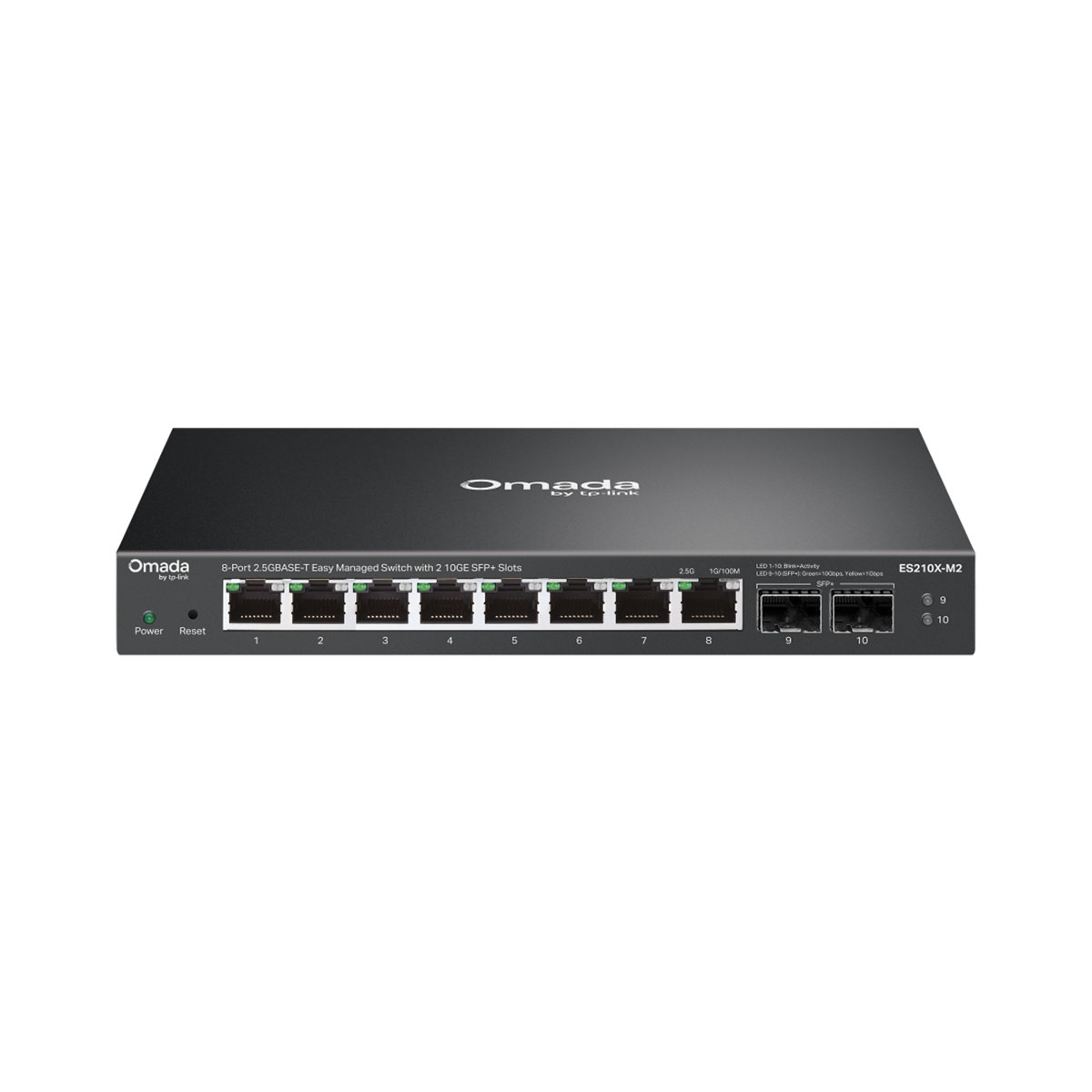

TP-LINK ES210X-M2 V1 Omada 8-Port 2.5G Base-T Easy Managed Switch with 2 10GE SFP+ Slots
Κωδικός προϊόντος:
ES210X-M2
Περιγραφή
Χαρακτηριστικά
Λήψεις
Περιγραφή
| • 8× 2.5 Gbps RJ45 Ports • 2× 10 Gbps SFP+ Slots • Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features • Centralized Cloud Management via the web or the Omada app† • Automatic Loop Prevention, VLAN, and IGMP Snooping • Fanless design for silent operation • Durable metal casing and desktop/wall mounting design |
Reliable Connection with 10G Uplink
2× 10 Gbps SFP+ slots provide non-blocking switching performance and ultra-low latency, allowing for lightning-fast connections to servers and other switches.

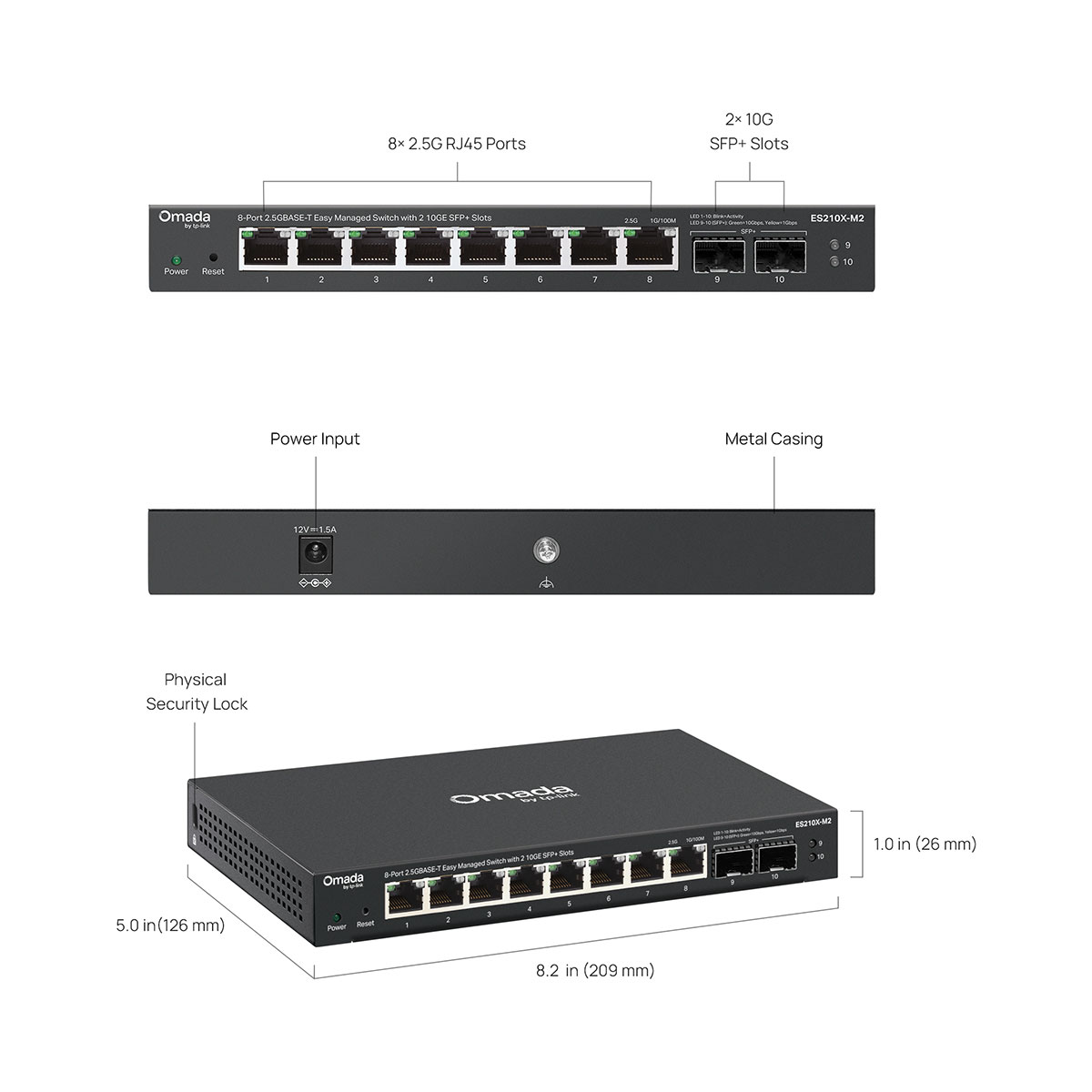

Compact and Durable Metal Casing, Featuring Desktop/Wall Mounting and a Fanless Design
†These functions require the use of the Omada Controller. Zero-Touch Provisioning requires the use of Omada Central (Omada Central Standard or Omada Central Essentials). Go to the Omada Central Standard Product List or Omada Central Essentials Product List to find all the supported models.
Χαρακτηριστικά
| HARDWARE FEATURES | |
| Interface | 8× 100 Mbps/1Gbps/2.5Gbps RJ45 Ports 2× 10 Gbps SFP+ Slots |
| Flash | 64 Mbit |
| Port Standard | IEEE 802.3: Ethernet Media Access Control (MAC) Protocol IEEE 802.3u:100BASE-X Fast Ethernet IEEE 802.3ab:1000BASE-T Gigabit Ethernet IEEE 802.3bz: 2.5GBASE-T Ethernet IEEE 802.3z: 1000BASE-X Gigabit Ethernet (Optical fiber) IEEE 802.3ae:10GBASE-SR/LR 10G Ethernet (Optical fiber) IEEE 802.3aq:10GBASE-LRM 10G Ethernet (Optical fiber) IEEE 802.3x: Flow Control IEEE 802.1p: Traffic Class Expediting and Dynamic Multicast Filtering IEEE 802.1q: Virtual Bridged Local Area Networks IEEE 802.1ab: Station and Media Access Control Connectivity Discovery (LLDP) |
| PERFORMANCE | |
| Switching Capacity | 80 Gbps |
| Packet Forwarding Rate | 59.52 Mpps |
| MAC Address Table | 16K |
| Packet Buffer | 640 KB |
| Transmission Method | Store and Forward |
| Jumbo Frame | 10 KB |
| PHYSICAL & ENVIRONMENT | |
| Power Supply | AC/DC Adapter (Input: 100-240V AC; Output: 12VDC / 1.5A) |
| Standby Power Consumption | 1.98 W (110V/60Hz) |
| Max Power Consumption | 8.38 W (110V/60Hz) |
| Max Heat Dissipation |
28.59 BTU/hr (110V/60Hz) |
| MTBF | 1424624 h @ 25°C |
| Dimensions (W x D x H) |
209 × 126 × 26 mm |
| Net Weight | 0.71 kg |
| Fan Quantity | Fanless |
| Installation | Desktop / Wall Mounting |
| Operating Temperature | -5 °C to 40 °C |
| Storage Temperature | -40 °C to 70 °C |
| Operation Humidity | 10% to 90% RH, non-condensing |
| Storage Humidity | 5% to 90% RH, non-condensing |
| Surge Protection | ±6 kV in common mode for Ethernet ports 2 kV in differential mode for DC power input port |
| ESD Protection | Air: ±8 kV, Contact: ±4 kV |
| Certification | CE, FCC, RoHS |
