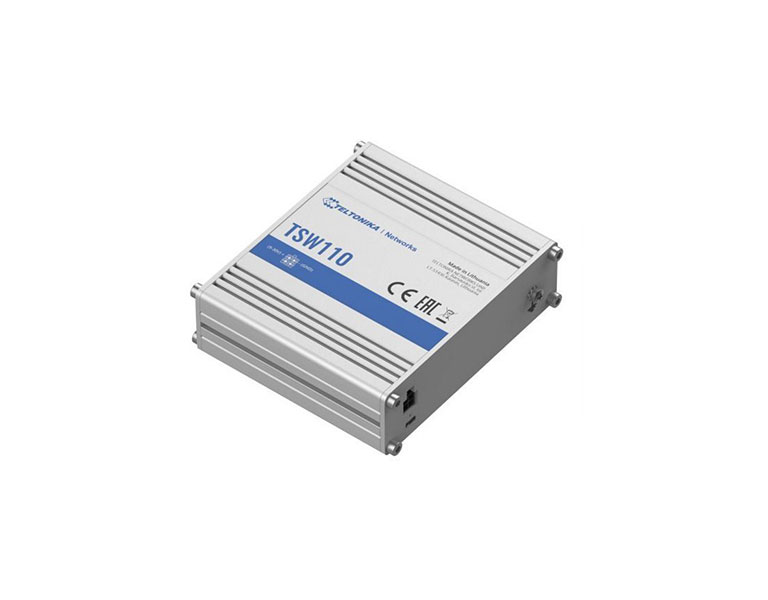

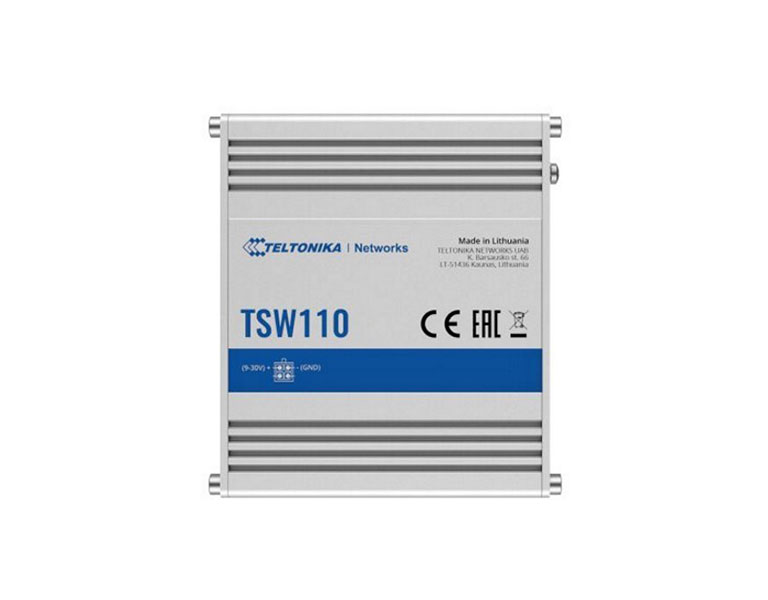

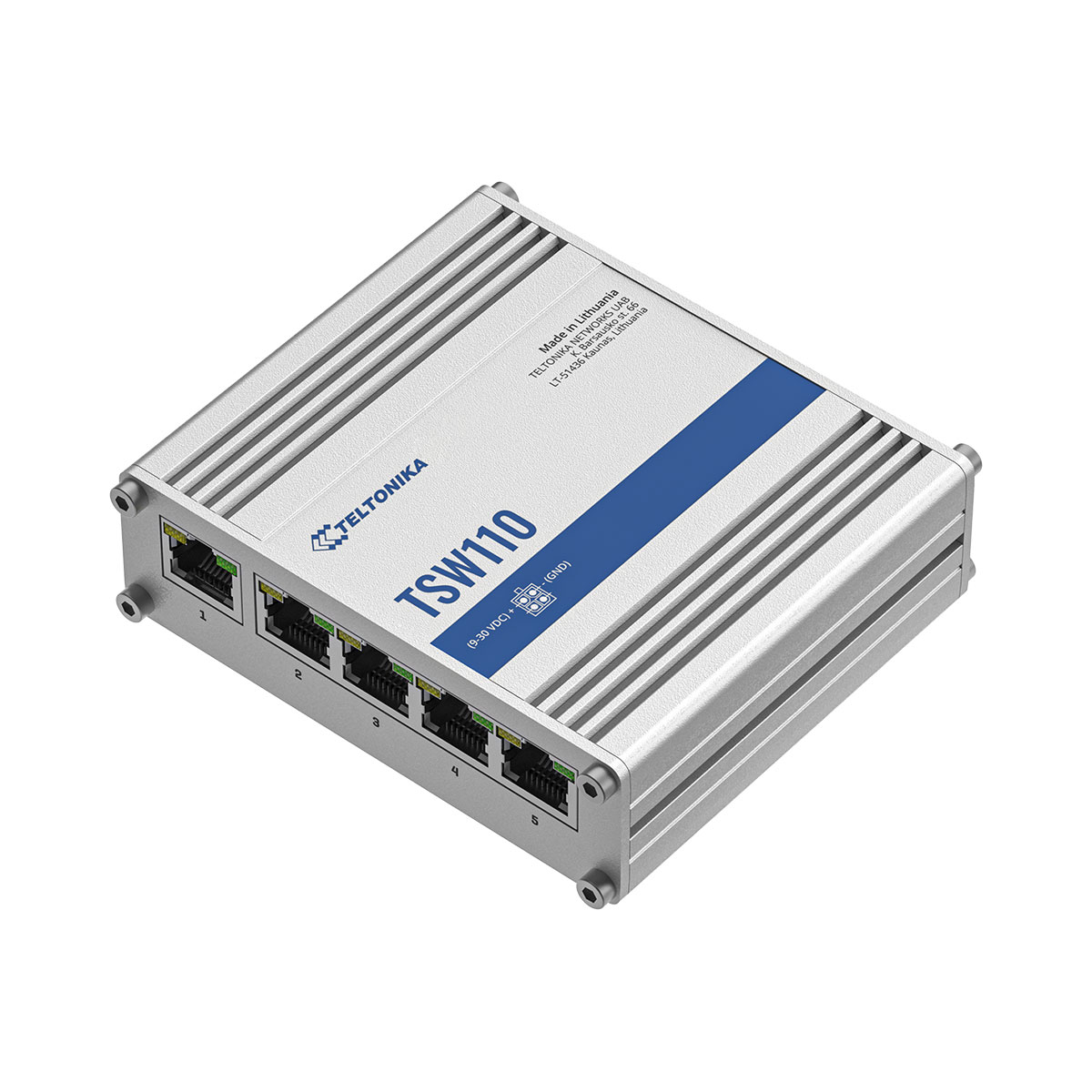

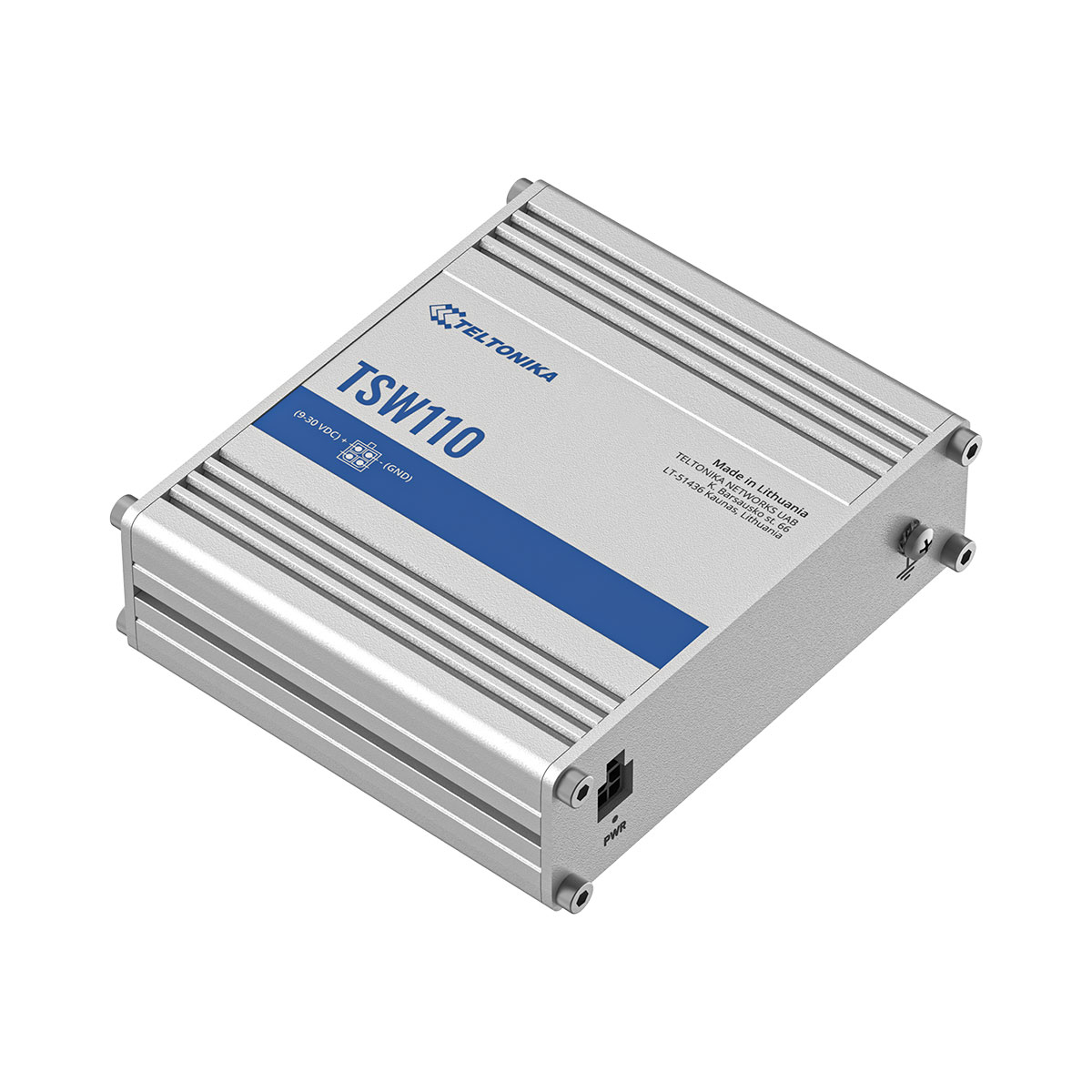

TSW110 is a layer 2 unmanaged switch, which is a simplified version of our earlier product – TSW100. Possible to power up through the first LAN port. It has five 10/100/1000 Mbps Ethernet ports for an economical high-bandwidth solution. It offers a wide range of supported power supply voltages (9-30 V). Ideal for professional high bandwidth applications to provide reliable data connection
Χαρακτηριστικά
| Specifications | |
| Hardware | |

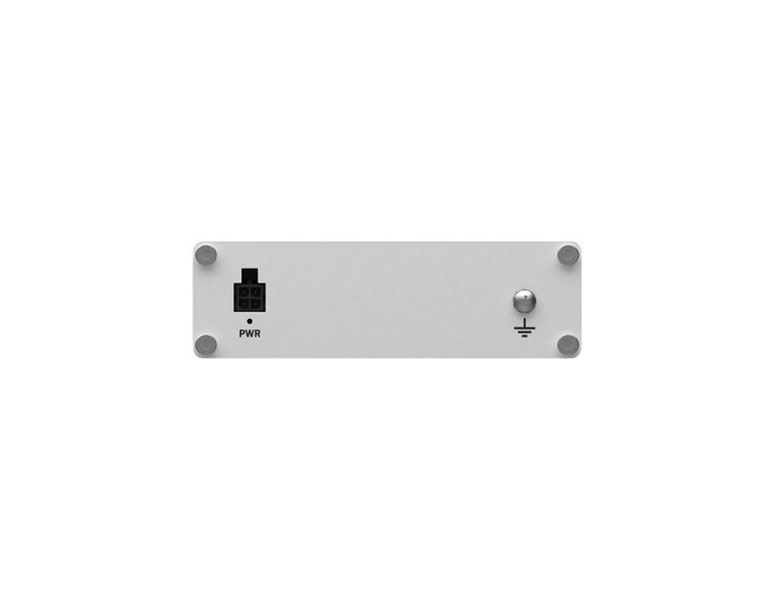

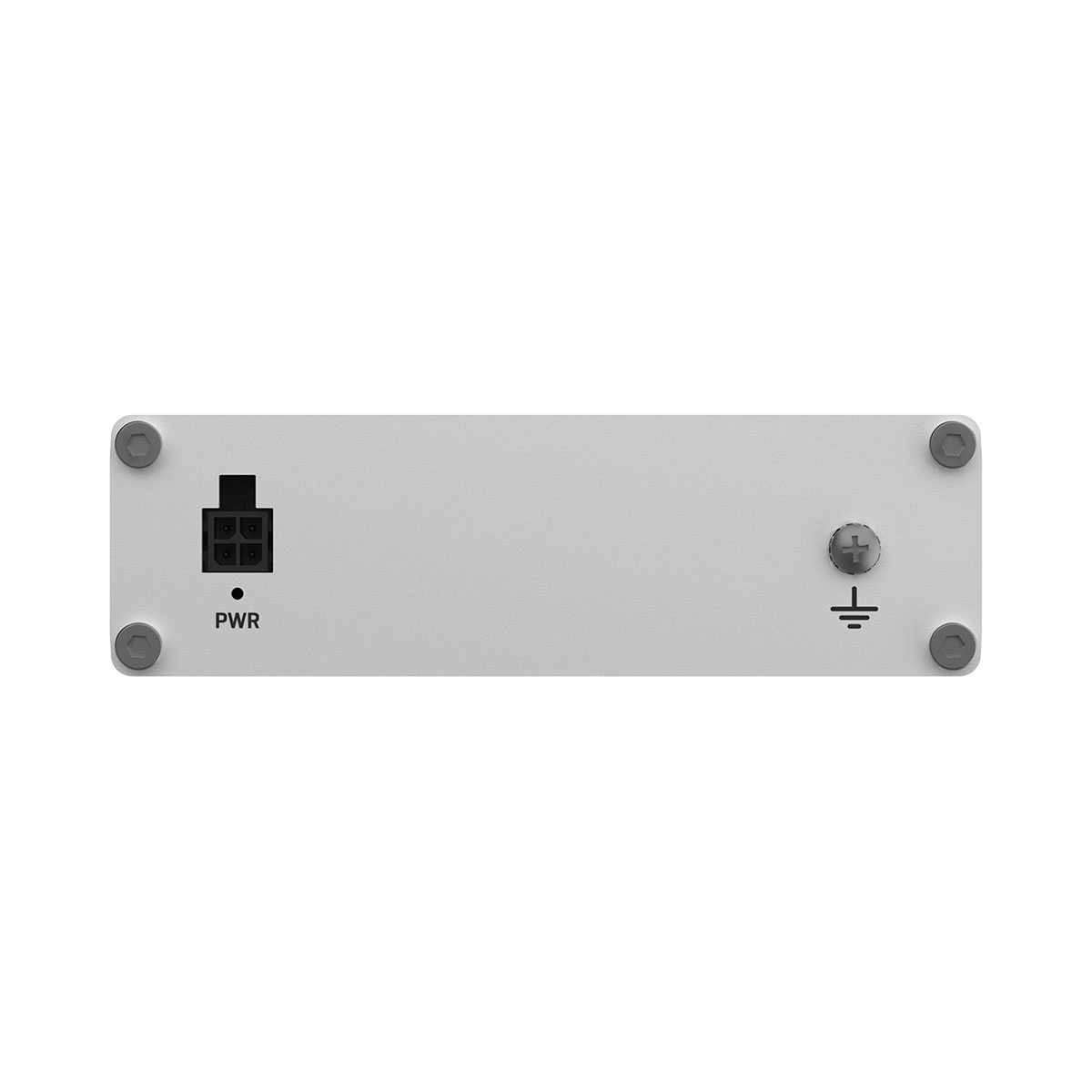

| Powering option | 4-pin power socket, 9-30 VDC |
| Power consumption | Idle: < 0.4 W, Max: < 1.8 W |

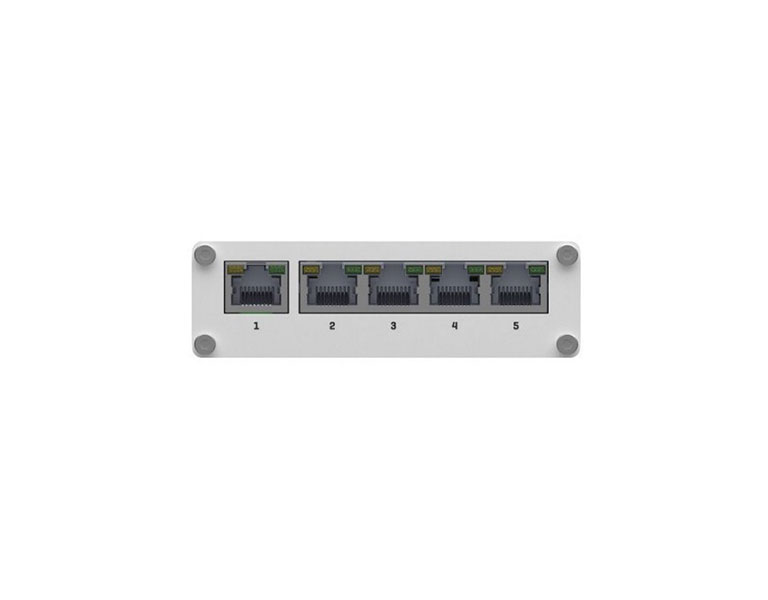

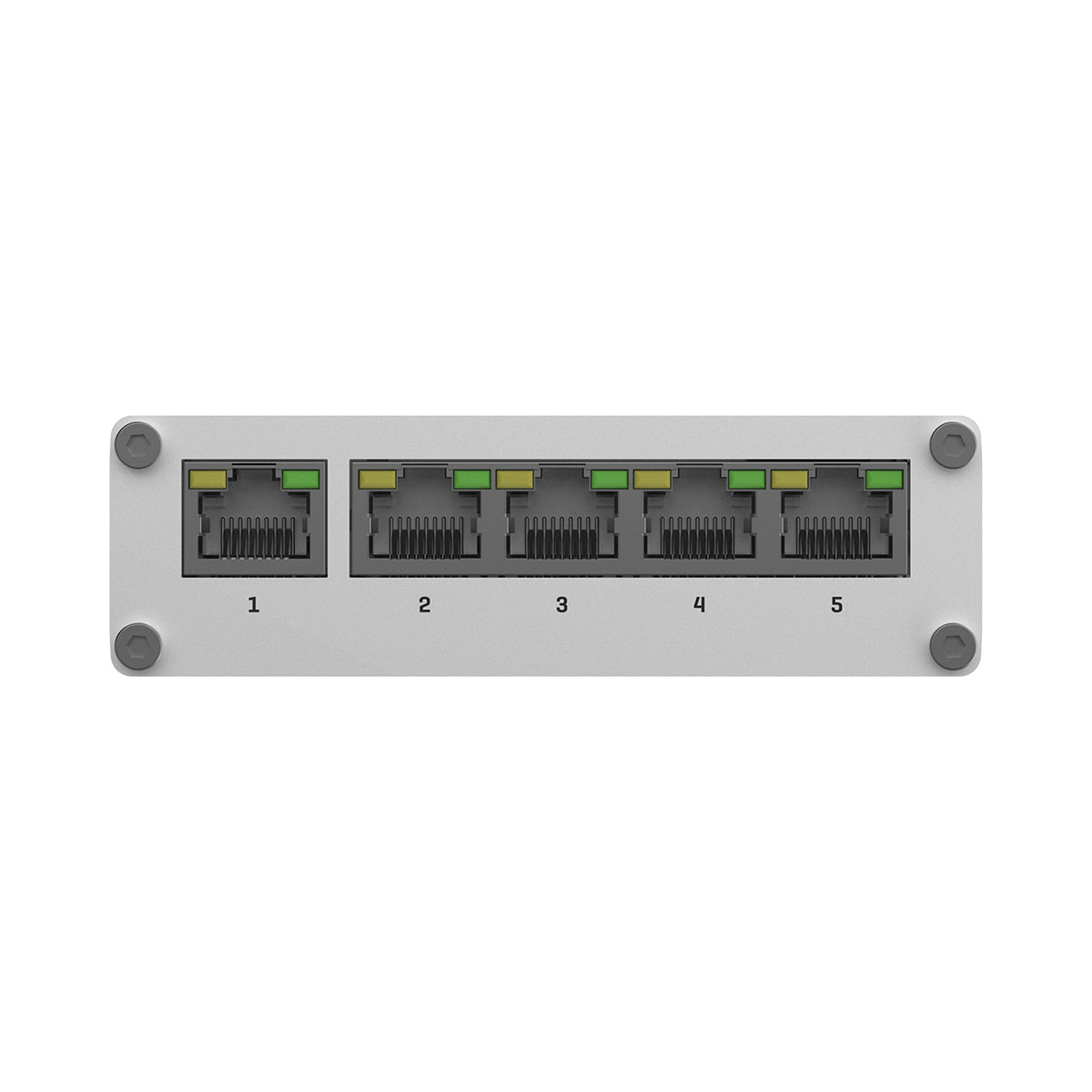

| Ethernet | 5 x 10/100/1000 Ethernet ports |
| Status LEDs | 10 x Ethernet, 1 x Power |
| Ingress protection rating | IP30 |
| Operating temperature | -40 °C to 75 °C |
| Housing | Aluminium housing with wall or DIN rail mounting option and grounding capability |
| Dimensions | 100 x 30 x 85 mm |
| Weight | 227 g |
| Performance | |
| Bandwidth | 10 Gbps |
| Packet buffer | 128 KB |
| Jumbo frame support | 9216 bytes |
| MAC address table size | 2K entries |
| Auto MDI/MDI-X Cable Detection | Yes |
| Standard Package Contains | • TSW110 • 9 W PSU • QSG (Quick Start Guide) • Packaging box |
