Teltonika PR3PUPS3 Power supply, 9W
Κωδικός προϊόντος:
PR3PUPS3
Άμεσα διαθέσιμο
Teltonika PR3PUPS3 Power supply, 9W
Υπολογισμός κόστους μεταφορικών:
Καλέστε για τιμή
Κατηγορία:
Κατασκευαστής:
Περιγραφή
Χαρακτηριστικά
Λήψεις
Περιγραφή
Power supply for RUT240, RUT950, RUT955, RUT300, TRB140, TRB141, TRB142, TRB145.
Χαρακτηριστικά
| Specifications | ||
| Parameter | Rated Value | Absolute Maximum |
| Input Voltage | 100-240 VAC | 90-264 VAC |
| Input Frequency | 50/60 Hz | 47-63 Hz |
| Input Current (@100-240VAC) |
- | 0.45 A |
| Inrush Current (@100-240VAC) |
30 A | 60 A |
| Leakage current | - | 0.25 mA |
| Output Voltage | 9 VDC | 8.55-9.45 VDC |
| Load current | 1 A | - |
| Ripple and noise | - | 200 mV |
| Output over current protection | - | 2 A |
| Standby power | - | 0.1 W |
| Average efficiency | 81.34 % (DoE Level VI) |
- |
| Certification | EMC: EN 55032:2015, FCC Part 15B EMI: EN 55035:2017, IEC 61000-4-2:2008, IEC 61000-4-3:2006+A1:2007+A2:2010, IEC 61000-4-4:2012, IEC 61000-4-5:2014, IEC 61000-4-6:2013, IEC 61000-4-11:2004 Safety: EN 62368-1:2014+A11:2017, UL 62368-1:2014 Ed.2, CSA C22.2 No. 62368-1:2014 Ed.2, AS/NZS 62368.1:2018 |
|
| Hi-pot test | Primary to secondary: 4000 VDC | |
| Lifetime | 30000 hours minimum | |

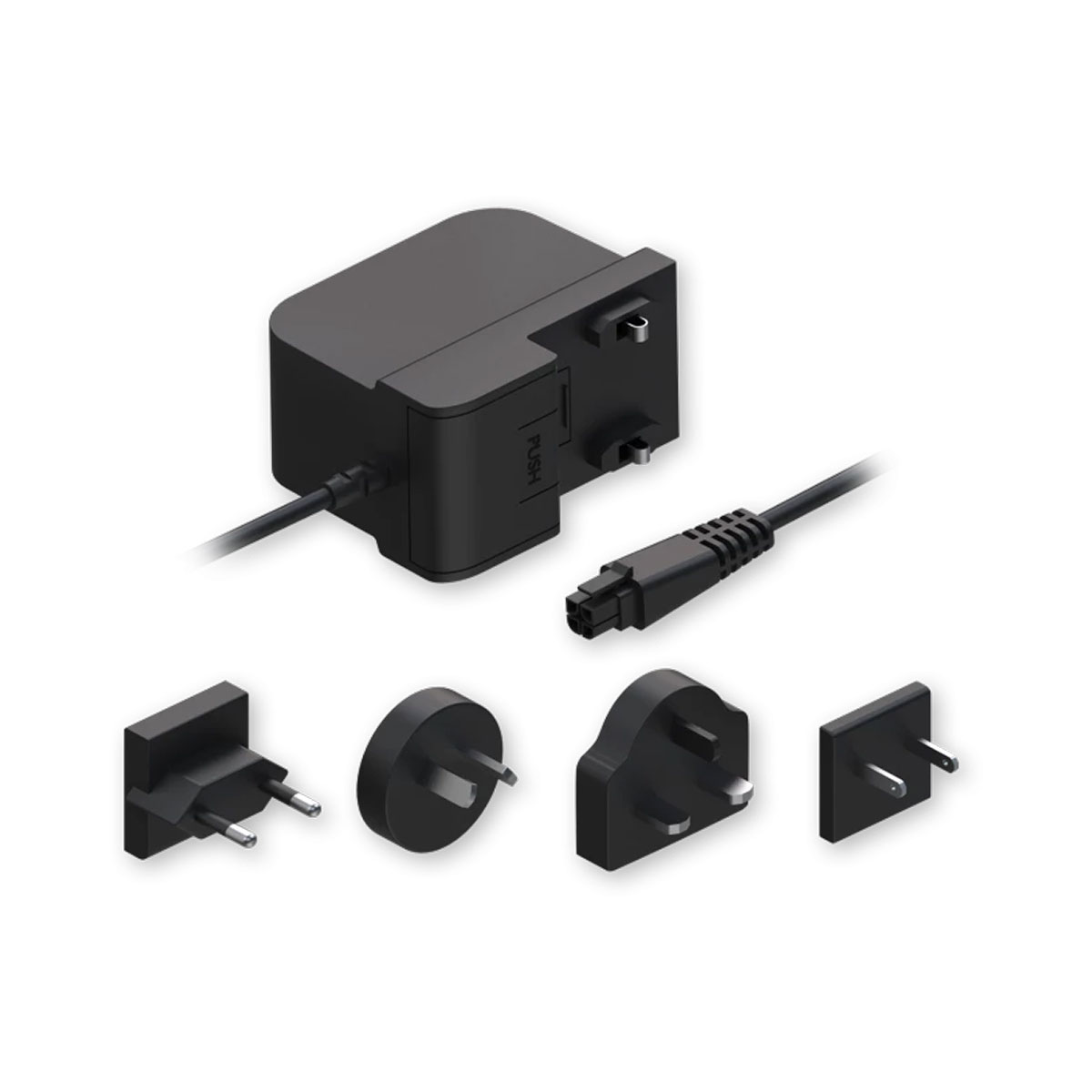

| Input connector | Exchangable. EU (Type C), US (Type A), UK (Type G) and AU (Type I) included | |

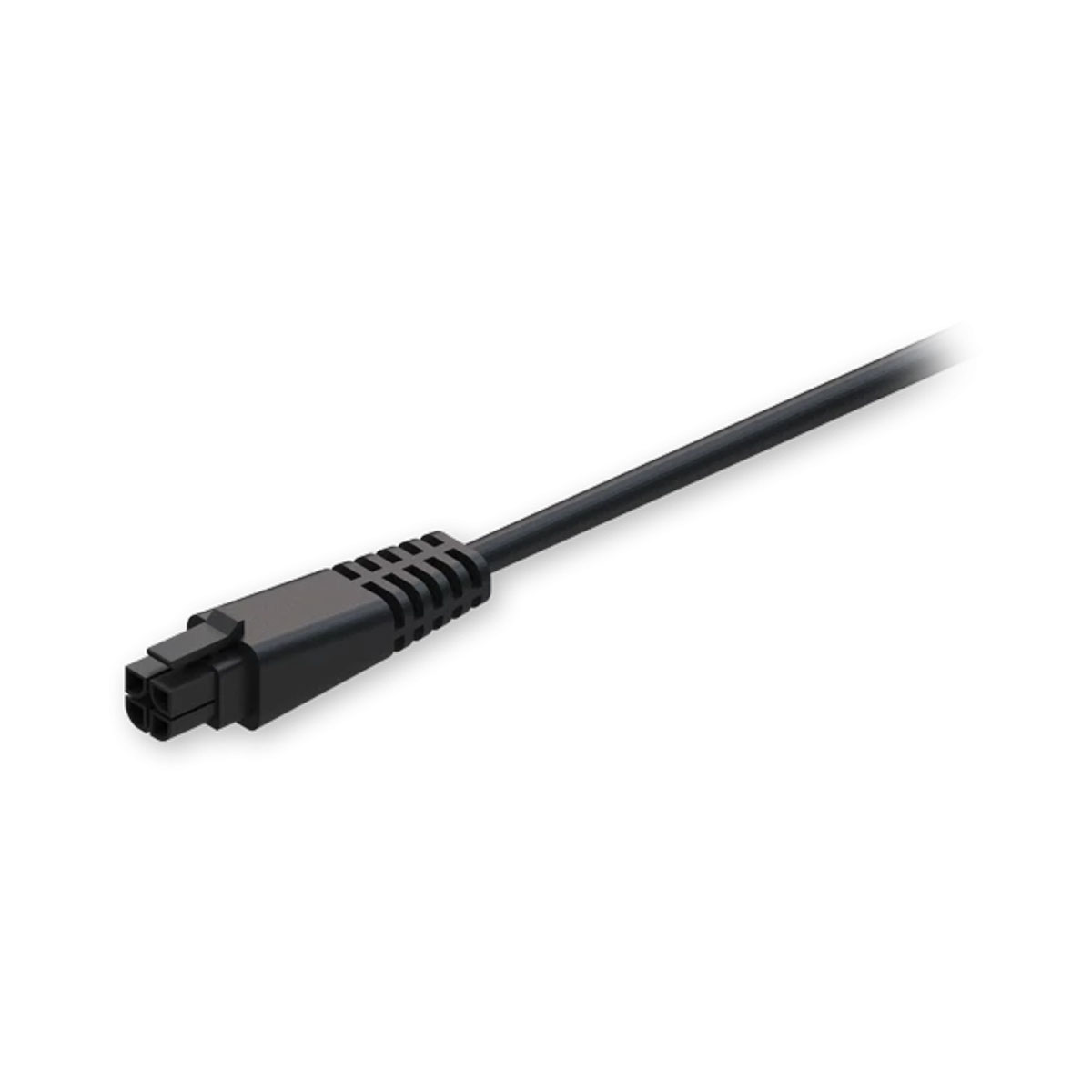

| Output connector | 4-pin, 3mm pitch | |
