.:ΠΡΟΣΟΧΗ Η ΣΥΣΚΕΥΑΣΙΑ ΔΕΝ ΠΕΡΙΛΑΜΒΑΝΕΙ ΤΡΟΦΟΔΟΤΙΚΟ ΤΟ ΟΠΟΙΟ ΘΑ ΠΡΕΠΕΙ ΝΑ ΑΓΟΡΑΣΤΕΙ ΧΩΡΙΣΤΑ:.

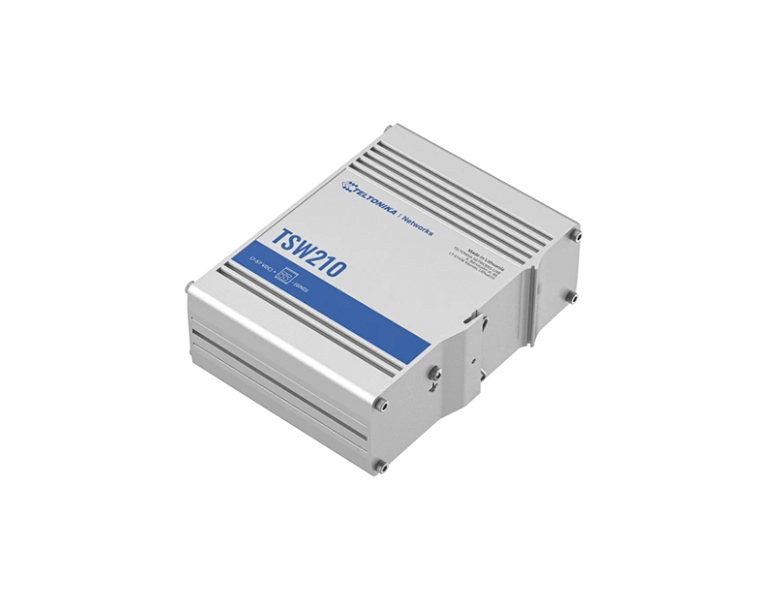

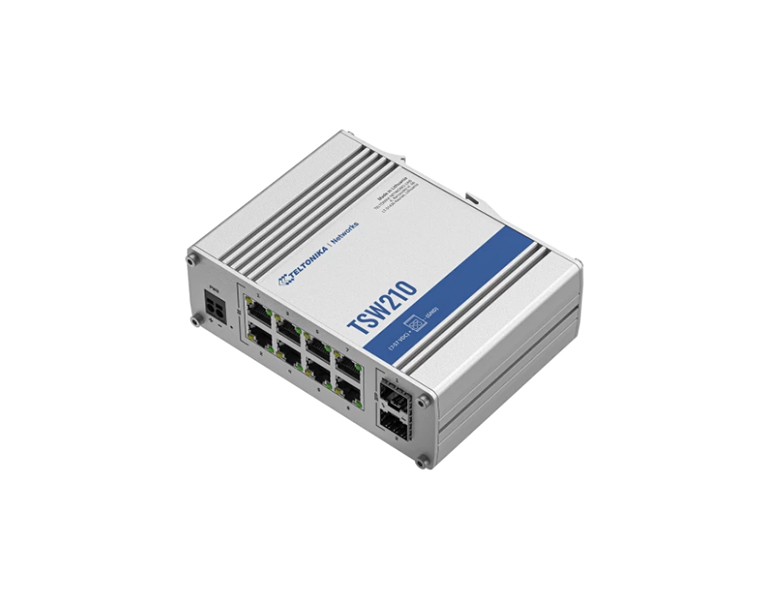

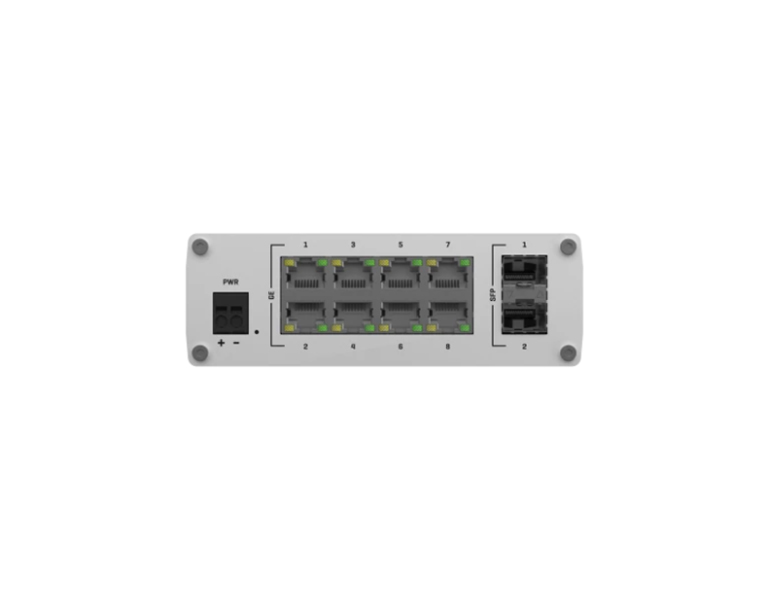

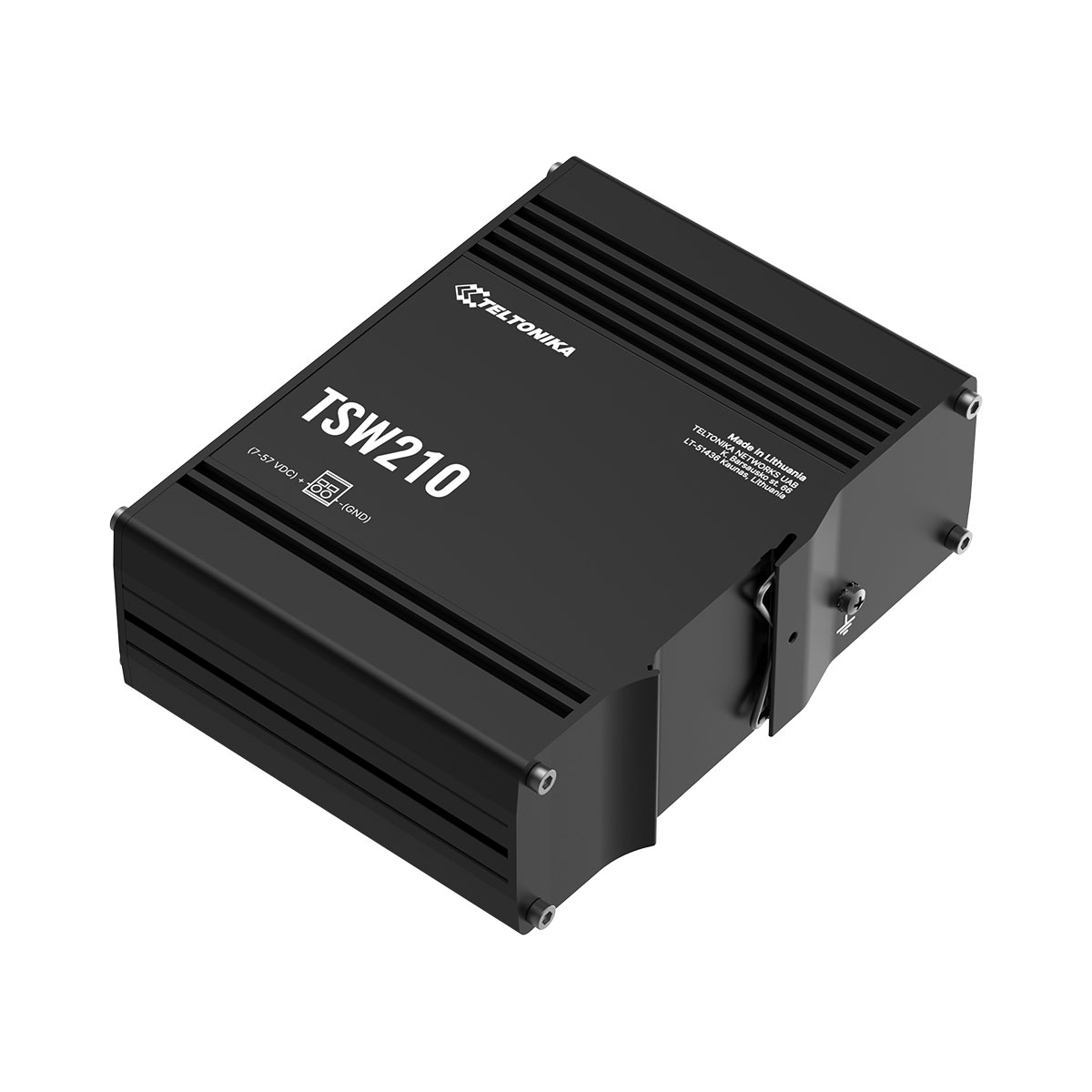

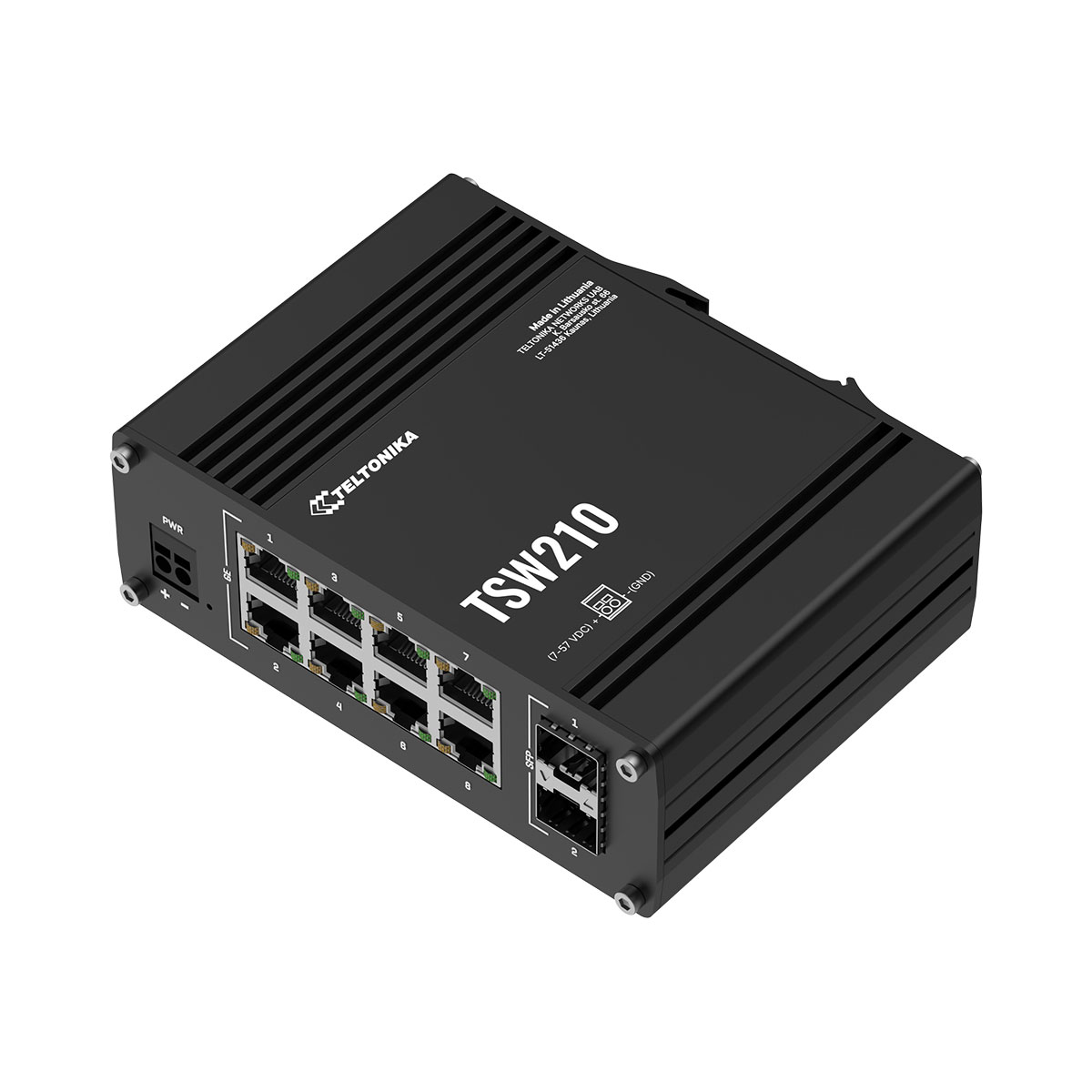

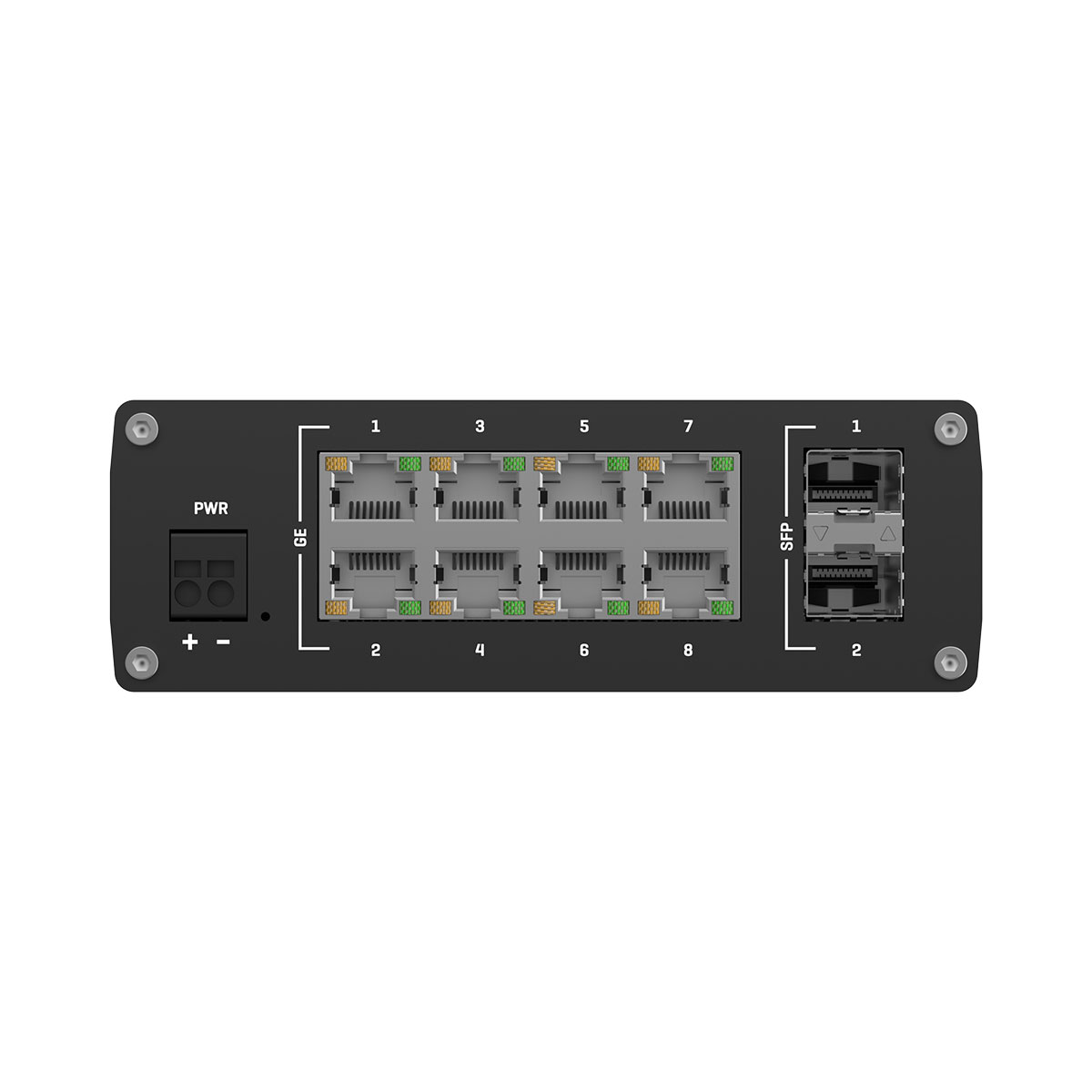

TSW210 is an Ethernet switch that offers a great combination of Gigabit Ethernet and SFP. Eight Ethernet ports enable connecting multiple devices to the network quickly and easily without any further configuration. SFP allows including far apart devices while maintaining high-speed rates and reliability.
Χαρακτηριστικά
| Specifications | |
| Hardware | |
| Power connector | 2-pin industrial DC power socket |
| Input voltage range | 7-57 VDC |
| Power consumption | Idle: 1.03 W, Max: 3.71W |
| Ethernet | 8 x 10/100/1000 Mbps Ethernet ports |
| SFP | 2 x SFP ports for Optical interfaces |
| IEEE 802.3 series standards | 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az |
| Status LEDs | 16 x Ethernet, 1 x Power, 2 x SFP activity |
| Ingress protection rating | IP30 |
| Operating temperature | -40 °C to 75 °C |

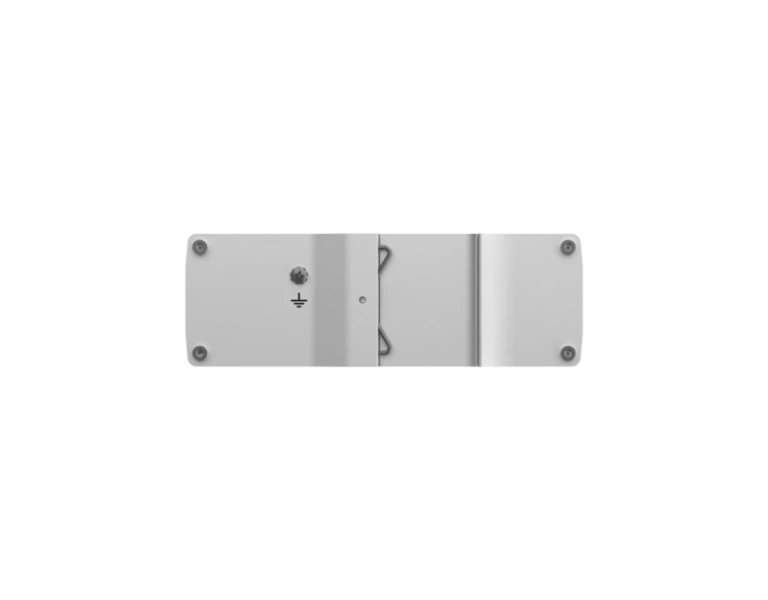

| Housing | Aluminum housing with wall or DIN rail mounting options and grounding capability |
| Dimensions | 132 x 44.2 x 95.1 mm |
| Weight | 500 g |
| Installation | Desktop, wall or DIN rail mountable (additional kit needed) |
| Performance Specifications | |
| Bandwidth | 20 Gbps |
| Packet buffer | 128 KB |
| Jumbo frame support | 9216 bytes |
| MAC address table size | 2K entries |
| Auto MDI/MDI-X Cable Detection | Yes |
| Package contents | • TSW210 • QSG (Quick Start Guide) • Packaging box |
