Περιγραφή

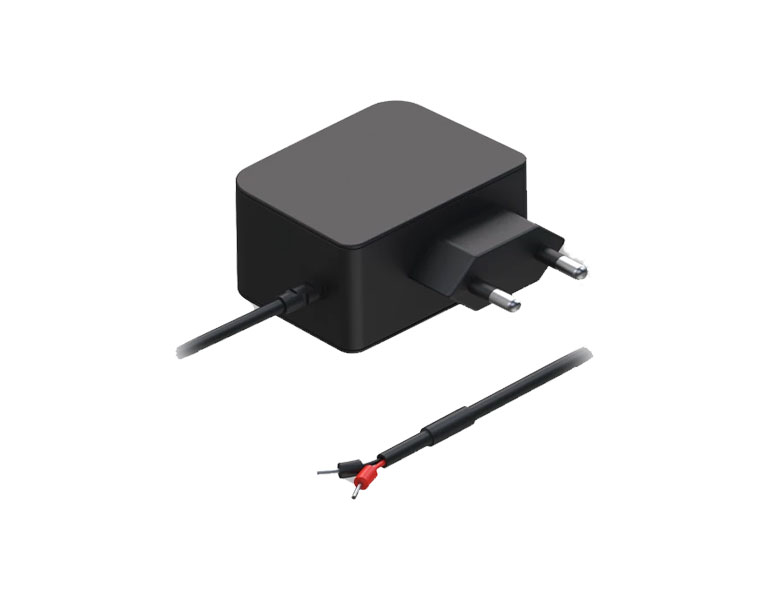

ΠΡΟΣΟΧΗ!! Στην συσκευασία δεν συμπεριλαμβάνεται τροφοδοτικό!

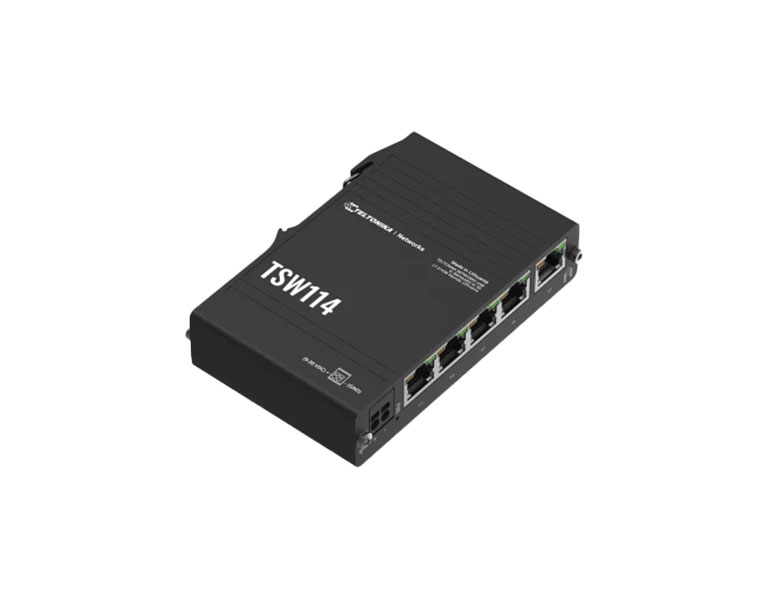

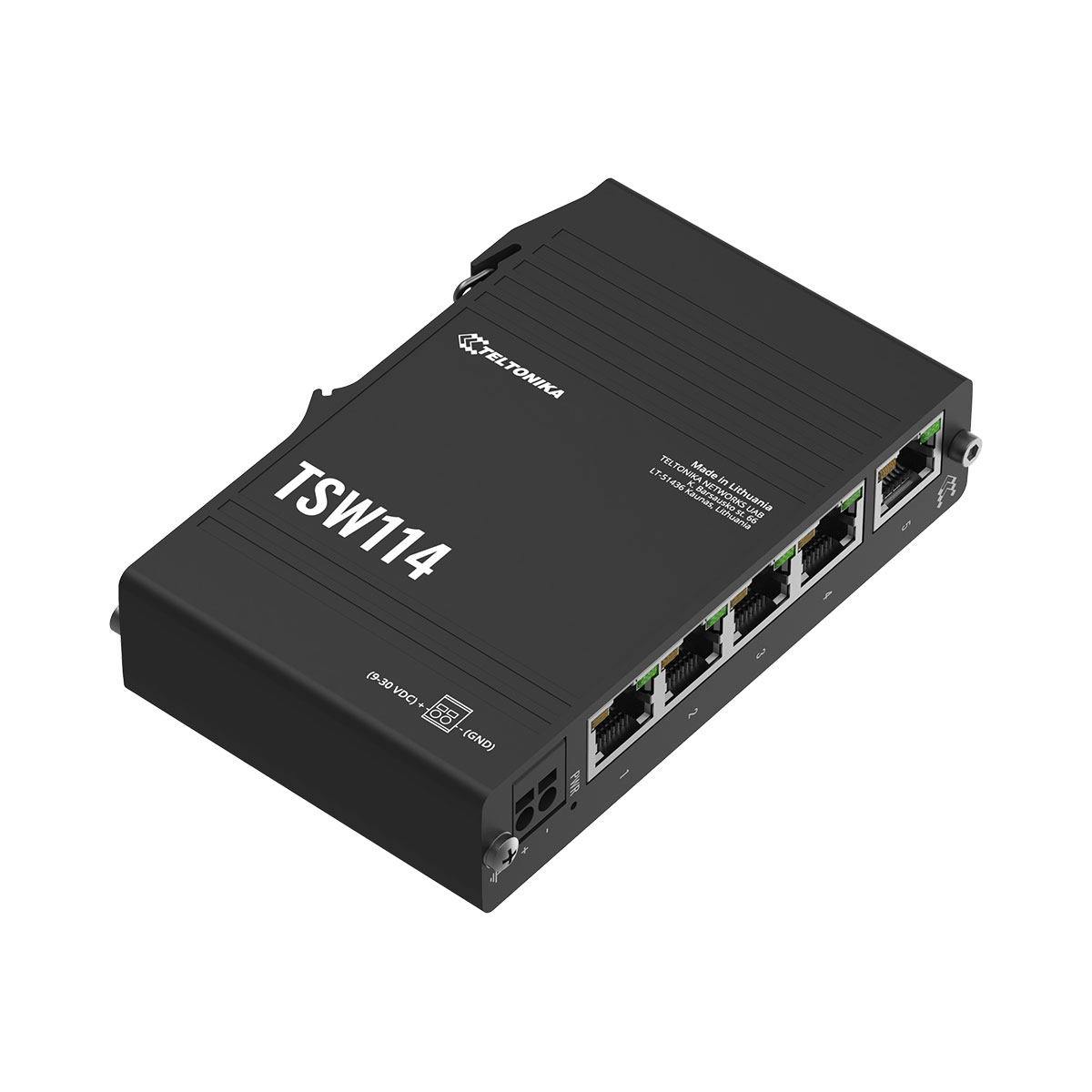

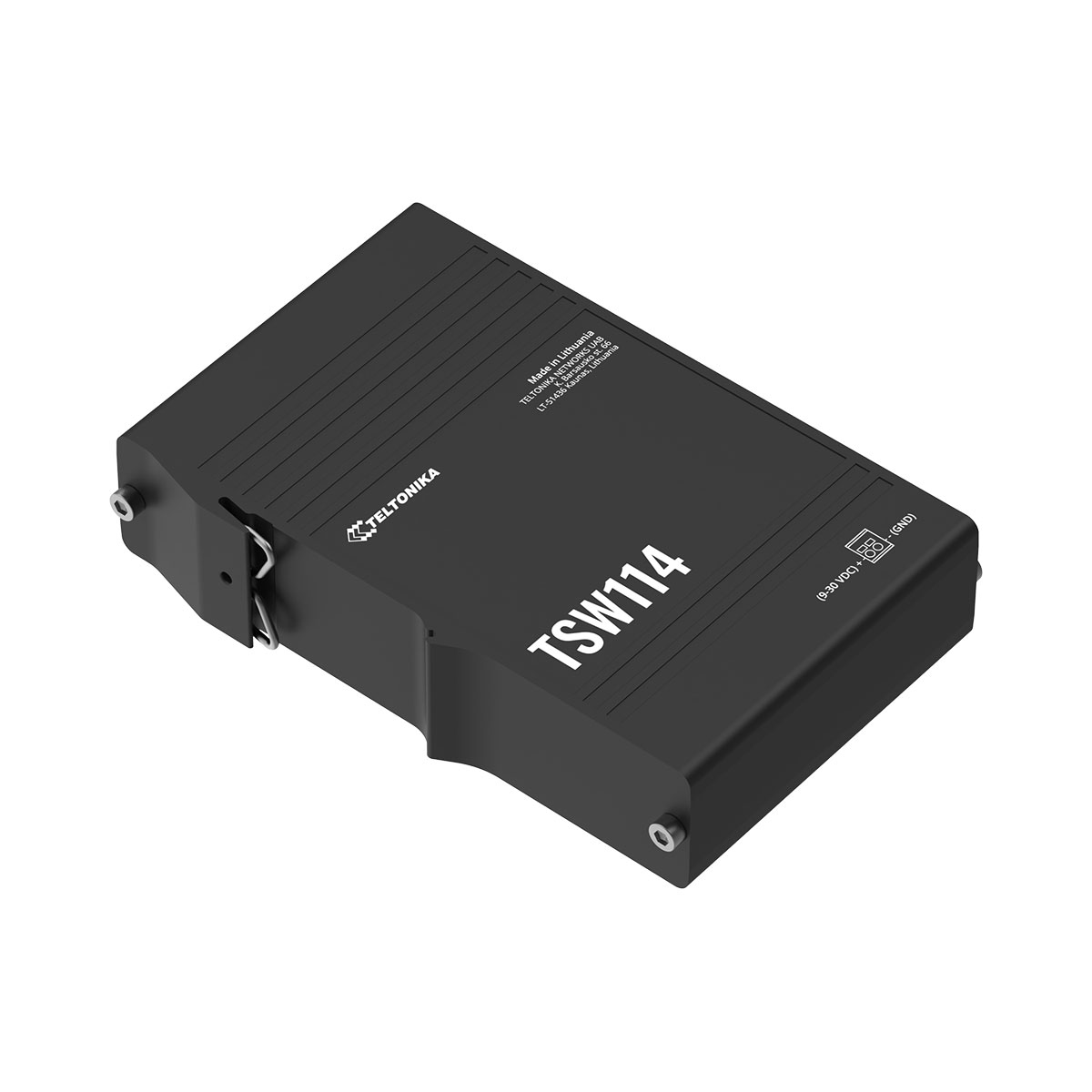

TSW114 is an affordable way to simplify your connectivity with its plug-n-play nature.

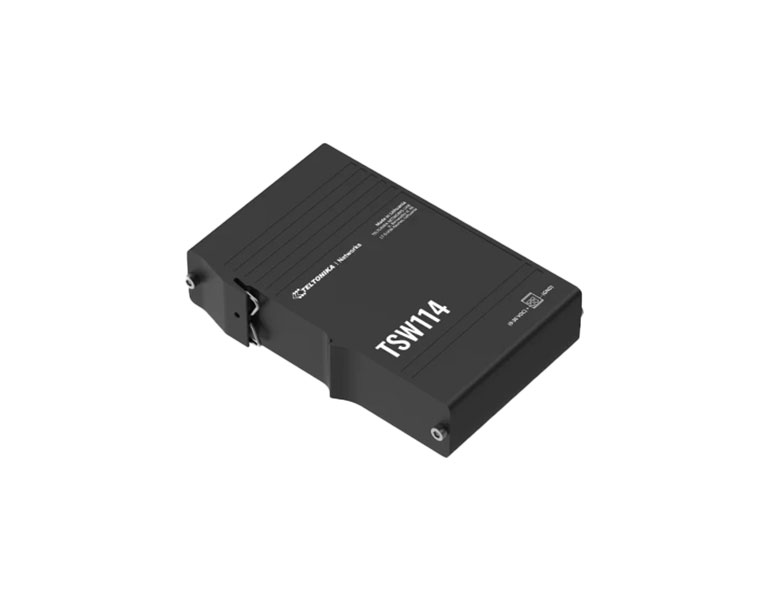

Compact size, front-facing ports, and an integrated DIN rail bracket enable easy installation across many industrial environments and especially control cabinets.
5 x Gigabit Ethernet ports provide stable, reliable connectivity for high-bandwidth solutions with multiple Ethernet devices.
This rugged, anodized aluminum-housed unmanaged switch is the perfect choice for industrial solutions, boasting a wide power supply voltage range of 9-30 V with reverse polarity and voltage surge/transient protection.
| Εγγυήσεις - Επιστροφές: | |
| Επιστροφή Χρημάτων: | Επισκευή - Αντικατάσταση: |
| 20 ημέρες | 24 μήνες |
Χαρακτηριστικά
| Specifications | |
| Hardware | |

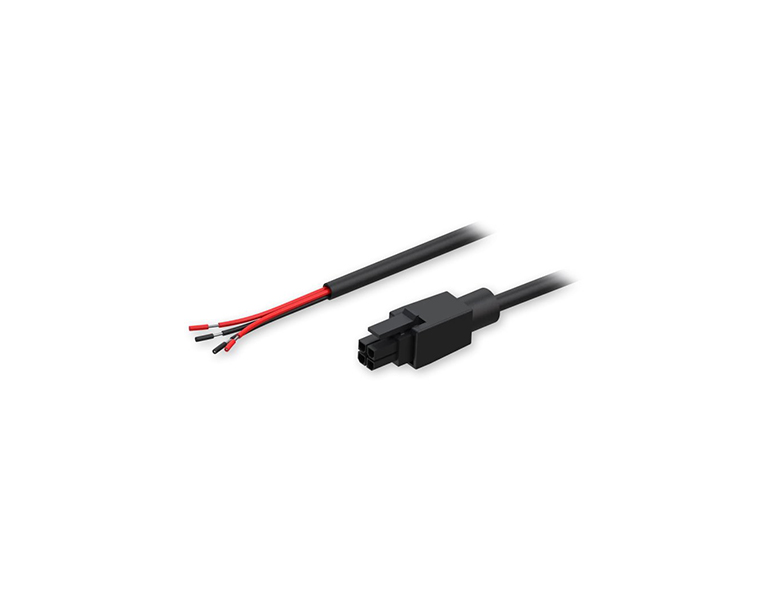

| Power supply | 2-pin industrial DC power socket, 9 - 30 VDC |
| Power consumption | Idle: 0.3 W / Max: 2.3 W |

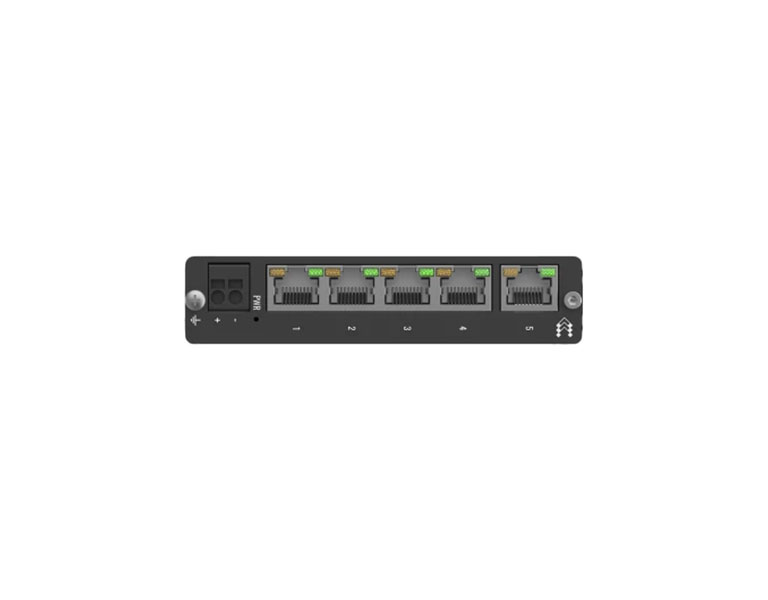

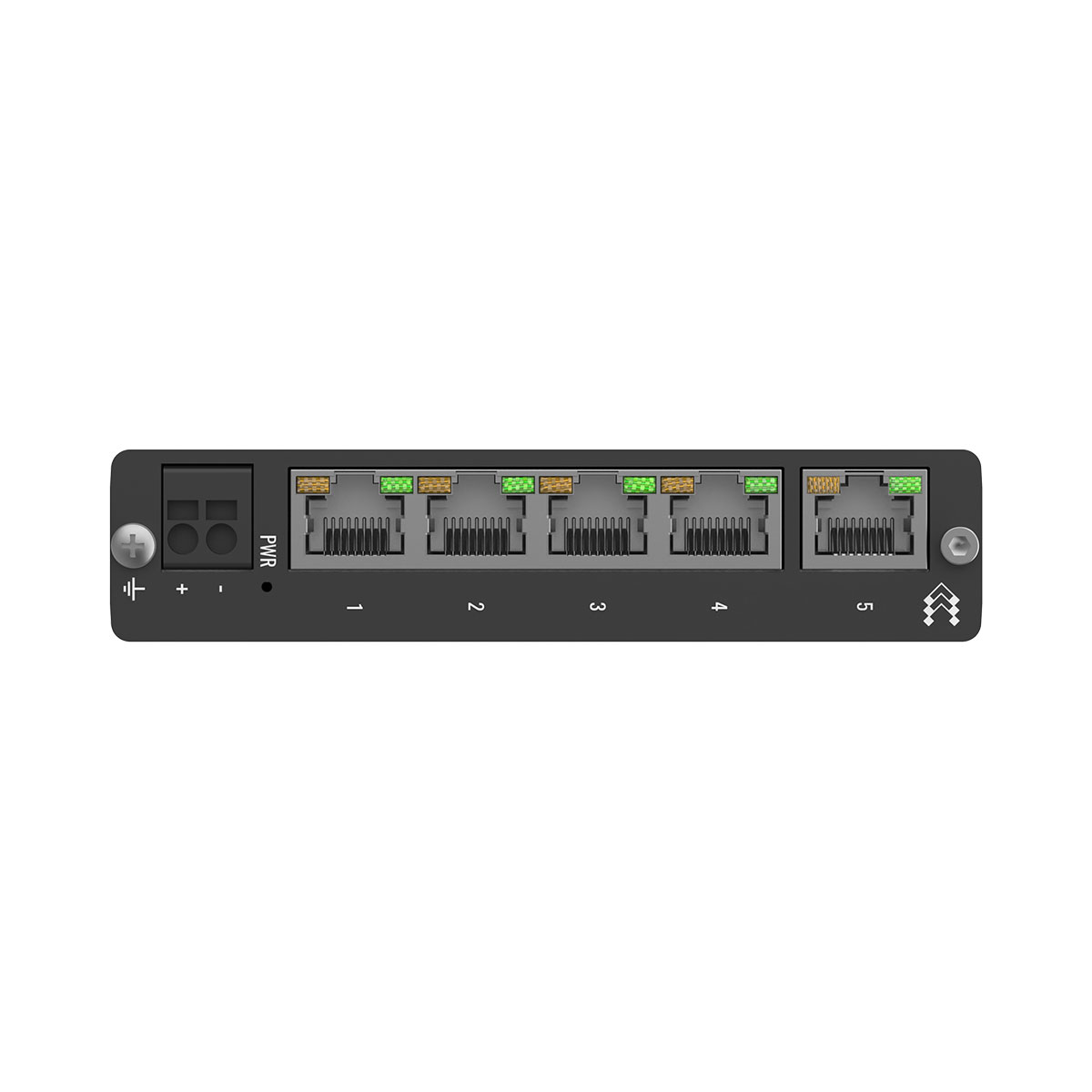

| Ethernet | 5 x RJ45 ports, 10/100/1000 Mbps |
| Status LEDs | 1 x Power LED, 10 x LAN status LEDs |
| Ingress protection rating | IP30 |
| Operating temperature | -40 °C to 75 °C |
| Housing | Anodized aluminum housing and panels |
| Dimensions | 113.1 x 27.4 x 80.5 mm |
| Weight | 174 g |

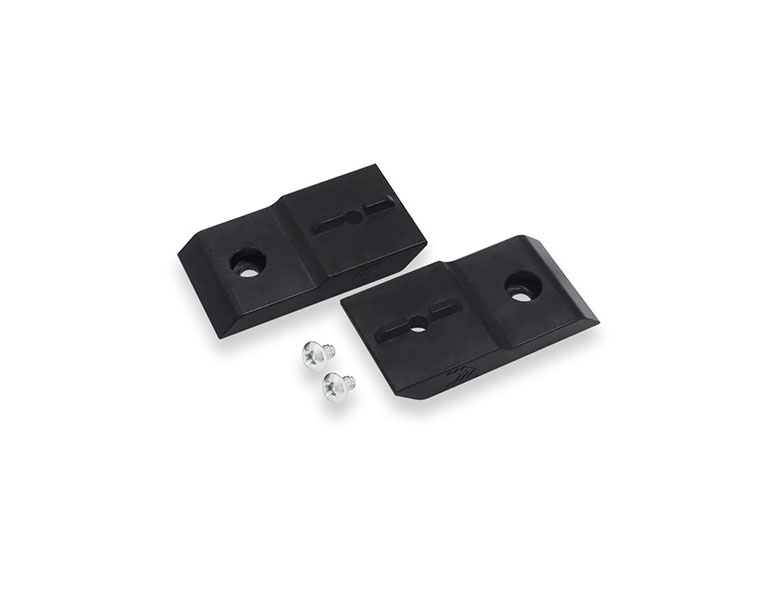

| Installation | Integrated DIN rail bracket, wall mounting (additional kit needed), flat surface placement |
| Performance | |
| Bandwidth (Non-blocking) | 10 Gbps |
| Packet buffer | 128 KB |
| MAC address table size | 2K entries |
| Jumbo frame support | 9216 bytes |
| Standard Package Contains | • TSW114 • QSG (Quick Start Guide) • Packaging box |
