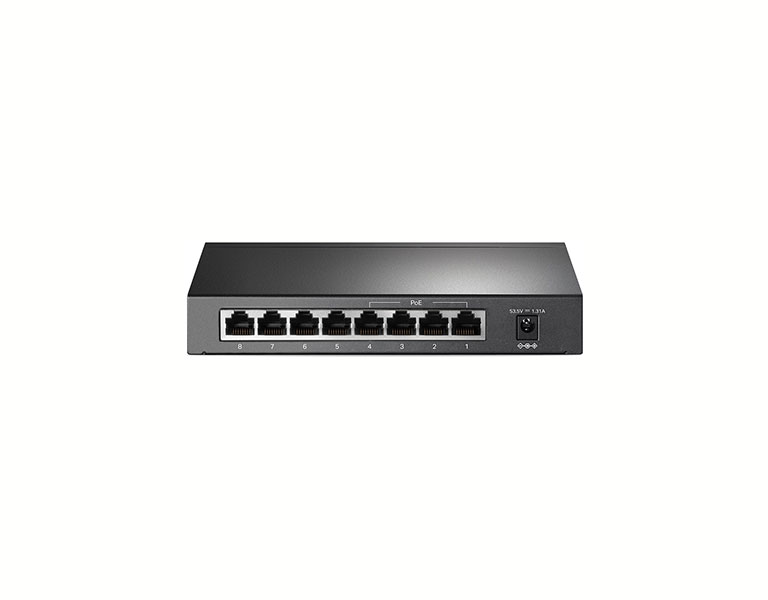

TP-LINK TL-SG1008P V7 8-Port Gigabit Desktop Switch with 4-Port PoE+
| • 8× 10/100/1000 Mbps RJ45 ports. • 4× PoE+ ports transfer data and power on individual cables. • Works with IEEE 802.3af/at compliant PDs. • Plug and Play, no configuration and installation required. • 802.1p/DSCP QoS enable smooth latency-sensitive traffic. • Supports PoE power up to 30 W for each PoE port. • Supports PoE power up to 64 W for all PoE ports*. |
Dedicated 8-Port Switch with 4-Port PoE+ (64 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 64 W PoE power budget* for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.
Plug and Play, No Configuration Required
1)Plug In
2)Connect Devices
3)Enjoy
Intelligent Power Management
When total power consumption exceeds 64 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.
Advanced Functions for Higher Performance
IGMP Snooping Traffic Optimization for IPTV
IGMP Snooping optimizes multimedia traffic delivery, to ensure a better network experience especially for applications like IPTV.
QoS For Fluent Online Experience
Ensures smooth traffic for latency sensitive applications, such as voice and video.
Durable Metal Casing
The interior components of TL-SG1008P are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG1008P delivers switching performance you can depend on.
*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.
| Εγγυήσεις - Επιστροφές: | |
| Επιστροφή Χρημάτων: | Επισκευή - Αντικατάσταση: |
| 20 ημέρες | 60 μήνες |
| SPECIFICATIONS | |
| Standards | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE802.1p |
| Network Ports | 8*10/100/1000Mbps RJ45 ports with 4 PoE ports (port 1 to port 4) |
| Network Media(Cable) | 10Base-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100Base-TX: UTP category 5, 5e or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000Base-T: UTP category 5, 5e cable or above cable(maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
| PoE | PoE Standard: 802.3 af/at PoE Ports 1-4, up to 30 W per port PoE Power Budget 64 W* |
| Auto Negotiation | Yes |
| Auto MDI/MDIX | Yes |
| Max Power Consumption | 4.7 W ( 220V/50Hz. no PD connected) 73.5 W (220V/50Hz. with 64W PD connected) |
| Max Heat Dissipation | 16.03 BTU/h (no PD connected) 250.64 BTU/h (with 64W PD connected) |
| Forwarding Mode | Store and Forward |
| Switch Capacity | 16Gbps |
| MAC Address Table | 4K, Auto-learning, Auto-aging |
| Extend Mode | YES (For Ports 1-2) |
| PoE Auto Recovery | YES (For Ports 1-4) |
| Flow Control | Yes |
| Fanless | Yes |
| LED | Power, Link/Act, PoE Status, PoE MAX |
| Dimensions | 171 x 98 x 27mm |
| Certifecation | CE, FCC |
| Operating Temperature | 0°C to 40 °C |
| Storage Temperature | -40 °C to 70 °C |
| Operating Humidity | 10% to 90% non-condensing |
| Storage Humidity | 5% to 90% non-condensing |
Note:
*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.
**The speed of the ports which are under extend mode will be downgraded to 10Mbps. Actual transmission distance may vary from the quality of the cables.
