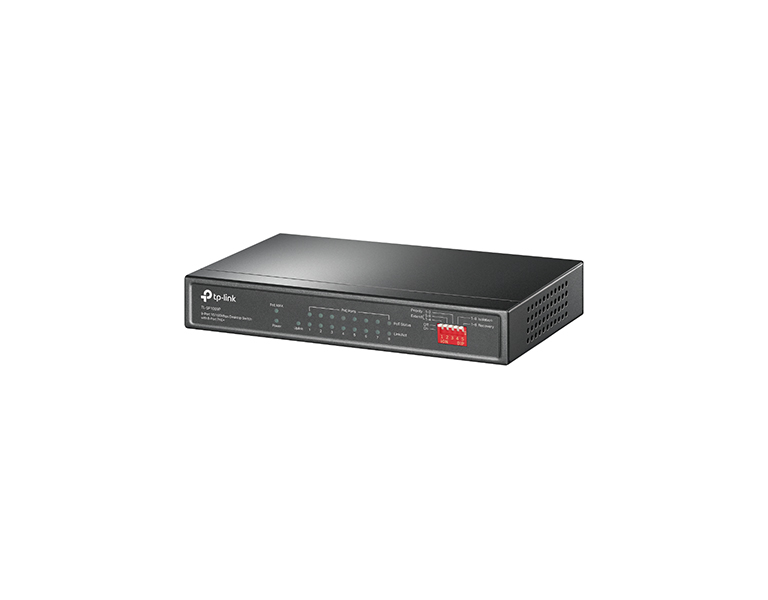

TP-LINK TL-SF1009P V5 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+
1.jpg "TP-LINK TL-SF1009P V5 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+")
| • 9x 10/100 Mbps RJ45 ports • 8x PoE+ ports transfer data and power on individual cables • Works with IEEE 802.3af/at compliant PDs • Supports PoE Power up to 30 W for each PoE port • Supports PoE Power up to 65 W for 8 PoE ports* • Up to 250 m data and power transmitting range under Extend Mode** • Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application • Isolation Mode allows one-click client traffic separation for higher security and performance • PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices • Plug and play with no configuration required |
Professional 9-Port Switch with 8-Port PoE+ (65 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 65 W PoE power budget* for the 8x PoE+ ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.
Ideal for IP Surveillance — Up to 250 m Transmissions
With extend mode, the PoE transmission distance reaches up to 250 m**—perfect for IP Camera deployment in large areas.
Ideal for IP Surveillance — Higher Performance and Security
Priority Mode and Isolation Mode make surveillance smoother and safer.
• Priority Video Quality Guaranteed
Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1–2 when one-touch Priority Mode is on.
• One-Click Traffic Separation for Ports 1-8
With one click, Isolation Mode easily divides traffic for ports 1–8 to avoid snooping and tampering. This enables the switch to isolate broadcast storm, improving LAN security and data transmission.
Intelligent Power Management
When total power consumption exceeds 65 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.
Durable Metal Casing
The interior components of TL-SF1009P are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SF1009P delivers switching performance you can depend on.
*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.
**The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.
| SPECIFICATIONS | |
| Standards | IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at |
| Network Ports | 9 * 10/100 Mbps RJ45 ports with 8 PoE+ ports (port 1 to port 8) |
| Network Media (Cable) | 10Base-T: UTP category 3, 4, 5 cable (maximum 100 m) EIA/TIA-568 100 Ω STP (maximum 100 m) 100Base-TX: UTP category 5, 5e cable (maximum 100 m) EIA/TIA-568 100 Ω STP (maximum 100 m) |
| PoE | PoE Standard: IEEE 802.3af, IEEE 802.3at PoE Port 1–8, up to 30 W per port PoE Power Budget 65 W* |
| Auto-Negotiation | YES |
| Auto MDI/MDIX | YES |
| PoE Power on RJ45 | Power+: pin 3 & pin 6 Power -: pin 1 & pin 2 |
| Max Power Consumption | 3.28 W (220 V/50 Hz no PD connected) 74.33 W (220 V/50 Hz with 65 W* PD connected) |
| Max Heat Dissipation | 11.18 BTU/h (no PD connected) 253.47 BTU/h (with 65 W* PD connected) |
| Forwarding Mode | Store and Forward |
| Switch Capacity | 1.8 Gbps |
| MAC Address Table | 2k, Auto-learning, Auto-aging |
| Extend Mode | YES |
| Priority Mode | YES (Ports 1-2 |
| Isolation Mode | YES |
| PoE Auto Recovery | YES |
| Flow Conrol | YES |
| Fanless | YES |
| LED | Power, Link/Act, PoE Status, PoE MAX |
| Dimensions | 171 x 98 x 27 mm |
| Certification | CE, FCC |
| Environment | Operating Temperature: 0°C to 40°C Storage Temperature: -40°C to 70°C Operating Humidity: 10% to 90% RH, non-condensing Storage Humidity: 5% to 90% RH, non-condensing |
* PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.
**The speed of the ports which are under extend mode will be downgraded to 10Mbps. Actual transmission distance may vary from the quality of the cables.
