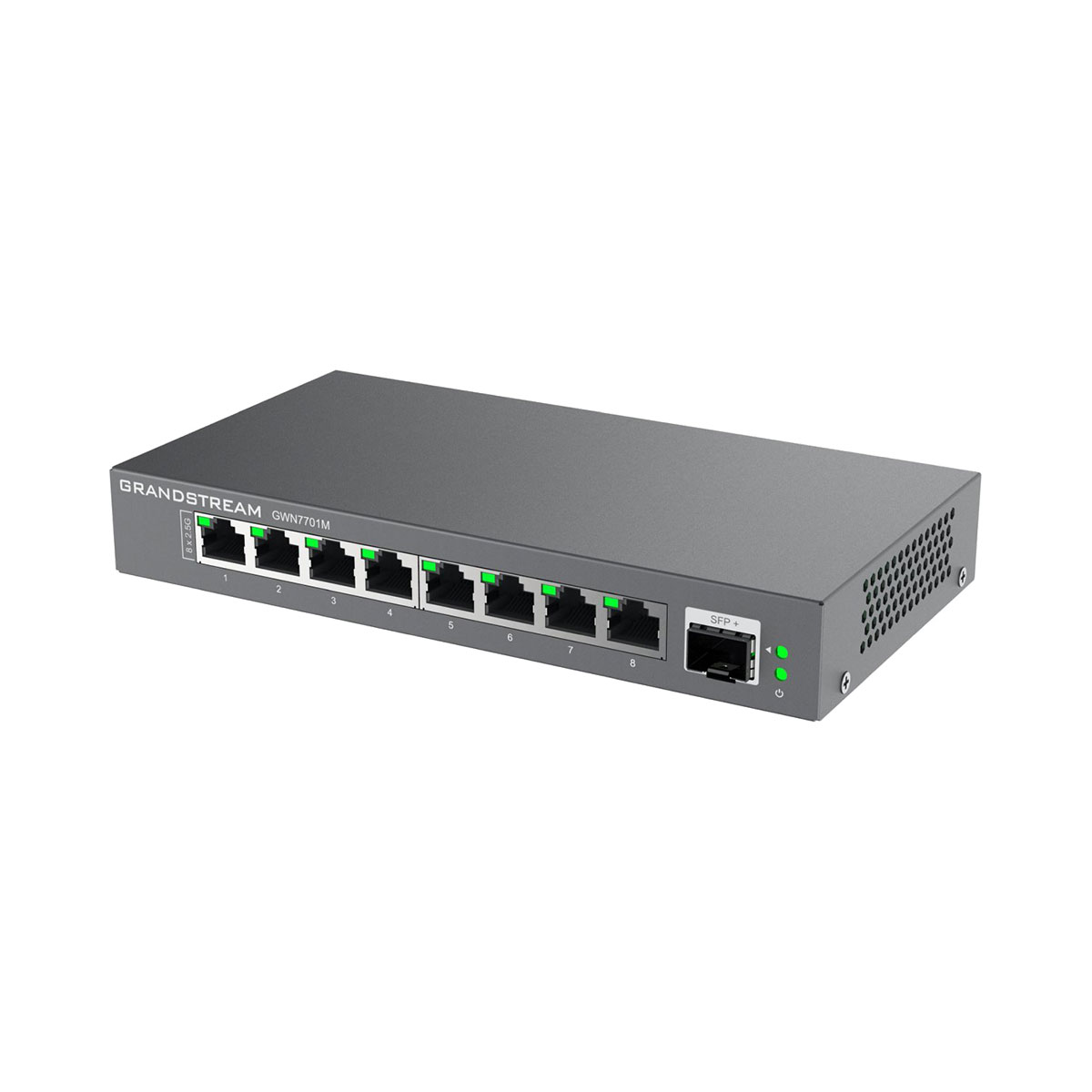

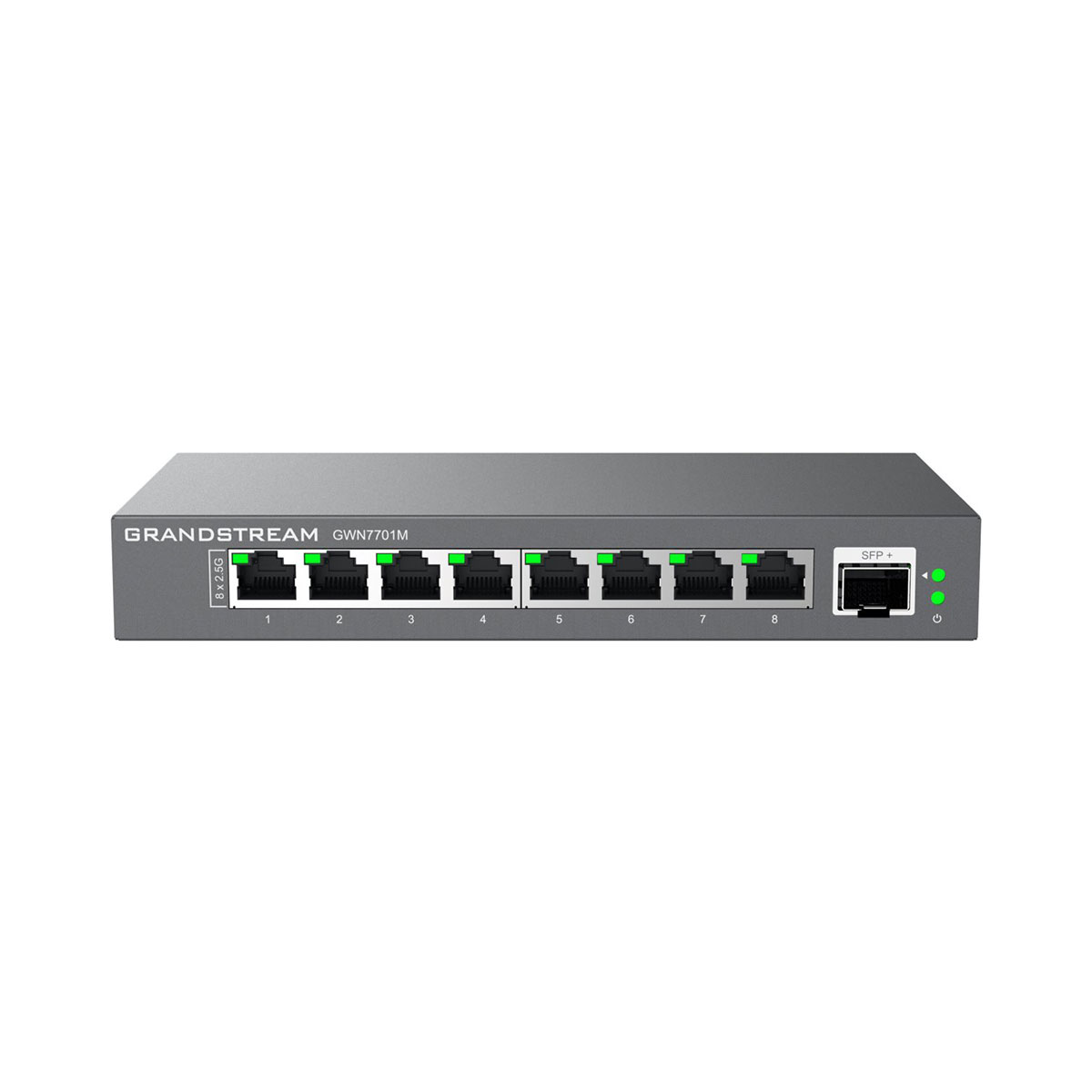

Grandstream GWN7701M Unmanaged Network Switch-Metal Case
Grandstream GWN7701M Unmanaged Network Switch-Metal Case
The GWN7700M series are unmanaged multi-Gigabit network switches that provide high-speed network connectivity up to 2.5Gbps to home offices and small-to-medium businesses. These 6 and 9-port multi-Gigabit switches support fast Ethernet, 1-Gigabit and 2.5-Gigabit network speeds while including 1 SFP+ Gigabit fiber port that provides 1-Gigabit or 10-Gigabit high-speed uplink connectivity to your network. The GWN7700M, GWN770MP, and GWN77001M require no configuration or installation, are desktop and wall-mountable, and provide auto MDI/MDIX to eliminate the need for crossover cables. They support auto negotiation on each port to recognize the speeds of 100/1000/2500Mbps network devices and intelligently adjust for compatibility and optimal performance. The GWN7700MP provide ports with IEEE 802.3af/at compliant, smart dynamic PoE output to power IP phones, IP cameras, Wi-Fi access points and other PoE endpoints. The plug-and-play GWN7700M series are the ideal unmanaged network switches for home offices and small-to-medium businesses that require high-speed, multi-Gigabit connectivity.
Features:
• 5 and 8 Multi-Gigabit Copper Ports provide 100/1000/2500Mbps connectivity
• One SFP+ Fiber Port with 1 Gigabit or 10-Gigabit connectivity
• LED Indicators - Per port: Link/Activity/Speed, Per device: Power
• Auto MDI/MDIX crossover for all ports
• Whisper Quiet: fanless
• Broadcast/Multicast/Unicast Storm Control (fixed to 100Mbps) to monitor traffic levels
• Green technology reduces power consumption
• QoS - Supports Default Strict Priority when present
| Specifications | |
| Gigabit Ports | 8 |
| Enclosure | Metal |

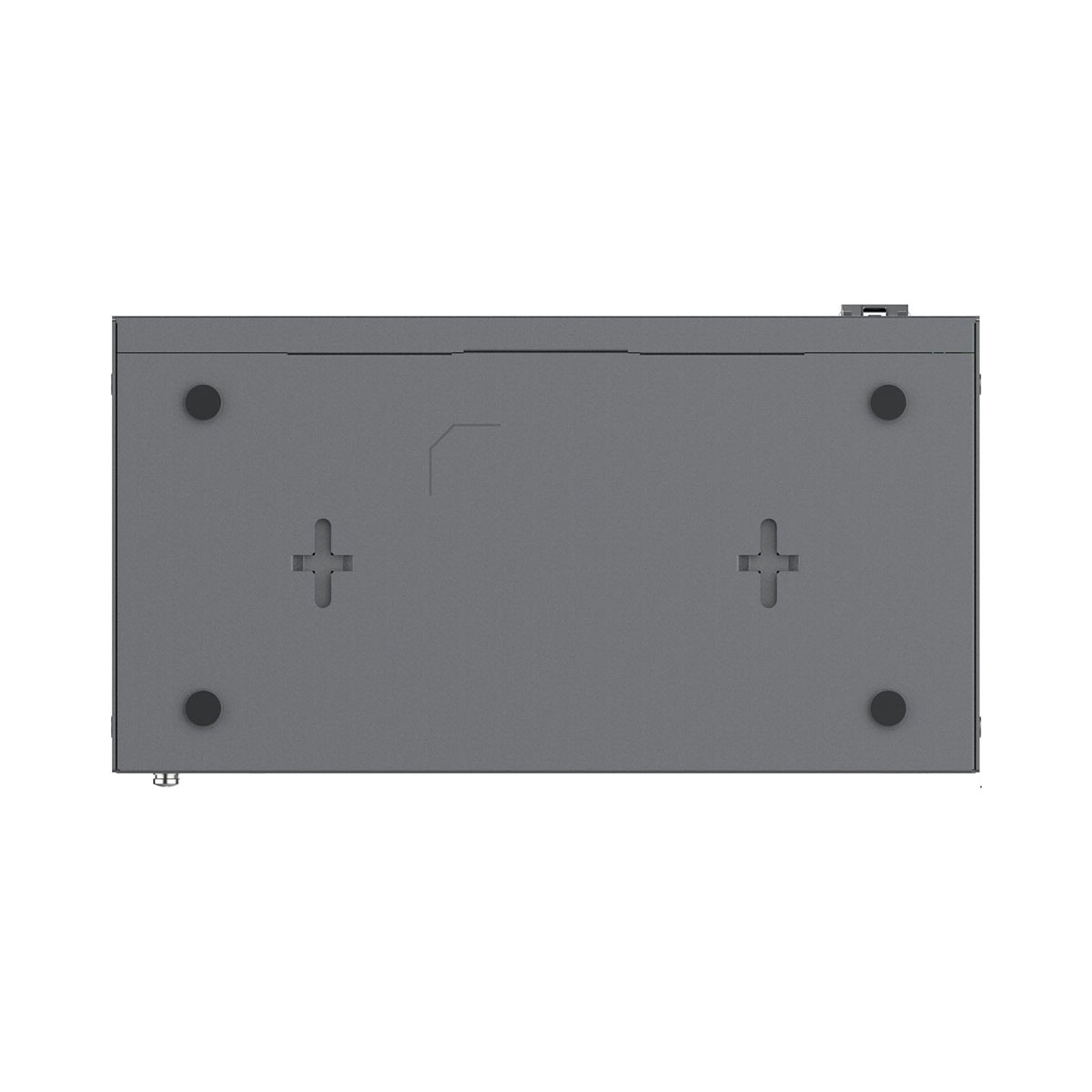

| Mounting | Desktop/ Wall-Mount |
|
Network Protocols |
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz(2.5GBASE-T), IEEE 802.3x, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3aq, IEEE 802.3af, IEEE 802.3at |
| Port Feature | 8× 100/1000/2500Mbps RJ45 Ports 1× SFP+ Fiber Port AUTO Negotiation AUTO MDI/MDIX |
| Network Media | 2.5GBase-T / 1000Base- T / 100Base-TX/10Base-Te (HalfDuplex only supported in 10/100M mode on port 4-8 ) |
| LED Indicators | Per port: Link/Activity Green Per device: Power Green |
| Mac Address Table | 4K |
| Switching Capacity | 60Gbps |
| Jumbo Frame | 9KB |
| Advanced Features | Mac Address Auto-Learning And Auto-Aging IEEE 802.3x Flow Control IEEE 802.3az (Energy Efficient Ethernet) 802.1p/DSCP QoS IGMP: •IGMP Fast-Leave •IGMP Snoop •Route Port Autolearn •Query Refresh Member Port |

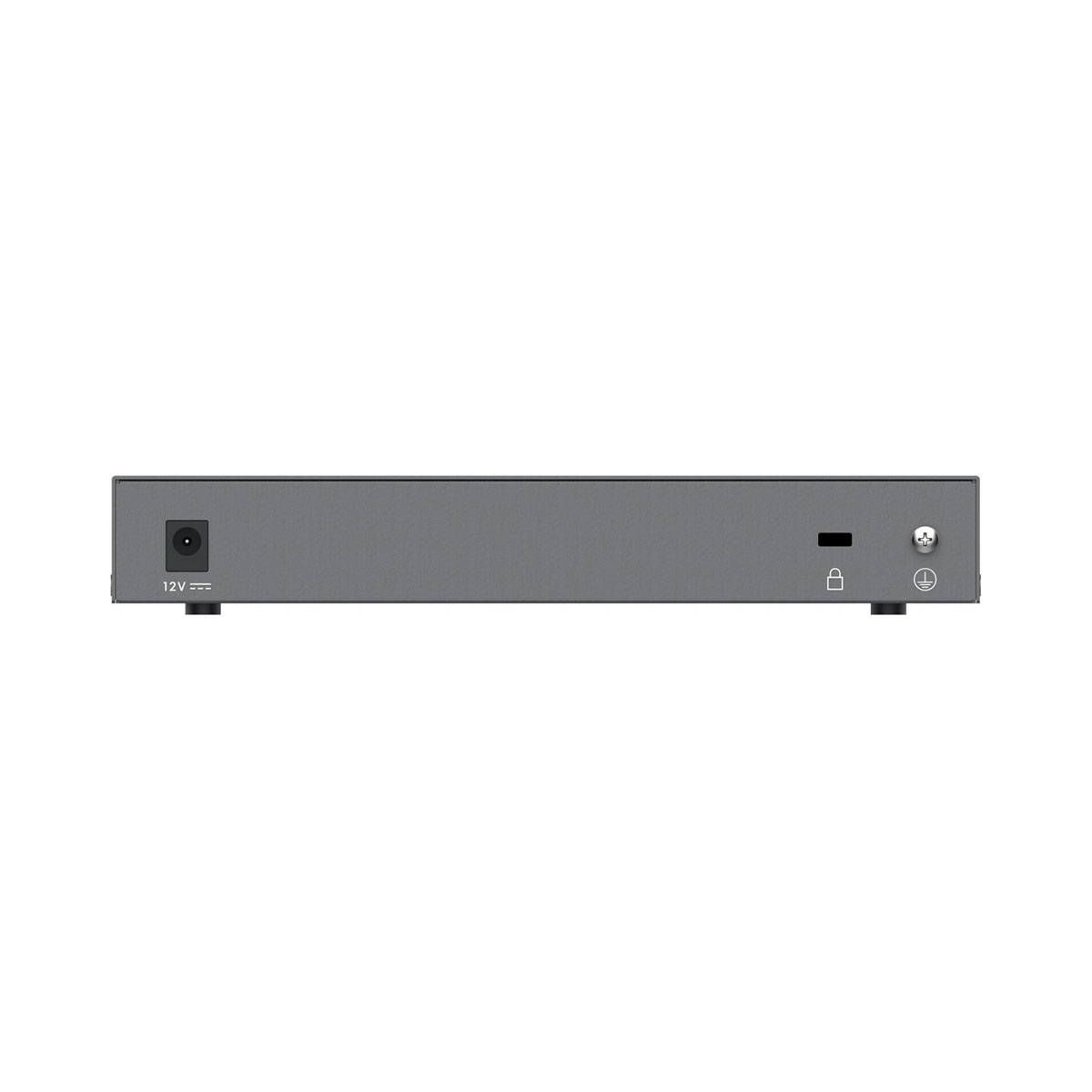

| Power Adapter | External 12VDC/1A |
| Max Power Consumption by Base System | 9.7W |
| Environmental | Operating Temperature: 0 to 40 °C Storage Temperature: -20 to 60 °C Operating Humidity: 10% to 90% Non-condensing Storage Humidity: 10% to 90% Non-condensing |
| Dimensions (L x W x H) | Unit: 190 x 100 x 28mm Package: 300 x 130 x 53mm |
| Weight | Unit: 0.52KG Entire Package: 0.77KG |
| Package | 1x Switch 1x Power Adapter 1x QIG |
| Compliance | FCC, CE, RCM, IC |
