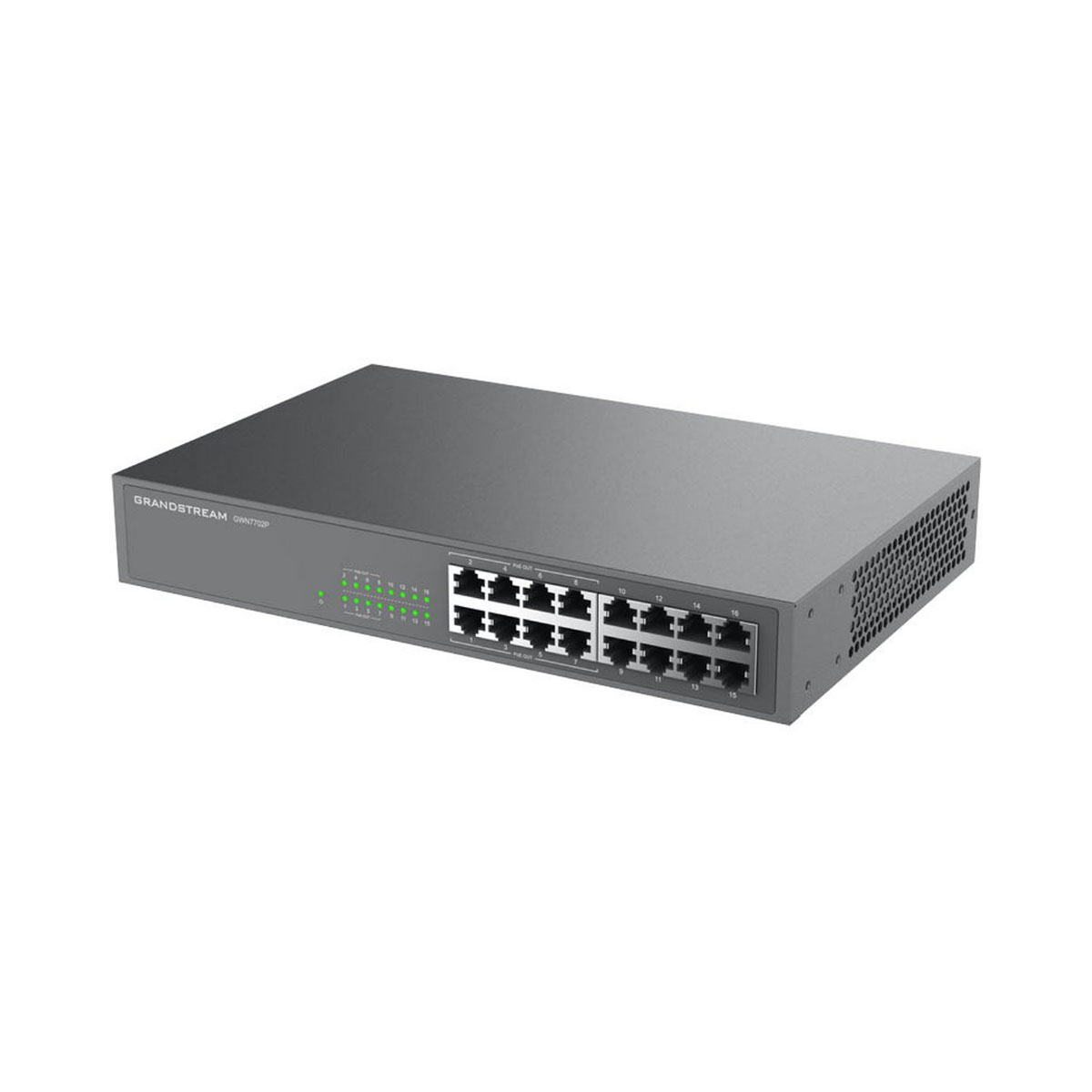

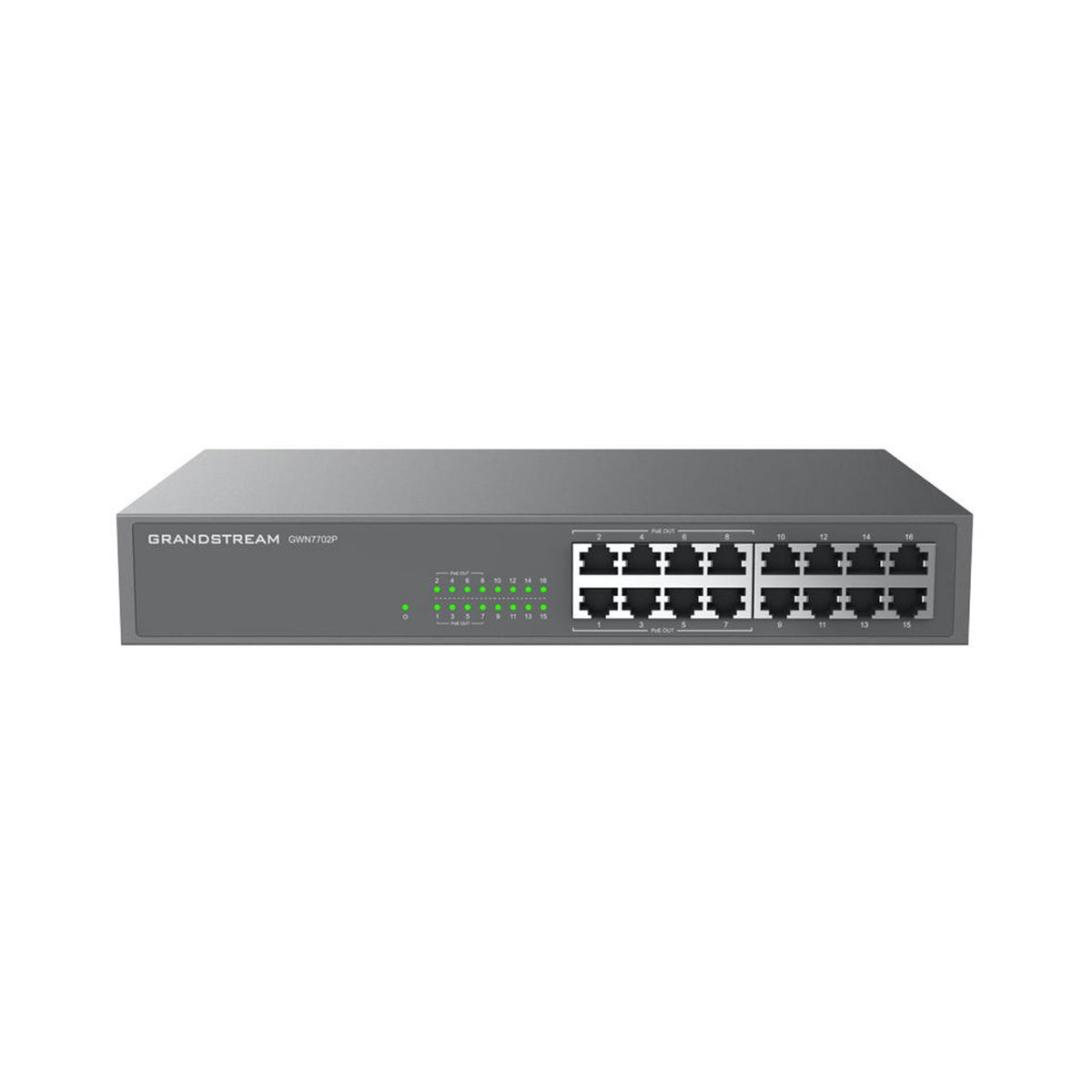

Grandstream GWN7702P Unmanaged Network Switch
Grandstream GWN7702P Unmanaged Network Switch
The GWN7700 series are unmanaged network switches that provide a quick and cost-effective way to add high-speed Gigabit connectivity to home offices and small/medium businesses. It requires no configuration or installation, offers a desktop and wall-mountable design, and provides auto MDI/MDIX to eliminate the need for crossover cables. Each port supports auto-negotiation to allow the GWN7700 series to recognize the link speed of any 10/100/1000Mbps network device and intelligently adjust for compatibility and optimal performance. The PoE (Power-over-Ethernet) models provide ports with IEEE 802.3af/at compliant, smart dynamic PoE output to power IP phones, IP cameras, Wi-Fi access points and other PoE endpoints. The plug-and-play GWN7700 series are the ideal unmanaged network switches for home offices and small-to medium businesses.
Features:
• 5/8/16/24/48 Gigabit RJ45 ports, 4 port PoE+ output (GWN7700P & GWN7701P), 8 port PoE+ output (GWN7701PA & GWN7702P)
• Green technology reduces power consumption
• LED Indicators; Per port: Link/Activity Per device: Power
• Auto MDI/MDIX crossover for all ports
• 802.3 af/at compliant Up to 30W on each port, (GWN7700P/GWN7701P/ GWN7701PA/GWN7702P only)
• Broadcast/Multicast/Unicast Storm Control (fixed to 100Mbps) to monitor traffic levels
• Supports long cable connection
• QoS - Supports Default Strict Priority when present
| Specifications | |
| Gigabit Ports | 16 |
| PoE Ports | 8 |
| Enclosure | Metal |
| Mounting | Desktop/ Wall-Mount |
| Network Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p |
| PoE Standards | IEEE 802.3af, IEEE 802.3at |
| Port Feature | 16/24× 10/100/1000Mbps RJ45 Ports AUTO Negotiation AUTO MDI/MDIX |
| Network Media | 1000Base-T/100Base-TX/10Base-T, Half/Full-Duplex |
| PoE Configuration | 1~8 Ports 802.3 af/at compliant Up to 30 W on Each Port, Total 138W Power Budget; Overload to cut off the lowest- s priority port. Priority: Port 1 to Port 8 |
| LED Indicators | Per port: Link/Activity - Green Per port: PoE output - Yellow Per device: Power Green |
| Mac Address Table | 8K |
| Switching Capacity | 32Gbps |
| Jumbo Frame | 10KB |
| Advanced Features | Mac Address Auto-Learning And Auto-Aging IEEE 802.3x Flow Control Half duplex backpressure |

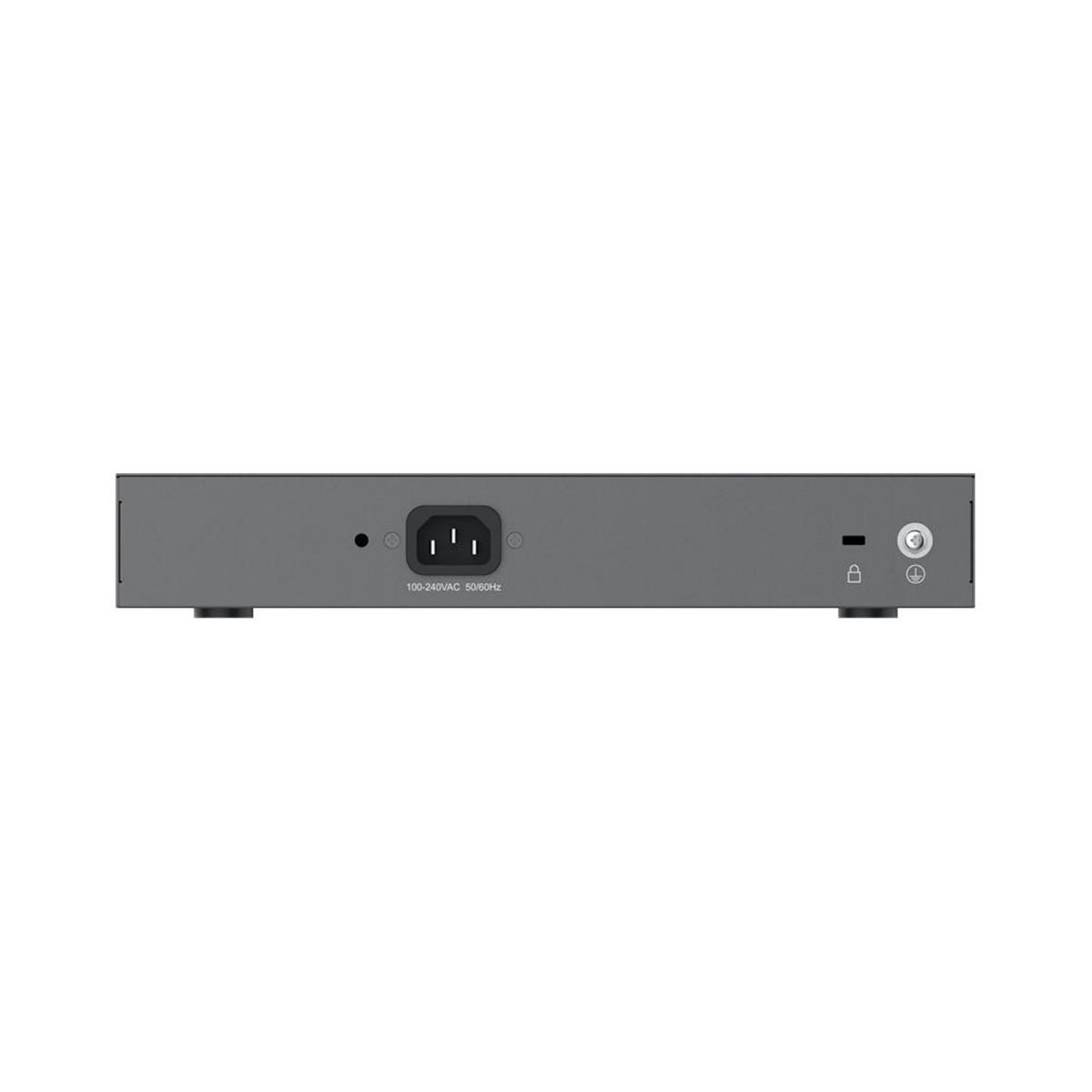

| Power Adapter | Internal 100-240V AC, 50/60Hz,150W |
| Max Power Consumption by Base System | 10.1W@220V/50Hz (excluding PoE output power) |
| Environmental | Operating Temperature: 0 to 40 °C Storage Temperature: -20 to 60 °C Operating Humidity: 10% to 90% Non-condensing Storage Humidity: 10% to 90% Non-condensing |
| Dimensions (L x W x H) | Unit: 280 x 180 x 44mm; Package: 366 x 211 x 53mm |
| Weight | Unit: 1.58KG Entire Package: 2.18KG |
| Package | 1x Switch 1x 1.2m AC Cable Rack-mounting Standard Brackets 4x Rubber Feet 1x QIG |
| Compliance | FCC, CE, RCM, IC, UKCA |
