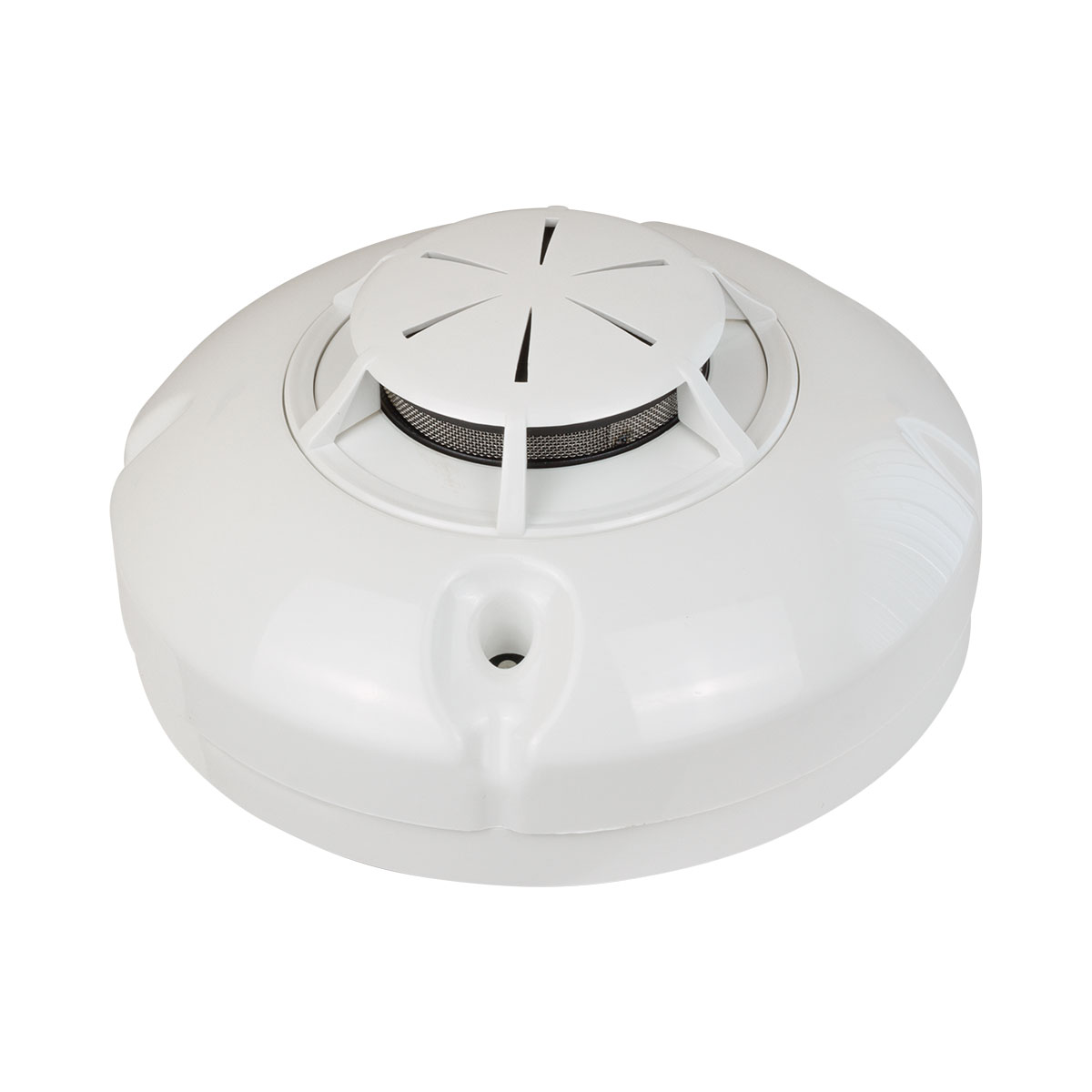

Teracom TSS8030R - smoke detector

Κωδικός προϊόντος:
TSS8030R
45,00 €
(Περιλαμβάνει ΦΠΑ 24%)
Τιμή χωρίς ΦΠΑ:
36,29 €
Άμεσα διαθέσιμο
Teracom TSS8030R - smoke detector
Υπολογισμός κόστους μεταφορικών:
Ποσότητα
Προσθήκη στο καλάθι
Κατηγορία:
Κατασκευαστής:
Εγγύηση:
36 Μήνες
Περιγραφή
Χαρακτηριστικά
Λήψεις
Περιγραφή

TSS8030R is a smoke detector, designed for early warning of a fire condition. It responds to fixed threshold smoke concentration detected in the protected rooms. The principle of functioning of the detector is based on infrared rays distraction caused by smoke particles entering the optic chamber. The smoke sensitivity is factory preset.
The fire detector is controlled by a microprocessor, operating on the basis of improved algorithm for self-compensation of the chamber contamination.

Features:
• Smoke sensitivity complies with EN 54-7:2000+ A1:2002
• Digital signal processing
• Very low current consumption
• IP30 ingress protection
• Excellent long-term stability
• LED indicators for status information

Applications:
• Server rooms smoke detection
• Fire conditions notification
• Building Management System (BMS)
• Mobile operator facilities smoke detection monitoring

The detector can be used with:
• Ethernet IO module TCW241
• Ethernet data logger TCW220
• Remote IO module TCW122B-CM
• GSM-GPRS remote monitoring controller TCG120
• Ethernet digital IO module TCW181B-CM
• IP watchdog monitoring module TCW122B-WD
• Remote environmental monitoring module TCW112-CM
• IP watchdog relay board TCW112-WD



Χαρακτηριστικά
Specifications
Supply voltage range 10 to 30 VDC
Maximum supply current at 30VDC 55 mA
Protected area circle with diameter 15 m
Height of mounting up to 11 m
Operating temperature range -10 to +55 °C
Operating humidity resistance at 40°C 93±3 %
Dimensions Ø100 mm, h 47mm
Λήψεις
