Teracom TST100S, 1-Wire temperature sensor
Teracom TST100S, 1-Wire temperature sensor

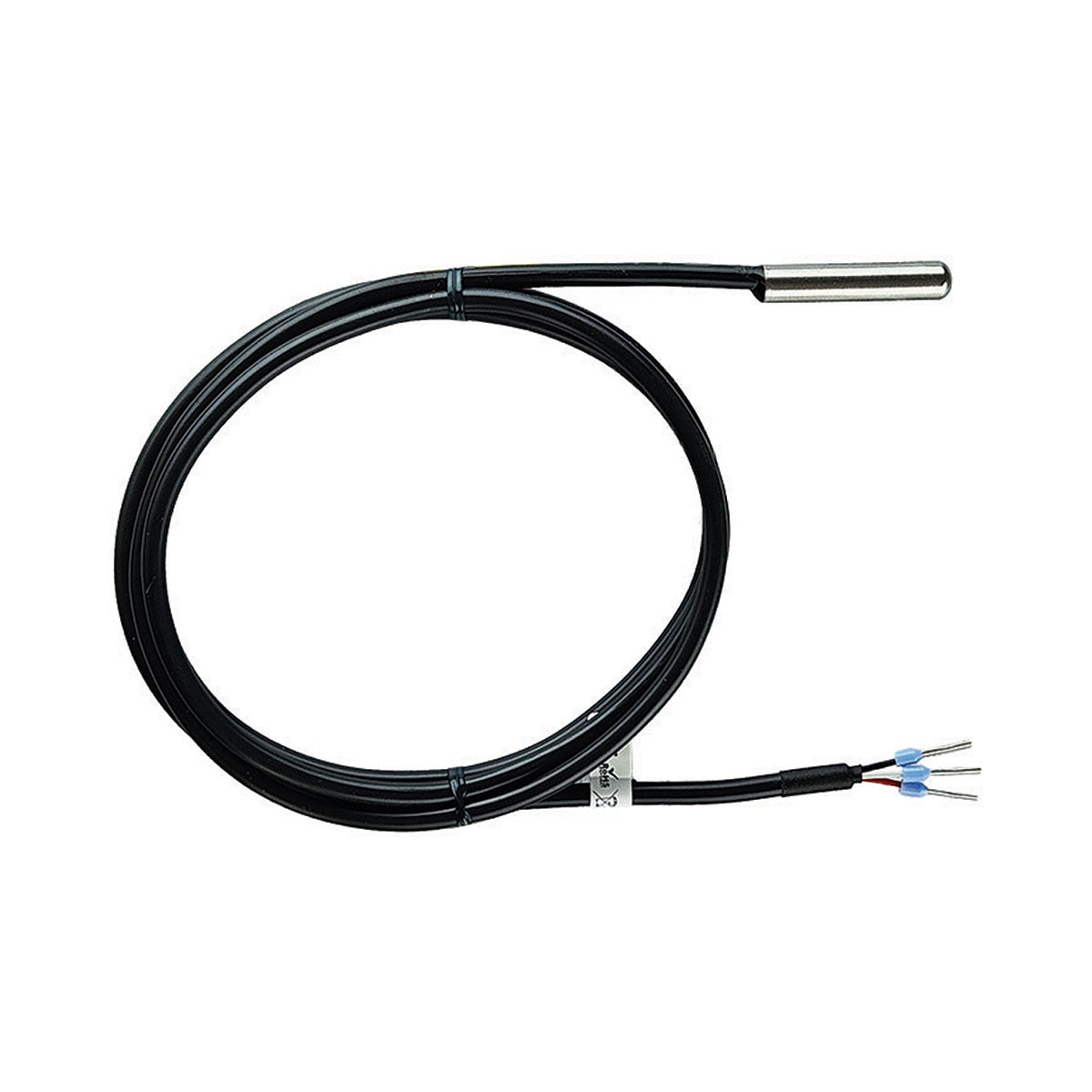

TST100S is 1-Wire temperature sensor. The temperature sensor integrates a band-gap temperature sensor element plus signals processing and provides a fully calibrated digital output. The sensor head has a cylindrical shape and is made of stainless steel. It allows direct object assembly. The direct assembly ensures low thermal resistance, respectively fast response of the system. The temperature sensor has 1 meter cable with soldered wires for direct connection to the screw terminals of controller.
Features
• ±0.5°C accuracy from -10°C to +85°C;
• 12 bits resolutions;
• Aluminum head for low thermal resistance;
• IP65 ingress protection;
• Very low current consumption;
• Each device has a unique 64-Bit serial number.
Applications
• Server room and data centers temperature monitoring and logging;
• Temperature monitoring inside buildings or machinery;
• Heating, ventilation and air conditioning (HVAC) systems;
• Process monitoring and control systems.
Usage
• Ethernet IO module TCW241
• Ethernet data logger TCW220
• Remote IO module TCW122B-CM
• IP watchdog monitoring module TCW122B-WD
• 4G LTE wireless IO module TCG120-4
| Specifications | |
| Operating range | -40 to +85 °C |
| Accuracy (max) | ± 0.5°C (-10 to 85°C) |
| Accuracy (max) | ±2.0°C (-40 to 85°C) |
| Resolution | 0.1°C |
| Supply voltage | 3 to 5.5VDC |
| Ingress protection | IP65 |
| Head's dimensions | Length - 30mm, diameter - 6mm |
| Cable length | 1m |
