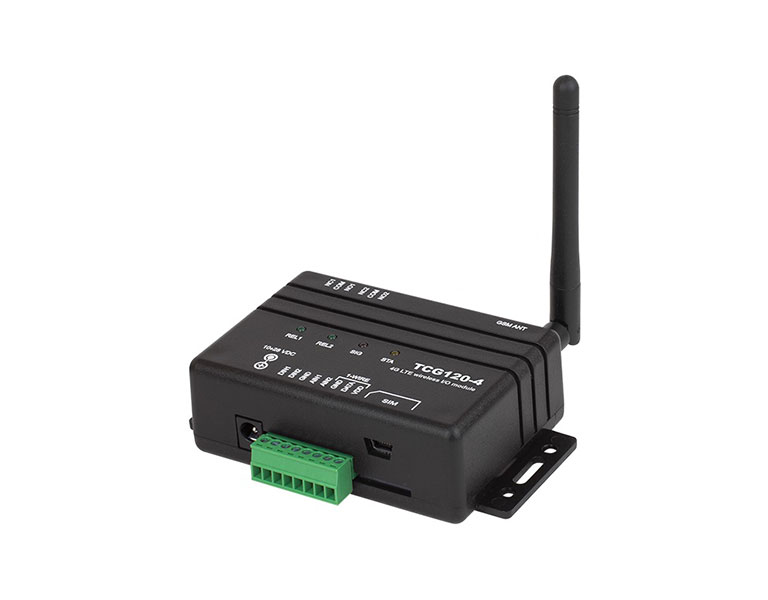

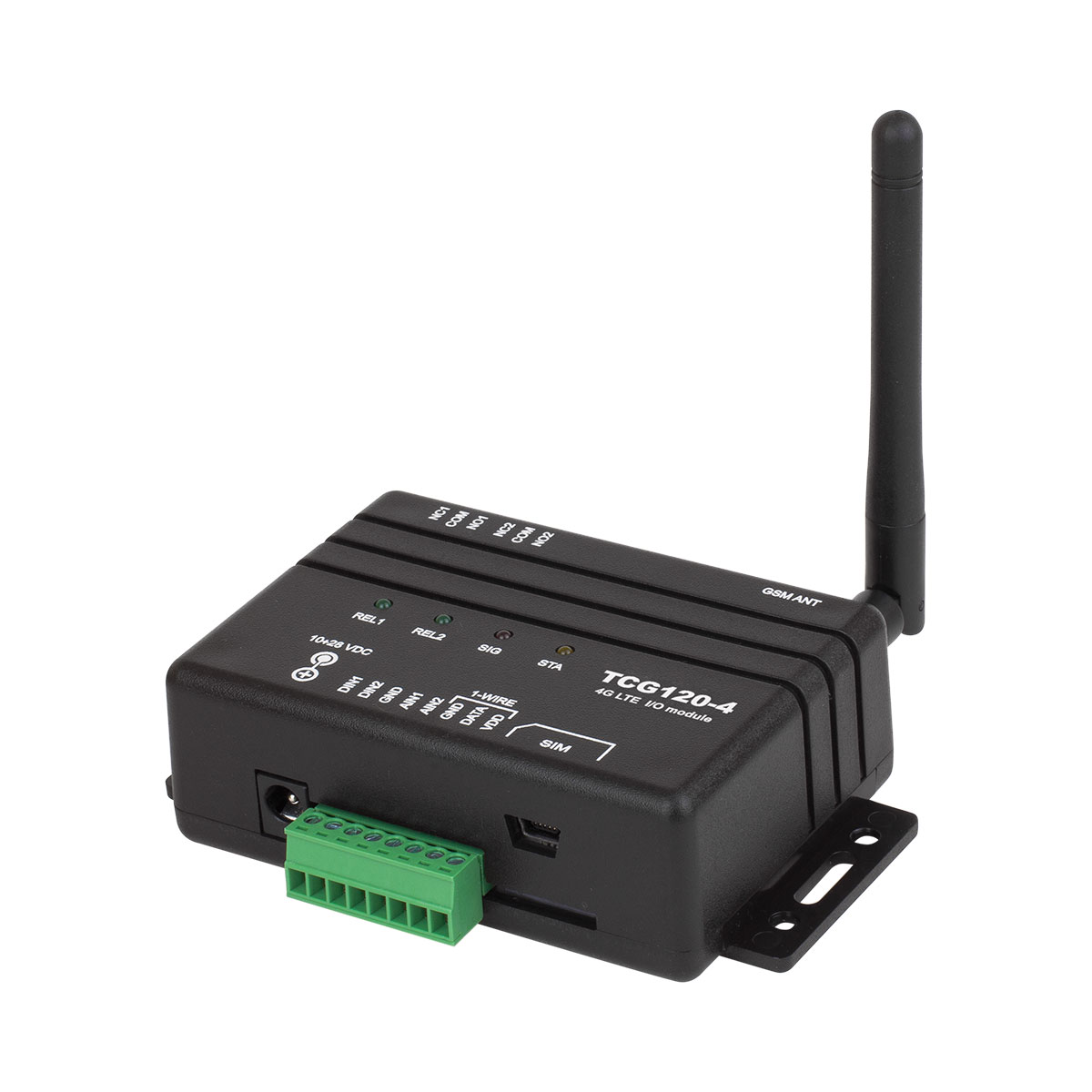

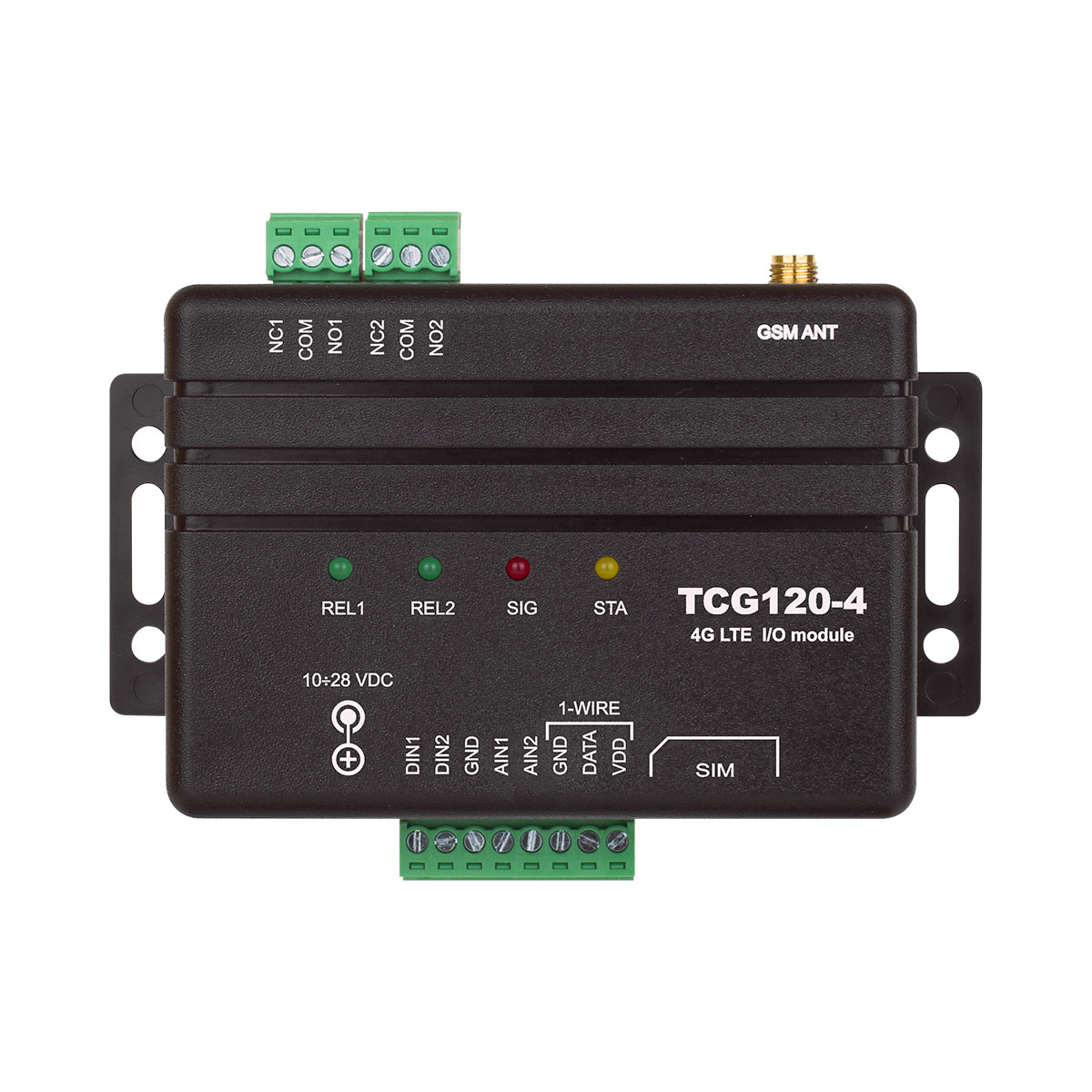

Teracom TCG120-4e 4G LTE wireless I/O module

Κωδικός προϊόντος:
TCG120-4e
244,00 €
(Περιλαμβάνει ΦΠΑ 24%)
Τιμή χωρίς ΦΠΑ:
196,77 €
Άμεσα διαθέσιμο
Teracom TCG120-4e 4G LTE wireless I/O module
Υπολογισμός κόστους μεταφορικών:
Ποσότητα
Προσθήκη στο καλάθι
Κατηγορία:
Κατασκευαστής:
Εγγύηση:
36 Μήνες
Περιγραφή
Χαρακτηριστικά
Λήψεις
Περιγραφή

TCG120-4 is a 4G LTE wireless I/O module. In addition to the 4G, the device also supports 3G and GSM-GPRS, which makes it a good choice of a last-mile module that can communicate from a point with any mobile network coverage. The choice of communication technology is automatic by default but can be fixed during the setup.
The input/output peripherals of the device include 2 digital inputs, 2 analog inputs, and two relays with normally open and normally closed contacts. In addition, the module supports a 1-Wire interface to which up to 4 Teracom sensors can be connected.
The initial setup of the device is made through the graphical interface using a standard browser. On the field, the device can be set up remotely either with SMS or HTTP API commands.
The device can operate in offline mode. In this mode, the relays can be activated by the alarm state of any of the monitored parameters – digital/analog inputs or sensors. In this way, the device can directly control some processes.
4G LTE wireless I/O module may be part of supervisory control and data acquisition (SCADA) systems. For this purpose, the supported protocols for M2M communication are used – HTTP API and MQTT.
In the case of HTTP API is used, the module periodically sends its whole status via XML or JSON file. While if MQTT is used, only a specific parameter can be sent. MQTT is optimized to work on networks with even the scarcest of bandwidth.

*Προσοχή. Οι Ethernet Controllers της Teracom, δεν περιλαμβάνουν τροφοδοτικό στη συσκευασία τους και σε περίπτωση αγοράς, θα πρέπει να παραγγείλετε τροφοδοτικό χωριστά εάν δε διαθέτετε ήδη κάποιο συμβατό τροφοδοτικό.

Features:
• 4G LTE, 3G, and 2G connectivity
• Setup via WEB interface through the USB
• 2 digital ("dry contact") inputs
• 2 analog input with 0 to 60VDC range
• 2 relay output with normally open and normally closed contacts
• 1-Wire support for up to 4 Teracom sensors
• SMS alarm alerts (up to 5 numbers)
• TLS over SMTP support
• Email alarm alerts (up to 5 email recipients)
• GSM Geolocation*
• MQTT support
• Periodical HTTP Post with XML/JSON status file
• Remote setup with HTTP API or SMS commands
• Firmware update over the air

Applications:
• Remote control of street lighting
• Environmental monitoring of agriculture sites
• Remote control of railway facilities
• GSM geolocation of refrigerators
• Remote control of water pumps
• Remote monitoring and control of distant facilities

Supported sensors:

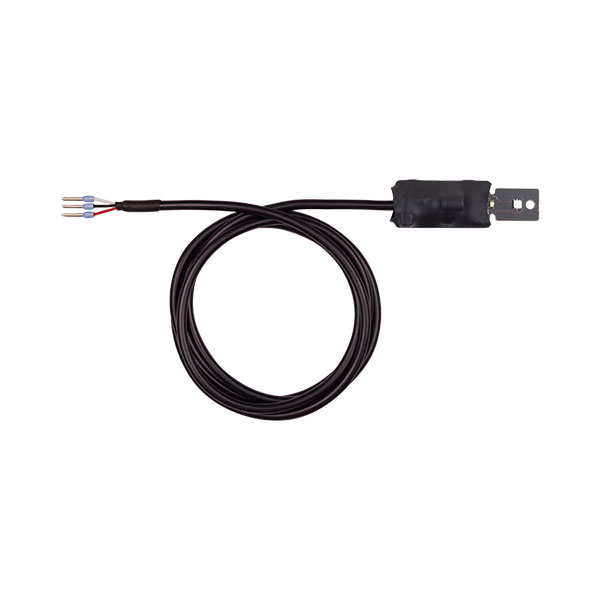

 1-Wire humidity and temperature sensor TSH202
• 1-Wire temperature sensor TST100
• 1-Wire galvanic isolated AC/DC current sensor TSC200
• 1-Wire temperature sensor TST103
• 1-Wire humidity and temperature sensor TSH206
• 1-Wire galvanic isolated voltage sensor TSV200

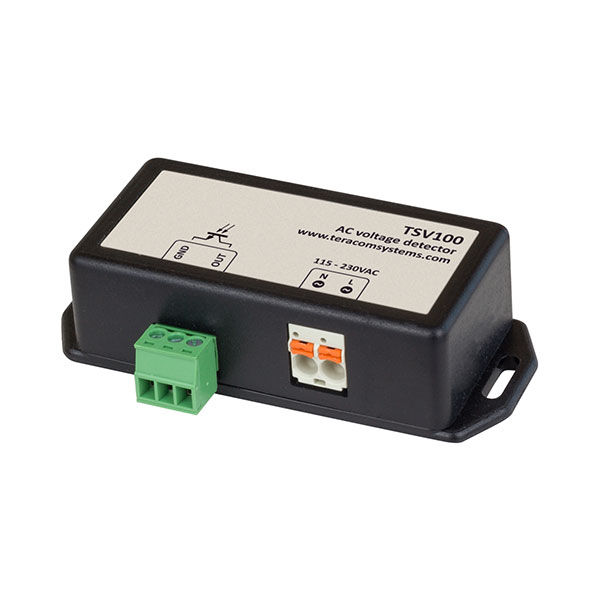

• AC voltage detector TSV100

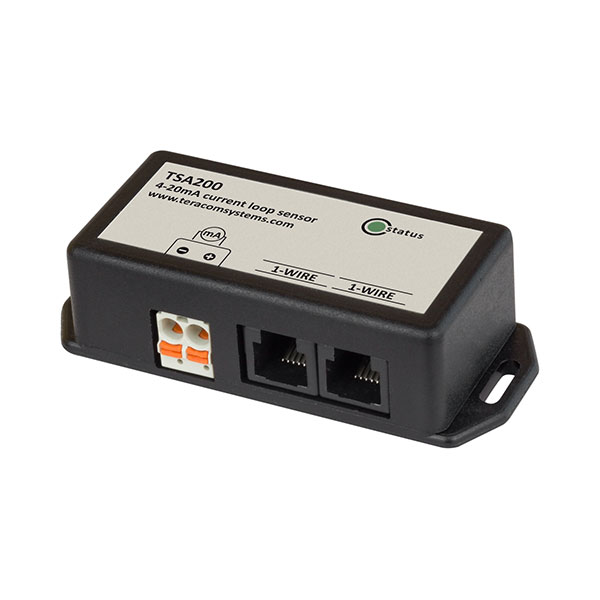

• 4/20mA current loop transmitter with 1-Wire interface TSA200



Χαρακτηριστικά
Specifications
Dimensions 109 x 65 x 32 mm
Operating temperature -20 to 55°C
Operating temperature for USB setup 0 to 40°C
Storage temperature -25 to 60°C
Ambient Relative Humidity 5 to 85% (non-condensing)
Memory Internal FLASH memory
Endurance 100 000 cycles (Every relay status and settings change is a memory cycle)
Standards and Certifications
Safety

EN 62368-1:2014 + EN 62368-1:2014/AC1-3:2015 + EN 62368-1:2014/A11:2017 +
EN62368-1:2014/AC:2017-03:2017,EN 62311:2008

EMC EN 55032: 2015 + EN 55032: 2015/AC:2016-07 + EN 55032: 2015/A11:2020 EN 55024: 2010 + EN 55024: 2010/A1:2015 EN 61000-3-2: 2014 EN 61000-3-3: 2013 + EN 61000-3-3: 2013/A1:2019
RFU EN 301 489-19 V2.1.1, EN 301511 V12.5.1, EN 301 908-1 V11.1.1, EN 301 908-13 V11.1.2, EN 301 908-2 V11.1.2, EN 303 413 V1.1.1
Green RoHS
Power supply
Operating voltage range (including -15/+20% according to IEC 62368-1) 10 to 28 VDC
Current consumption 0.24A @ 12VDC
Cellular interface
Standards LTE-FDD, DC-HSDPA, HSPA+, HSDPA, HSUPA, WCDMA, EDGE and GPRS
Bands 4G LTE: B1/B3/B7/B8/B20/B28
3G: B1/B8
2G: B3/B8
SIM card size Standard
Antenna connector SMA-F
Analog inputs
Type Single-ended
Resolution 10 bits
Input Range 0 to 60 VDC
Accuracy ±1%
Sampling Rate 500ms per channel (averaged value of 250 samples)
Input Impedance 1 mega-ohm (min.)
Digital inputs
Type Dry contact and logic level
Minimum high-level input voltage for digital inputs +2.5VDC
Maximum low-level input voltage for digital inputs +0.8VDC
Maximum input voltage for digital inputs +5.5VDC
Sampling rate 10ms
Digital filtering time period 30ms
Relay outputs*
Type Form C (N.O. and N.C. contacts)
Contact current rating 3 A @ 24 VDC, 30 VAC (resistive load)
Initial insulation resistance 100 mega-ohms (min.) @ 500 VDC
Mechanical endurance 10 000 000 operations
Electrical endurance 100 000 operations @ 3 A resistive load
Contact resistance 50 milli-ohms max. (initial value)
Minimum pulse output 0.1 Hz at rated load
1-Wire interface
Output voltage 5.0 ± 0.3 VDC
Maximum output current 200 mA
Endurance

* CAUTION: The device does not contain any internal overcurrent protection facilities on the relays’ contact lines. External fuses or short circuit current limiting circuit breakers, rated to 3 Amps, are to be used for overcurrent protection of the connecting lines.
