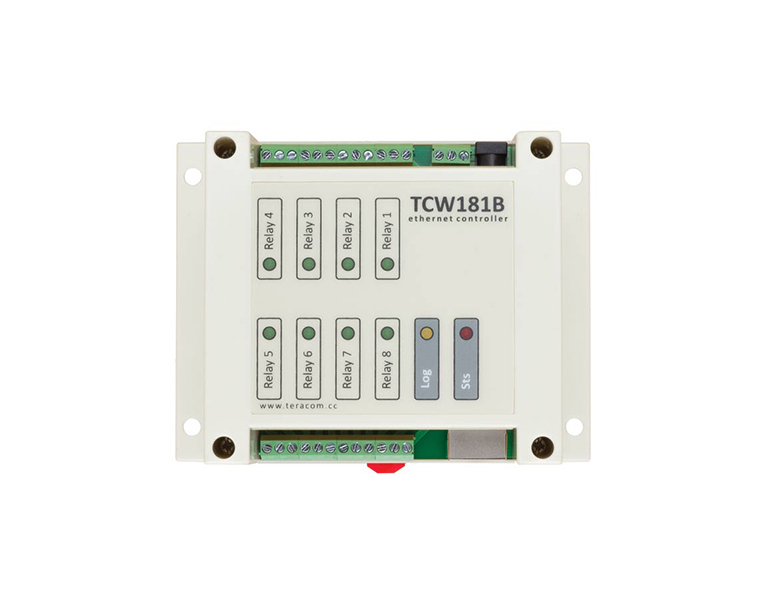

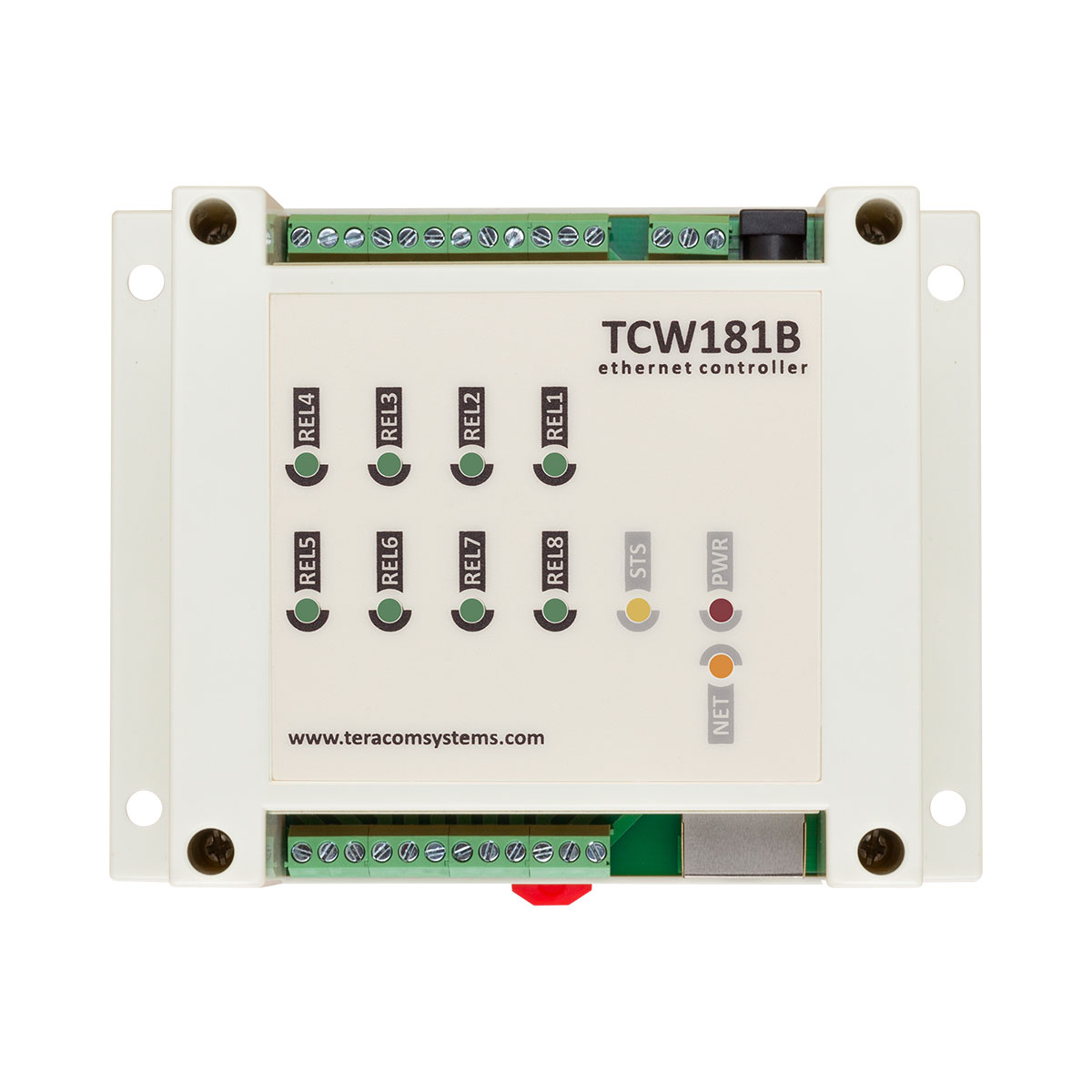

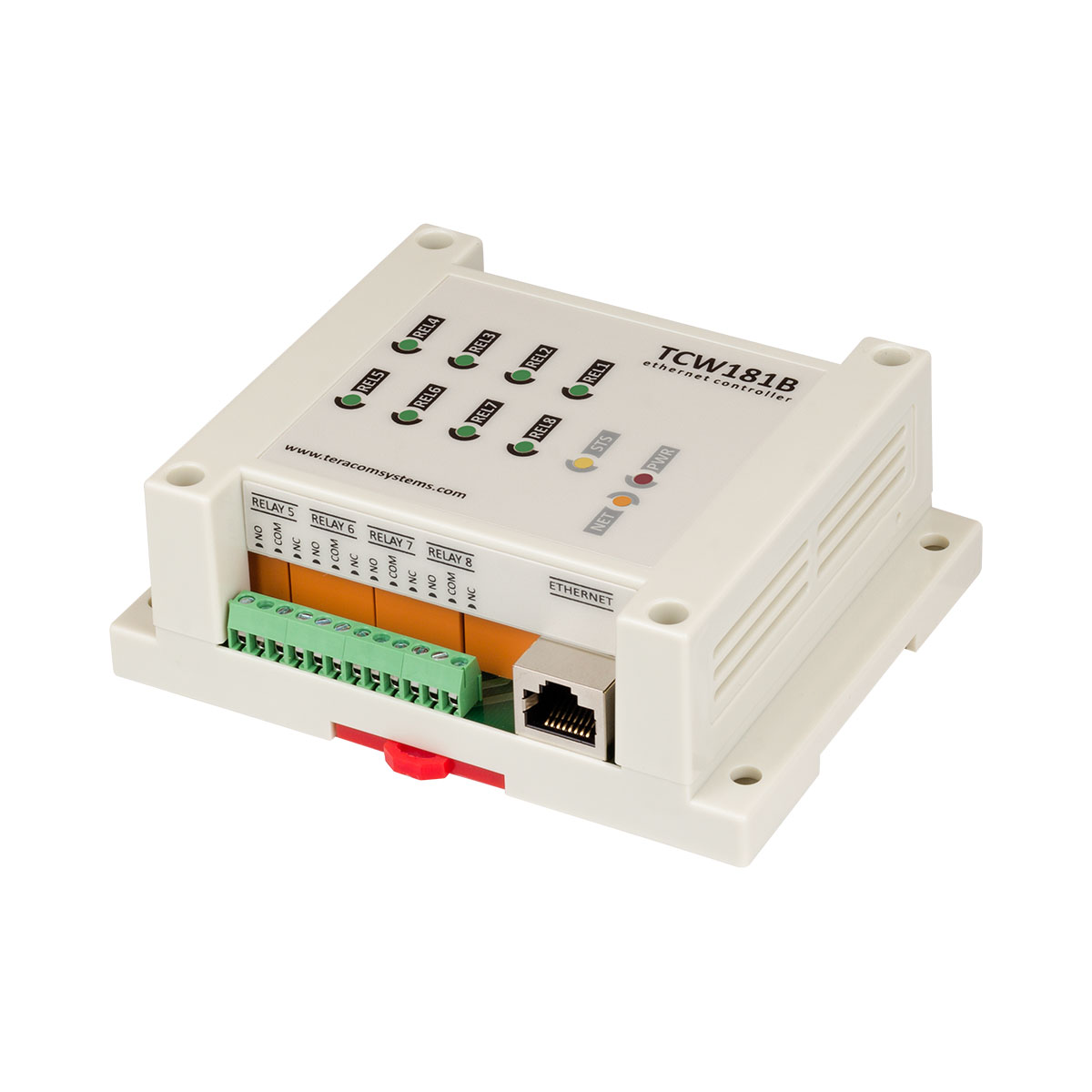

Teracom TCW181B-CM - Control and monitoring
TCW181B-CM is 8-channel Ethernet relay unit. The device is manageable by WEB interface, SNMP programs or user application over HTTP/XML API commands. It can be used as stand-alone device or as a part of control and monitoring systems.
Ethernet relay unit TCW181B-CM utilizes 8 relays with normally open and normally closed contacts for up to 3 Amperes either AC or DC current. All eight relays of the device can be activated independently or simultaneously.
TCW181B-CM supports one digital input, which can work either in “dry contact” or “logic level” modes. The mode is hardware selectable by jumper close to the input. Every change of status of the input can generate an e-mail or SNMP trap if this function is enabled.
*Προσοχή. Οι Ethernet Controllers της Teracom, δεν περιλαμβάνουν τροφοδοτικό στη συσκευασία τους και σε περίπτωση αγοράς, θα πρέπει να παραγγείλετε τροφοδοτικό χωριστά εάν δε διαθέτετε ήδη κάποιο συμβατό τροφοδοτικό.
Features:
• Password protected web based configuration and control
• 1 digital input with “dry contact” and “logic level” modes
• 8 relay outputs with NO and NC contacts
• SNMP v.1 support
• SNMP traps sending for alert conditions
• E-mail sending for alert conditions
• SMTP with authentication (SSL/TLS is not supported)
• XML and HTTP API commands
• Remote firmware update
• Rugged DIN-Rail/wall-mountable enclosure
Applications:

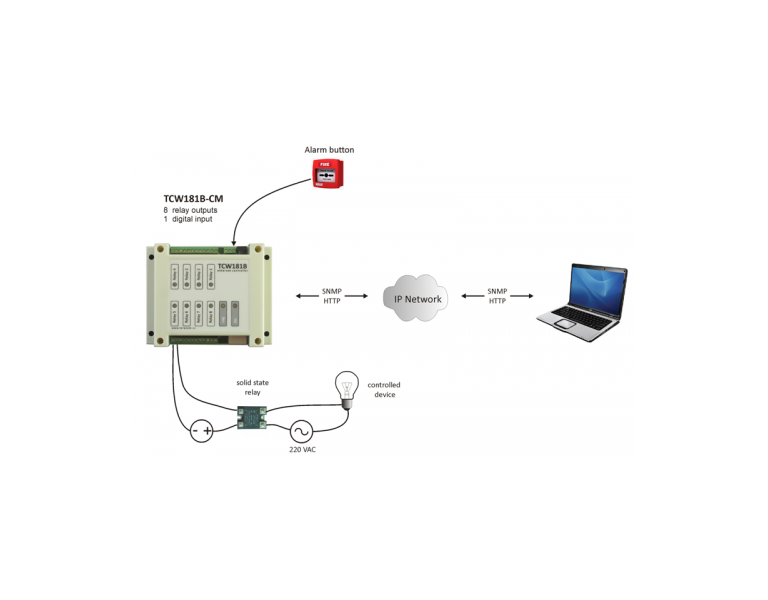

• Remote relay control of electric devices
• Home and office alarm systems
• Industrial process automation
• Output energy control of the wind and solar power systems
Supported sensors:
• AC voltage detector TSV100
• Smoke detector TSS8830R
• Magnetic door sensor TSD800
