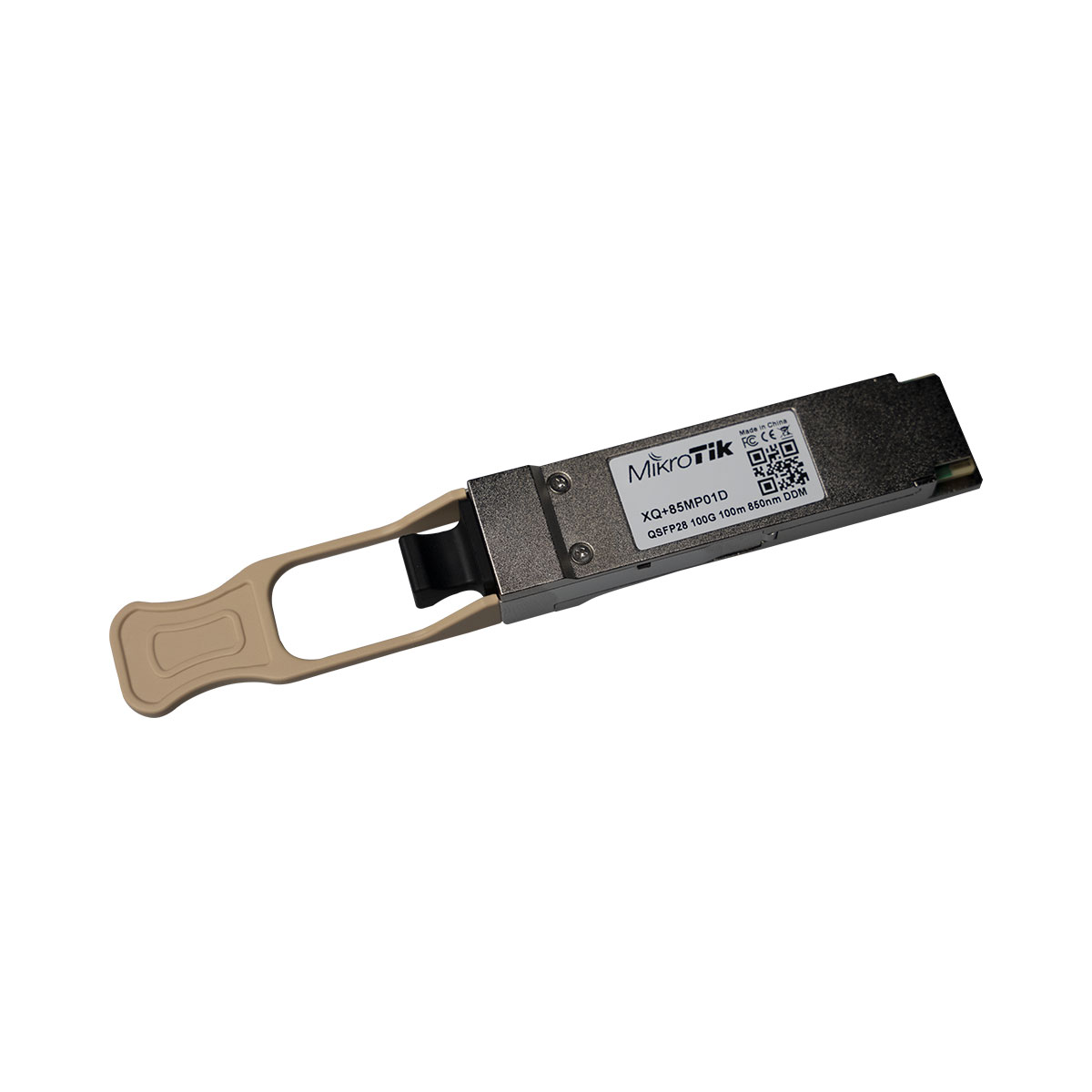

MikroTik XQ+85MP01D QSFP28 optical module, SM, 100m, 850nm
Κωδικός προϊόντος:
XQ+85MP01D
100,00 €
(Περιλαμβάνει ΦΠΑ 24%)
Τιμή χωρίς ΦΠΑ:
80,65 €
Άμεσα διαθέσιμο
MikroTik XQ+85MP01D QSFP28 optical module, SM, 100m, 850nm
Υπολογισμός κόστους μεταφορικών:
Ποσότητα
Περιγραφή
Χαρακτηριστικά
Λήψεις
Περιγραφή
Add this QSFP module for distances up to 100 meters to your CCR2216, CRS504 or CRS518 setups and enjoy real speed and ultimate reliability. This optical module offers four independent full-duplex channels with up to 25 Gbps per channel bandwidth and an aggregate bandwidth of 100 Gbps. The module has built-in digital diagnostic functions such as optical power monitoring.
Χαρακτηριστικά
| Specifications | |
| Product code | XQ+85MP01D |
| Format | QSFP28 |
| Connector | 1 x 12 MTP/MPO |
| Max data rate | 100G |
| Mode | Multi mode |
| Temperature | 0°C .. +70°C |
| Wavelength | 850nm |
| Distance | 100 m |
| Optical characteristics | |
| Transmitter | |
| Output optical power (Avg.) | Min. -8.4 dBm Max. 2.4 dBm |
| Receiver | |
| Rx sensitivity (Avg.) | Max. -5.2 dBm |
| Max received pwr | Min. 3.4 dBm |
| LOS de-assert(Avg.) | Max. -13 dBm |
| LOS assert (Avg.) | Min. -30 dBm |
